Description

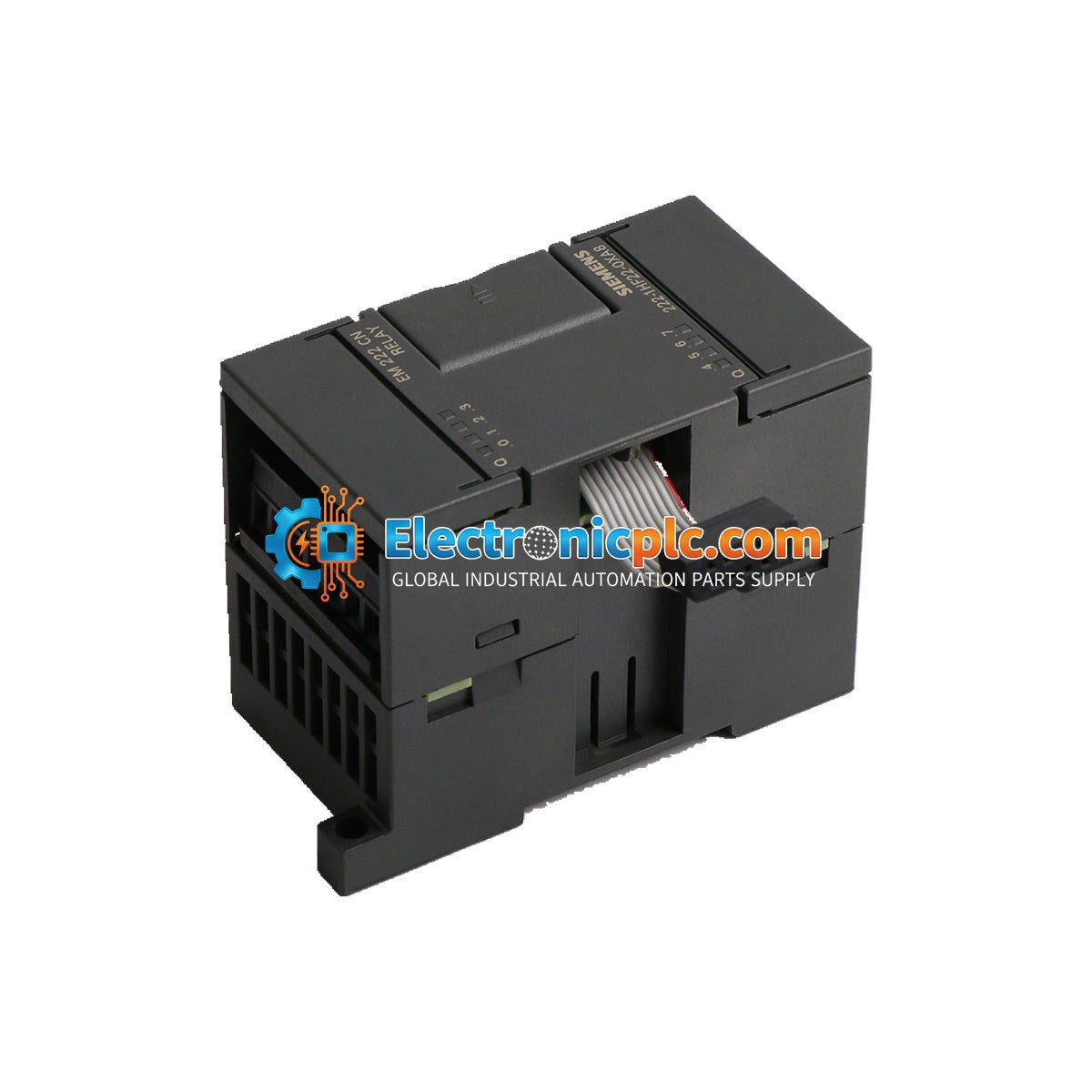

The Siemens 6ES7222-1HF22-0XA8 is a digital output expansion module designed for the SIMATIC S7-200 programmable logic controller (PLC) system. This module provides 8 relay-based digital outputs, allowing for the switching of external loads in industrial automation applications. It is engineered to integrate seamlessly into the S7-200 architecture, providing reliable signal control for actuators, contactors, and other field devices.

Features

• 8-channel digital output capability.
• Relay output type for versatile load switching.
• Rated output current of 2 A per channel.
• Compact design optimized for space-constrained control cabinets.
• Low power loss (typically 2 W) for efficient operation.

Applications

This module is widely used in small-to-medium scale automation tasks, including machine control, conveyor systems, lighting control, and general industrial process automation where relay isolation is required between the PLC and the field equipment.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before installing or removing the module.
• Mount the module on a standard 35mm DIN rail or directly on the panel as per the S7-200 system configuration.
• Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
• Ensure all wiring is securely terminated to the screw terminals; verify that load currents do not exceed the 2 A per channel rating.
• Use shielded cables where necessary to minimize electromagnetic interference (EMI) in high-noise environments.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to internal electronics.

FAQ

What type of outputs does the 6ES7222-1HF22-0XA8 provide?

This module features 8 relay outputs, which are ideal for switching AC or DC loads that require galvanic isolation from the PLC circuitry.

Is this module compatible with all S7-200 CPUs?

The 6ES7222-1HF22-0XA8 is designed for the SIMATIC S7-200 series. Please verify your specific CPU firmware and hardware revision to ensure compatibility with expansion modules.
