Description

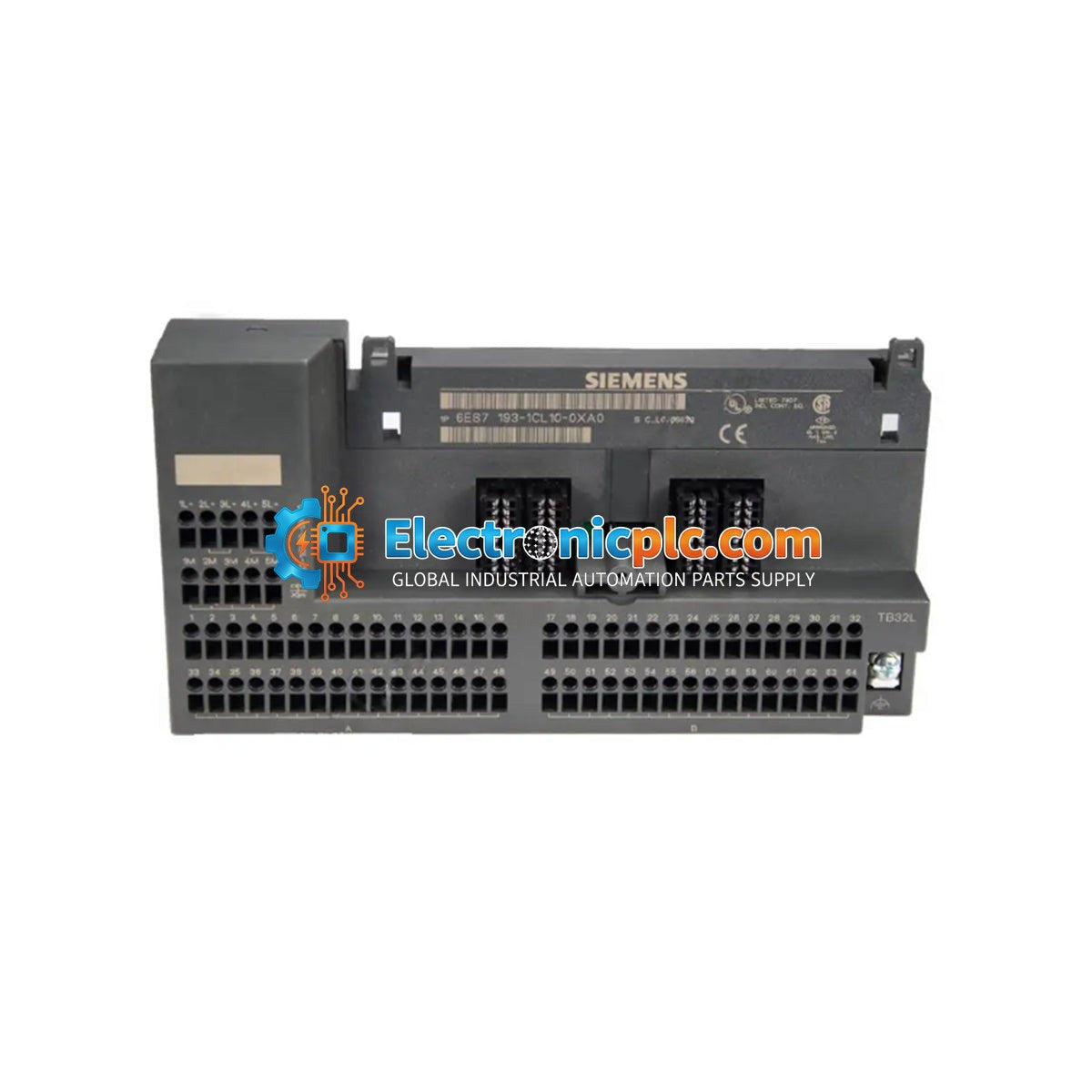

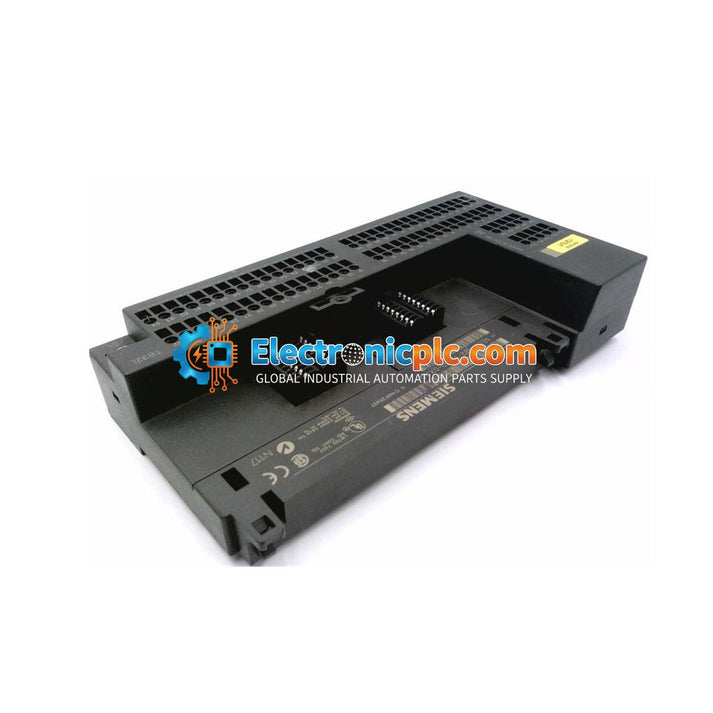

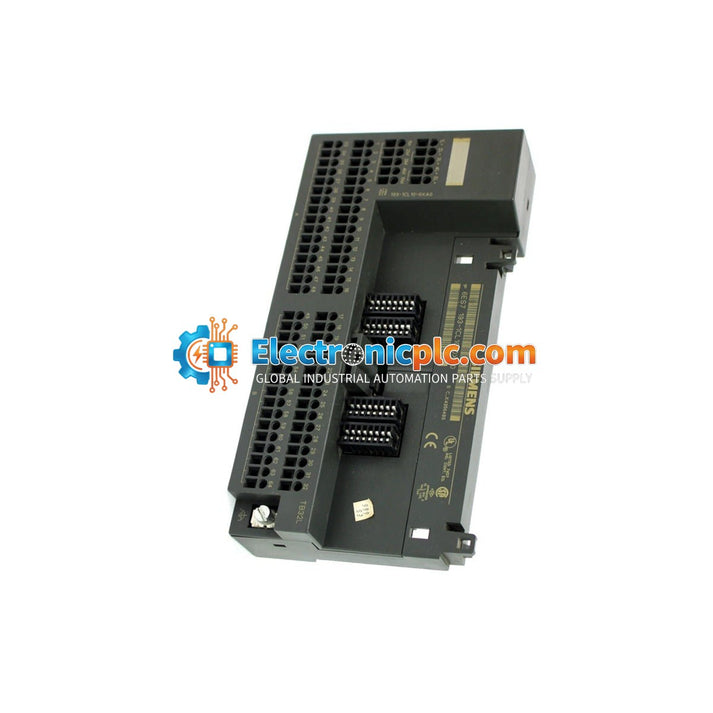

The Siemens 6ES7193-1CL10-0XA0, also known as the TB32L, is a high-density terminal block designed for the SIMATIC ET 200L distributed I/O system. This component provides the necessary physical connection interface for 32 channels, facilitating reliable signal wiring for industrial automation applications. It is engineered to support the modular structure of the ET 200L series, ensuring efficient installation and maintenance of field-level I/O.

Features

• Designed for integration with the SIMATIC ET 200L distributed I/O system.
• Provides 32 connection channels for high-density signal management.
• Equipped with robust screw-type terminals with integrated clamping units for secure wire retention.
• Supports a wide range of wire gauges from 0.25 to 2.5 mm² (24-12 AWG).
• Rated for 250V AC/DC operation with a current capacity of 4A per channel.

Applications

This terminal block is primarily used in industrial automation environments where the SIMATIC ET 200L system is deployed for remote I/O processing. It is suitable for manufacturing lines, process control systems, and machine automation where high-density, space-saving wiring solutions are required for digital or analog signal distribution.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the terminal block to prevent electrical shock or damage to the I/O modules.
• Mount the unit securely within the ET 200L system housing, ensuring proper alignment with the backplane or module interface.
• Use appropriate wire stripping lengths as specified by the terminal block design to ensure full contact within the clamping unit.
• Verify that all screw terminals are tightened to the recommended torque to prevent loose connections, which can cause intermittent signal failure or overheating.
• Maintain proper cable routing to minimize EMI interference, keeping signal cables separated from high-voltage power lines.
• Ensure the operating environment remains within the specified temperature range of -20 degC to +60 degC to maintain component longevity.

FAQ

Is the 6ES7193-1CL10-0XA0 compatible with other ET 200 series?

This specific terminal block (TB32L) is designed for the ET 200L system. Compatibility with other ET 200 series (such as ET 200S or ET 200MP) is not supported; please verify your specific system part number before installation.

Does this module require external power?

The terminal block itself acts as a passive connection interface for the I/O signals. Power requirements are determined by the connected ET 200L electronic module and the field devices being powered through the terminal block.
