Description

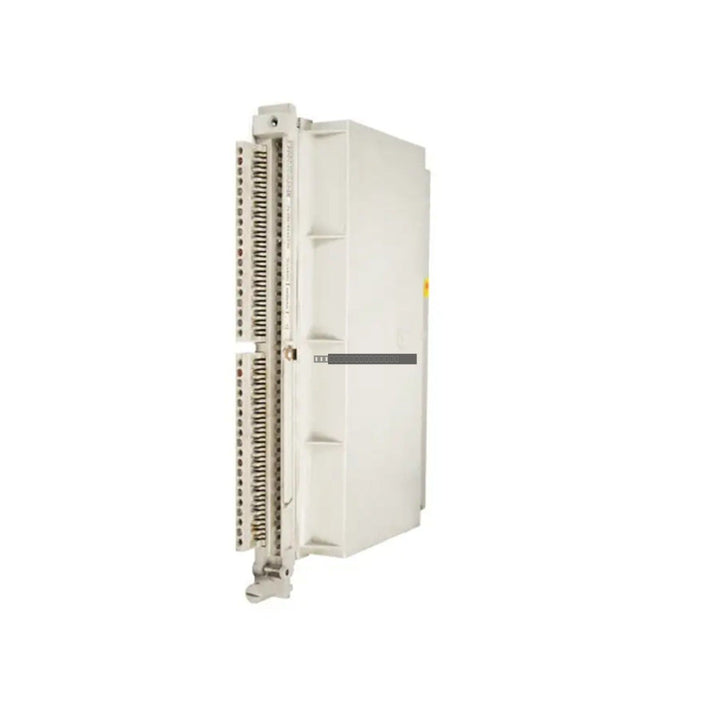

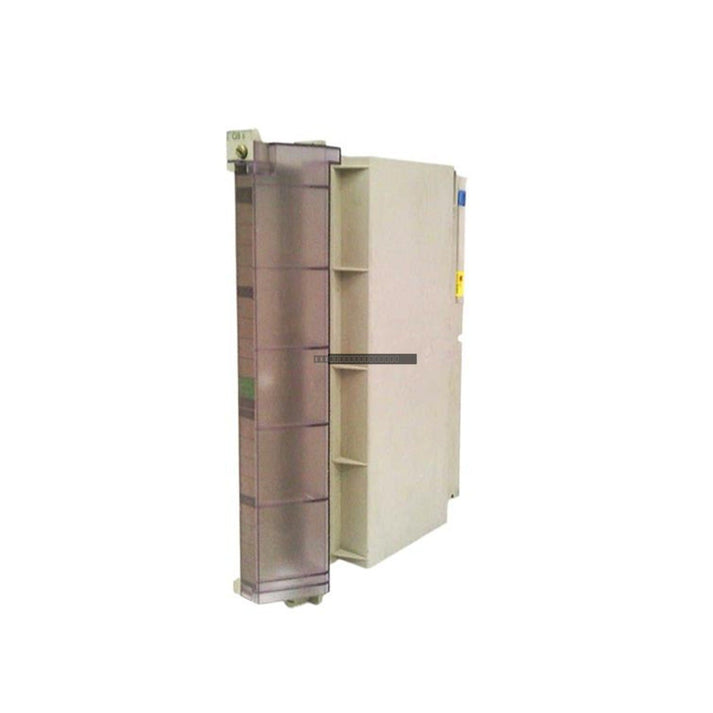

The Siemens 6ES5454-4UA12 is a high-current digital output module designed for the Simatic S5-135/155 automation systems. This module provides 16 isolated output channels capable of driving heavy-duty industrial loads such as solenoid valves, contactors, and actuators directly. By supporting 2 A per channel at 24 VDC, it reduces the need for intermediate relay stages, thereby streamlining control cabinet architecture and improving overall system reliability in demanding industrial environments.

Features

• 16-channel digital output configuration for high-density control.
• High-current switching capacity of 2 A per channel at 24 VDC.
• Integrated short-circuit and thermal overload protection for enhanced safety.
• Built-in free-wheeling diode clamping to suppress inductive back-EMF transients.
• Optocoupler isolation between field-side signals and the internal logic bus.
• Real-time diagnostic feedback to the central processor for rapid fault detection.

Applications

This module is engineered for use in complex automation networks, including power plant turbine control, mineral processing, petroleum refining, and large-scale material handling conveyor systems where direct high-current switching is required.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the rack slot and secured with the provided locking mechanisms.
• Use shielded cabling for field connections to minimize EMI interference in high-noise industrial environments.
• Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified 0 to 60 deg C range.
• Follow standard ESD handling procedures when touching the module backplane connectors.

FAQ

Is this module compatible with S5-115U systems?
The 6ES5454-4UA12 is specifically designed for the S5-135/155 series. Please verify your rack backplane compatibility before installation.

Does this module require external power for the outputs?
Yes, the module requires a 24 VDC supply to drive the field-side output loads, while the internal logic is powered by the backplane bus.
