Description

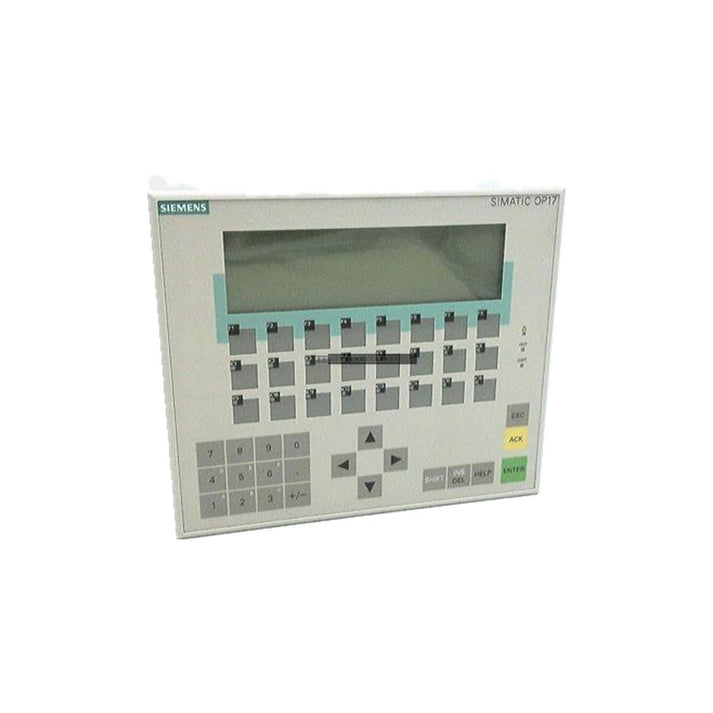

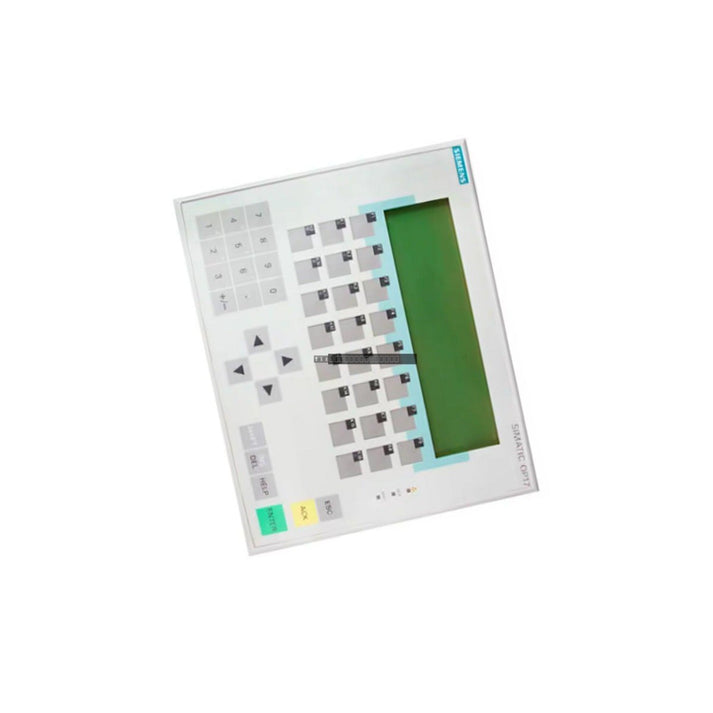

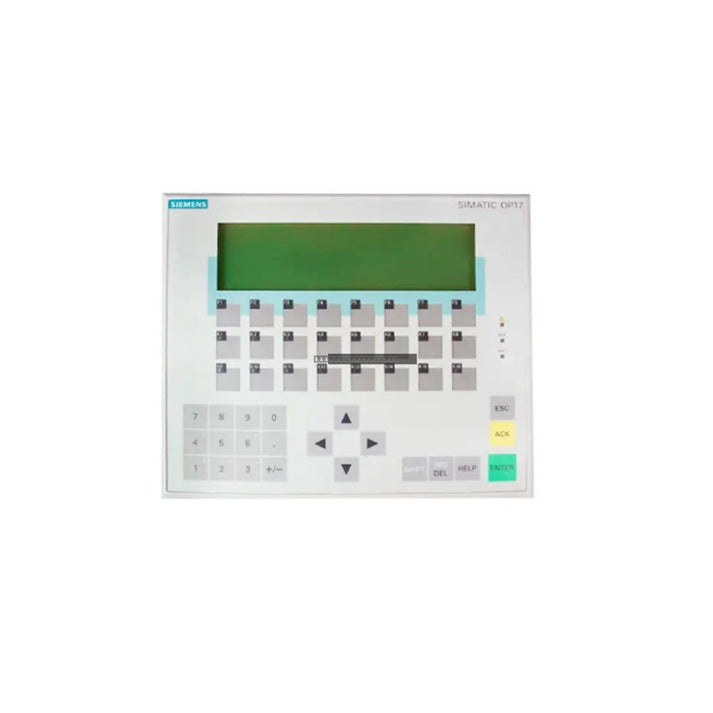

The Siemens 6AV3617-1JC00-0AX2 is an OP17/PP operator panel designed for human-machine interface (HMI) tasks within Simatic S5 automation systems. This unit provides essential visualization, status monitoring, and parameter adjustment capabilities directly at the machine level. It is built to withstand demanding industrial environments, offering reliable performance for alarm management, recipe handling, and manual system overrides in sectors such as chemical processing, power generation, and mining.

Features

• Integrated LC display with LED backlighting for high-contrast visibility and extended service life.
• Tactile function and system keys engineered for high-frequency use, including operation while wearing industrial gloves.
• Supports serial communication via TTY, RS232, and RS485 interfaces.
• Compatible with Simatic S5 AS511 protocol and Profibus network integration.
• Onboard microprocessor for localized menu rendering and alarm evaluation, minimizing the communication load on the connected PLC.
• Rugged front enclosure designed to protect internal electronics from dust and moisture ingress.

Technical Specifications

Installation Guidelines

• Ensure the control cabinet provides adequate ventilation to maintain operating temperatures within the 0 to 50 deg C range.
• Mount the panel in a cutout that meets the manufacturer's specified dimensions to ensure the front seal maintains its ingress protection rating.
• Use shielded cables for serial communication (RS232/RS485) to minimize electromagnetic interference (EMI) from high-voltage lines or variable frequency drives.
• Always disconnect power before performing any wiring changes or removing the module from the mounting surface.
• Ensure the unit is properly grounded according to local electrical safety standards to prevent static discharge damage.

FAQ

Is this operator panel compatible with modern S7 PLCs?

The 6AV3617-1JC00-0AX2 is specifically designed for the Simatic S5 series and utilizes the AS511 protocol. While it is a robust HMI for legacy S5 architectures, it is not natively designed for modern S7-series communication protocols without specific gateway hardware.

What type of maintenance does the OP17 require?

The unit is largely maintenance-free. However, it is recommended to periodically inspect the front seal for signs of degradation and ensure the ventilation paths around the cabinet are clear of debris to prevent overheating.
