Description

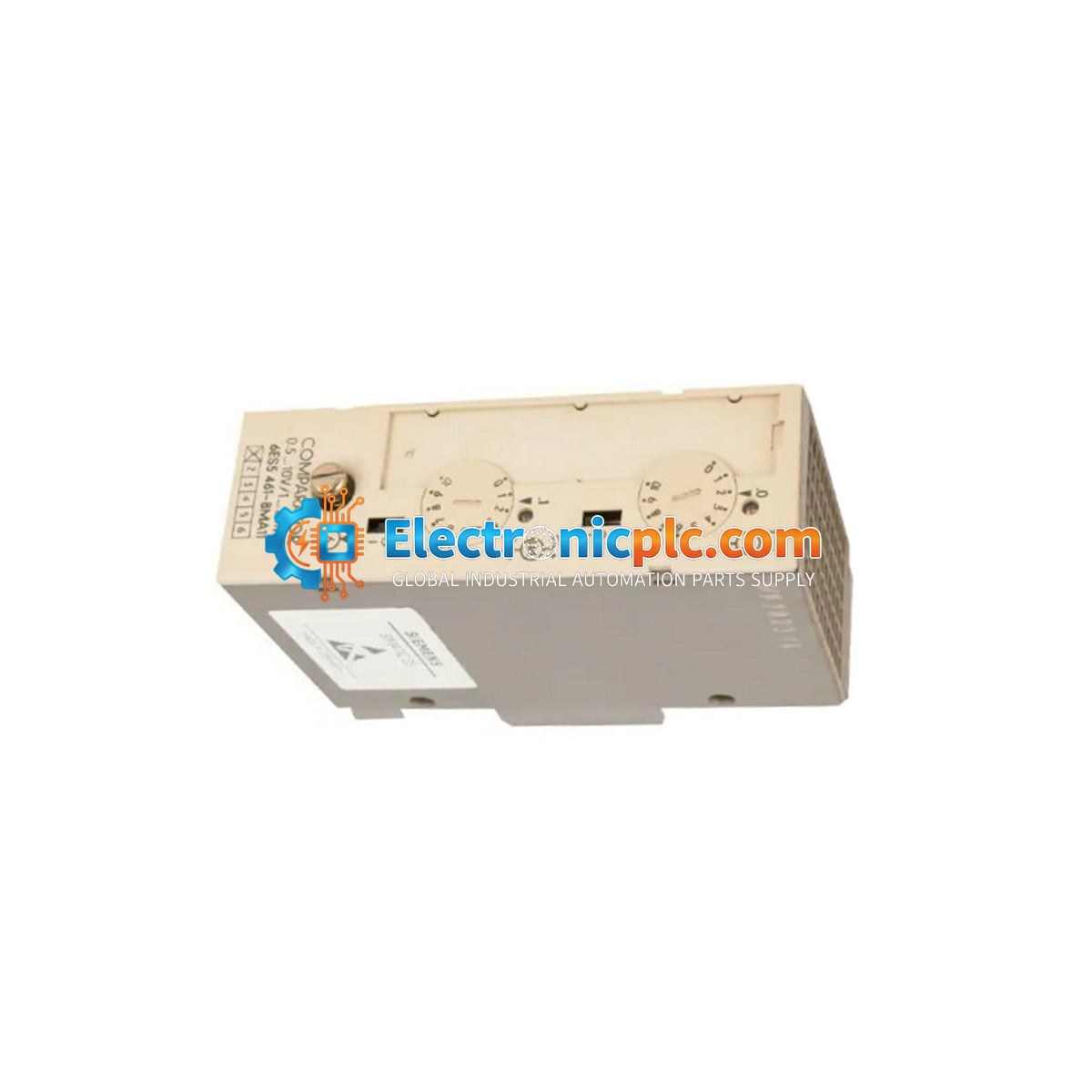

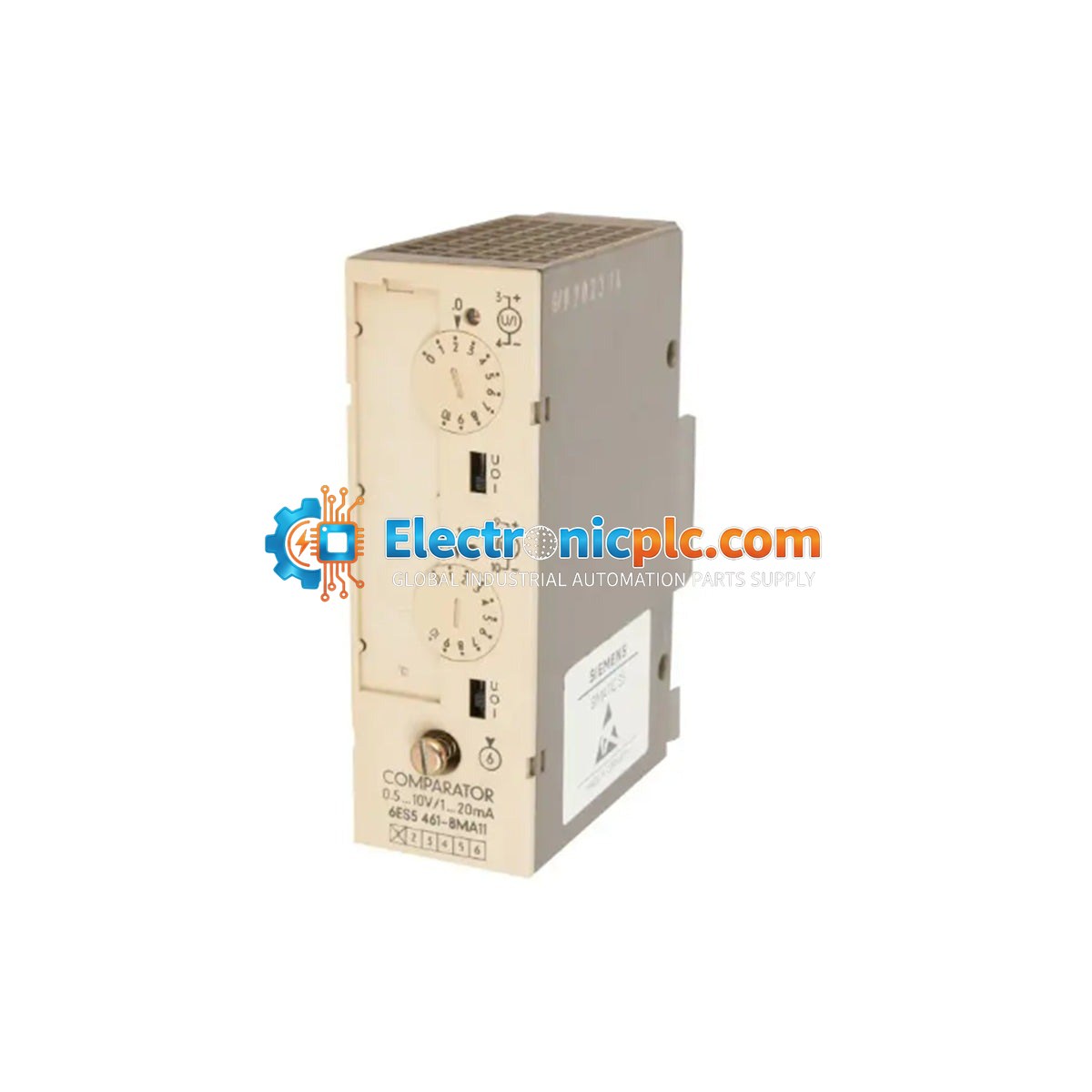

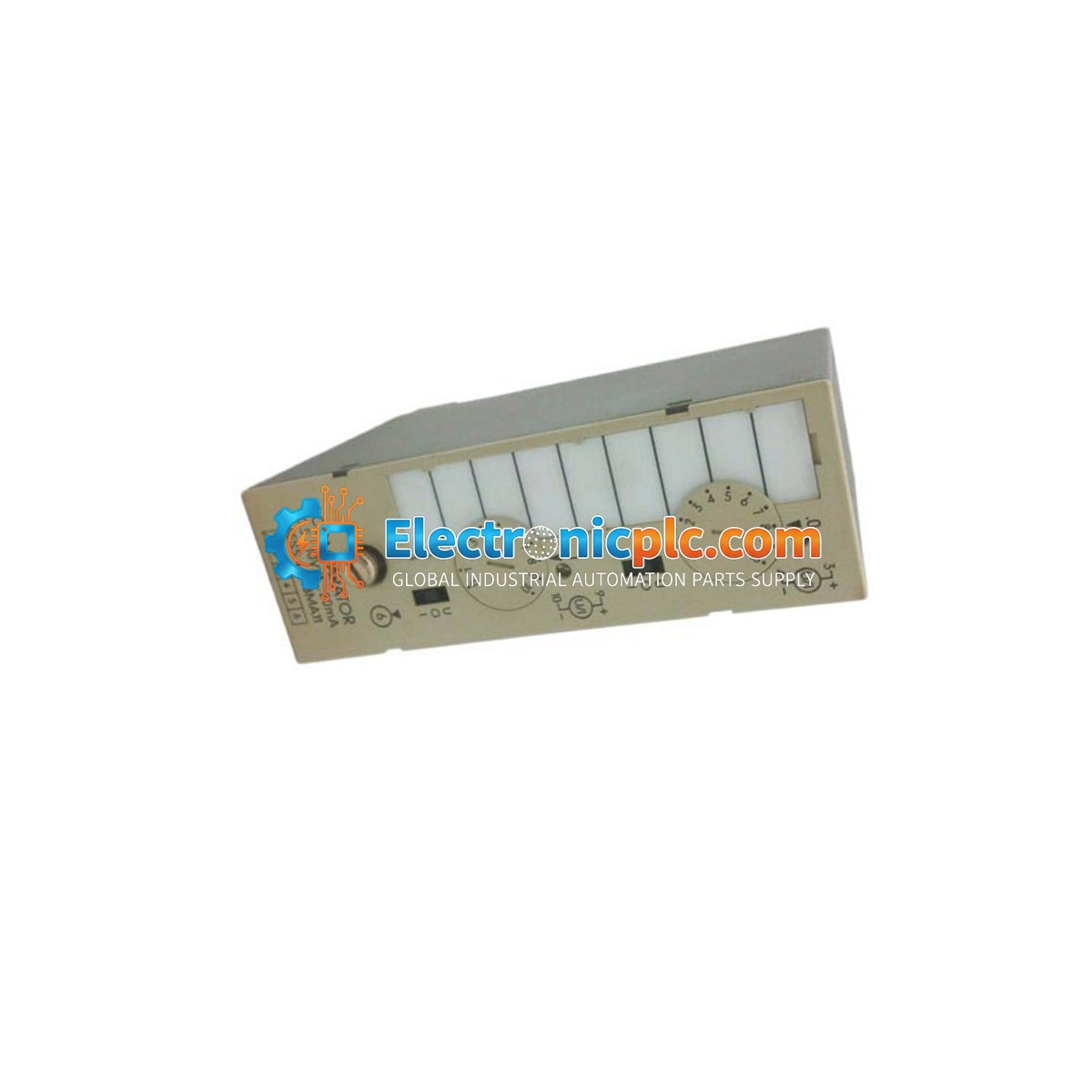

The Siemens Simatic S5 6ES5461-8MA11 is a high-precision analog comparator module engineered for the Siemens Simatic S5-090, S5-095, and S5-100 system architectures. This module provides a 2-point isolated differential input structure, enabling real-time, hardware-level voltage threshold evaluation that operates independently of standard software application execution loops. It is widely utilized in continuous process industries, including petrochemical refining, pharmaceutical blending, and thermal power plant monitoring, to detect instantaneous pressure or temperature boundary breaches. By executing rapid hardware interrupts during critical process deviations, this component serves as a critical buffer against equipment damage and unplanned operational downtime.

Features

• 2-point isolated differential input structure for reliable signal monitoring.
• Galvanic optocoupler insulation between input channels and backplane logic to prevent ground loops.
• Hardware-level threshold evaluation for high-speed fault detection.
• Integrated low-pass hardware filtering to suppress high-frequency line noise.
• Compact design suitable for standard DIN rail or subrack installation.
• High electromagnetic compatibility (EMC) for operation in dense electrical cabinets.

Applications

This comparator module is typically deployed in applications requiring immediate analog limit verification, such as:

• Critical pressure and temperature monitoring in industrial processes.
• Safety-related boundary breach detection in chemical and pharmaceutical plants.
• Rapid hardware-level interrupt triggering in thermal power generation systems.
• Signal conditioning and isolation for legacy Simatic S5 control environments.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the rack.
• Use shielded cabling for analog inputs to minimize EMI interference in high-noise environments.
• Verify that the module is securely seated in the backplane to ensure proper electrical contact.
• Maintain adequate clearance around the module to allow for proper ventilation and heat dissipation.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connector pins.
• Ensure that the ground reference is consistent across the system to prevent potential differences between isolated channels.

FAQ

What is the primary function of the 6ES5461-8MA11?

This module acts as an analog comparator that monitors voltage levels against a set threshold. It provides a hardware-level interrupt to the CPU when the signal crosses the defined limit, allowing for faster response times than software-based monitoring.

Does this module require external power?

No, the module draws its operating power directly from the Simatic S5 system bus, with a maximum consumption of 1.2 W.

Is this module galvanically isolated?

Yes, the module features galvanic optocoupler isolation between the input channels and the backplane logic, providing 500 VDC of isolation to protect the system from electrical noise and ground loops.
