Product Overview

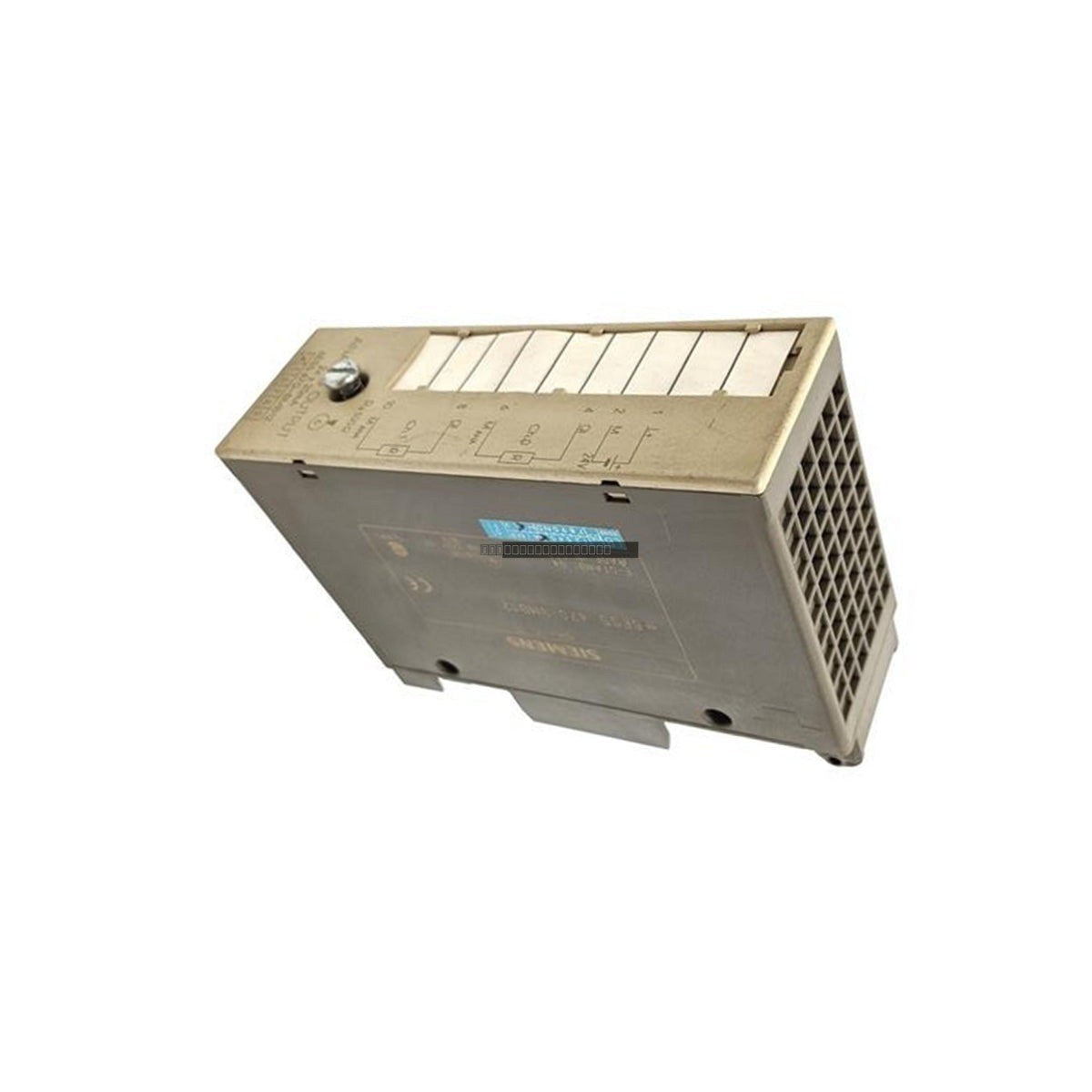

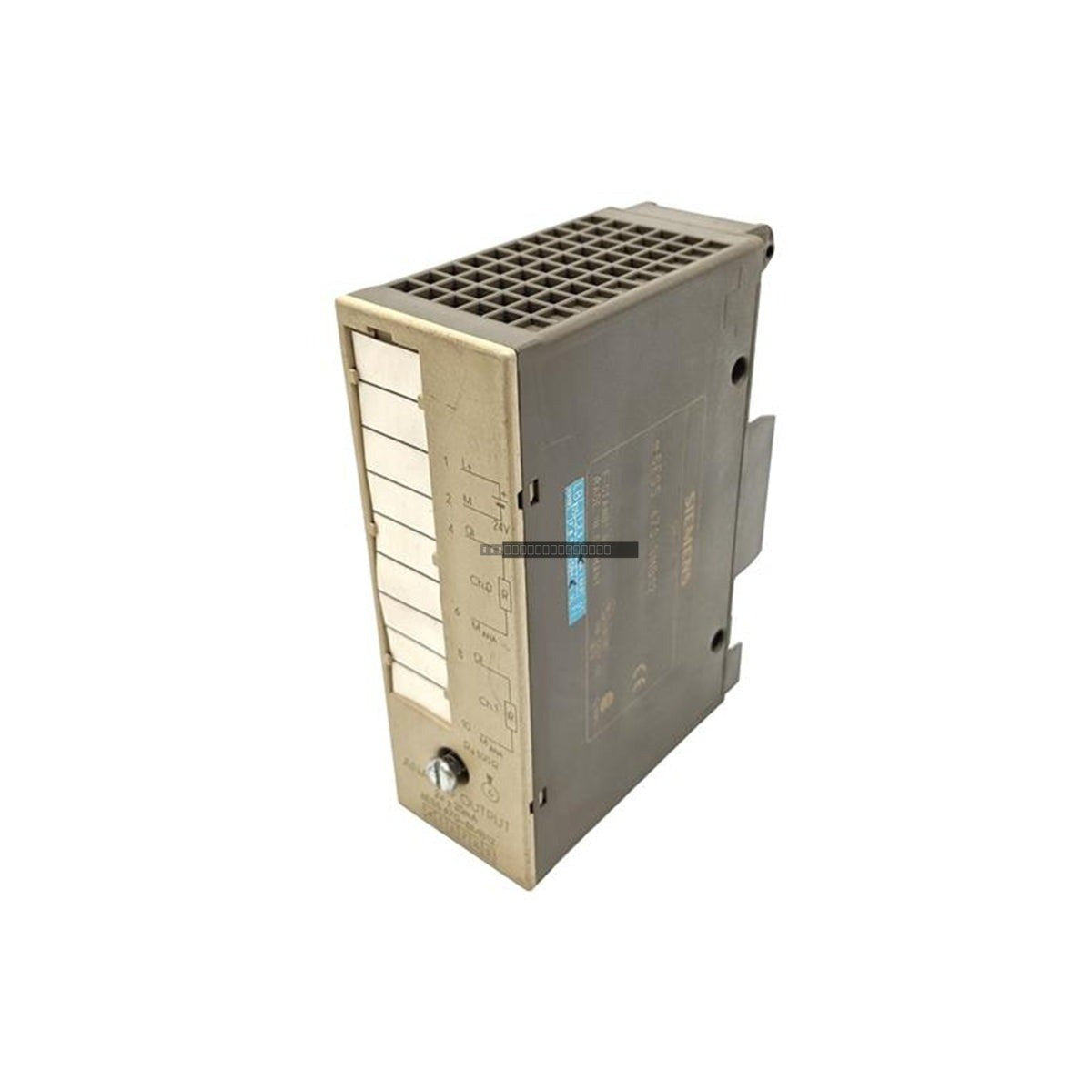

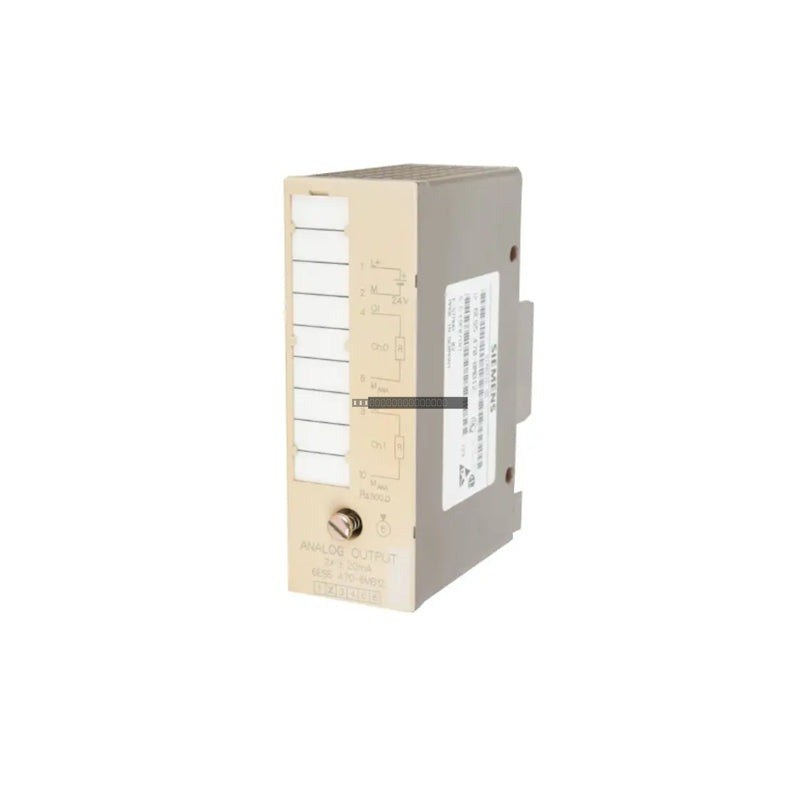

The Siemens 6ES5470-8MB12 is a specialized analog output module engineered for the SIMATIC S5 automation family. This component serves as a reliable interface for S5-90U, S5-95U, and S5-100U programmable logic controllers, as well as ET 100U and ET 200U distributed I/O systems. It is primarily utilized in legacy industrial control applications to facilitate precise signal transmission to field devices such as actuators, control valves, and variable speed drives.

Features

• Provides two independent, galvanically isolated analog output channels for enhanced signal integrity.
• Supports a bipolar current output range of +/- 20 mA.
• Designed for seamless integration with S5 backplane bus architectures.
• Optimized for stable operation in demanding environments, including manufacturing and process automation.
• High-density design suitable for compact control cabinet layouts.

Applications

This module is essential for maintaining the operational longevity of legacy automation systems. Typical deployment scenarios include:

• Metal processing and smelting control loops.
• Textile production machinery speed regulation.
• Municipal water and wastewater treatment pumping stations.
• Retrofitting and maintenance of aging infrastructure requiring original hardware compatibility.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is fully disconnected before inserting or removing the module from the backplane.
• Verify that the module is securely seated in the rack to maintain proper bus communication.
• Use shielded cabling for all analog output signals to minimize the influence of electromagnetic interference (EMI) from high-power equipment.
• Maintain adequate spacing within the cabinet to allow for proper airflow, as the module operates within a 0 to 60 deg C range.
• Check for proper grounding of the control cabinet to prevent ground loops, especially when interfacing with remote field devices.

FAQ

Q: Is this module compatible with modern S7 systems?
A: No, the 6ES5470-8MB12 is designed specifically for the legacy SIMATIC S5 and ET 100U/200U product lines and is not natively compatible with S7-300 or S7-1500 systems.

Q: Does this module require external power for the output signal?
A: Please refer to the specific system manual for your S5 configuration; the module draws internal power from the backplane, but field-side loop requirements must be verified against your specific wiring diagram.
