Description

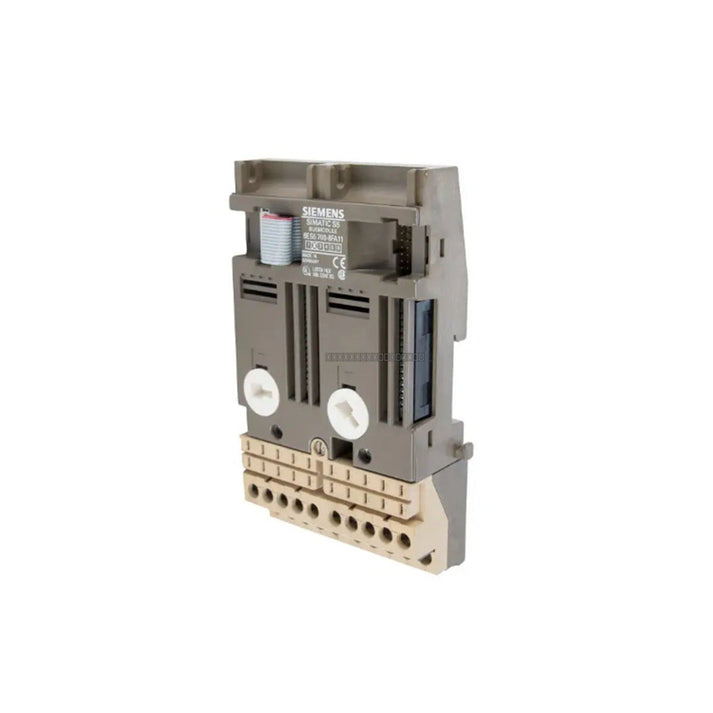

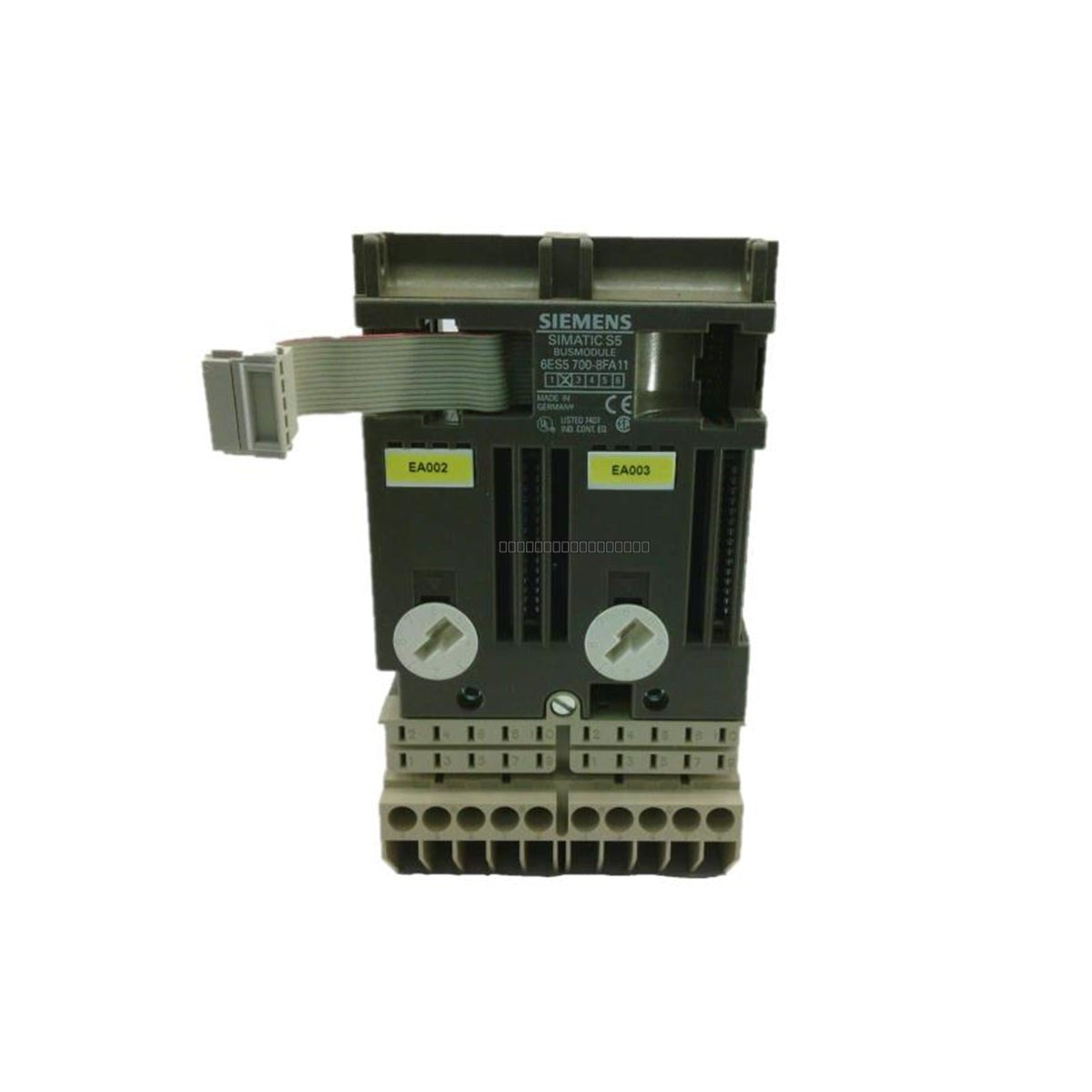

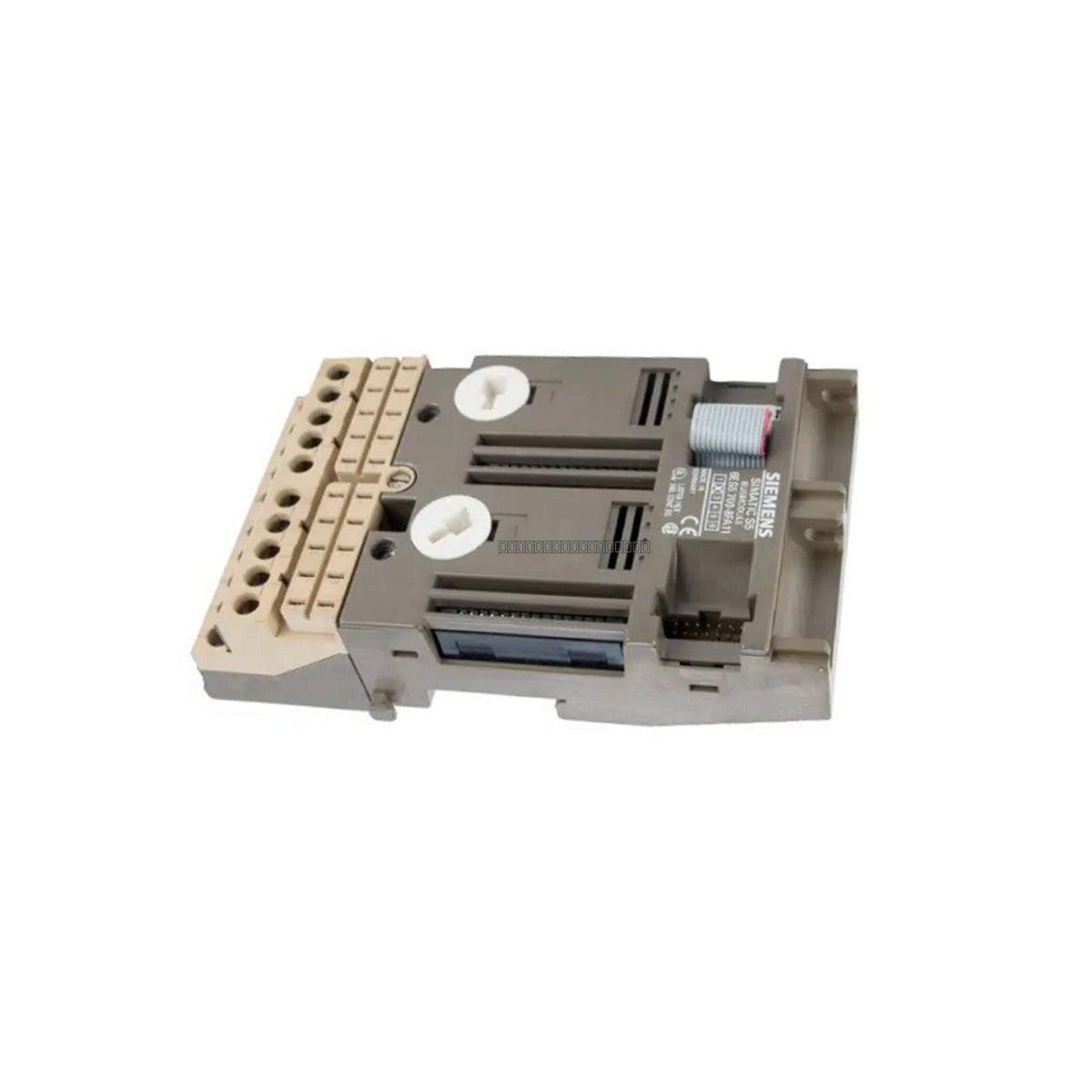

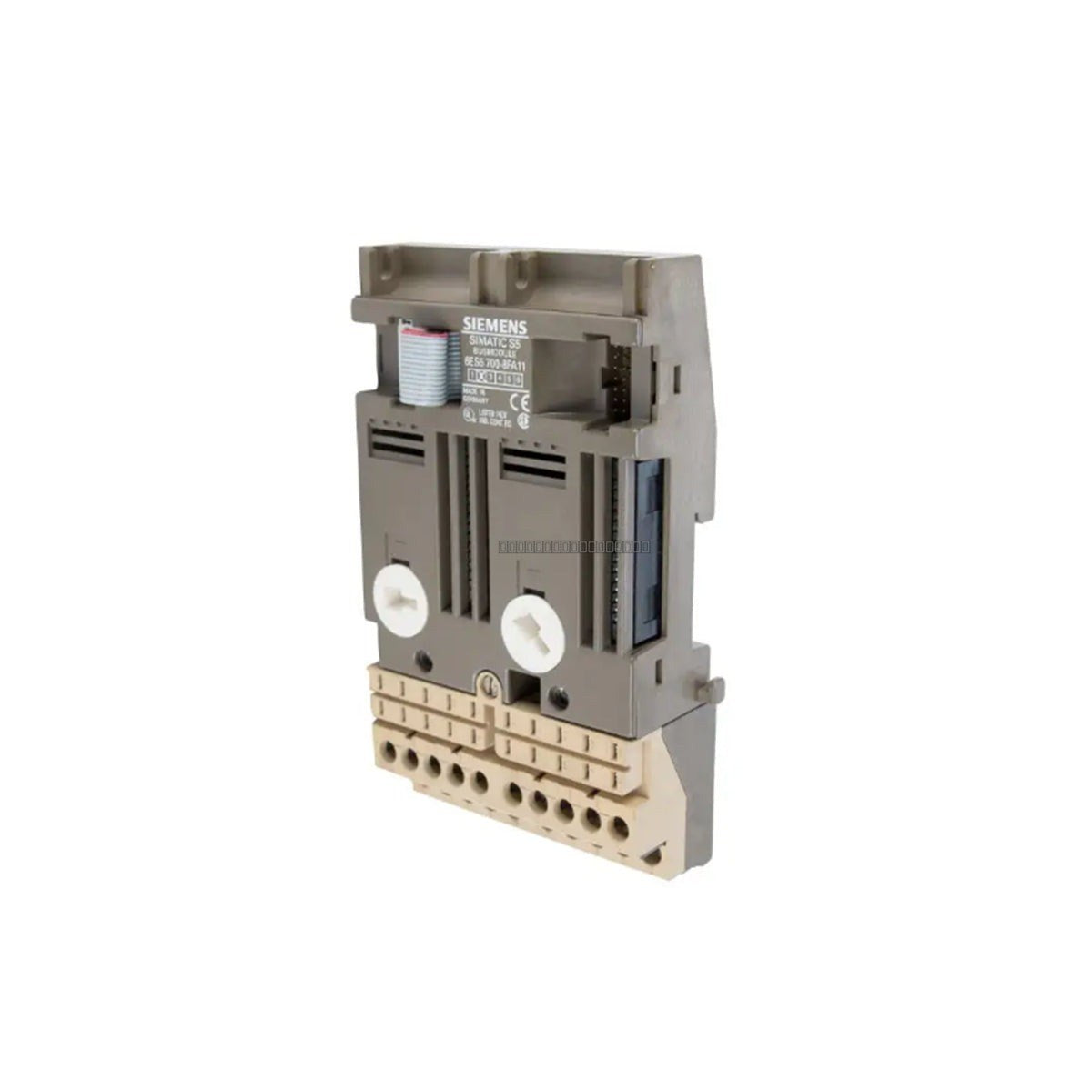

The Siemens Simatic S5 6ES5700-8FA11 is a specialized 2-module bus expansion unit designed for use within the Siemens Simatic S5-090, S5-095, and S5-100 automation lines. This passive infrastructure component facilitates the mechanical and electrical extension of the backplane bus, enabling the integration of additional I/O modules into a single rack segment. It is engineered to maintain system topology integrity by ensuring reliable backplane power routing and high-speed data bus continuity in demanding industrial environments such as power distribution, water treatment, and mineral processing.

Features

• Supports expansion for up to two additional I/O modules.
• Passive backplane design with no active semiconductor logic, ensuring high reliability.
• Heavy-duty trace design with gold-plated contact pins to minimize transition resistance.
• Compact mechanical layout optimized for side-by-side rail mounting to save panel space.
• Integrated Sigut screw-type connection terminals for secure field-side wiring.
• Robust construction resistant to vibrational stress in industrial installations.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the bus expansion unit.
• Mount the unit securely on the designated DIN-rail or rack segment to prevent mechanical misalignment.
• Verify that all backplane contact pins are clean and free of debris to ensure optimal signal integrity.
• Tighten Sigut terminal screws to the specified torque to prevent loose connections under vibration.
• Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the 0 to 60 deg C range.
• Follow standard ESD handling procedures when touching backplane contacts to prevent static damage to connected I/O modules.

FAQ

What is the primary function of the 6ES5700-8FA11?

This unit acts as a passive bus expansion component that extends the backplane of S5-090, S5-095, and S5-100 systems, allowing for the addition of up to two extra I/O modules.

Does this module require an external power supply?

No, this is a passive component. It does not draw power independently but routes power and data signals across the backplane bus.

Can this unit be used in high-vibration environments?

Yes, the unit is designed with robust mechanical mounting and high-quality contact pins to maintain signal continuity under persistent vibrational stress common in industrial settings.
