Description

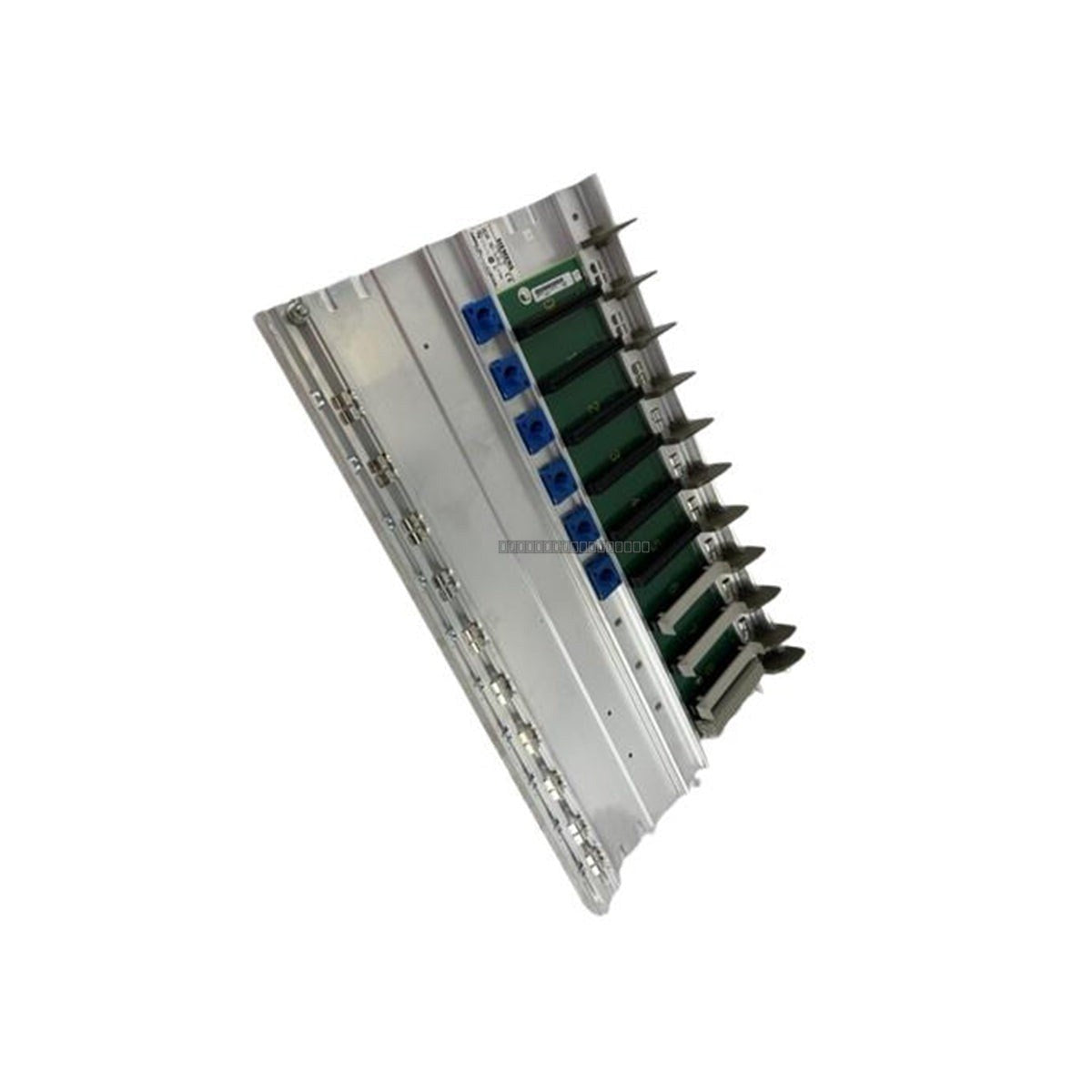

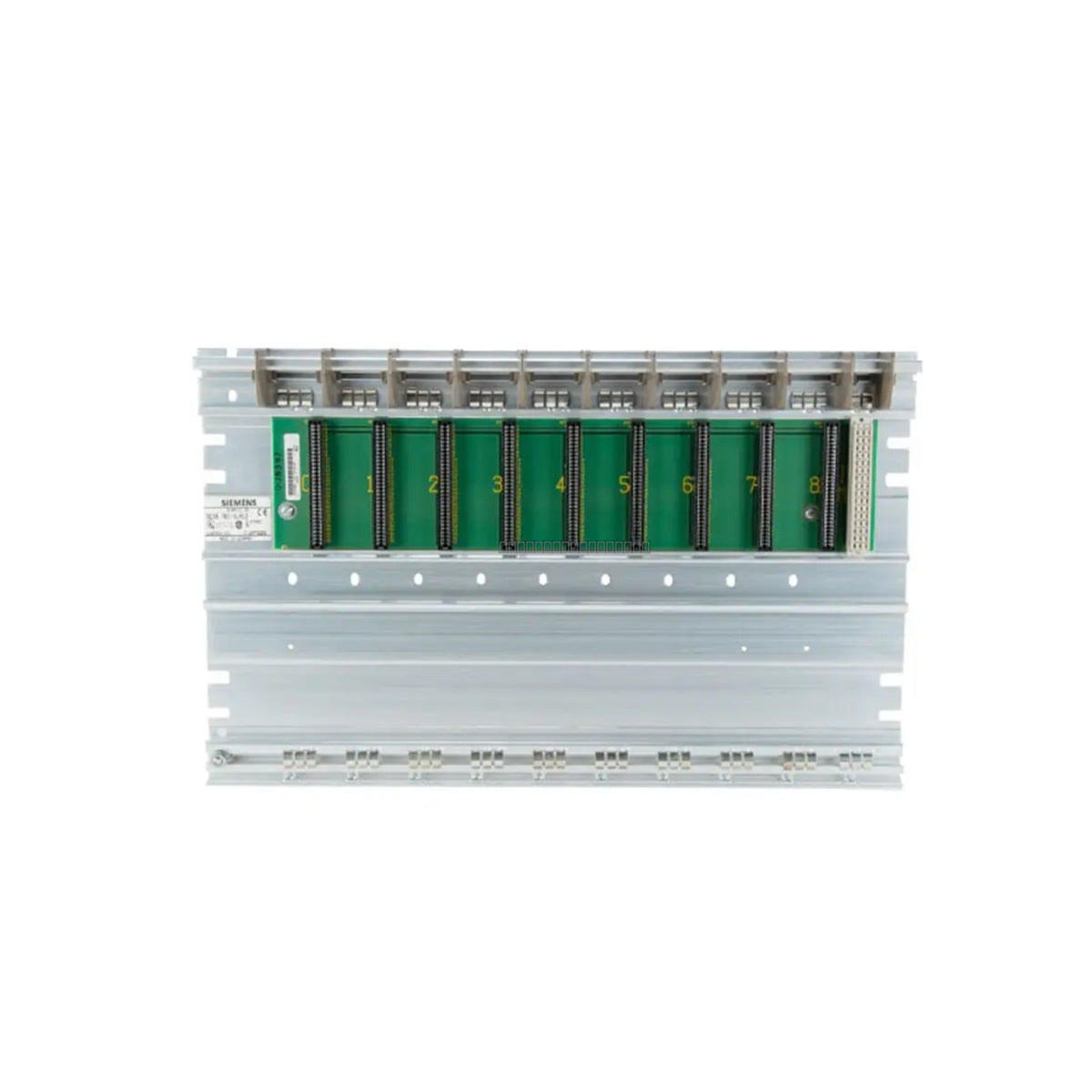

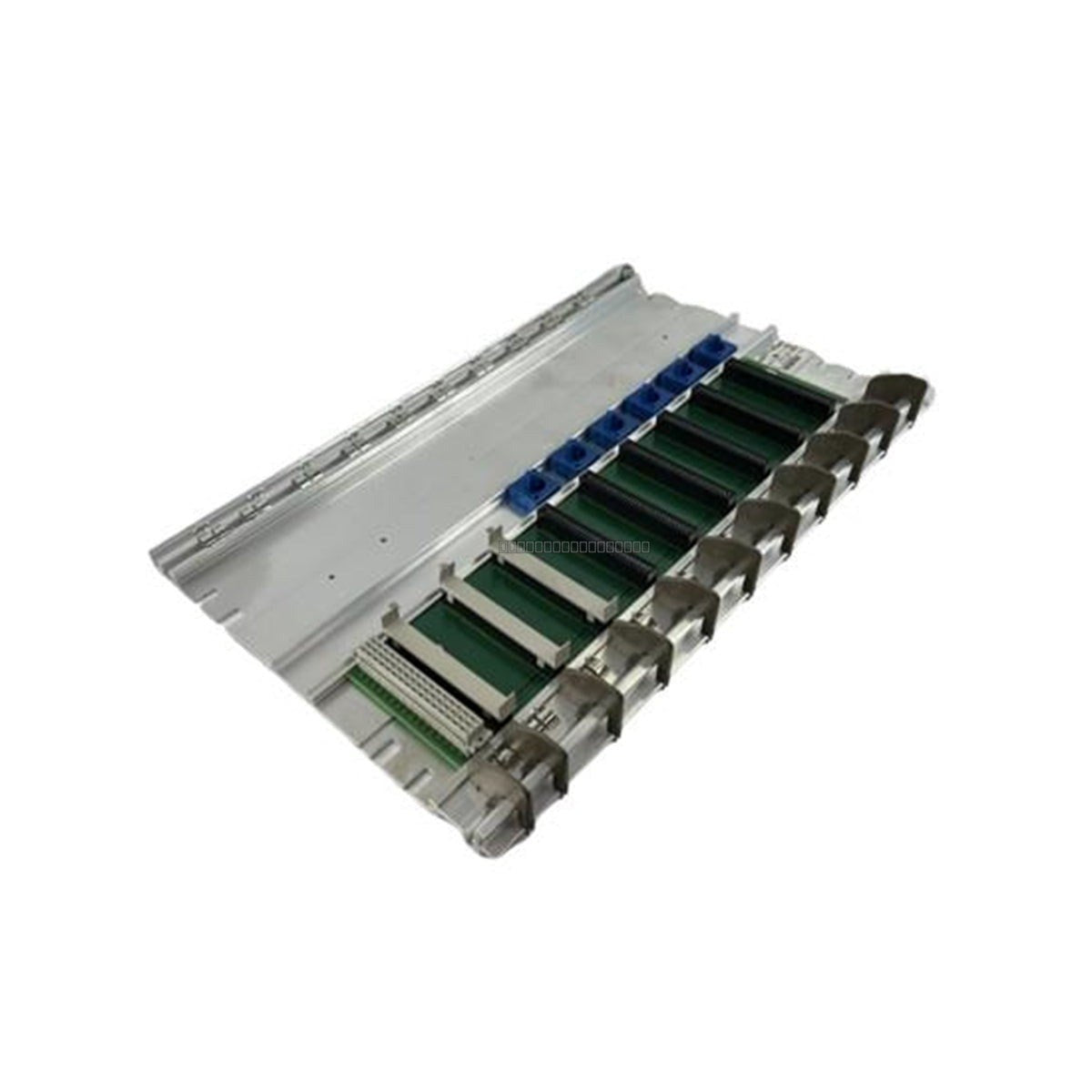

The Siemens 6ES5701-1LA12 is a 9-slot sub-rack engineered for central expansion configurations within the Simatic S5-115U and S5-115F automation systems. This rack provides a stable mechanical and electrical foundation for mounting various I/O, communication, and processing modules, ensuring reliable backplane communication in demanding industrial environments. It is designed to maintain signal integrity and prevent data corruption in applications subject to vibration or thermal stress.

Features

• 9-slot capacity for flexible module arrangement.
• Optimized for Simatic S5-115U and S5-115F central expansion setups.
• High-density passive backplane with gold-plated slot interfaces to resist oxidation.
• Robust mechanical design with integrated slide guides and screw retention for secure module mounting.
• Designed for deterministic signal propagation across the parallel bus.

Applications

This expansion rack is suitable for use in heavy-duty industrial automation applications, including power generation, oil and gas refining, and large-scale mining operations where reliable, high-density I/O management is required.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted in a clean, dry, and vibration-dampened control cabinet.
• Verify that the rack is properly grounded to the cabinet chassis to minimize EMI/RFI interference.
• Power down all system supplies before installing or removing any modules from the rack slots.
• Ensure all modules are fully seated and secured using the integrated screw retention blocks to prevent intermittent connections due to thermal expansion or mechanical vibration.
• Maintain adequate clearance around the rack to allow for proper ventilation and heat dissipation.

FAQ

Is this rack compatible with S5-115U systems?

Yes, the 6ES5701-1LA12 is specifically designed for use with the Simatic S5-115U and S5-115F series.

Does this rack include power supply modules?

No, this is the mechanical and backplane expansion rack only. Power supplies and I/O modules must be ordered separately.
