Description

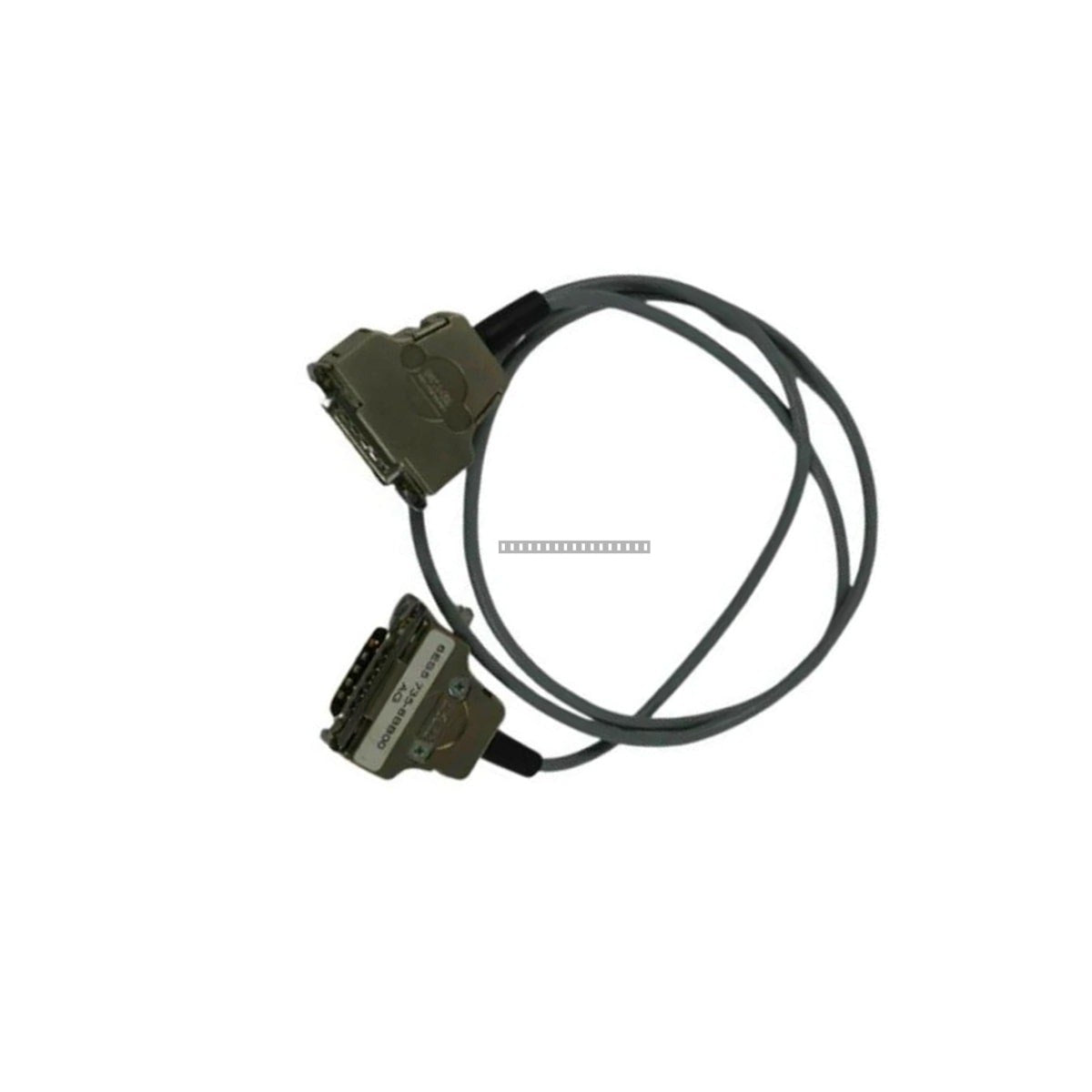

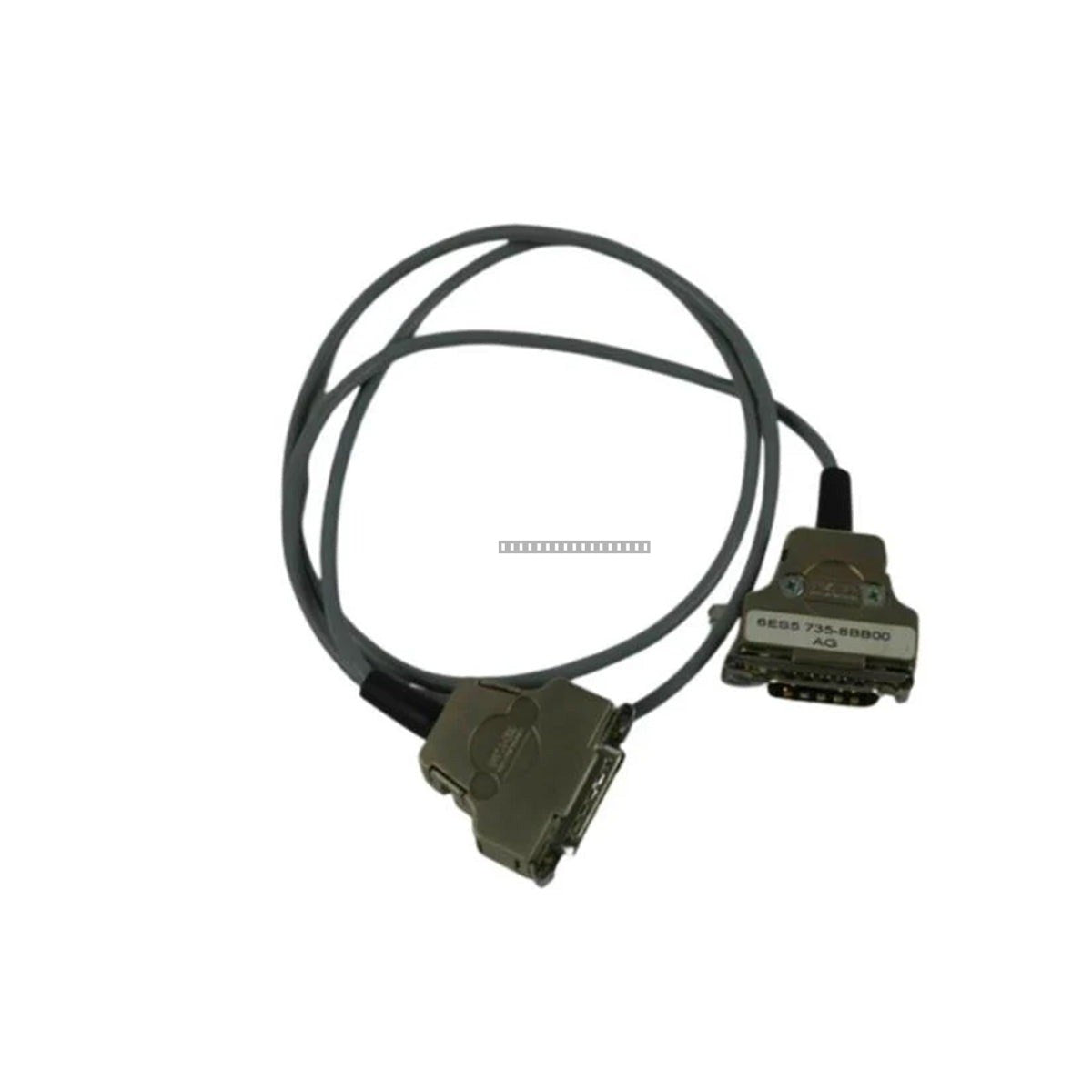

The Siemens Simatic S5 6ES5735-8BB00 is a high-reliability plug-in cable engineered for establishing seamless communication between the CP 541 communications processor and the S5 CPU. This 1-meter shielded interconnect provides a stable physical link, ensuring the integrity of serial data transmission within Simatic Net configurations. By maintaining precise impedance and signal shielding, the cable prevents data corruption and electromagnetic interference, which is critical for industrial automation environments such as manufacturing lines, petrochemical refineries, and energy management systems.

Features

• Designed specifically for Siemens Simatic S5 CP 541 to CPU connectivity.
• 1-meter length for optimized signal path and cabinet routing.
• Industrial-grade shielding to mitigate electromagnetic interference (EMI) and common-mode noise.
• High-contact-pressure connectors for low-resistance, stable serial data transmission.
• Robust construction resistant to mechanical stress and standard industrial vibration.

Applications

This cable is primarily used in Simatic S5 automation systems to facilitate communication between the CP 541 processor and the host CPU. It is suitable for use in industrial control cabinets where reliable serial data exchange is required for process monitoring, machine control, and system integration.

Technical Specifications

Installation Guidelines

• Ensure the system power is switched off before connecting or disconnecting the cable to prevent electrical surges or damage to the communication ports.
• Route the cable away from high-voltage power lines or heavy inductive loads to minimize potential EMI.
• Ensure the connectors are fully seated and secured to maintain proper contact pressure.
• Avoid sharp bends or excessive tension on the cable during installation to preserve the integrity of the internal shielding.
• Regularly inspect the cable for signs of wear, insulation damage, or connector corrosion in high-vibration environments.

FAQ

Is this cable compatible with other S5 communication modules?
This cable is specifically designed for the CP 541 interface. Please verify your module's technical manual for pinout compatibility before using it with other S5 communication processors.

Does this cable require external power?
No, the 6ES5735-8BB00 is a passive interconnect cable and does not require external power.
