Description

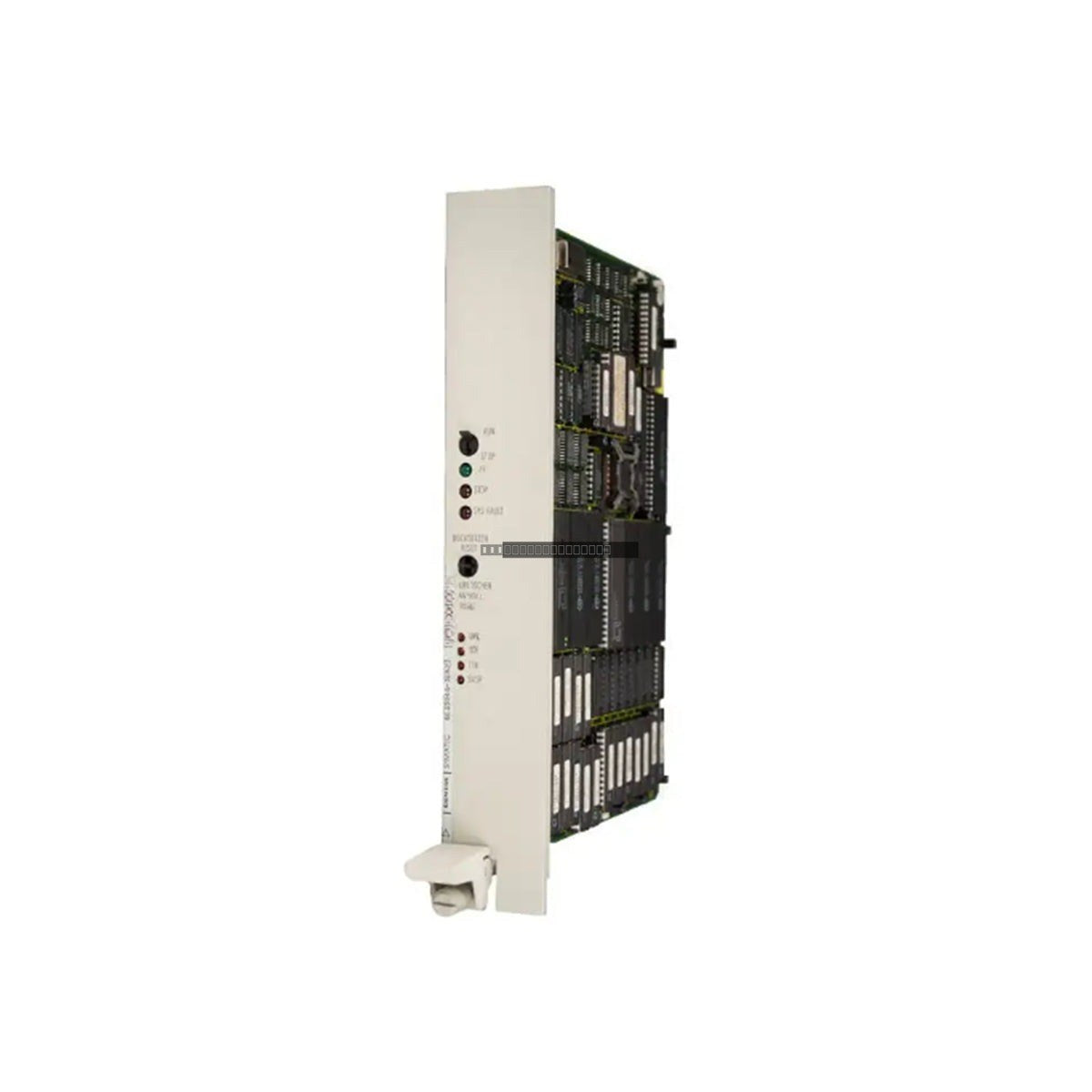

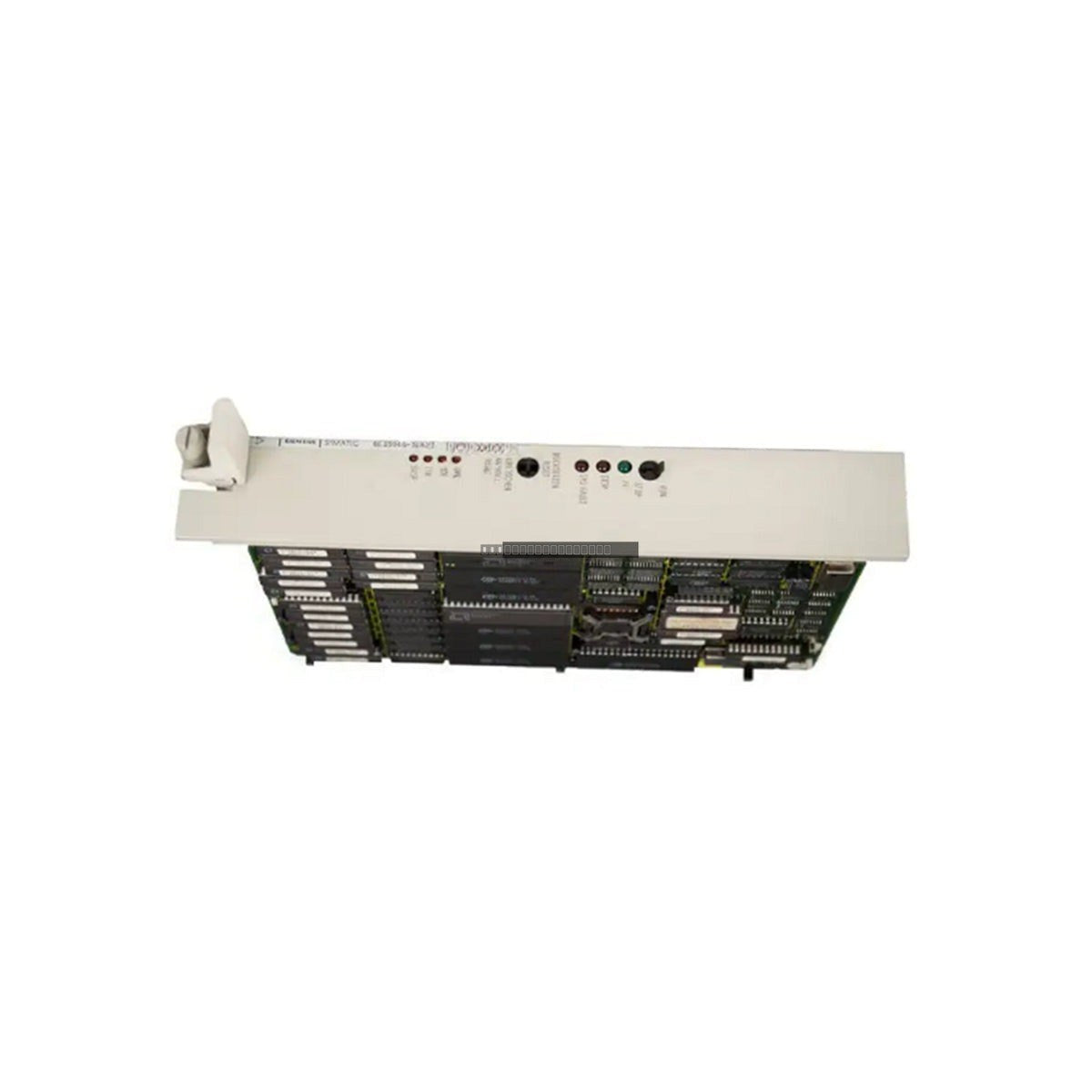

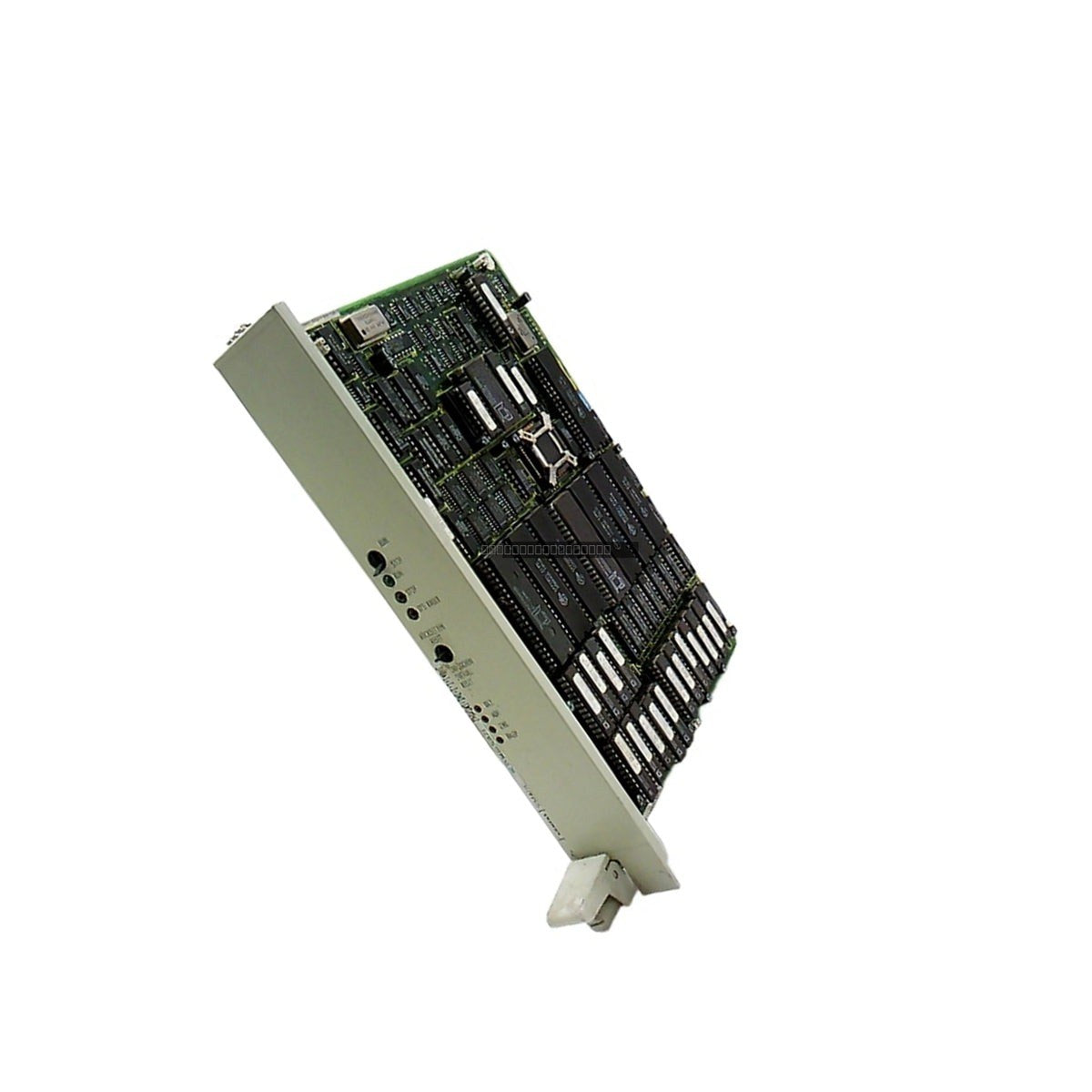

The Siemens 6ES5946-3UA21 (CPU 946) is a high-performance central processing unit designed for the Simatic S5-135U and S5-155U programmable logic controller systems. Engineered for demanding industrial applications, this module provides robust logic execution, efficient instruction processing, and support for complex multi-processing configurations. It is widely utilized in large-scale automation environments, including power generation, chemical processing, and heavy industrial manufacturing, where deterministic control and high reliability are critical for maintaining continuous production cycles.

Features

• High-speed processing architecture optimized for sub-millisecond instruction execution.
• 128 KB of integrated RAM for program storage and data management.
• Designed for seamless integration into S5-135U and S5-155U multiprocessor backplane environments.
• Onboard LED diagnostic indicators for real-time monitoring of RUN, STOP, and HALT operational states.
• Advanced bus driver technology for enhanced noise immunity in high-EMI industrial environments.
• Supports complex closed-loop control algorithms and extensive I/O addressing.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage.
• Verify that the module is correctly seated in the designated CPU slot of the S5 backplane to ensure proper bus contact.
• Maintain adequate ventilation around the rack to keep operating temperatures within the specified 0 to 60 deg C range.
• Use shielded communication cables where applicable to minimize electromagnetic interference.
• Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.

FAQ

What is the primary function of the 6ES5946-3UA21?

This module acts as the central processor for Siemens S5-135U and S5-155U systems, managing logic execution, I/O communication, and complex control algorithms.

Is this module compatible with other S5 series PLCs?

The CPU 946 is specifically designed for the S5-135U and S5-155U series. It is not intended for use in smaller S5 series racks.

What should I do if the CPU indicates a system error?

Check the onboard diagnostic LEDs to identify the specific error state. Ensure the backplane connection is secure and that the power supply voltage is stable within the required parameters.
