Thermal Management Overview

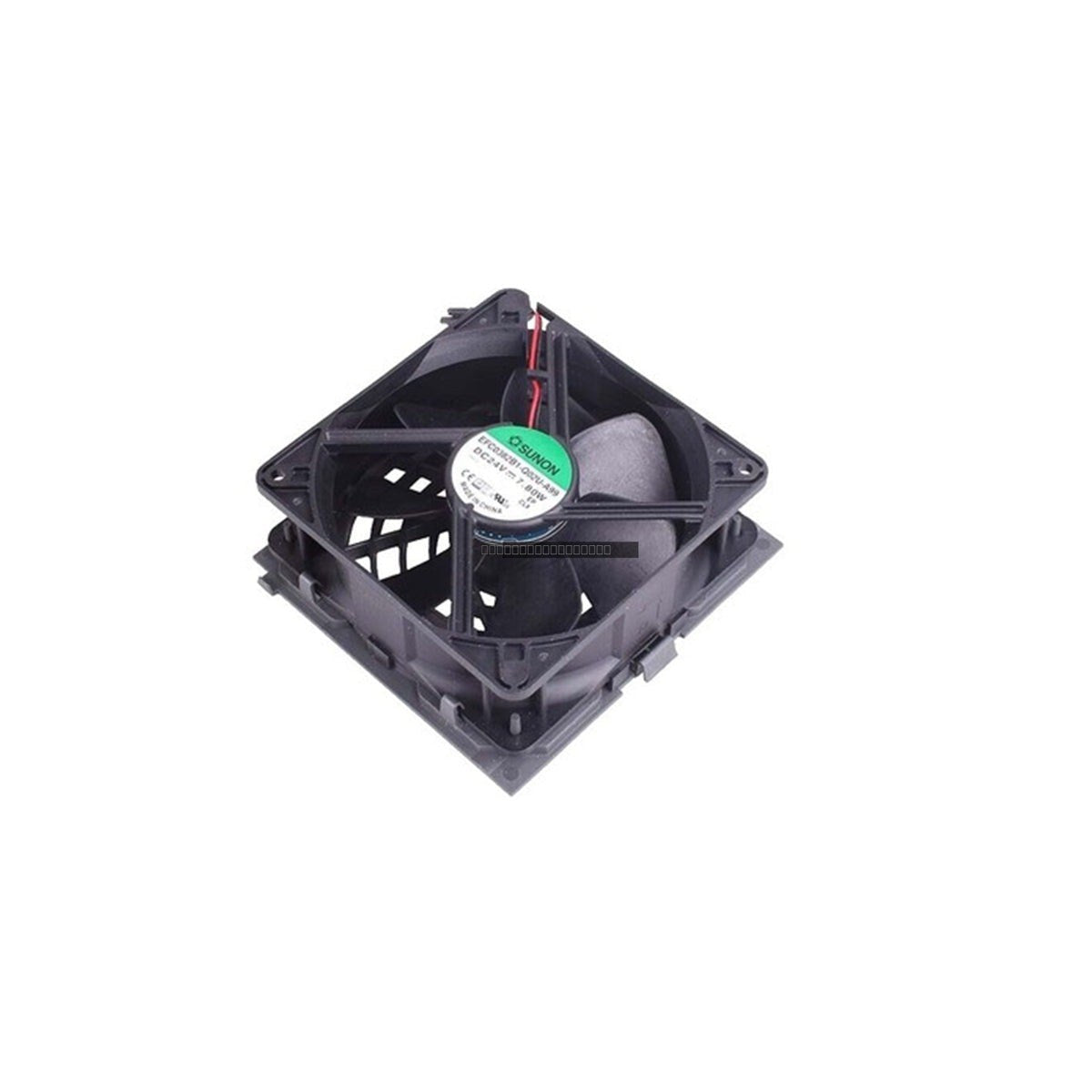

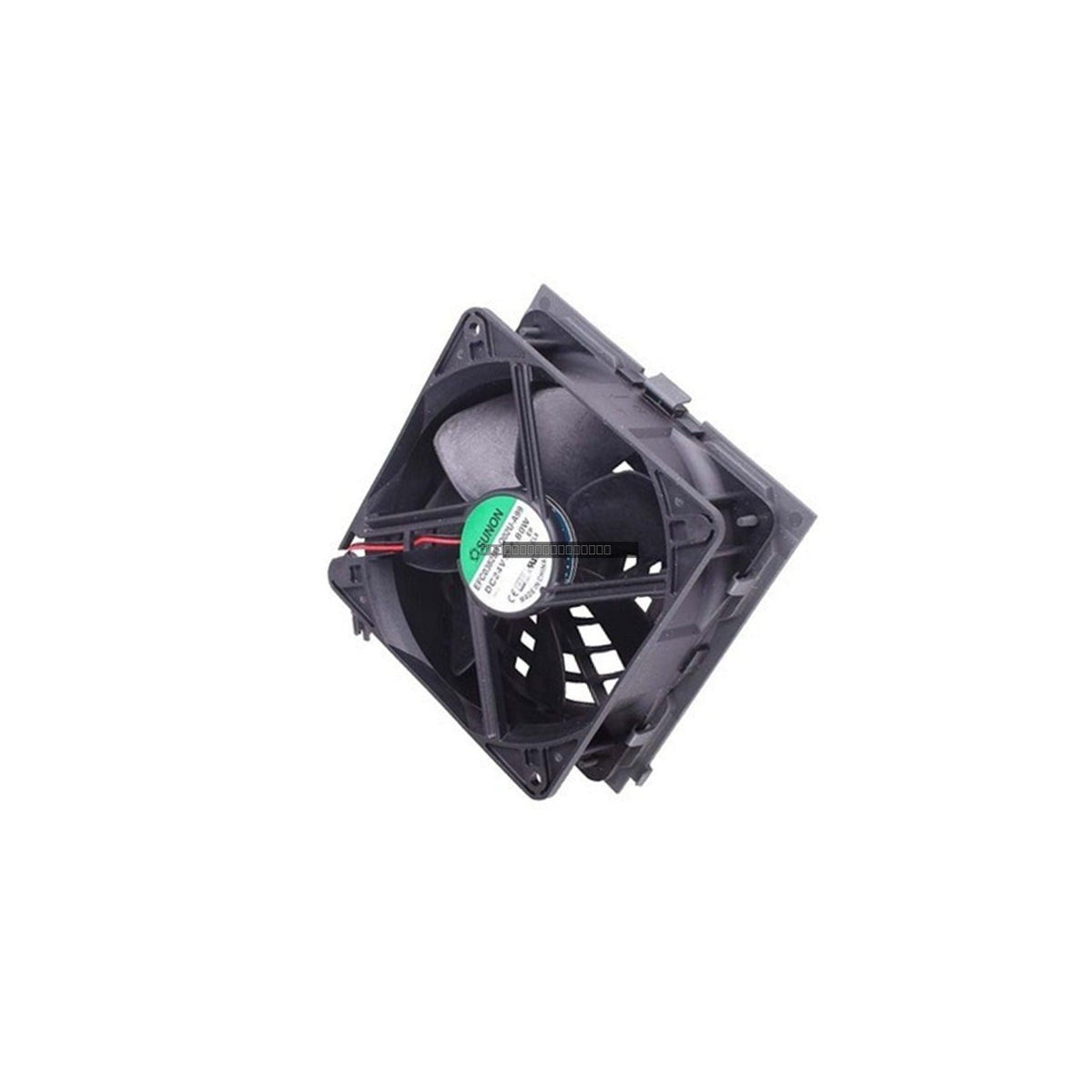

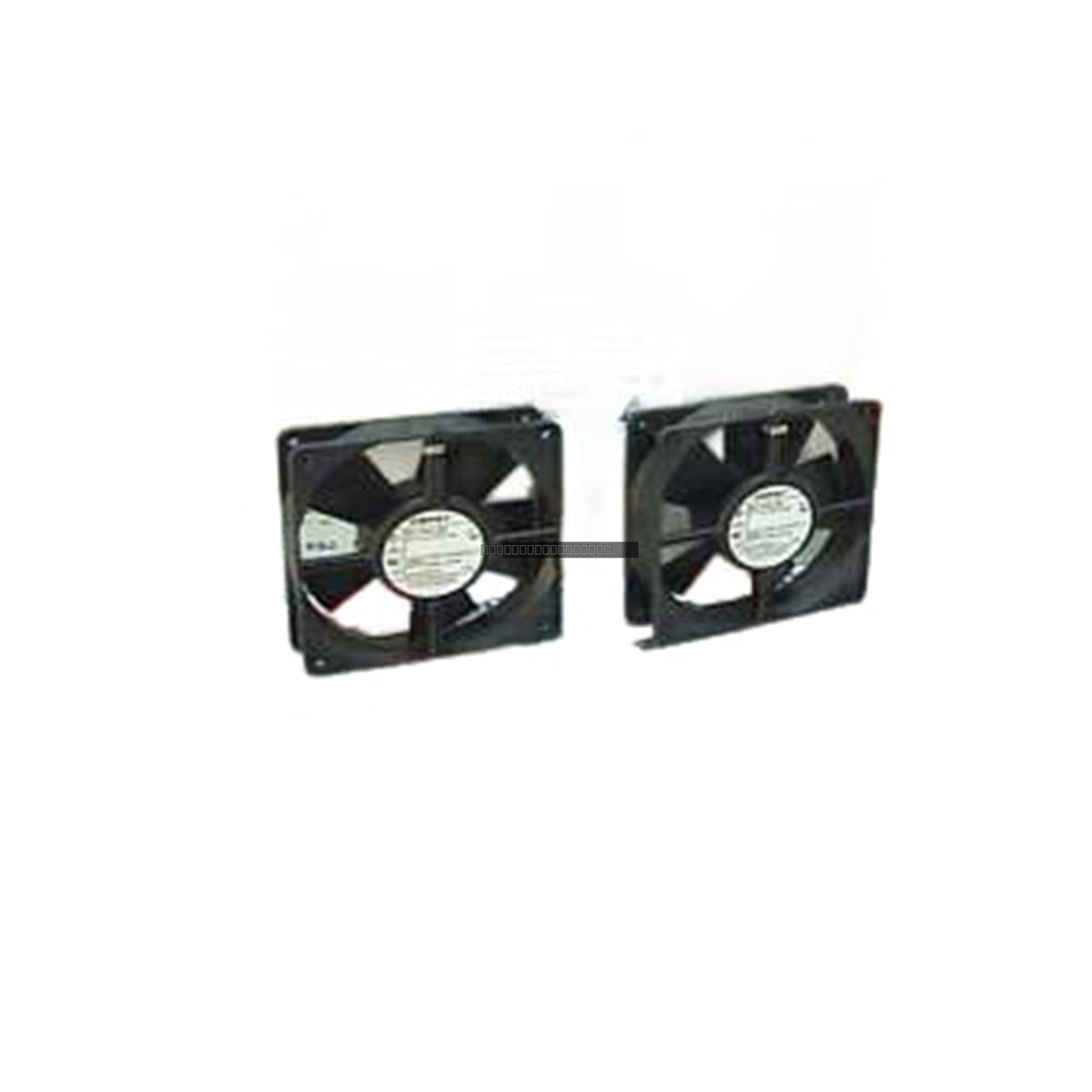

The Siemens 6ES5988-3NB11 is a dedicated fan exchange module engineered for forced-air cooling in high-density Simatic S5-135 and S5-155 programmable logic controller racks. This module provides essential thermal regulation for high-capacity power supply chassis, ensuring that internal semiconductors and heat sinks remain within optimal operating temperature ranges. By maintaining consistent airflow, the unit prevents thermal-related degradation and protects against unexpected system trips in demanding industrial environments such as steel production, mining, and petrochemical processing.

Features

• Designed for seamless integration with Siemens 6ES5 955-3NC13, 6ES5 955-3NA12, and 6ES5 955-3NF11 power supplies.
• Robust, vibration-resistant sheet metal cartridge design for secure rack mounting.
• High-reliability, sealed dual-ball bearing axial impellers for extended service life.
• Integrated self-aligning rear electrical connectors to support efficient maintenance.
• Protective front grille to prevent debris intrusion into the rotating assembly.

Technical Specifications

Installation Guidelines

• Ensure the power supply is de-energized before attempting to remove or install the fan module.
• Slide the module into the designated power supply housing, ensuring the self-aligning rear pins are correctly seated.
• Verify that the front grille is free of obstructions to maintain proper airflow.
• Handle the module with care to avoid damaging the impeller blades or the electrical contact pins.
• Regularly inspect the fan assembly for dust buildup or mechanical noise, which may indicate the need for a replacement.

FAQ

Is this module compatible with all S5 power supplies?

This module is specifically designed for use with the S5-135 and S5-155 series power supply models, including 6ES5 955-3NC13, 6ES5 955-3NA12, and 6ES5 955-3NF11. Please verify your power supply model number before installation.

Does this unit support hot-swapping?

The module features a self-aligning connector design to facilitate efficient replacement; however, always follow your facility's safety protocols regarding power-down procedures for critical control hardware.
