Description

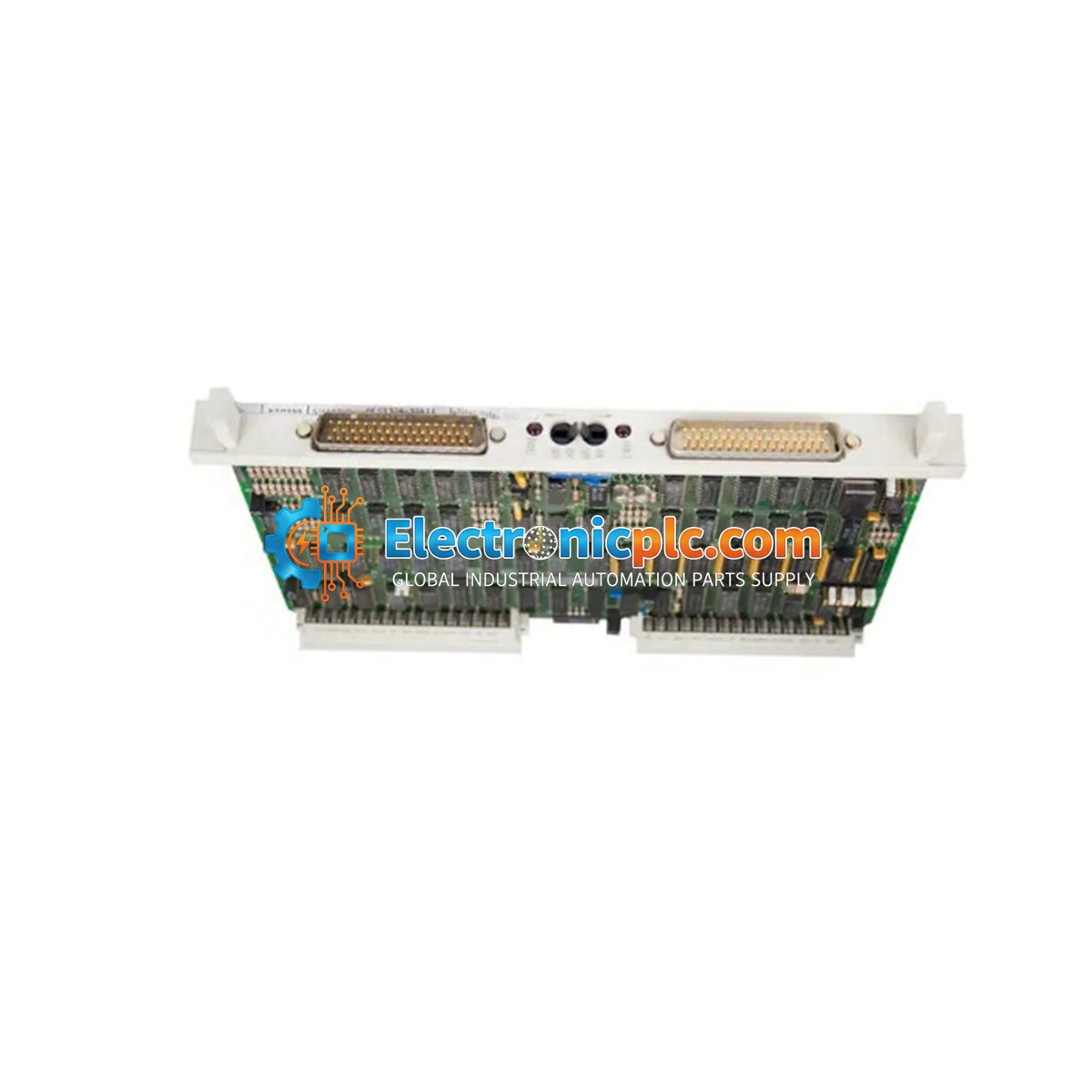

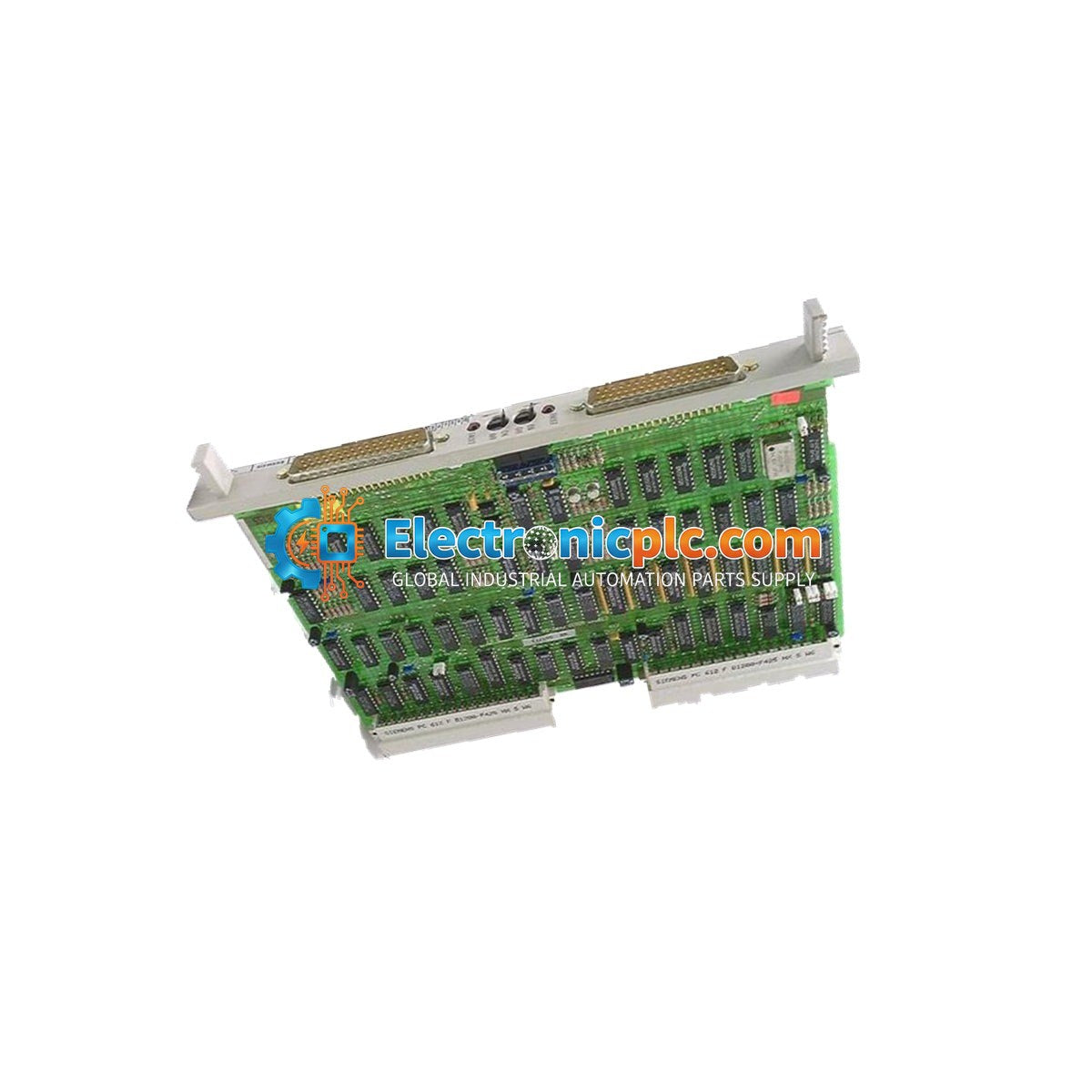

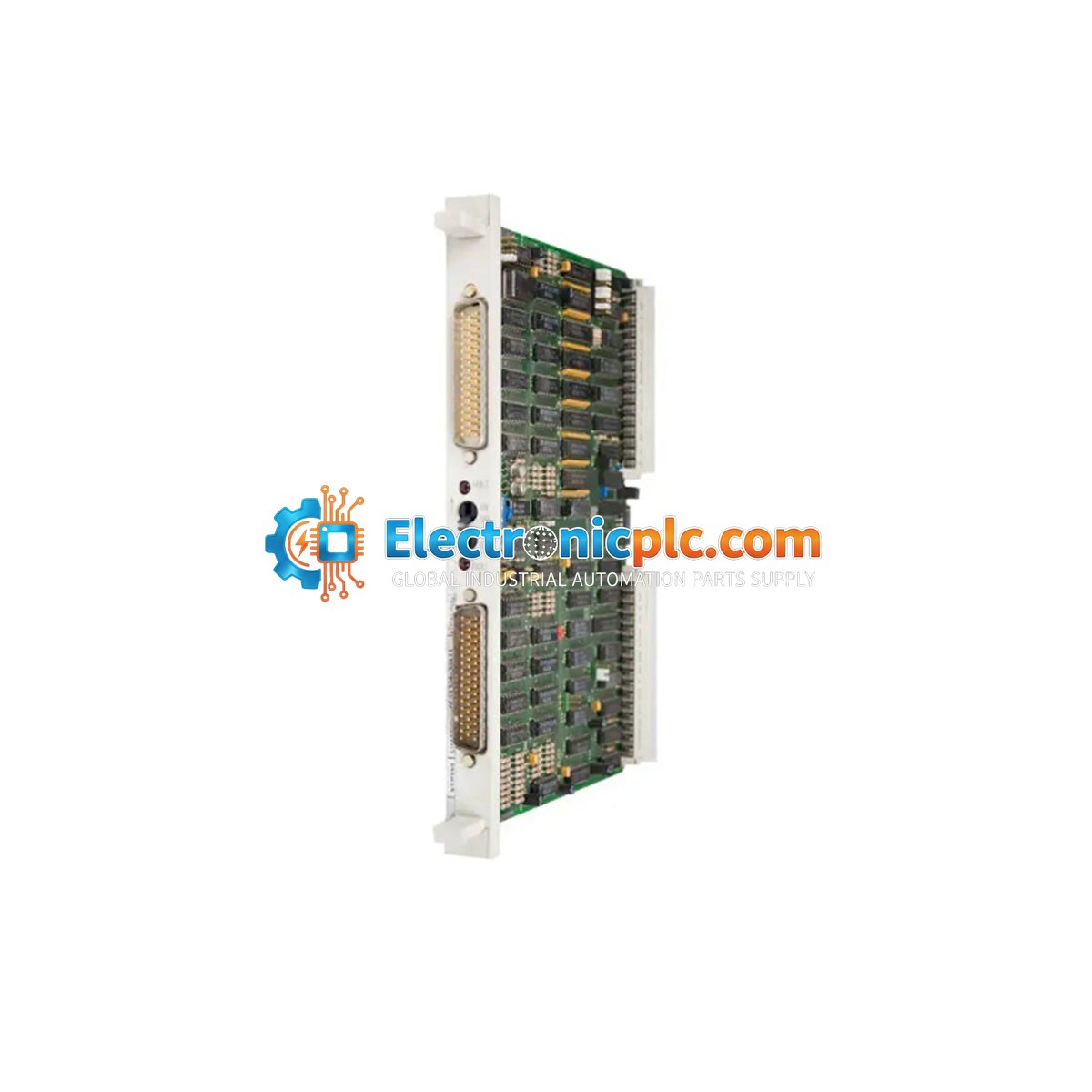

The Siemens 6ES5304-3UA11 (IM304) is a remote interface module designed for the Simatic S5-135/155 automation series. This module facilitates distributed system configurations by connecting expansion units to a central controller, supporting transmission distances of up to 600 meters. It serves as a critical link in complex architectures, ensuring deterministic communication and signal synchronization across geographically dispersed rack locations in heavy industrial environments.

Features

• Designed for integration with Simatic S5-135 and S5-155 controller series.
• Supports long-distance communication up to 600 meters via robust copper transmission lines.
• Provides high electrical noise immunity for reliable operation in high-EMI industrial settings.
• Manages essential handshaking protocols to maintain data integrity between central and peripheral racks.
• Optimizes system performance by offloading communication tasks from the central CPU.

Applications

The IM304 module is typically utilized in large-scale industrial facilities requiring distributed I/O, such as steel manufacturing plants, mining operations, and centralized utility control systems where physical distance between control racks necessitates reliable, long-range bus extension.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before inserting or removing the module from the rack.
• Verify that the module is correctly seated in the designated backplane slot to ensure proper bus contact.
• Use appropriate shielded cabling for the 600-meter transmission lines to maintain signal integrity and EMI protection.
• Route communication cables away from high-voltage power lines and heavy electromagnetic interference sources.
• Maintain adequate ventilation within the cabinet to ensure the module operates within its specified 0 to 60 degC temperature range.

FAQ

What is the primary function of the 6ES5304-3UA11?

The 6ES5304-3UA11 acts as an IM304 interface module to extend the communication bus of a Siemens Simatic S5-135/155 system, allowing for remote rack expansion up to 600 meters away from the central CPU.

Is this module compatible with other S5 series?

This module is specifically engineered for the S5-135 and S5-155 series. Please consult your system documentation to ensure compatibility with your specific CPU and rack configuration.
