Description

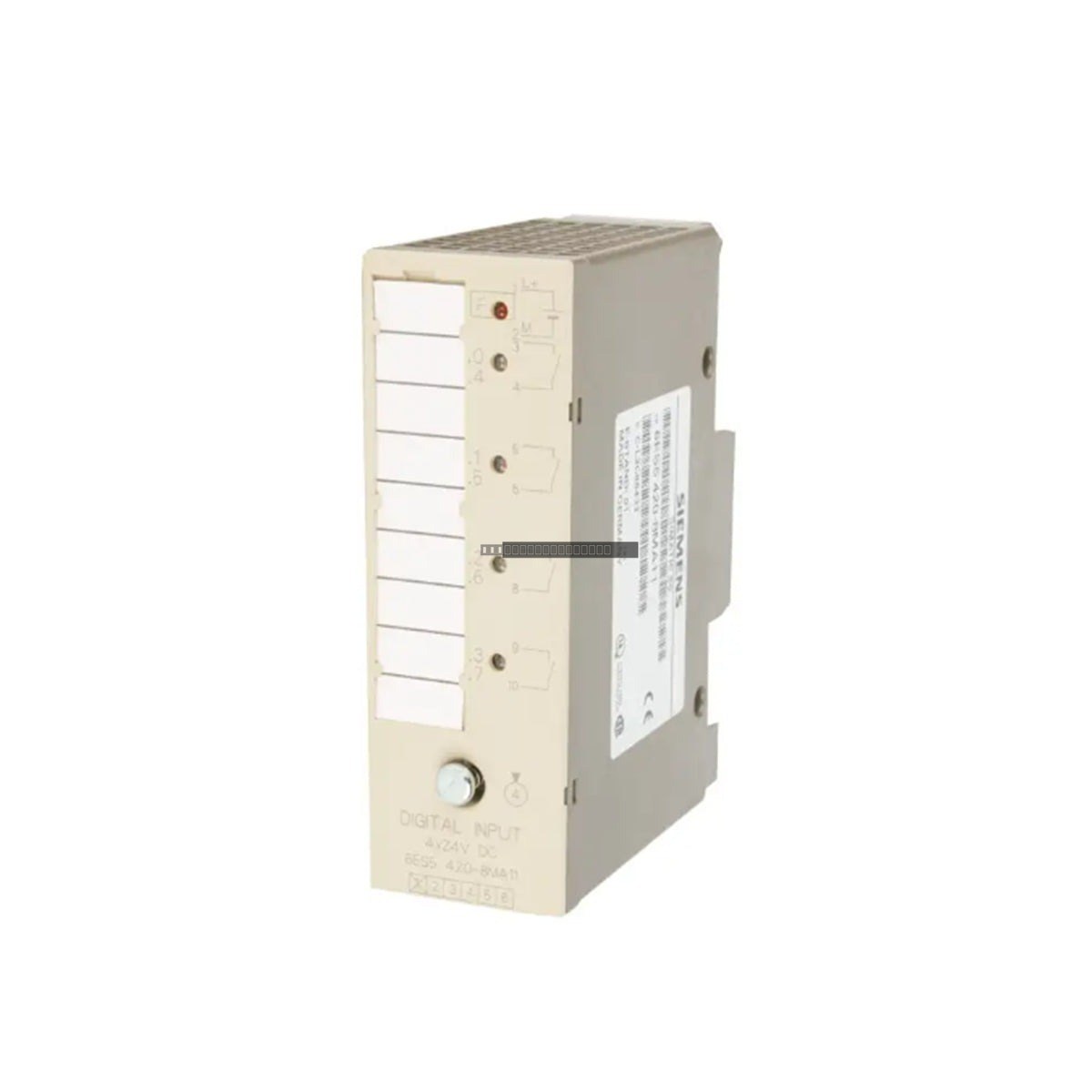

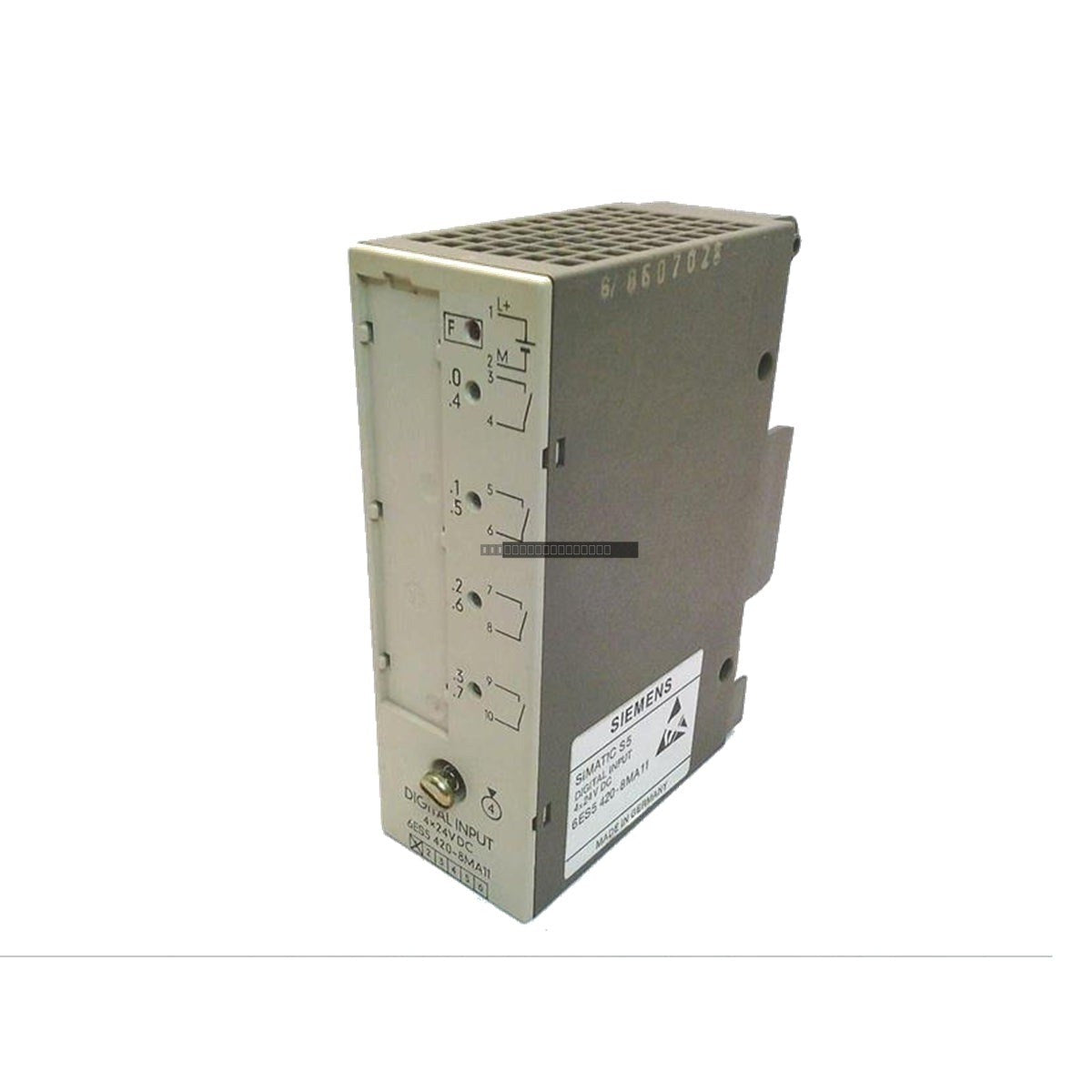

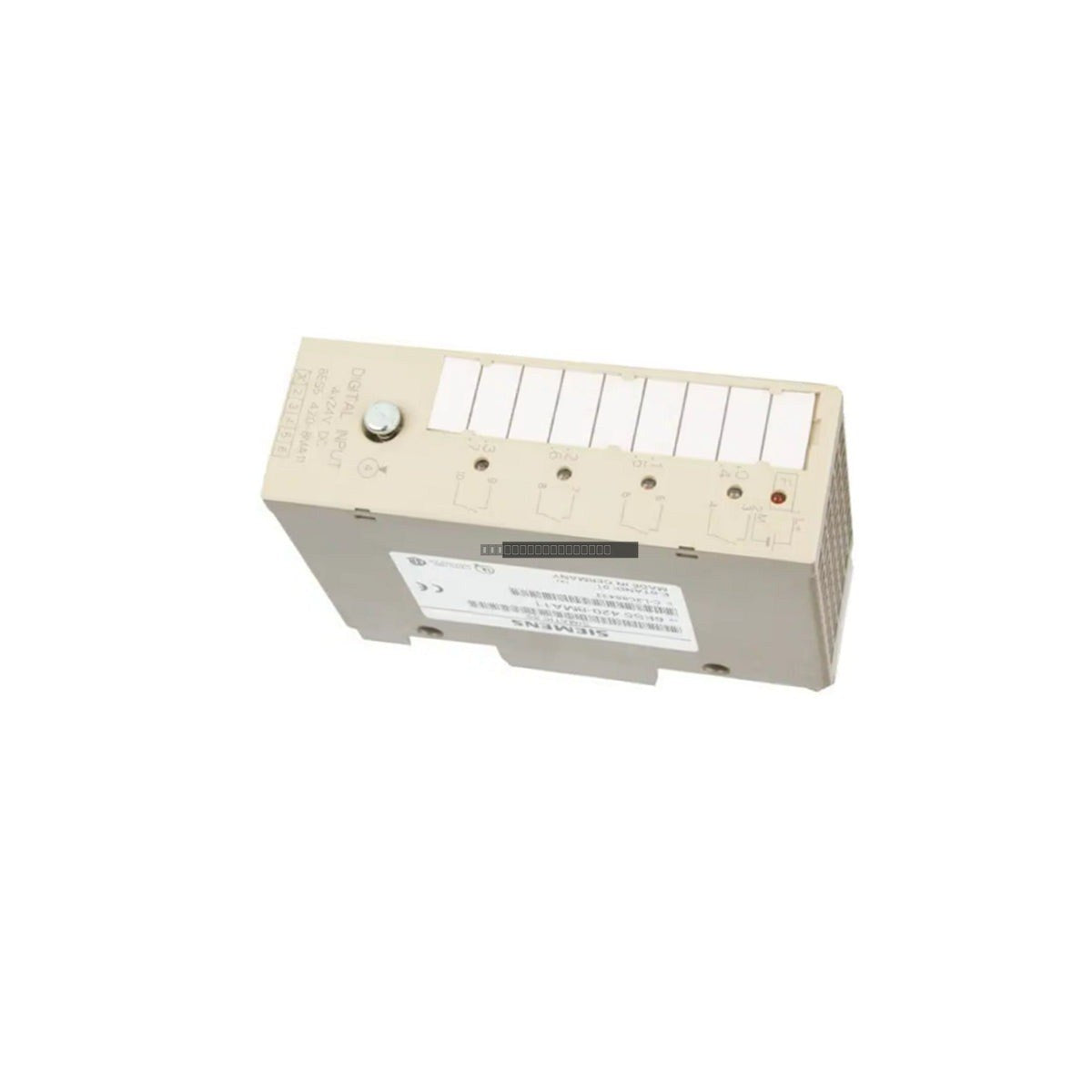

The Siemens 6ES5420-8MA11 is a dedicated digital input module designed for the Simatic S5-090, S5-095, and S5-100 programmable controller systems. This module provides four isolated digital input channels, facilitating the reliable acquisition of 24 VDC signals from field devices. It serves as a robust interface component in industrial automation, ensuring high-speed signal processing and consistent performance in demanding control environments.

Features

• Four independent digital input channels for 24 VDC signal monitoring.
• Engineered for seamless compatibility with S5-090, S5-095, and S5-100 series controllers.
• Galvanic isolation between field-side signals and the internal backplane to protect sensitive CPU components.
• Integrated passive filtering to suppress signal bounce and electromagnetic interference.
• Compact, rail-mountable design suitable for standard industrial control cabinet configurations.

Applications

This module is widely utilized in factory automation, water treatment facilities, and material handling systems where reliable, real-time digital signal acquisition is required for control logic execution.

Technical Specifications

Installation Guidelines

• Ensure the controller rack is powered down before inserting or removing the module to prevent electrical damage.
• Mount the module securely on a standard DIN-rail within an IP20 or higher rated enclosure.
• Use shielded cabling for field inputs to minimize the risk of electromagnetic interference (EMI) in high-noise environments.
• Verify that the 24 VDC power supply is stable and within the specified operating range before commissioning.
• Ensure proper grounding of the control cabinet to maintain signal integrity and safety standards.

FAQ

Is this module compatible with S5-115U systems?

No, the 6ES5420-8MA11 is specifically designed for the S5-090, S5-095, and S5-100 controller families. Please verify your CPU model before installation.

What is the primary function of the galvanic isolation?

The galvanic isolation provides an electrical barrier between the field-side input signals and the controller backplane, protecting the CPU from voltage spikes or ground loops originating from field devices.
