Description

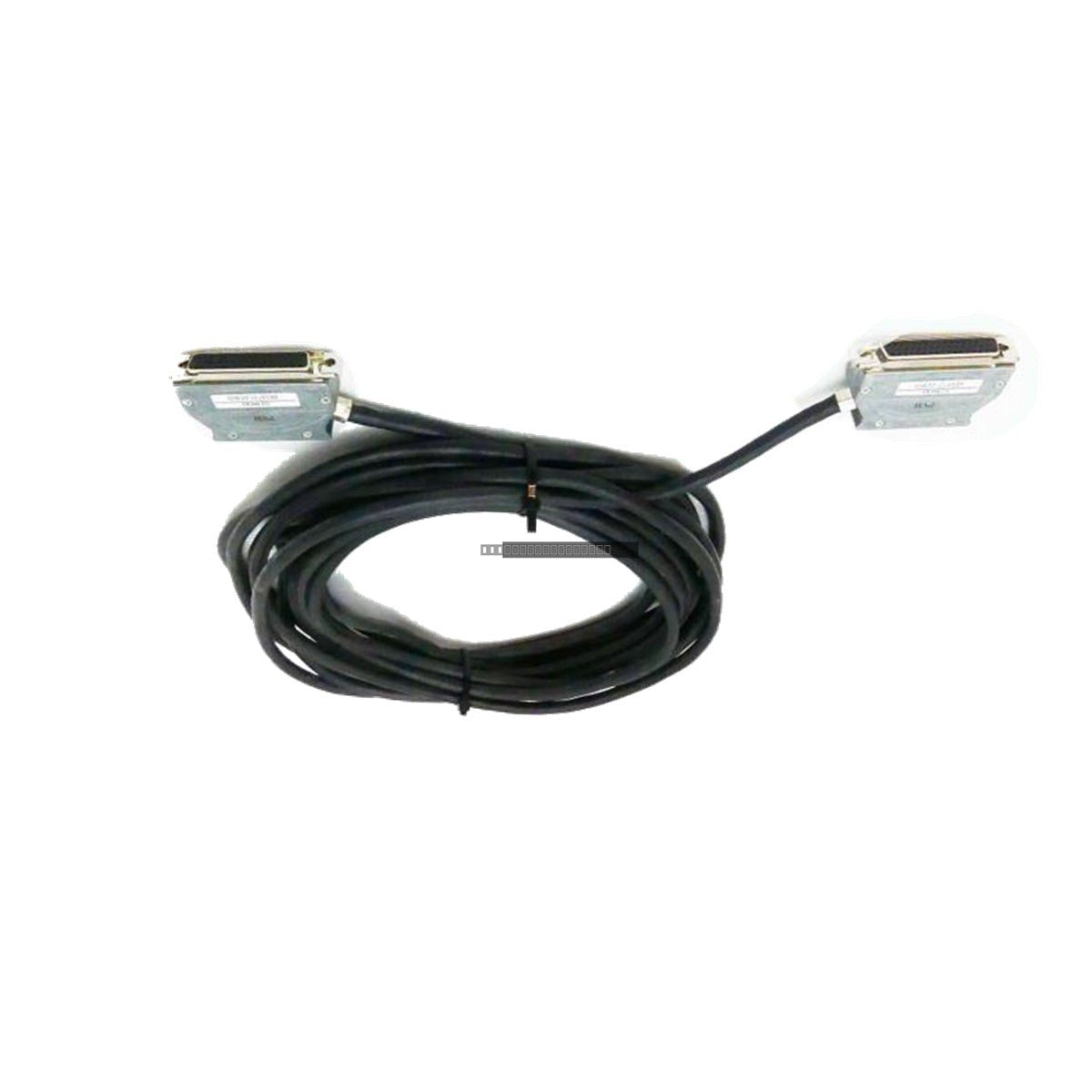

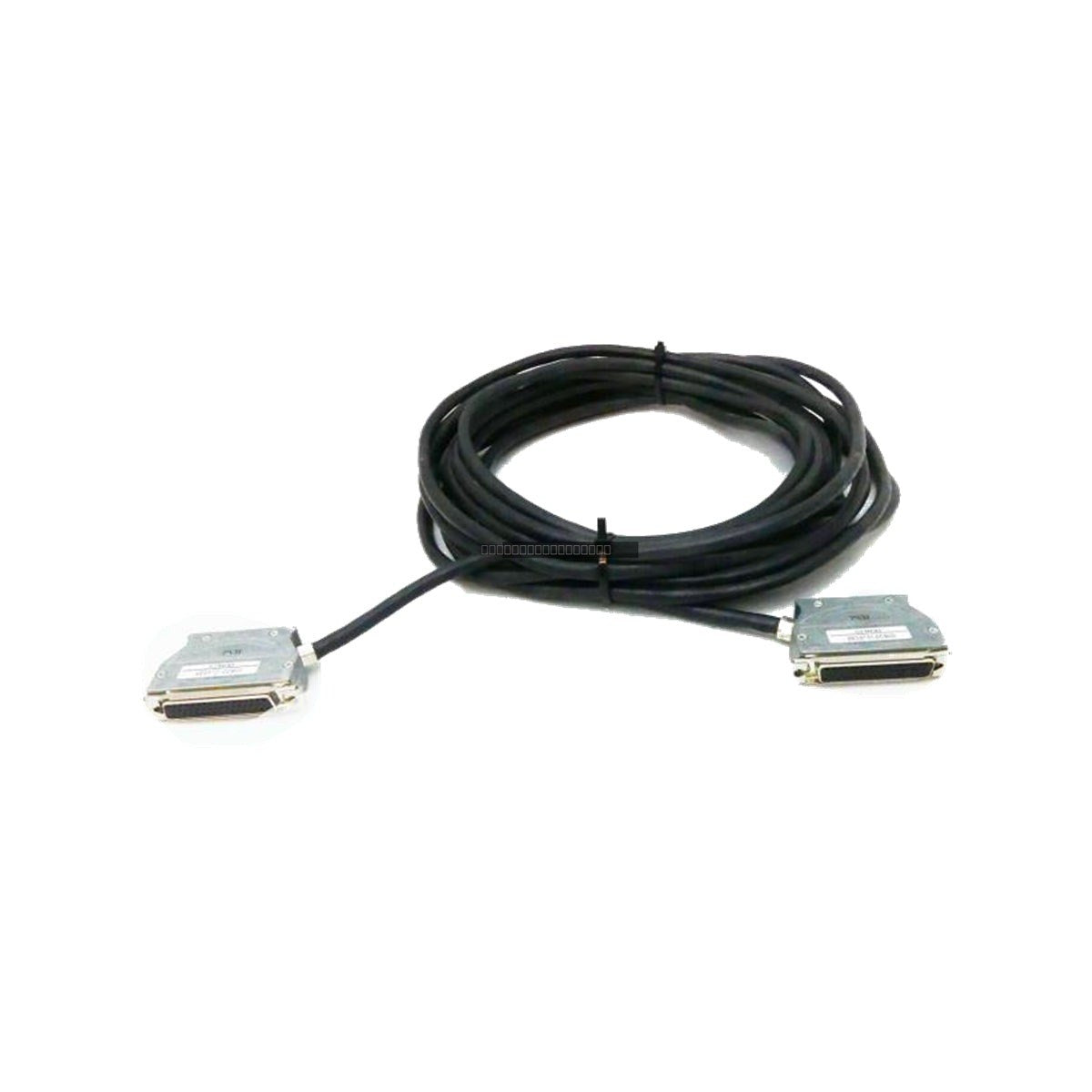

The Siemens 6ES5721-0CB00 is a dedicated 10-meter interconnect cable designed for the Simatic S5 automation platform. This assembly serves as a critical link for establishing reliable communication between central controllers and expansion units within distributed rack configurations. Engineered for industrial environments, this cable ensures the physical integrity of the communication bus, supporting the deterministic data exchange required for complex control tasks in legacy S5 architectures.

Features

• Robust 10-meter length suitable for bridging central racks and remote expansion chassis.
• Optimized for high-speed data transmission within the Simatic S5 backplane expansion bus.
• Heavy-duty shielding protects signal integrity against electromagnetic interference (EMI) and common-mode noise.
• Ruggedized connectors equipped with mechanical locking mechanisms to resist vibration-induced loosening.
• Passive design ensures reliable operation without requiring external power sources.

Applications

This cable is essential for maintaining split-rack system synchronization in demanding industrial sectors, including power generation, chemical processing, and large-scale manufacturing. It is primarily used to extend the reach of the central processor to decentralized I/O racks, ensuring continuous operation and preventing communication-related system trips.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before connecting or disconnecting the cable to prevent potential damage to the communication ports.
• Route the cable away from high-voltage power lines and heavy machinery to minimize the risk of induced electrical noise.
• Verify that the locking screws on both ends are fully tightened to ensure a secure ground connection and prevent mechanical strain.
• Maintain the minimum bend radius during installation to prevent internal conductor damage or insulation stress.
• Inspect the connector pins for debris or oxidation before initial installation to guarantee optimal signal contact.

FAQ

Is this cable compatible with all Simatic S5 modules?

The 6ES5721-0CB00 is designed specifically for the S5 expansion bus interface. Please verify your specific CPU or expansion unit documentation to confirm it utilizes this standard interconnect cable type.

Can this cable be used for distances greater than 10 meters?

While the cable itself is 10 meters, it is part of a broader architecture that can support system topologies up to 600 meters when utilizing the appropriate line amplifiers and bus configurations defined in the Simatic S5 system manual.
