Description

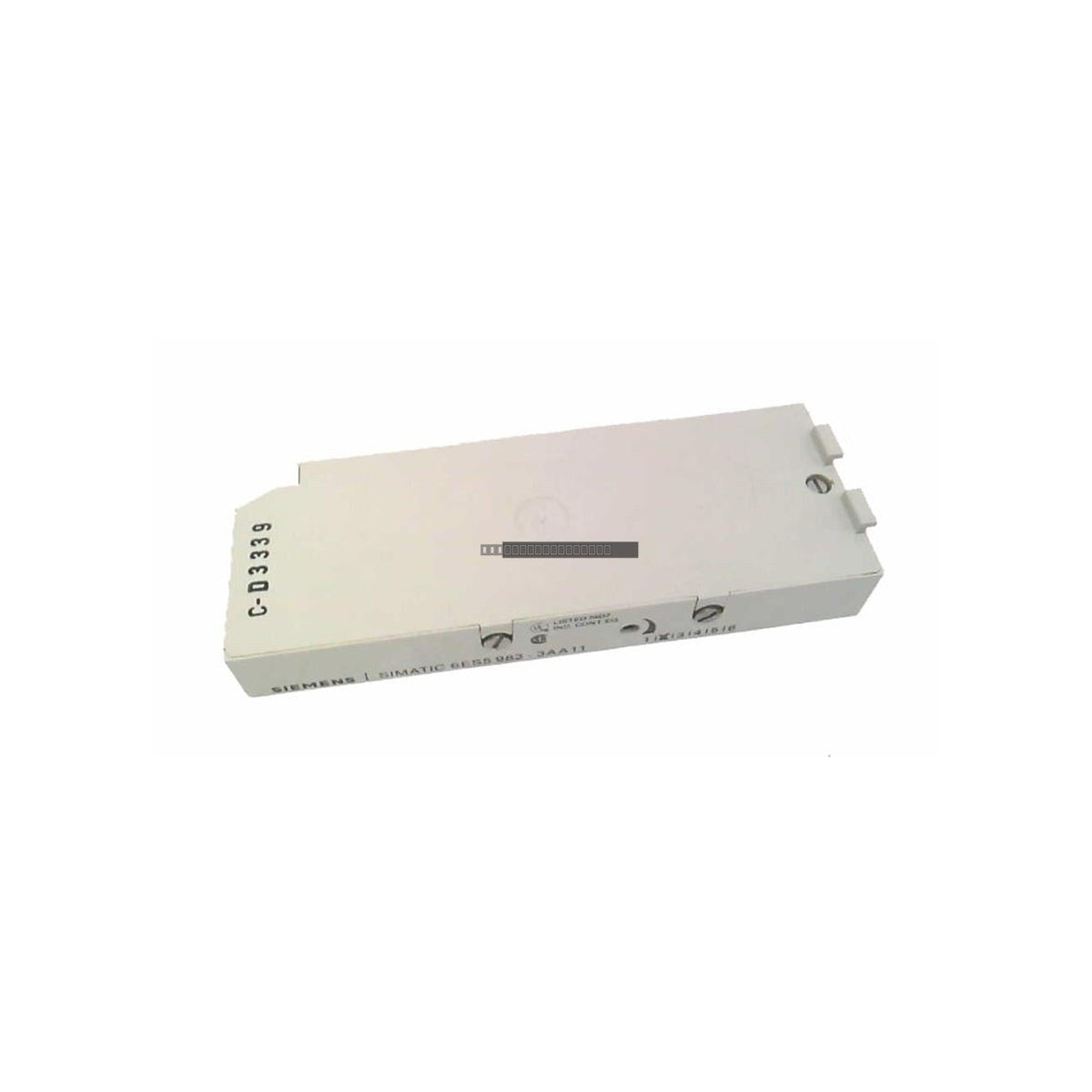

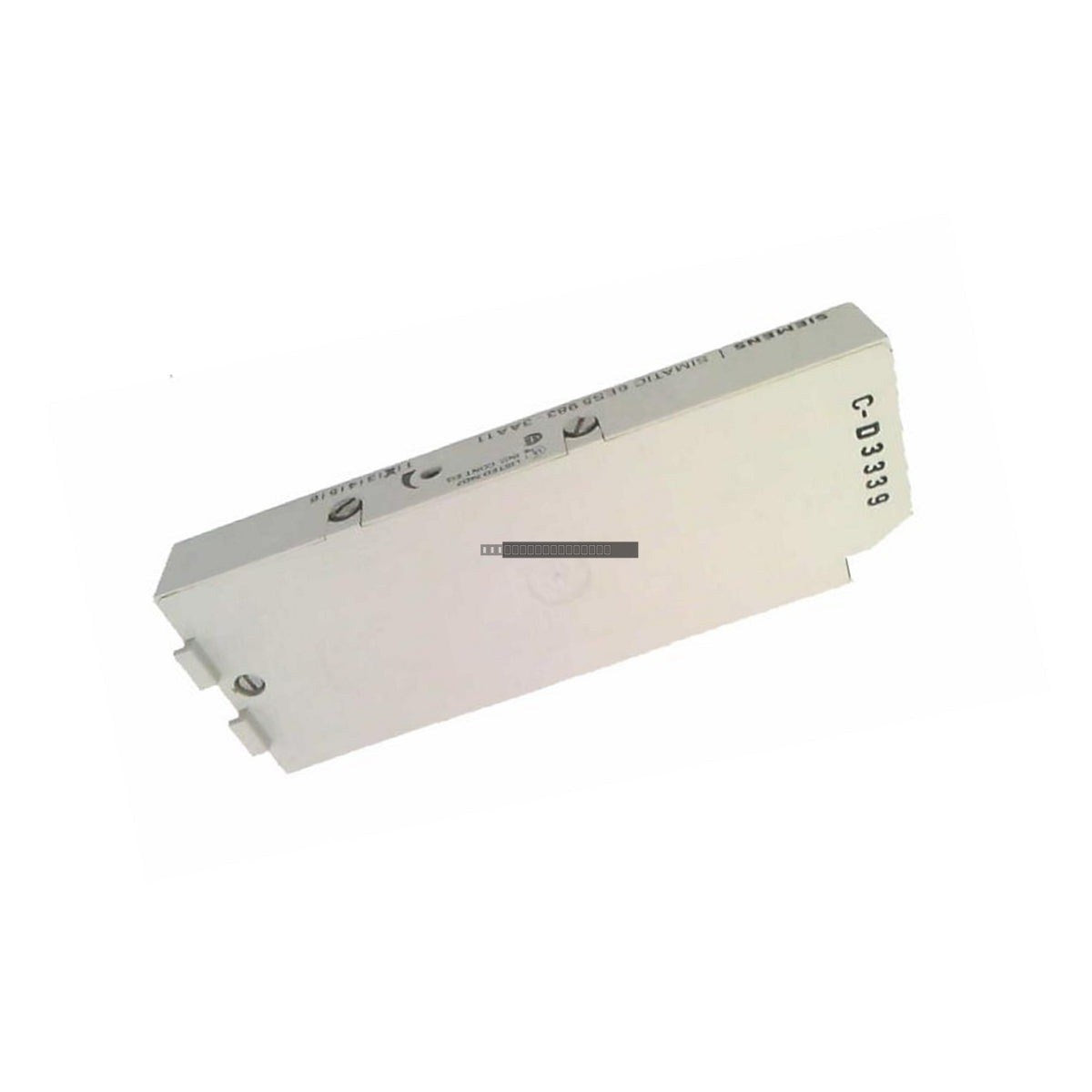

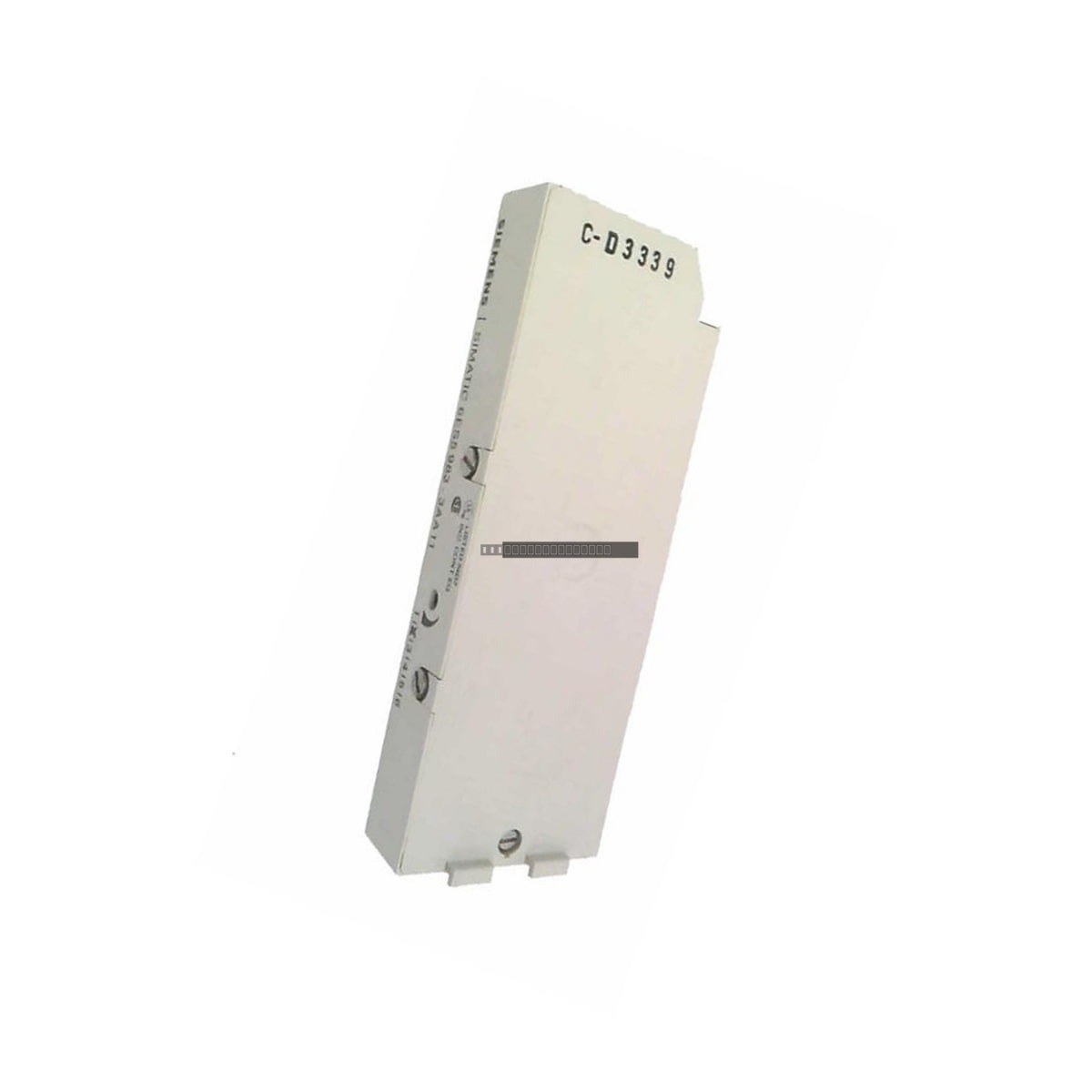

The Siemens 6ES5983-3AA11 is a specialized cable connector assembly designed for the Simatic S5 automation series. This component serves as a robust interface block, featuring a 25-pin female D-Sub connection, specifically engineered to facilitate reliable communication between external feedback loops, programming interfaces, and the S5 control rack. As a critical component for legacy system maintenance, it ensures signal integrity in demanding industrial environments such as steel manufacturing and maritime automation.

Features

• High-density 25-pin female D-Sub interface for secure signal transmission.
• Designed for high-vibration industrial environments to maintain structural and electrical contact integrity.
• Integrated shielding properties to mitigate electromagnetic interference (EMI) when used with compatible shielded cabling.
• Supports closed-loop diagnostic configurations to assist in rapid fault detection and communication line monitoring.
• Gold-plated pin contacts to prevent oxidation and ensure low-resistance connectivity over long-term operation.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or damage to the I/O pins.
• Verify that the connector is fully seated and the locking mechanism is engaged to maintain vibration resistance.
• Use properly shielded cables and ensure the cable shield is correctly terminated to the connector housing to maintain EMI protection.
• Avoid excessive mechanical strain on the connector housing; use appropriate cable strain relief methods to prevent port damage.
• Inspect pins for debris or oxidation before mating; ensure the environment is free of conductive dust or moisture during installation.

FAQ

Is this connector compatible with modern S7 systems?

No, the 6ES5983-3AA11 is specifically designed for the legacy Simatic S5 series. It is not intended for direct use with S7-series hardware.

What is the primary function of this connector?

It acts as a high-reliability interface for serial data, feedback loops, and programming connections, ensuring that signal integrity is maintained within the S5 rack architecture.
