Description

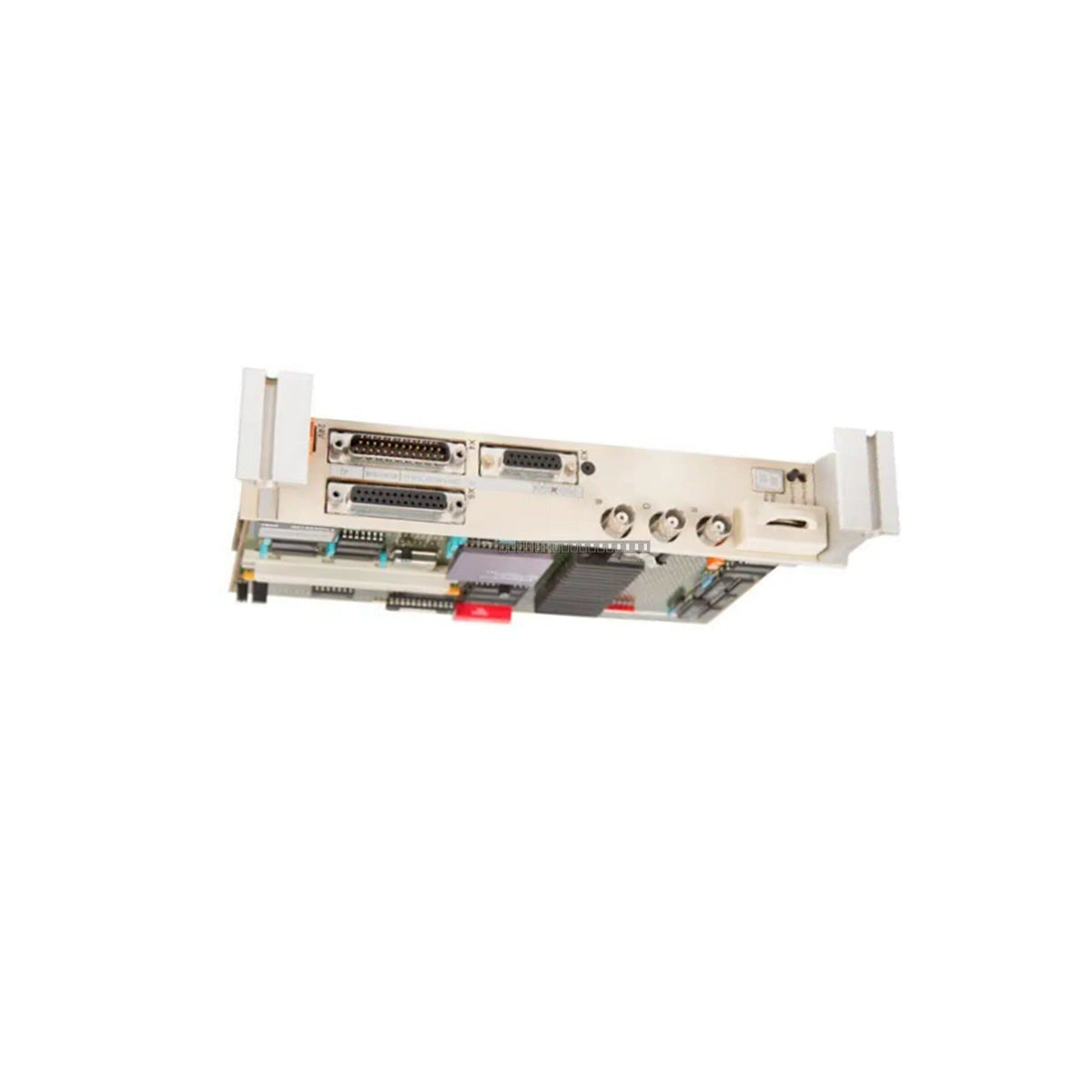

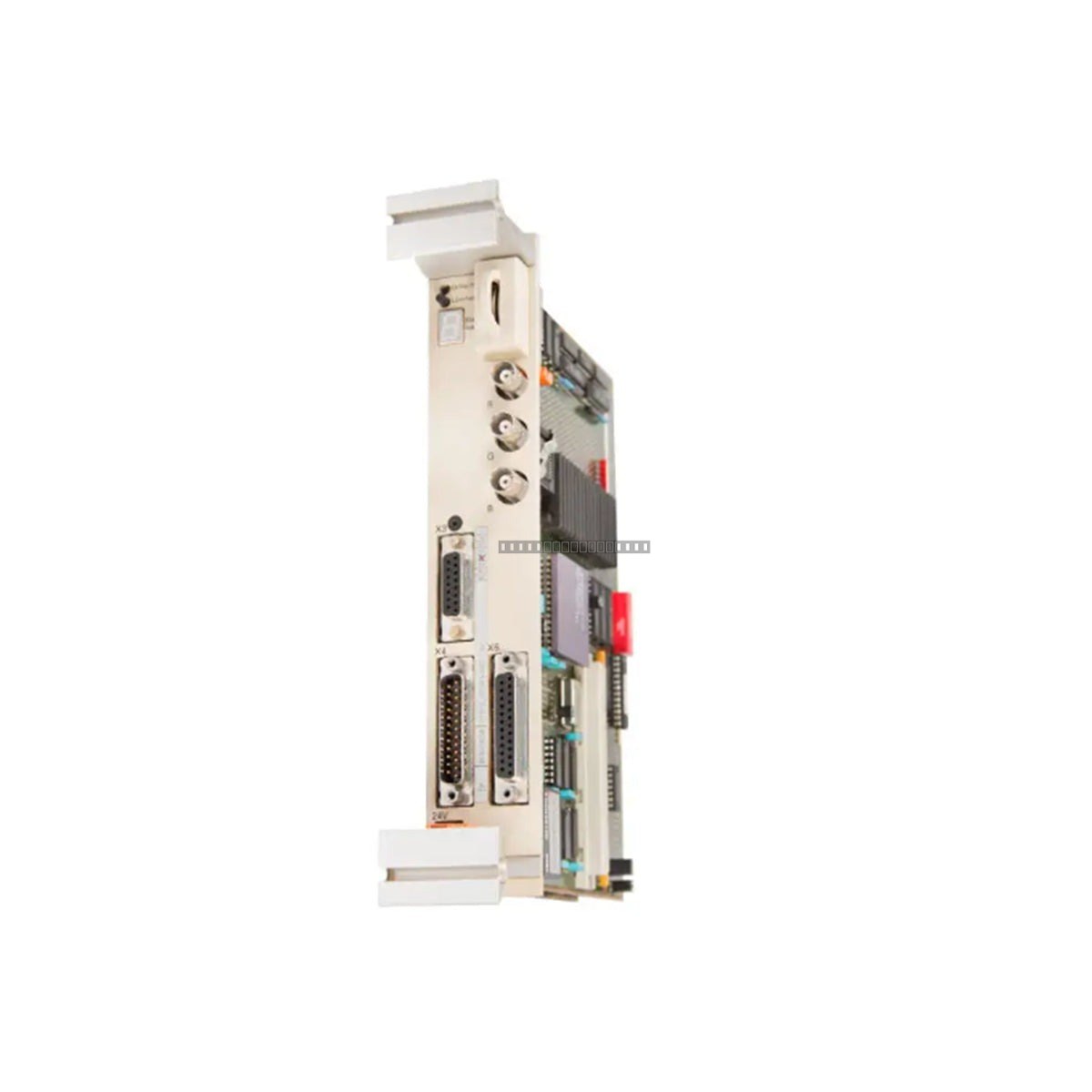

The Siemens Simatic S5 WF481A (6FM1481-2AB00) is a high-performance GRACIS graphics and communication module engineered for complex industrial automation environments, including power generation, chemical processing, and large-scale manufacturing. Designed to interface seamlessly with the S5-115U and S5-135/155U rack systems, this basic version module features an integrated SINEC H1 interface to facilitate robust, high-speed industrial Ethernet networking. By enabling reliable real-time data visualization and deterministic communication across the plant floor, the WF481A plays a critical role in optimizing process control, ensuring system redundancy, and reducing unscheduled hardware downtime in legacy infrastructures.

Features

• SINEC H1 Interface: Utilizes the IEEE 802.3 standard for deterministic master-to-master and master-to-slave data transmissions, ensuring high-throughput communication with supervisory control systems and HMI stations.
• GRACIS Integration: Provides the foundational hardware architecture required for generating complex graphical displays and managing process alarms directly at the controller level.
• Backplane Bus Synergy: Supports multi-processor operation within the S5-135/155U subracks, utilizing high-speed parallel bus communication to synchronize process images without inducing cycle-time delays.
• Co-processor Functionality: Operates as an intelligent co-processor, offloading heavy graphics processing and networking tasks from the central processing unit (CPU).

Technical Specifications

Installation Guidelines

• Ensure the S5 rack power is disconnected before inserting or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in the designated S5 backplane slot to ensure proper bus contact.
• Use appropriate shielded cabling for the SINEC H1 interface to minimize EMI interference in industrial environments.
• Maintain adequate ventilation around the S5 rack to ensure the module operates within its specified temperature range (0 to 60 deg C).
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.

FAQ

What is the primary function of the WF481A module?

The WF481A is a specialized co-processor module designed for the Siemens Simatic S5 series. It handles graphics generation (GRACIS) and provides a SINEC H1 Industrial Ethernet interface to offload these tasks from the main PLC CPU.

Is this module compatible with all S5 systems?

The WF481A is designed for the S5-135/155U rack systems and is also compatible with the S5-115U series. Always verify your specific rack configuration and CPU compatibility before installation.
