Description

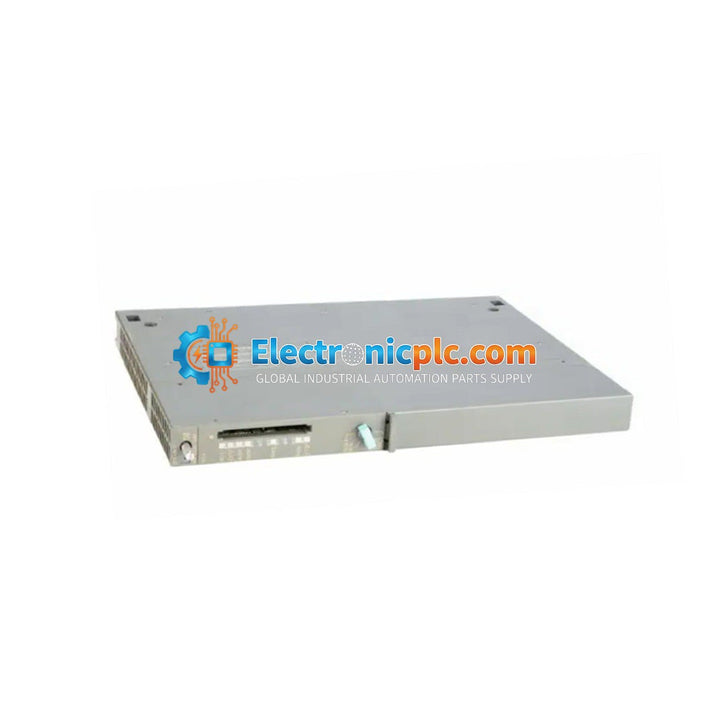

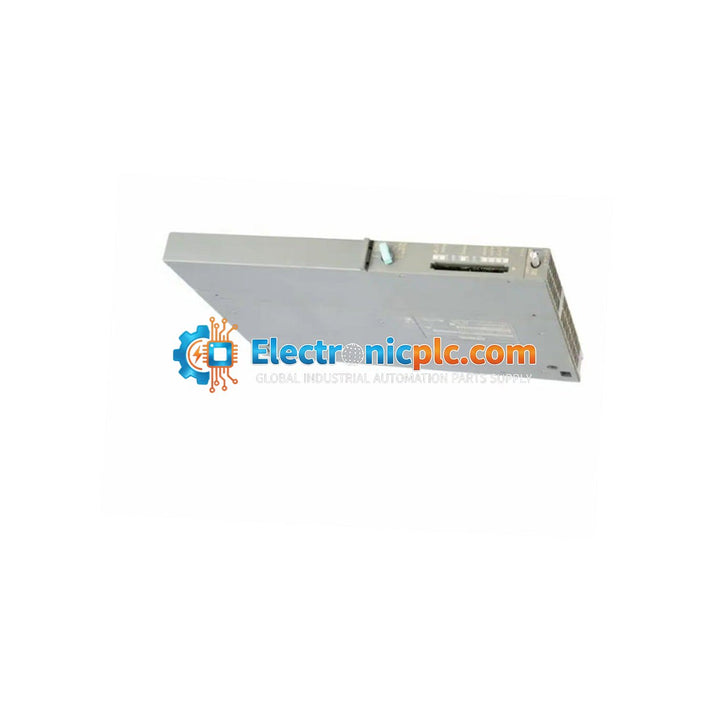

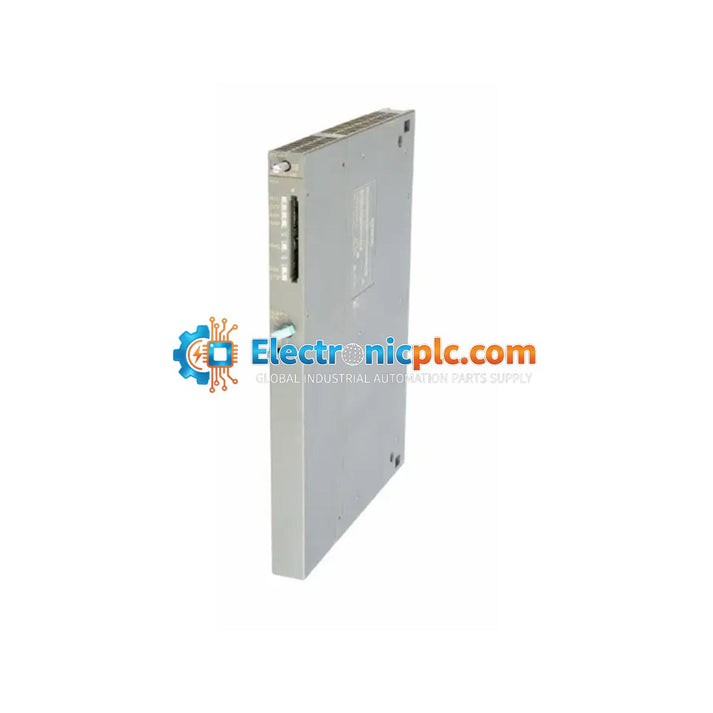

The Siemens 6ES7414-2XG03-0AB0 is a high-performance central processing unit (CPU) engineered for the SIMATIC S7-400 automation system. This module provides reliable, deterministic control for complex industrial processes, offering 256 KB of integrated work memory (128 KB for program code and 128 KB for data). Designed for demanding environments, it supports high-speed communication via an integrated MPI/PROFIBUS DP interface, facilitating efficient data exchange in decentralized I/O architectures and multi-controller configurations.

Features

• Integrated 256 KB work memory for efficient program and data handling.
• MPI/PROFIBUS DP interface supporting transmission speeds up to 12 Mbit/s.
• Supports multi-computing mode for distributed processing within a single S7-400 rack.
• Expandable load memory capacity via external memory cards (up to 12 MB).
• Advanced internal diagnostic capabilities for rapid fault identification and reduced system downtime.

Applications

The CPU 414-2 is widely utilized in large-scale industrial automation, including power generation plants, oil and gas refineries, chemical processing, and automotive manufacturing lines where high availability and precise logical control are required.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected from the rack before inserting or removing the CPU module.
• Verify that the module is correctly seated in the designated CPU slot of the S7-400 rack to ensure proper backplane communication.
• Use shielded cables for PROFIBUS communication to minimize electromagnetic interference (EMI).
• Maintain adequate ventilation within the control cabinet to ensure the operating temperature remains within the 0 to 60 deg C range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Is this CPU compatible with existing S7-400 racks?

Yes, the 6ES7414-2XG03-0AB0 is designed for standard SIMATIC S7-400 backplanes. Please ensure your rack power supply is sized appropriately for the system configuration.

What is the primary communication protocol supported?

This module features an integrated MPI/PROFIBUS DP port, allowing it to act as a master or slave in PROFIBUS networks for high-speed data transfer.
