Description

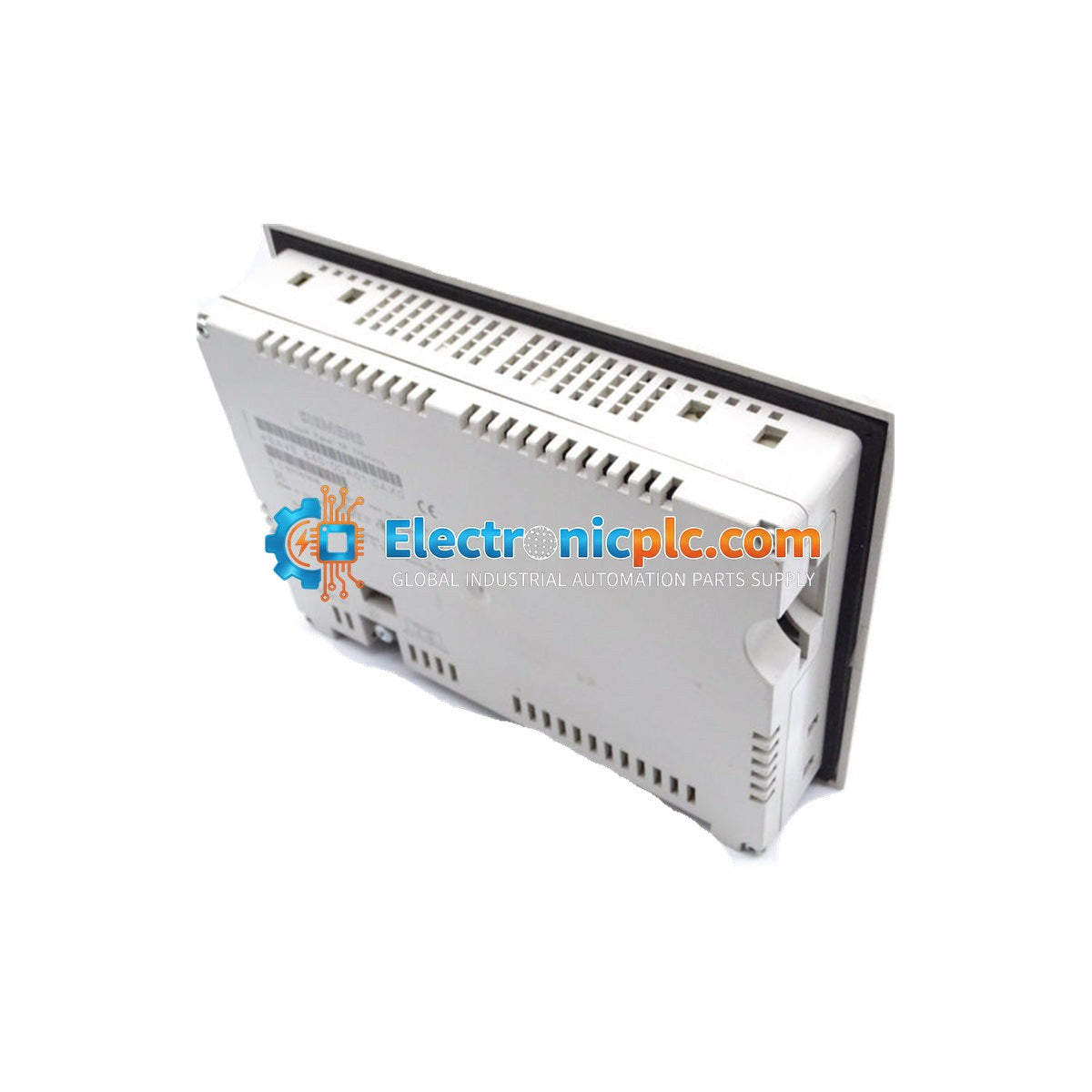

The Siemens 6AV6640-0CA01-0AX0 is a SIMATIC TP170 Micro Touch Panel designed specifically for integration with the SIMATIC S7-200 series programmable logic controllers. This HMI (Human Machine Interface) features a 5.7-inch blue mode STN display, providing a clear interface for monitoring and controlling small-scale automation processes. Please note that this product has been discontinued by the manufacturer and reached its end of product lifecycle as of October 1, 2018.

Features

• Optimized for seamless communication with SIMATIC S7-200 controllers.
• 5.7-inch STN display with blue mode monochrome graphics.
• Configurable using WinCC flexible 2004 Micro software.
• Compact design suitable for panel-mount applications in industrial environments.
• Robust interface for operator interaction and machine diagnostics.

Technical Specifications

Installation Guidelines

• Ensure the panel is mounted in a clean, dry, and vibration-free environment.
• Verify that the panel cutout dimensions match the manufacturer's specifications for the TP170 series to ensure a proper seal.
• Use appropriate grounding techniques to prevent EMI interference with the HMI communication signals.
• Always power down the S7-200 controller and the HMI unit before connecting or disconnecting communication cables.
• Handle the touch screen surface with care to prevent scratches or damage to the resistive overlay.

FAQ

Is this unit still supported by Siemens?

No, the 6AV6640-0CA01-0AX0 was discontinued on 01/10/18. It is no longer in active production, and support may be limited to legacy documentation and spare parts availability through secondary markets.

What software is required to program this panel?

This specific model is configured using Siemens WinCC flexible 2004 Micro software.
