Description

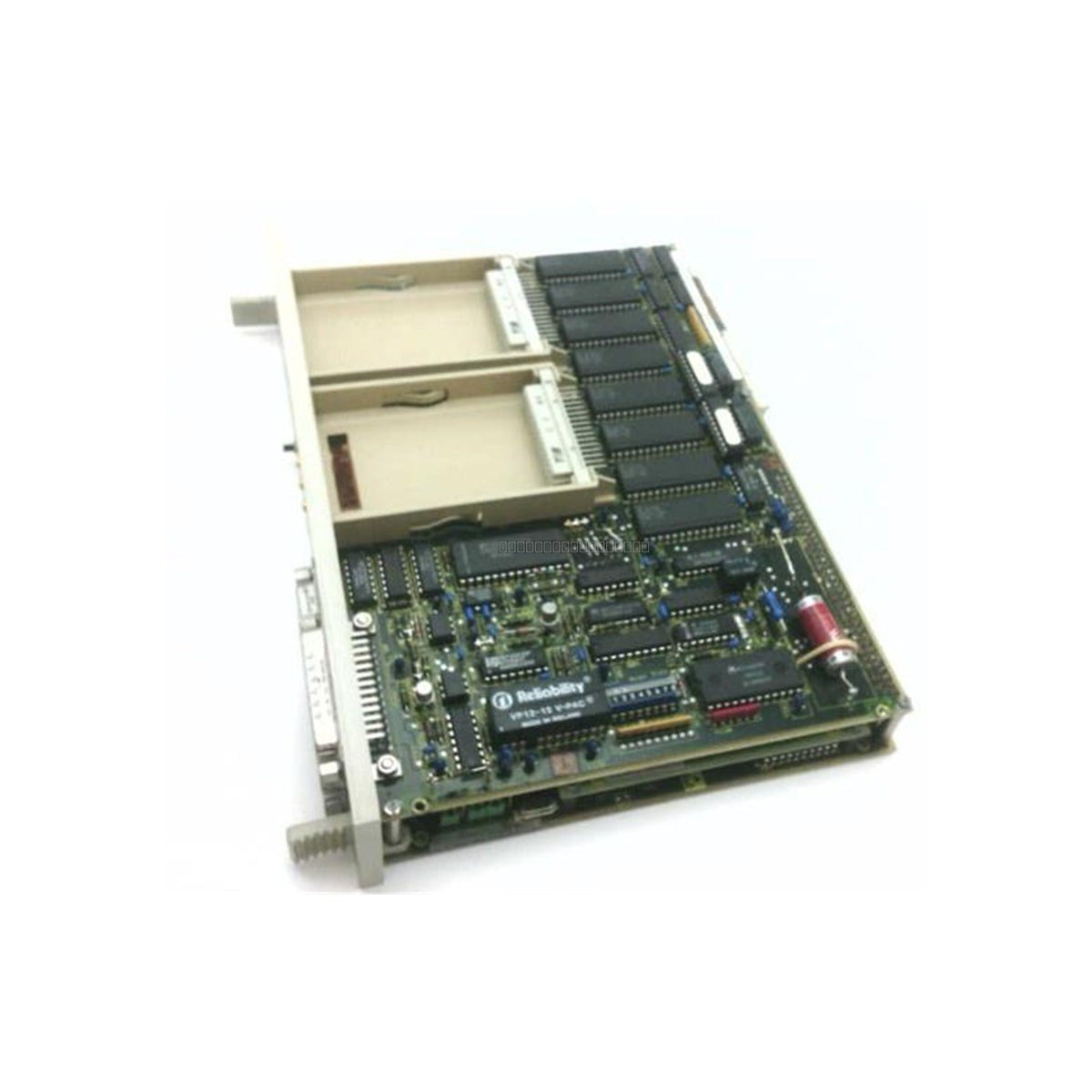

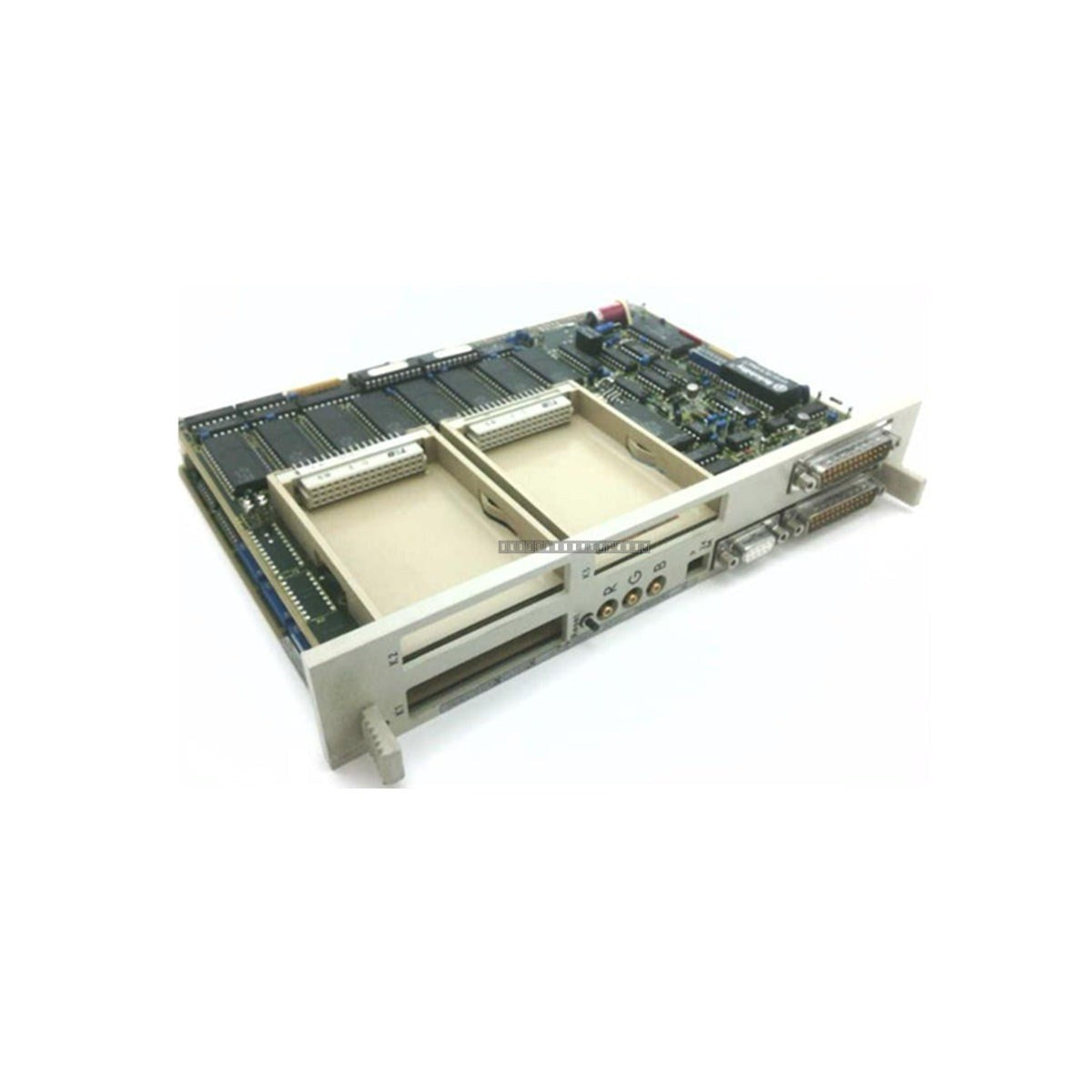

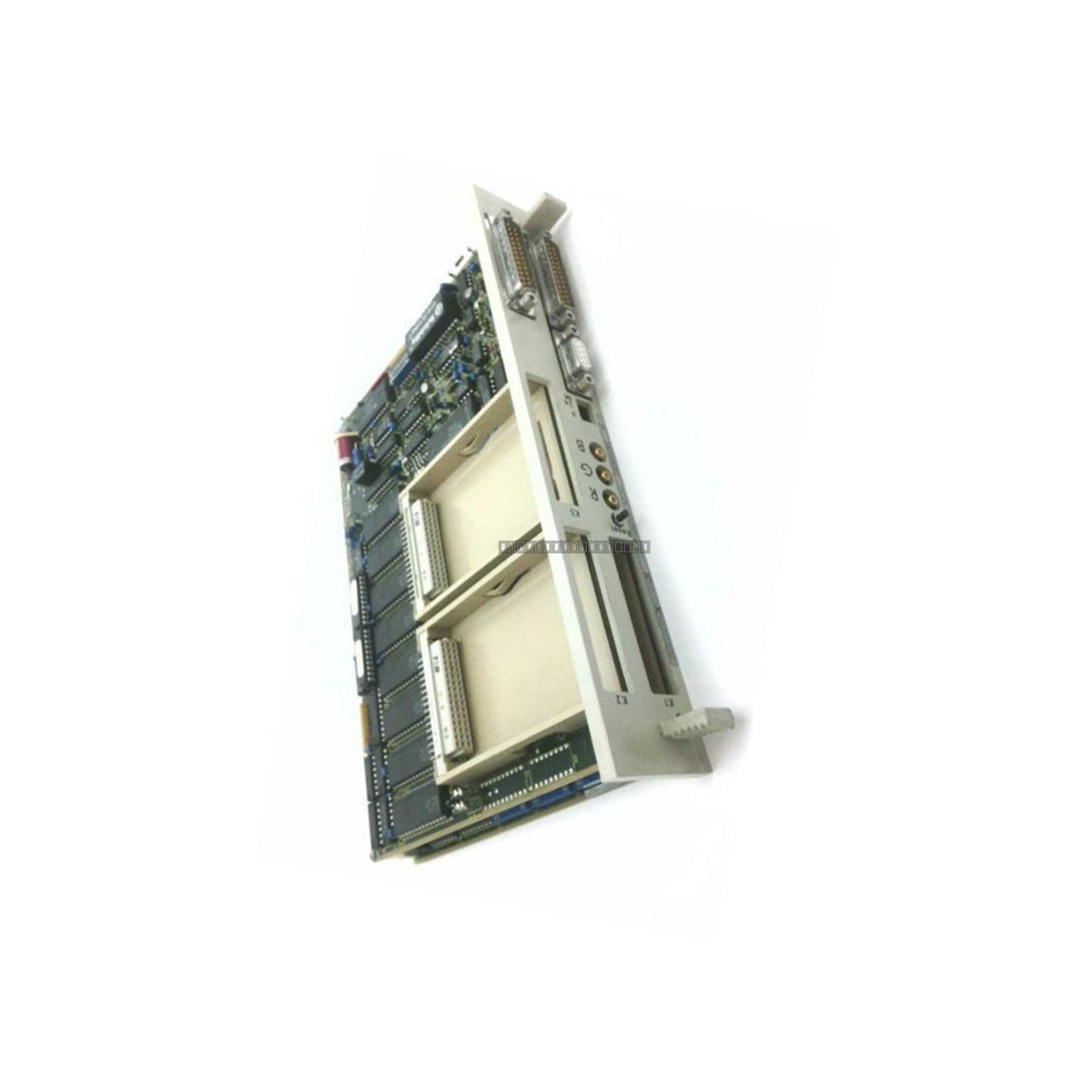

The Siemens 6FM1470-3CA21 is a specialized display and interface module designed for the SIMATIC S5 Intelligent Processors family. Engineered specifically for the WF470 positioning processor, this unit facilitates real-time monitoring, parameterization, and diagnostic feedback for industrial motion control applications. By providing a direct operator interface, the module enables efficient management of complex positioning sequences in environments such as metal fabrication, high-speed assembly, and material handling.

Features

• Integrated display interface for WF470 positioning processors
• 56 KB internal RAM for local data logging and sequence buffering
• Three physical slots for scalable memory module expansion
• High-speed backplane communication for deterministic motion control
• Designed for seamless integration with SIMATIC S5 rack-based systems

Applications

This module is primarily utilized in automated manufacturing systems requiring precise multi-axis motion control. It is commonly deployed in heavy-duty industrial environments where rapid diagnostic feedback and local process parameterization are essential for maintaining system uptime and operational efficiency.

Technical Specifications

Installation Guidelines

• Ensure the SIMATIC S5 rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in the designated S5 rack slot to ensure proper backplane contact.
• Maintain adequate spacing within the cabinet to allow for proper ventilation and heat dissipation, keeping the ambient temperature within the 0 degC to 55 degC range.
• Handle with standard ESD precautions to protect sensitive internal components.
• Ensure all memory modules are securely seated in their respective slots before powering up the system.

FAQ

Q: Is this module compatible with non-S5 systems?
A: No, the 6FM1470-3CA21 is specifically designed for the Siemens SIMATIC S5 rack architecture and the WF470 positioning processor.

Q: Can the memory capacity be expanded?
A: Yes, the module features three physical slots designed to accommodate additional memory modules for increased storage capacity.
