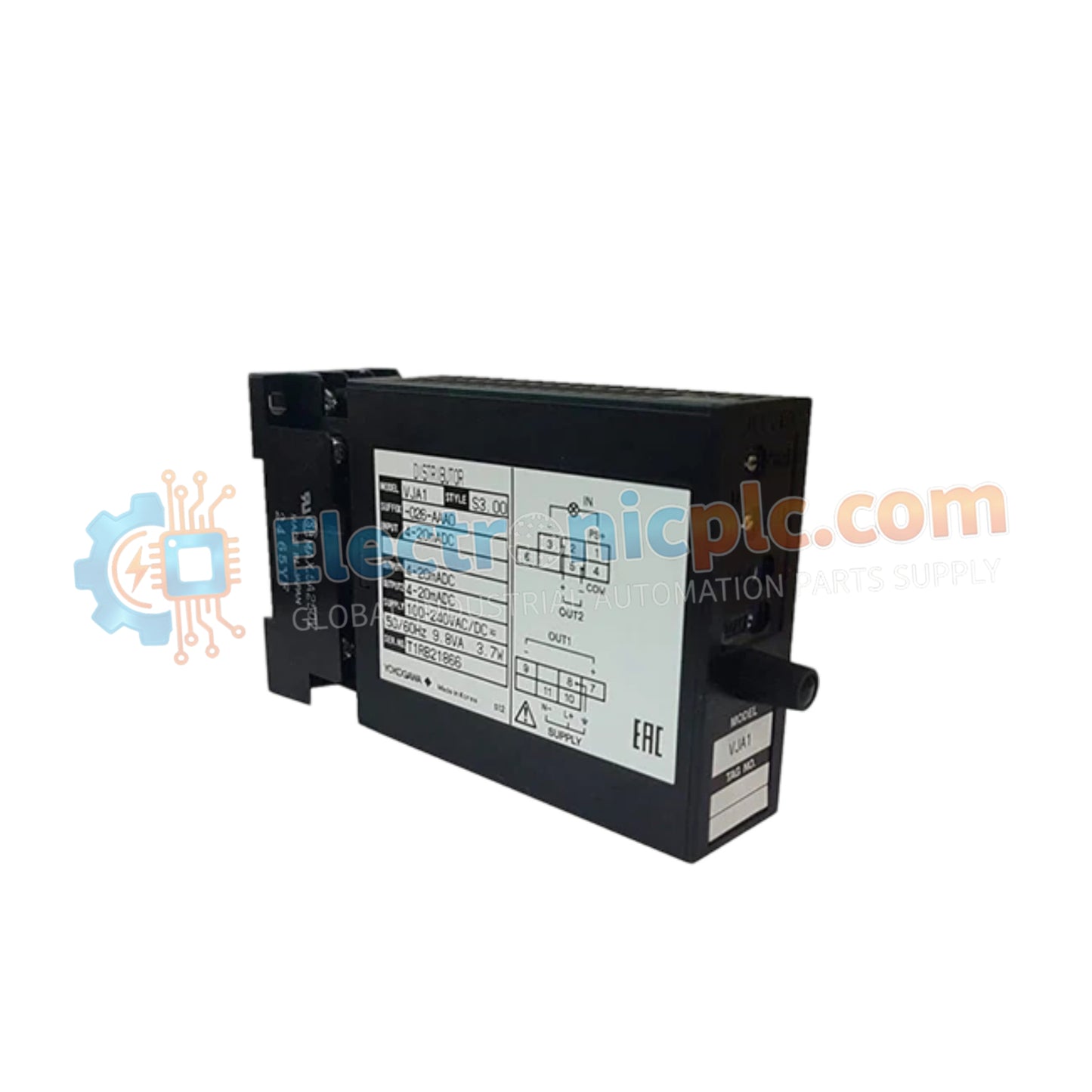

Configured for precision signal conditioning in control systems, the YOKOGAWA VJA1-027-AAA0 (VJA1-027-AAA0 Signal Distributor) provides direct galvanic isolation and distribution of 4-20 mA DC input signals from two-wire transmitters into dual independent outputs.

Hardware Specifications

Process Control Signal Conditioning

The VJA1-027-AAA0 employs sophisticated signal distribution architecture to maintain accuracy across multi-drop instrumentation loops. The device features multi-point galvanic isolation, which is critical for preventing ground loops in process control environments. By providing two isolated outputs, it enables a single field transmitter to supply data simultaneously to a primary DCS controller and a secondary monitoring or recording device without degradation of the 4-20 mA HART loop protocol signal integrity.

Frequently Asked Questions

Q: Can this distributor be used with self-powered (four-wire) transmitters?

A: The VJA1-027-AAA0 is specifically designed for two-wire transmitters where the module provides the necessary loop excitation power. Using it with four-wire transmitters may require modification of the loop wiring to avoid voltage contention.

Q: Is the output range field-configurable?

A: The module is factory-calibrated based on the model suffix. While it supports both current and voltage outputs, internal adjustments or jumpers may be required depending on the specific output scaling specified at time of manufacture.

Field Installation Guidelines

• Ensure the plug-in base is mounted on a standard DIN-rail or dedicated backplane to provide mechanical stability and thermal dissipation.
• Use shielded, twisted-pair cabling for all input and output signal runs to minimize electromagnetic interference (EMI) and cross-talk.
• Verify the power supply voltage (15-30 VDC or 100-240 VAC) matches the module rating before applying power to prevent internal circuit damage.
• Check that total load resistance on the output loops remains within the specified limits to maintain linear signal output.
• Confirm that the input loop is correctly wired for a two-wire transmitter, ensuring the VJA1 provides the required DC loop bias.
