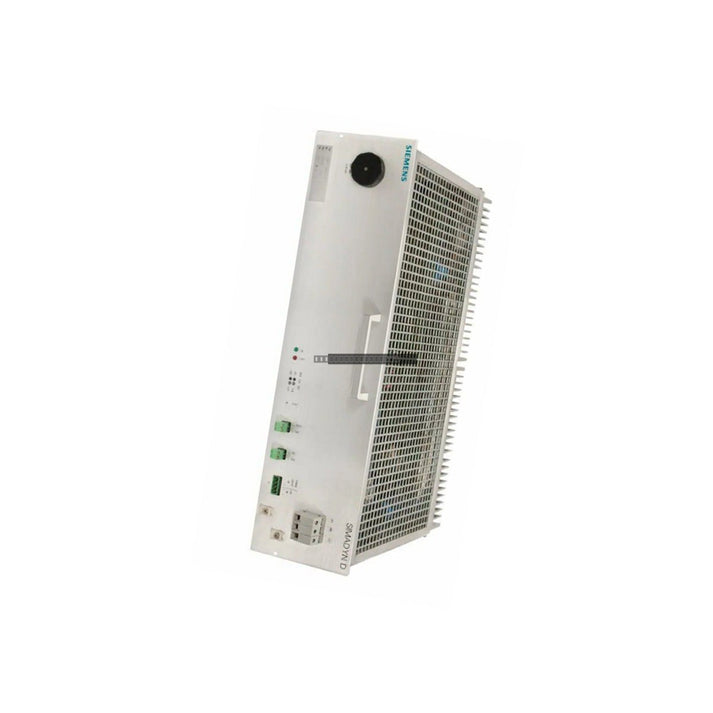

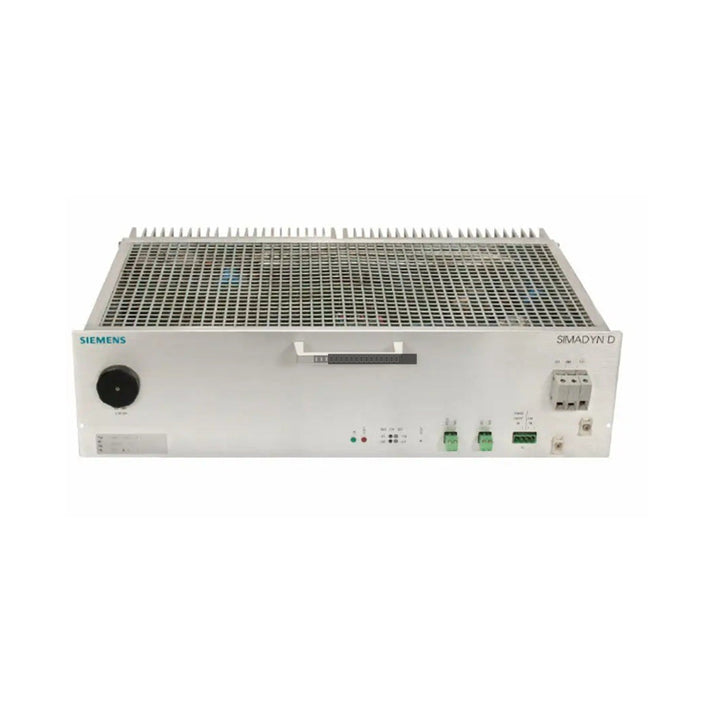

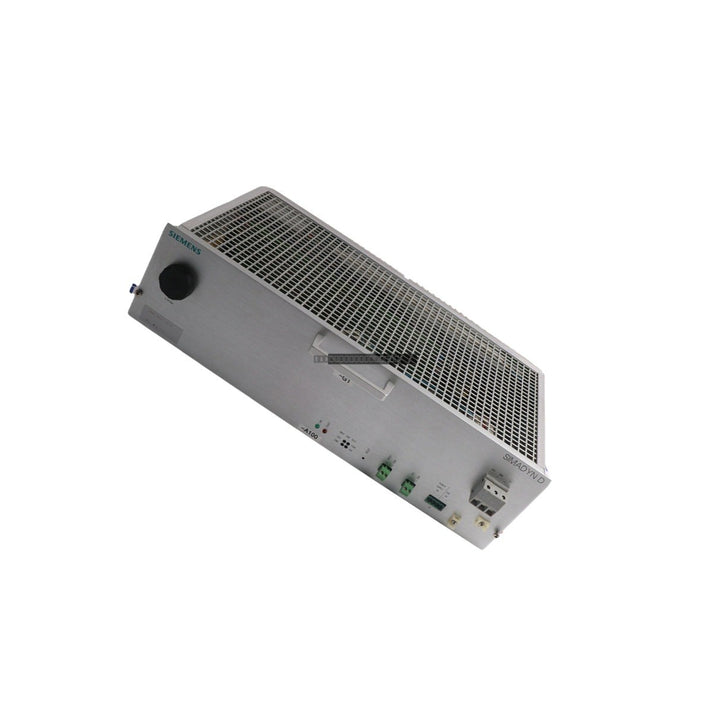

The Siemens 6DD1683-0BC0 is a dedicated power supply unit designed for the Simadyn D automation system. Identified as the SP8 model, this unit is engineered to provide stable and reliable power distribution for industrial control applications requiring high-current capacity. Please note that this component has been discontinued by the manufacturer.

Features

• Designed specifically for the Siemens Simadyn D platform.
• Integrated cooling fan to maintain thermal stability during operation.
• High-current output capability of 52 Amps at 5V.
• Input voltage compatibility for standard 24 VDC industrial power environments.
• Robust construction suitable for demanding control cabinet installations.

Technical Specifications

Installation Guidelines

• Ensure the power supply is installed in a well-ventilated enclosure to allow for effective heat dissipation via the integrated fan.
• Verify that the input power source is stable and matches the 24 VDC requirement before connection.
• Always perform installation or maintenance with the main power supply disconnected to prevent electrical hazards.
• Use appropriate wire gauges for the 52A output to avoid voltage drops and overheating.
• Ensure the unit is securely mounted to the rack or backplane to prevent vibration-induced connection failure.

FAQ

Is the 6DD1683-0BC0 still in production? No, this specific model has been discontinued by Siemens.

What is the primary function of the SP8 unit? The SP8 acts as a high-performance power supply module specifically configured for the power requirements of the Simadyn D control system.

Does this unit include cooling? Yes, the 6DD1683-0BC0 features an integrated fan to manage internal temperatures during high-load operation.
