Description

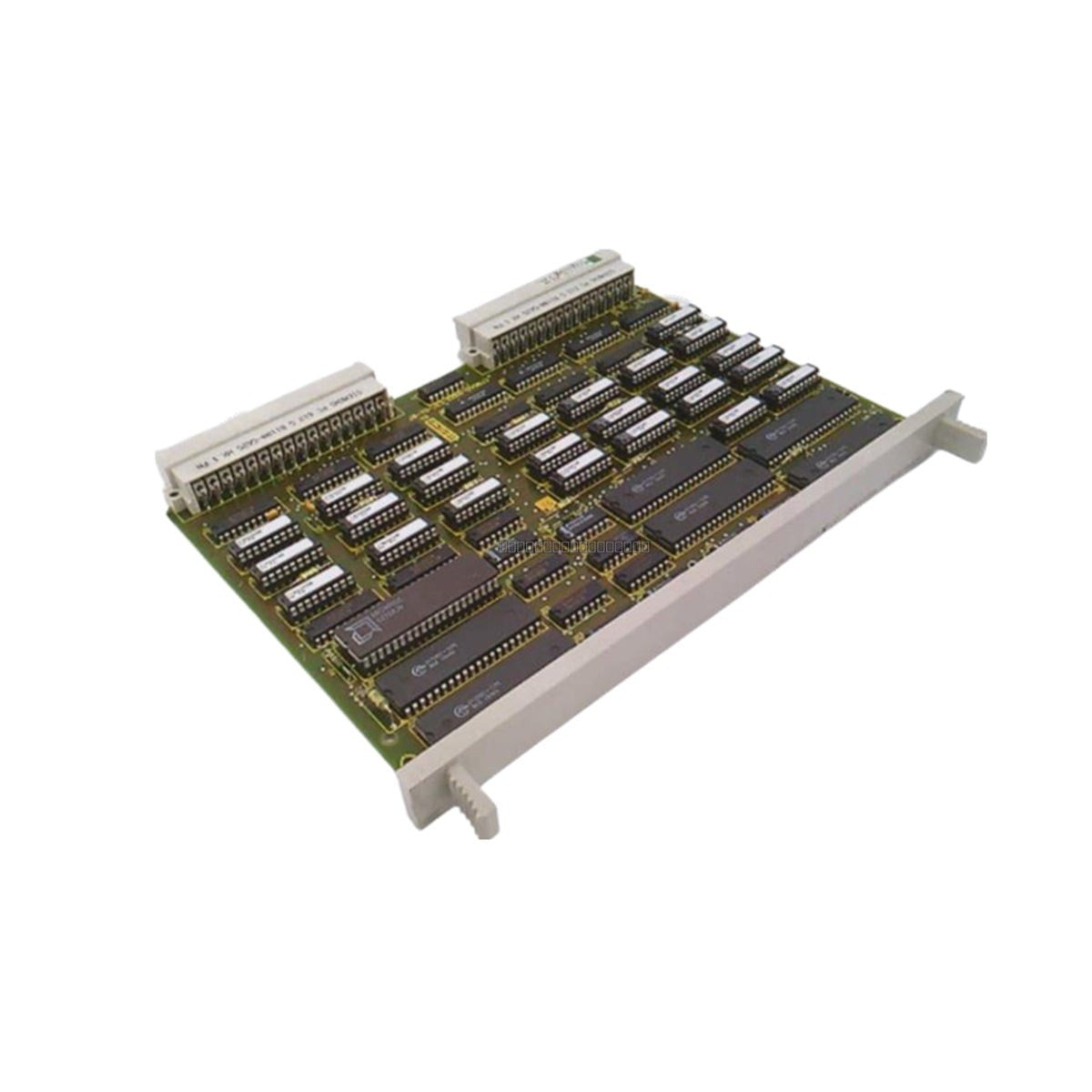

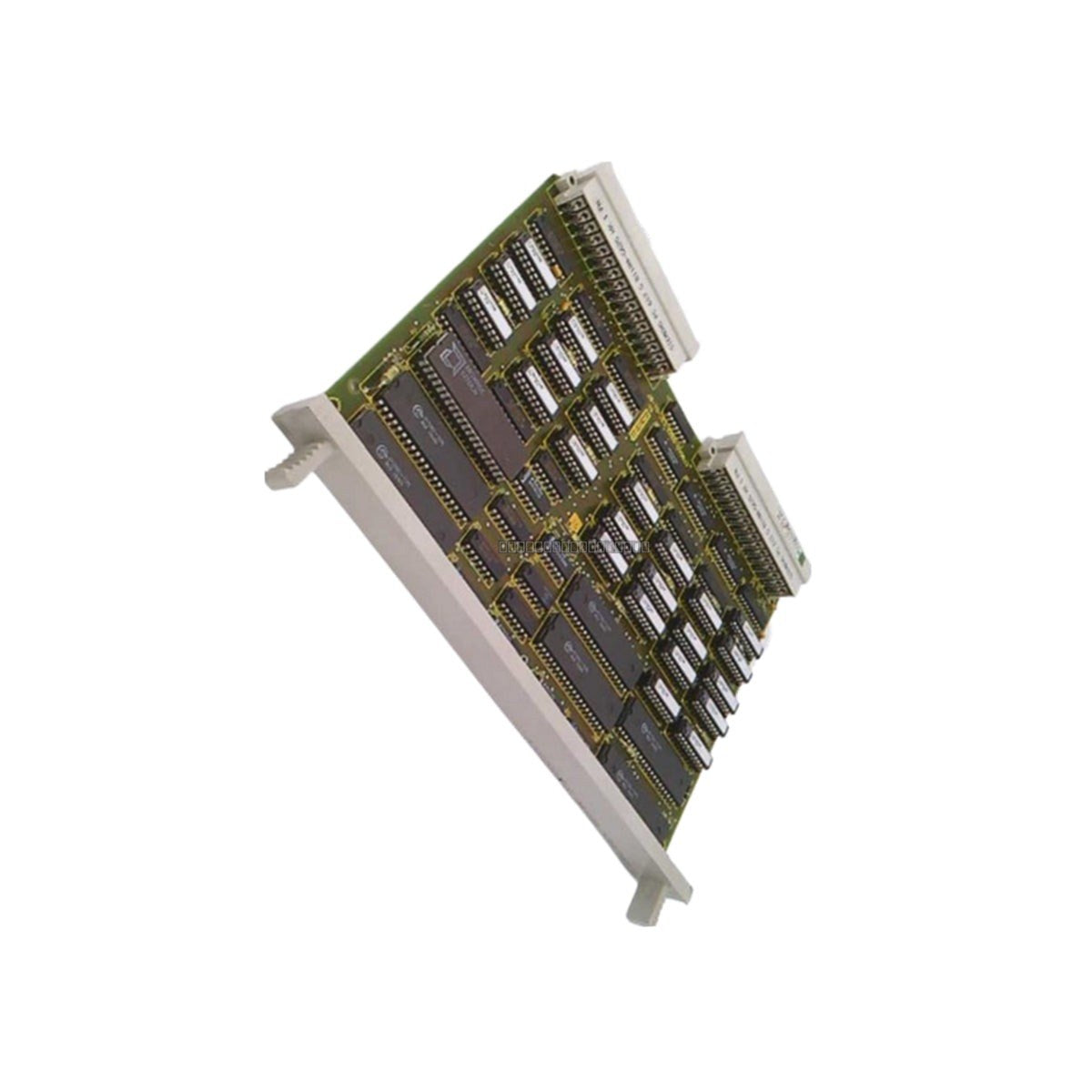

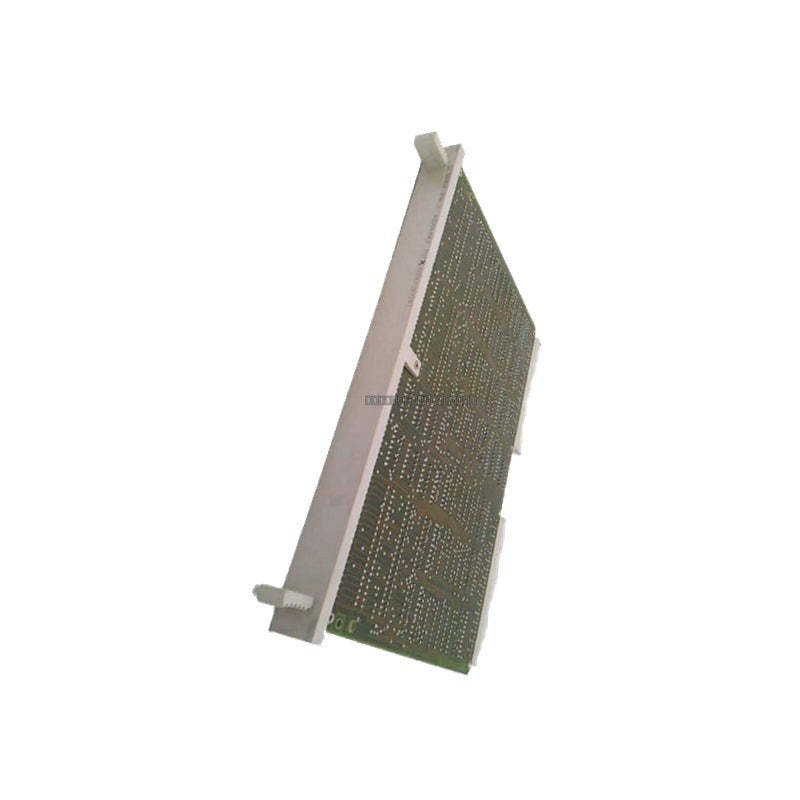

The Siemens SIMATIC S5 6ES5924-3SA12 is a central processing unit board engineered for use within the legacy SIMATIC S5-150S and 150U automation systems. This module serves as a critical controller, managing real-time logic, timing, and counting functions essential for industrial automation. Designed for durability in demanding environments, it provides reliable instruction execution and I/O management, making it a suitable replacement component for maintaining and restoring legacy control systems in sectors such as steel manufacturing, automotive assembly, and power generation.

Features

• Designed specifically for integration with ZG 150S and 150U subracks.
• High-speed parallel bus communication for efficient interfacing with digital and analog I/O modules.
• Integrated diagnostic LEDs for rapid identification of power faults, processor status, and bus errors.
• Hardened multi-layer PCB construction to mitigate the effects of electromagnetic interference (EMI) and thermal stress.
• Deterministic processing capabilities for complex industrial control loops.

Applications

This CPU board is primarily utilized in legacy SIMATIC S5-150 series automation architectures. It is intended for use in heavy industrial environments where reliable, continuous control of manufacturing processes is required. It is commonly deployed to replace failing hardware in existing legacy installations to avoid costly system migrations.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before inserting or removing the CPU board from the subrack.
• Handle the board by the edges to prevent electrostatic discharge (ESD) damage to sensitive electronic components.
• Verify that the board is correctly aligned with the backplane connector before applying pressure to seat it.
• Ensure the subrack environment is free from excessive dust and moisture to maintain long-term operational reliability.
• Check that all diagnostic LEDs are visible after installation to facilitate future system monitoring and troubleshooting.

FAQ

Is the 6ES5924-3SA12 compatible with other S5 series controllers?
This specific board is designed for the S5-150S and 150U series. It is not intended for use in other S5 subrack architectures.

What should I do if the diagnostic LEDs indicate a fault?
First, verify that the board is fully seated in the backplane. If the fault persists, check the system power supply and the status of other modules in the rack to isolate whether the issue is localized to the CPU board or a broader system error.
