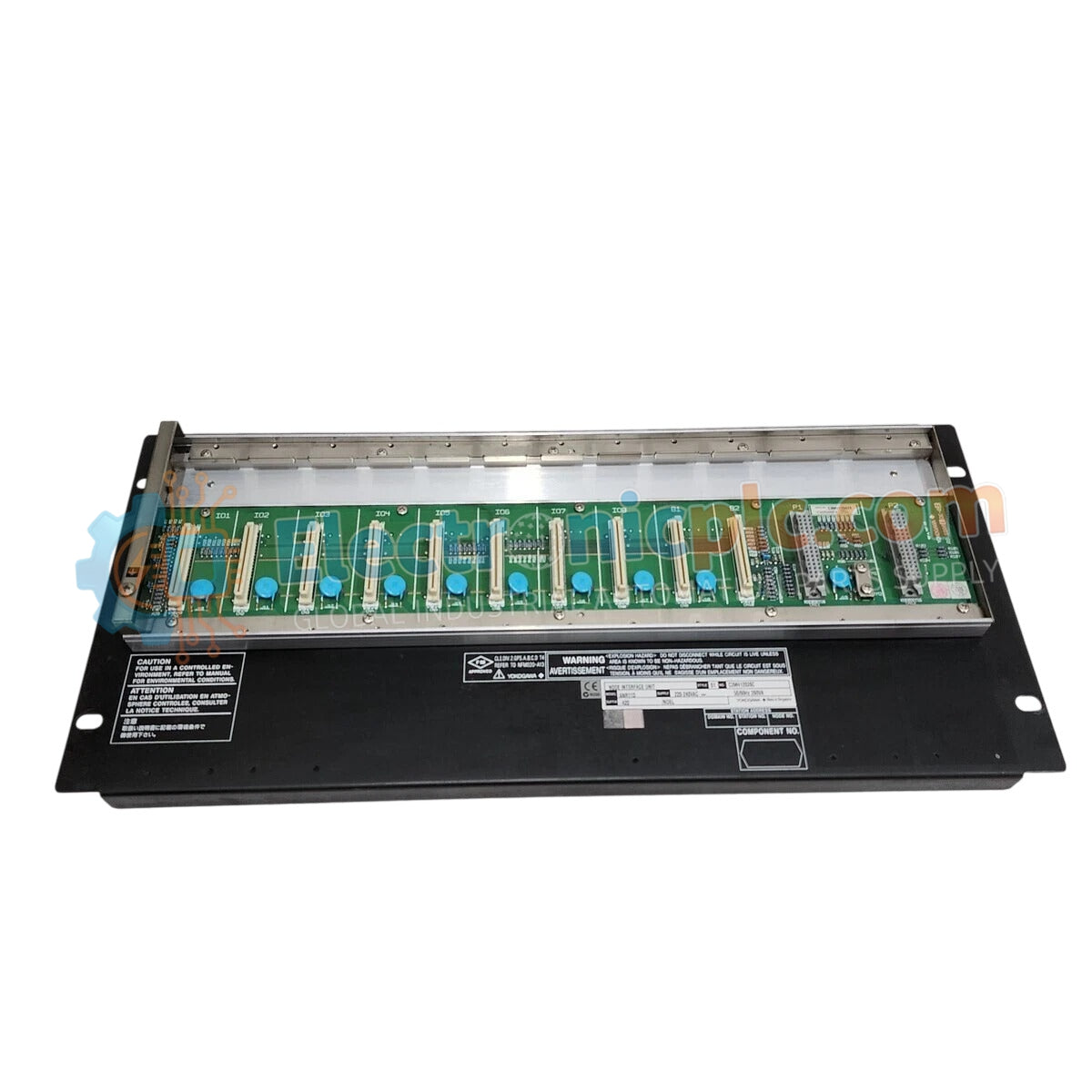

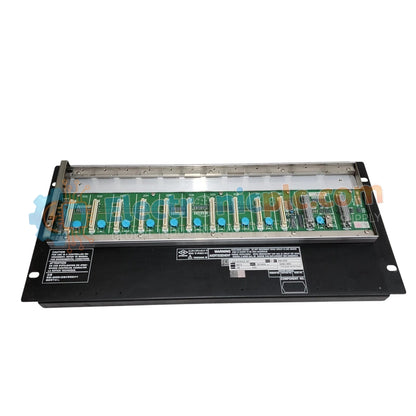

The Yokogawa SNB10D-425/CU2T is a mission-critical hardware component within the ProSafe-RS Safety Instrumented System (SIS). Engineered for high-availability safety functions, this node unit provides the deterministic processing required for emergency shutdown (ESD) and fire and gas (F&G) applications in hazardous industrial environments.

Hardware Specifications

Industrial Safety and Integration

The SNB10D-425 supports dual-redundant power supplies, ensuring that power distribution failure does not compromise the safety integrity level (SIL) of the node. The unit is optimized for high-density I/O handling, utilizing the ESB (Extended Safety Bus) bus architecture—facilitated by the included CU2N connector unit—to communicate with remote safety controllers. Its ruggedized design, compliant with ISA G3 standards, allows for reliable operation in corrosive and thermally challenging atmospheres typical of chemical and oil and gas processing plants.

Frequently Asked Questions

Q: Does the -425 suffix provide hazardous location (explosion-proof) protection?

A: No. While this unit is rated for extended temperature ranges (-20 to 70 °C) and G3 corrosive environments, it is not certified for explosion-proof (Ex) zones. It must be installed within a suitable enclosure or a safe zone area.

Q: Can the node expansion license be upgraded after the initial deployment?

A: Yes. The software license managed through the power supply unit can be expanded, provided the node hardware version and firmware support the additional safety loop capacity.

Field Installation Guidelines

• Mounting: The unit is designed for 19-inch rack mounting. Ensure that all four rack-mounting points are utilized to secure the 5.9 kg mass against seismic activity or high-vibration industrial conditions.
• Electrical Grounding: Connect the frame ground to a dedicated safety instrumentation ground bus. Proper grounding is critical for maintaining the common-mode rejection required for the safety loop's integrity.
• Bus Connectivity: Use high-quality shielded cabling for the ESB bus connected to the CU2N connector unit (S9342FA). Ensure that cable routes are separated from high-voltage motor or actuator power cables to prevent electromagnetic interference (EMI) on the safety bus.
• Thermal Management: While rated for -20 to 70 °C, ensure that the cabinet housing the node has sufficient active cooling. Excessive localized heat can cause premature aging of the internal power supply capacitors, potentially impacting the reliability of the dual-redundant power system.
