Description

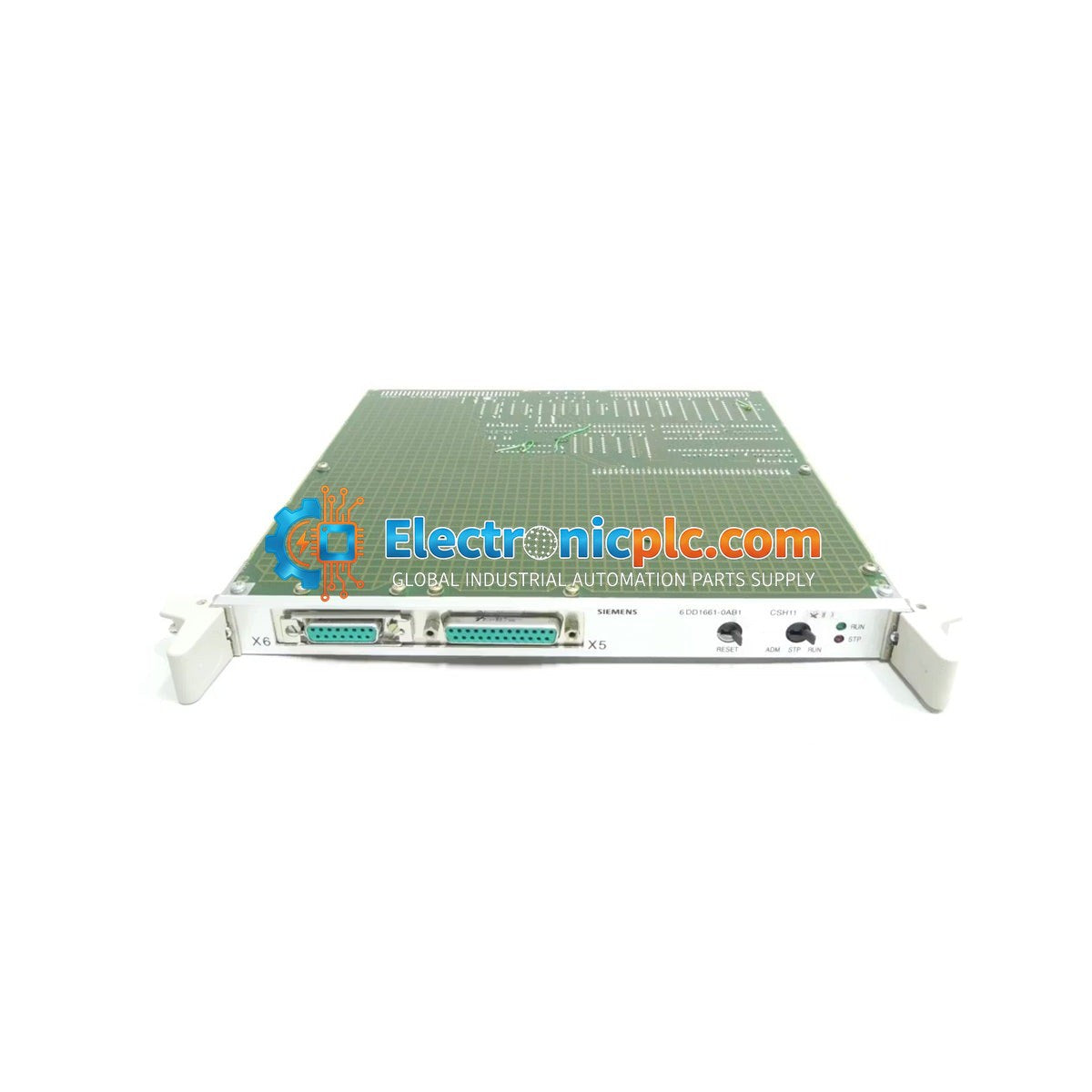

The Siemens 6DD1661-0AB1 is a CSH11 communication module designed for the SIMADYN D control system. This module functions as a slave interface for the SINEC H1 industrial Ethernet bus system, enabling high-speed, reliable data integration for complex industrial automation environments. It is engineered to be used in conjunction with the CS7 communications support module, which provides the necessary backplane connectivity and dual-port RAM for data exchange with the SIMADYN D CPU.

Features

• Designed for SIMADYN D control systems as a CSH11 slave interface.
• Supports SINEC H1 industrial Ethernet communication.
• Integrates via the CS7 communications support module.
• Utilizes 16 kByte dual-port RAM for efficient data transfer to CPU modules.
• Supports multiple communication layers (Layer 2, 4, and 7/STF) for flexible process data and message system services.
• Configurable via STEP 7 engineering environment and D7-SYS software.

Applications

• Heavy Industrial Automation: High-performance processes requiring precise arithmetic and dynamic control.
• Drive Technology: Precise torque, speed, and position control for high-power AC/DC drives.
• High-Dynamic Control: Applications in rolling mills, HVDC systems, and reactive power compensation.
• Process Line Synchronization: Management of multi-motor setups, dancer rolls, and electronic shaft operations.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before inserting or removing the module from the CS7 support module.
• The module must be securely seated in the SIMADYN D subrack; ensure the front panel is properly aligned and fastened.
• Use the module's built-in cable clamping device on the front panel to provide strain relief for all connected network and serial cables.
• When using SINEC H1 drop cables (e.g., 727-1), ensure the latch mechanism is fully engaged to prevent accidental disconnection.
• Maintain proper ventilation within the cabinet to stay within the 0 to 60 degC operating temperature range.
• Handle with standard ESD precautions to prevent damage to sensitive internal components.

FAQ

What software is required to configure the 6DD1661-0AB1?

Configuration is performed using the Siemens STEP 7 engineering environment integrated with the D7-SYS software package. Legacy systems may utilize STRUC V4.x configuration tools.

Can this module be used in an S7-300 or S7-400 rack?

No, the 6DD1661-0AB1 is specifically designed for the SIMADYN D rack system and is not compatible with standard SIMATIC S7-300 or S7-400 backplanes.

What is the maximum cable length for the SINEC H1 connection?

The SINEC H1 drop cable (727-1) connected to the X6 interface has a maximum recommended length of 50 meters.
