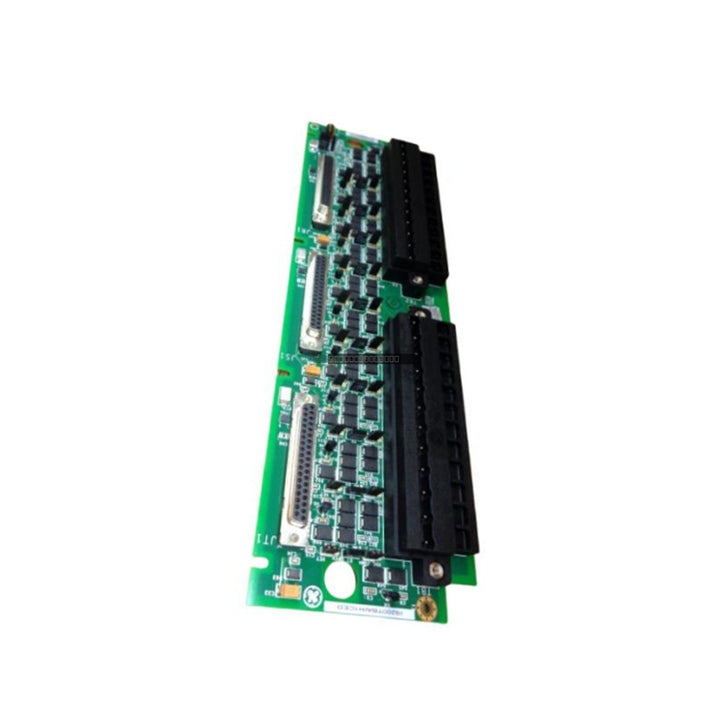

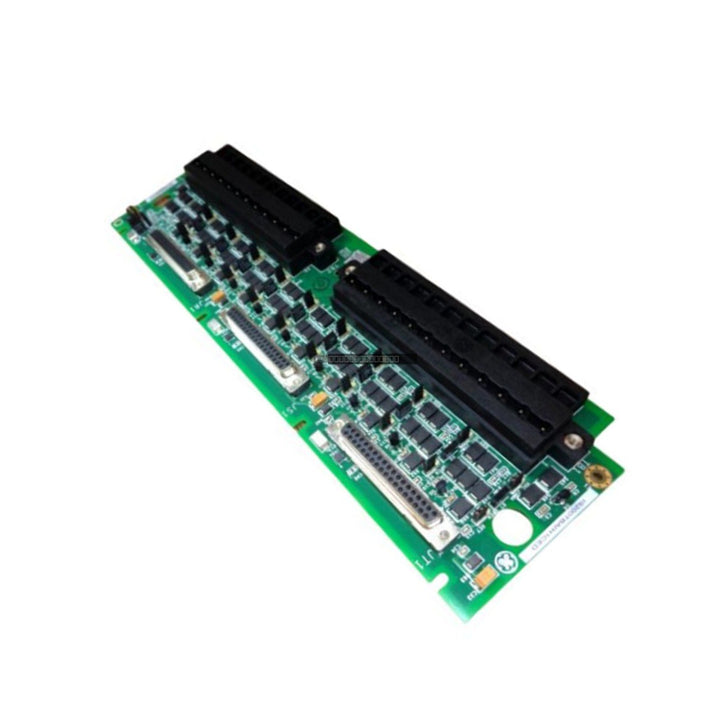

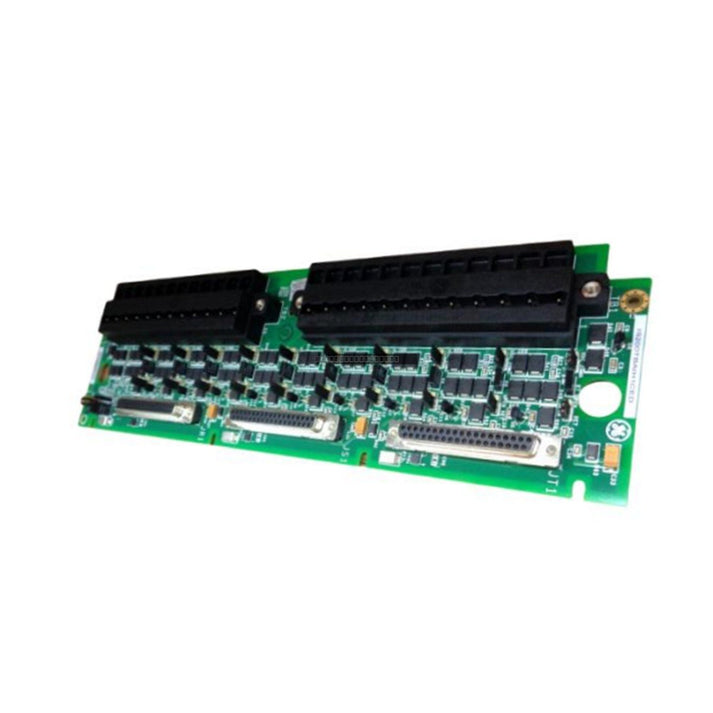

The General Electric IS200TBAIH1C is an analog input terminal board designed for integration within the Mark VIe control system architecture. This component serves as a critical interface for processing analog signals, providing reliable signal termination and conditioning for various industrial measurement applications.

Features

• Designed specifically for compatibility with the GE Mark VIe platform.
• Supports standard analog input signal ranges of +/-5 V and +/-10 V.
• Features high-precision 16-bit ADC resolution for accurate data acquisition.
• Maintains a high level of measurement accuracy at +/-0.1% of span.
• Robust terminal design for secure field wiring connectivity.

Technical Specifications

Installation Guidelines

• Ensure the control system power is fully disconnected before installing or removing the terminal board.
• This board is designed for mounting within standard Mark VIe cabinet configurations; ensure proper alignment with the backplane connectors.
• Use appropriate ESD protection when handling the board to prevent damage to sensitive electronic components.
• Verify that field wiring is properly shielded and routed away from high-voltage AC lines to mitigate electromagnetic interference (EMI).
• Check for secure terminal screw torque to maintain consistent signal integrity and prevent loose connections.

FAQ

What system is the IS200TBAIH1C compatible with?

This terminal board is a component of the General Electric Mark VIe control system series.

What is the primary function of this board?

The IS200TBAIH1C functions as an analog input terminal board, responsible for receiving, terminating, and conditioning analog signals for the control system.

What are the environmental operating limits for this unit?

The board is rated for operation in environments ranging from 0 degC to +55 degC with a non-condensing humidity range of 5% to 95%.
