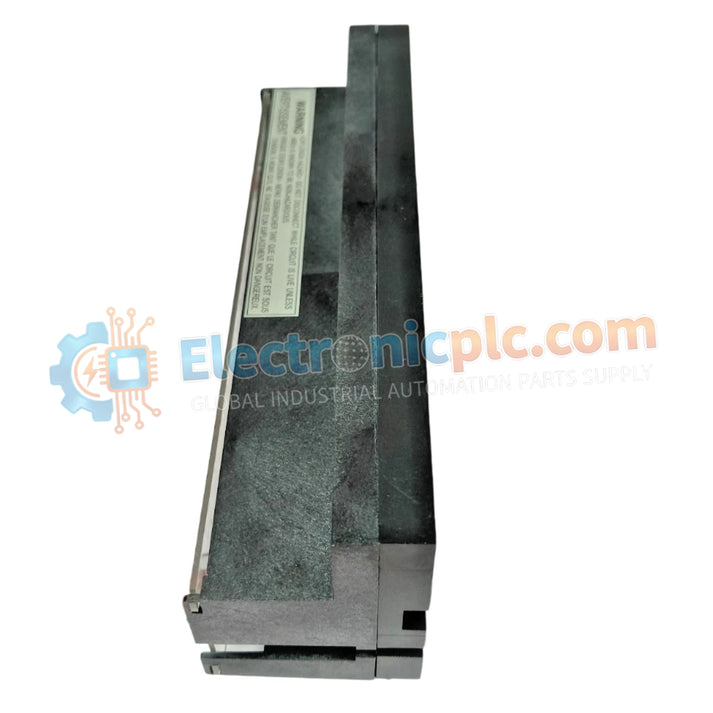

Configured for high-density RTD signal termination in distributed control system platforms, the YOKOGAWA TERT (TERT Terminal Block) provides direct physical signal transition and electrical circuit distribution. This hardware component supports 16-point connectivity specifically optimized for Resistance Temperature Detector (RTD) input integration, ensuring mechanical continuity for temperature measurement loops within industrial control environments.

Hardware Specifications

Process Control Connectivity

The TERT terminal block facilitates precision connectivity required for process instrumentation loops. Integration within a DCS architecture necessitates careful management of signal paths, particularly when handling low-level resistance signals. To maintain signal integrity, the device utilizes established screw-terminal architecture to mitigate contact resistance. For long-distance sensor runs, the implementation of 4-20 mA HART loop protocol considerations or direct RTD lead-wire compensation remains mandatory to ensure measurement accuracy, as the terminal block itself acts as a passive junction interface between the field wiring and the I/O rack.

Frequently Asked Questions (FAQ)

Q: Can the TERT terminal block be used for voltages exceeding 500 VAC?

A: No. The rated withstanding voltage is 500 VAC. Exceeding this limit compromises the insulation integrity and presents a risk of dielectric breakdown.

Q: Is this module compatible with thermocouple sensors?

A: The TERT is specifically engineered for RTD connections. While physically capable of securing conductors, it does not provide the cold junction compensation (CJC) circuitry required for thermocouple signal linearization.

Q: What are the torque requirements for the M4 terminal screws?

A: Standard industrial practice for M4 terminals in this class of hardware dictates a torque setting of 1.2 to 1.5 Nm, unless otherwise specified by the wiring bundle guidelines.

Field Installation Guidelines

• Mechanical Mounting: Ensure the terminal block is mounted on a rigid, vibration-isolated DIN-rail or mounting plate. Confirm that the mechanical orientation allows for clear access to all 16 M4 screw terminals to prevent cross-threading during wire termination.
• Wiring Practices: Utilize shielded twisted-pair cabling for all RTD signals to minimize electromagnetic interference (EMI). Ensure that the shield is terminated at the designated common grounding point rather than at the TERT terminal block, unless the local system loop diagram dictates otherwise.
• Environmental Sealing: Although rated for standard industrial ambient conditions, protect the unit from corrosive atmospheres or excessive particulate accumulation, which may decrease insulation resistance below the 100 MOhm threshold over time.
• Torque Application: Apply uniform torque to all M4 screws. Avoid overtightening, as this may strip the screw threads or damage the internal bus bar structure of the block.
