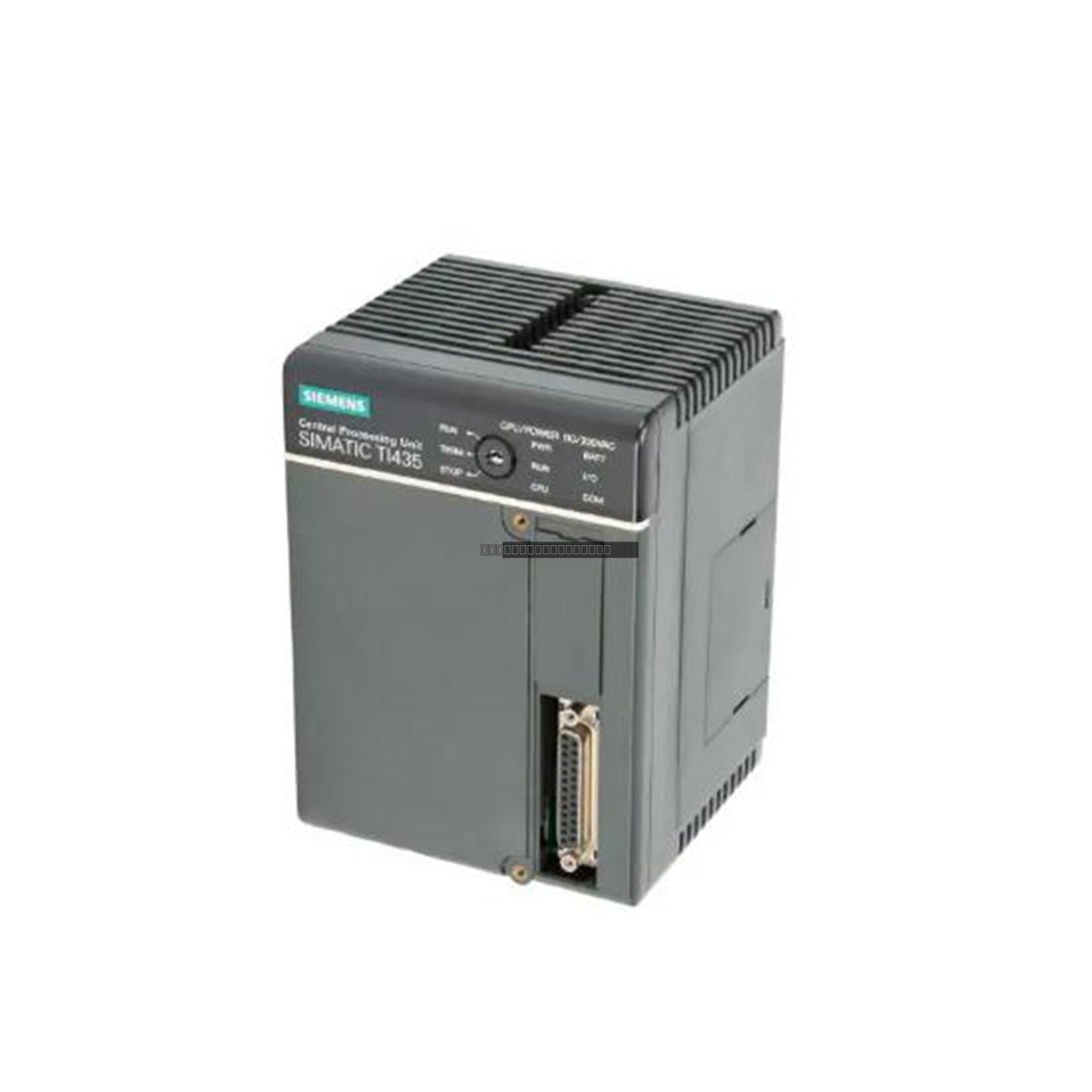

The Siemens Texas Instruments TI435-CPU is a high-performance central processing unit designed for legacy programmable logic controller (PLC) systems. Engineered for demanding industrial environments, this processor provides reliable sequential control for applications ranging from petrochemical processing to thermal power generation. By handling machine instruction sets at the hardware level, the TI435-CPU ensures deterministic logic execution, which helps minimize downtime and maintains operational consistency across automated production lines.

Features

• Dedicated Memory Architecture: Features a total memory capacity of 22.5K words, with a specialized 15.5K word allocation specifically for ladder logic execution, effectively isolating application code from runtime register data.
• Deterministic Performance: The internal processor is optimized for high-speed computation of digital rungs, functional blocks, and timer-based instructions.
• System Compatibility: Designed for seamless integration, this module serves as a direct replacement for standard 435-CPU and 435-CPU-1Q controller variants, allowing for field substitution without the need for extensive program recompilation.
• Backplane Synchronization: Manages efficient I/O data exchange across the system bus to maintain synchronized control cycles.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage or bus errors.
• Verify that the module is properly seated in the designated CPU slot on the backplane to ensure reliable communication.
• Maintain adequate clearance around the controller to facilitate proper ventilation and prevent overheating within the control cabinet.
• Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
• Confirm that all backplane connectors are free of debris or oxidation to ensure stable signal integrity.

FAQ

Is the TI435-CPU compatible with older 435-CPU-1Q models?

Yes, the TI435-CPU is designed to be a direct, drop-in replacement for 435-CPU and 435-CPU-1Q units, allowing for field upgrades or replacements without requiring changes to your existing control software.

What is the primary memory allocation for this processor?

The module features a total of 22.5K words of memory, of which 15.5K words are dedicated specifically to ladder logic execution.
