Description

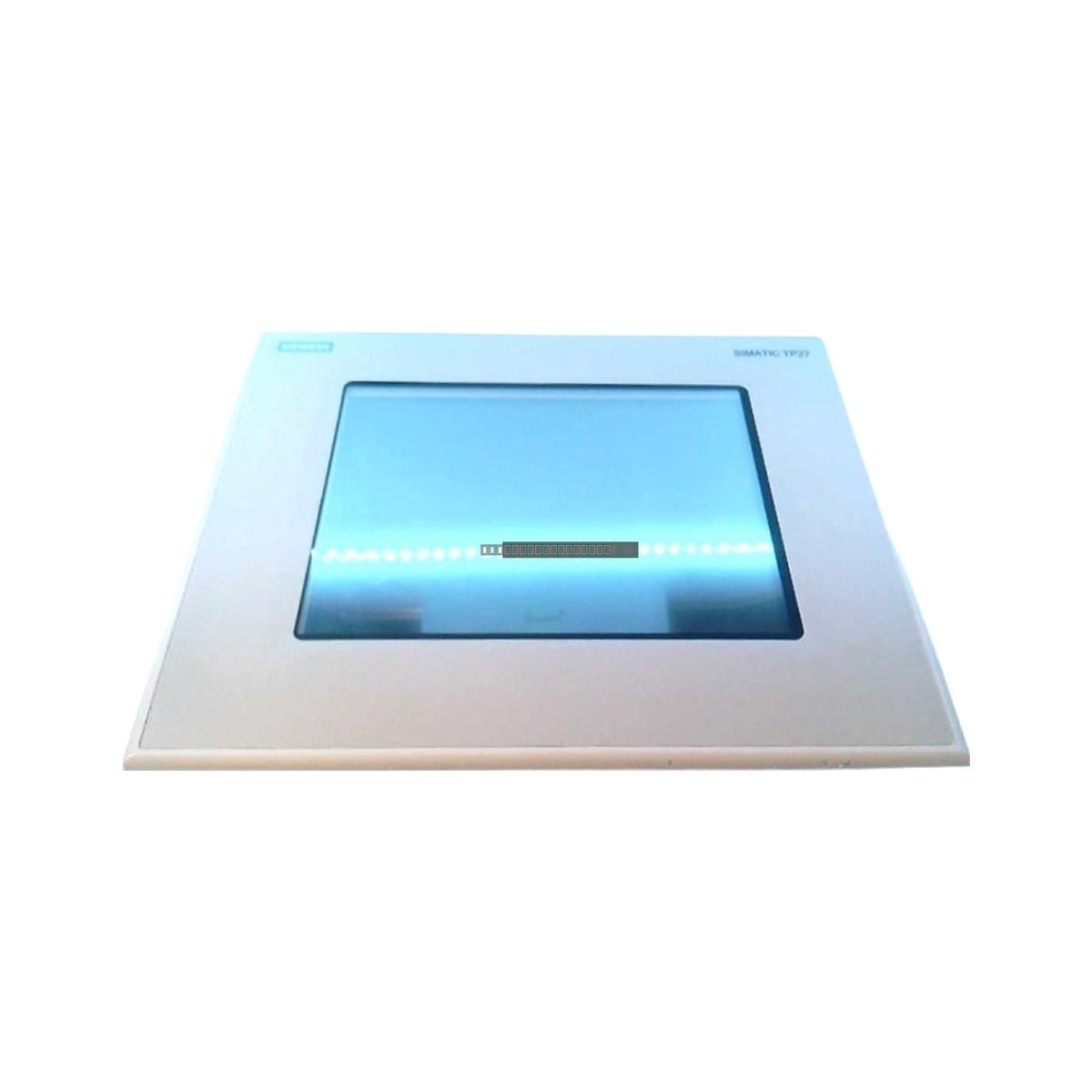

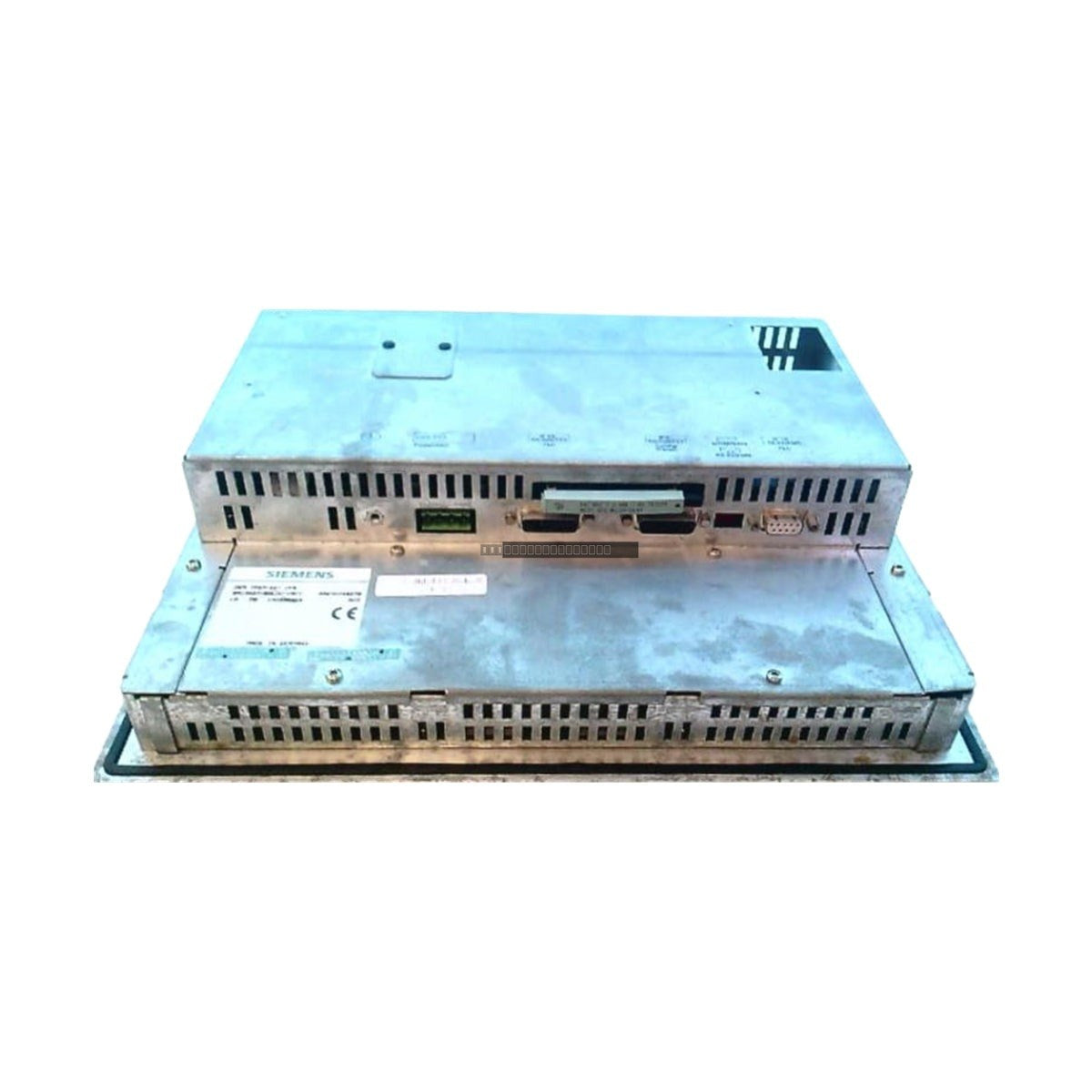

The Siemens Simatic TP27 (6AV3627-6QL00-0BC0) is a robust operator interface terminal engineered for integration with legacy Simatic S5 control systems. This 10.4-inch color touch panel provides a centralized visualization point for monitoring and controlling industrial processes. By replacing traditional hardwired controls with a digital interface, it facilitates efficient diagnostic tracking, rapid fault identification, and improved operator oversight in demanding manufacturing environments.

Features

• 10.4-inch color TFT display with integrated resistive touch screen for reliable operator input.
• 1 MB Flash-EPROM memory for non-volatile storage of project configurations and recipes.
• Designed for compatibility with Simatic S5 architectures using standard AS511 communication protocols.
• Integrated TTY (20 mA current loop) and RS232/RS422 serial interfaces.
• Passive cooling design eliminates the need for mechanical fans, reducing maintenance requirements.
• IP65-rated front panel protection to withstand dust and low-pressure water jets in industrial settings.

Applications

This operator panel is primarily utilized in legacy automation environments where Simatic S5 controllers are active. Typical applications include automotive assembly lines, chemical processing plants, and power generation facilities requiring reliable, localized process visualization and control.

Technical Specifications

Installation Guidelines

• Ensure the panel is mounted in a clean, dry location with adequate clearance for airflow behind the unit.
• Use the provided mounting hardware to secure the front bezel against the enclosure cutout to maintain the IP65 seal.
• Verify that the 24 VDC power supply is stable and properly grounded to prevent electrical noise interference.
• Route communication cables (TTY/RS232/RS422) away from high-voltage power lines and variable frequency drive (VFD) cabling to minimize EMI.
• Always power down the system before connecting or disconnecting communication cables to protect the interface ports.

FAQ

Is this unit compatible with modern S7 controllers? The TP27 is specifically designed for the Simatic S5 series and utilizes the AS511 protocol. It is not natively compatible with S7-series controllers without specific protocol conversion hardware.

Does the unit require a fan for cooling? No, the TP27 uses a passive cooling design, which increases reliability in dusty environments by avoiding the intake of airborne contaminants.
