Description

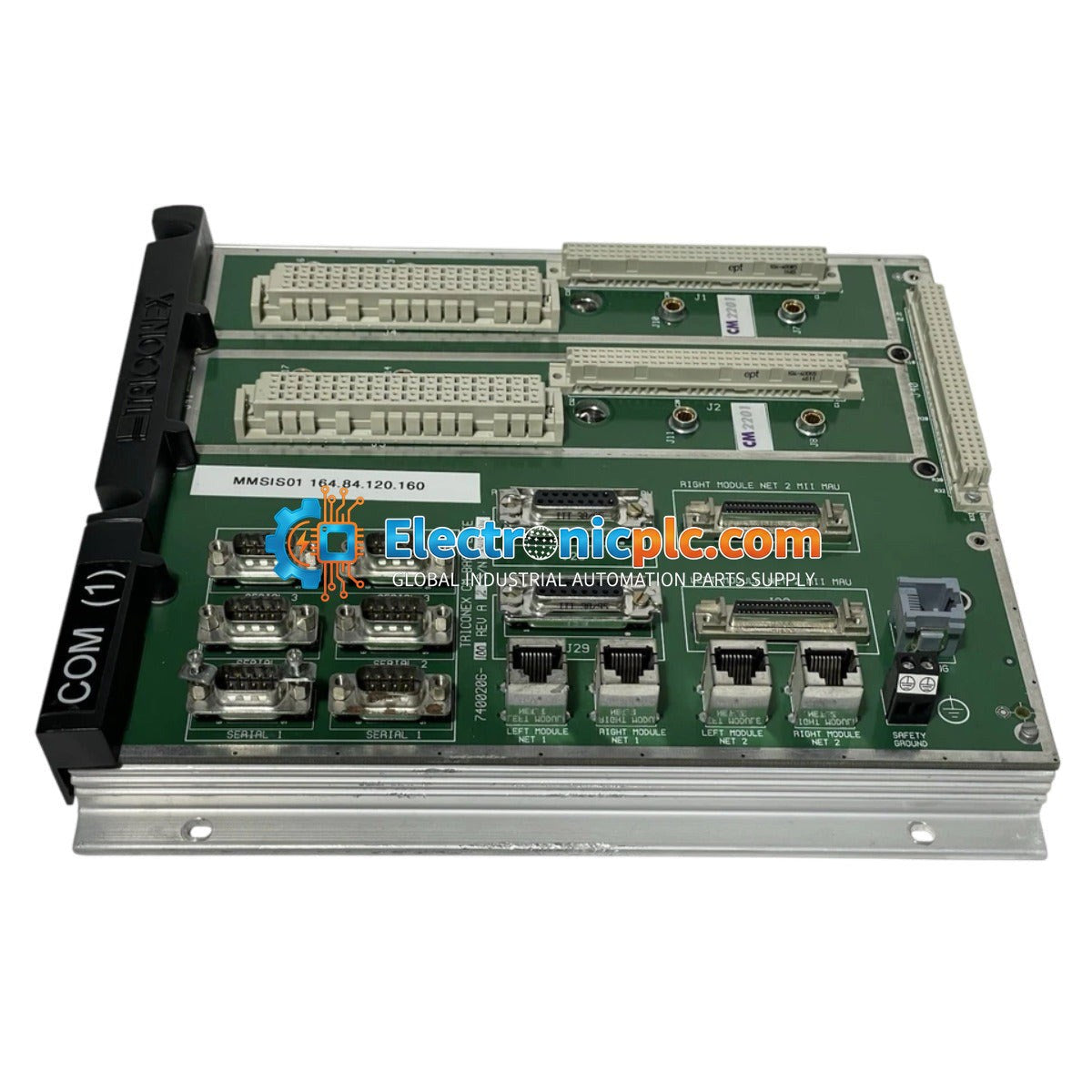

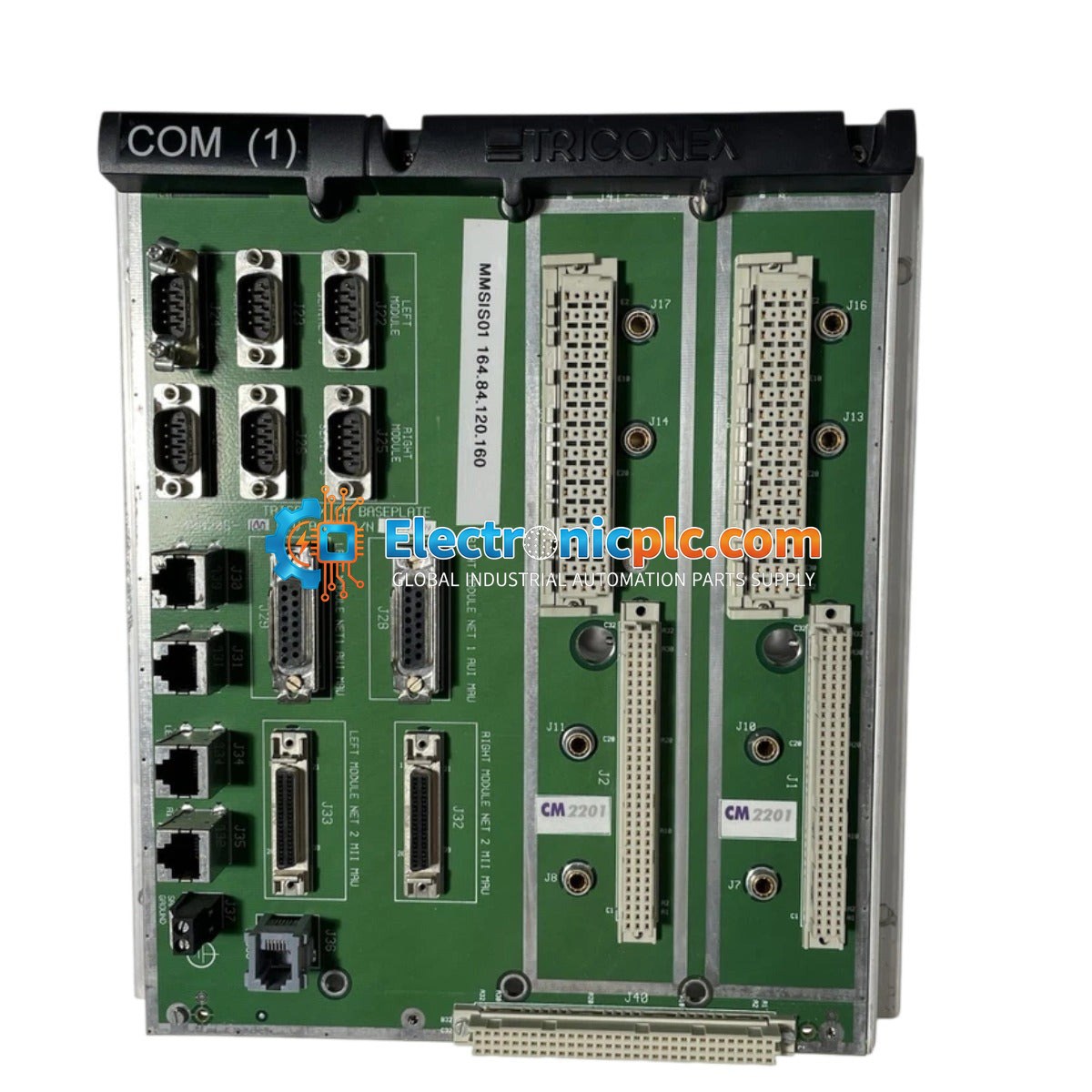

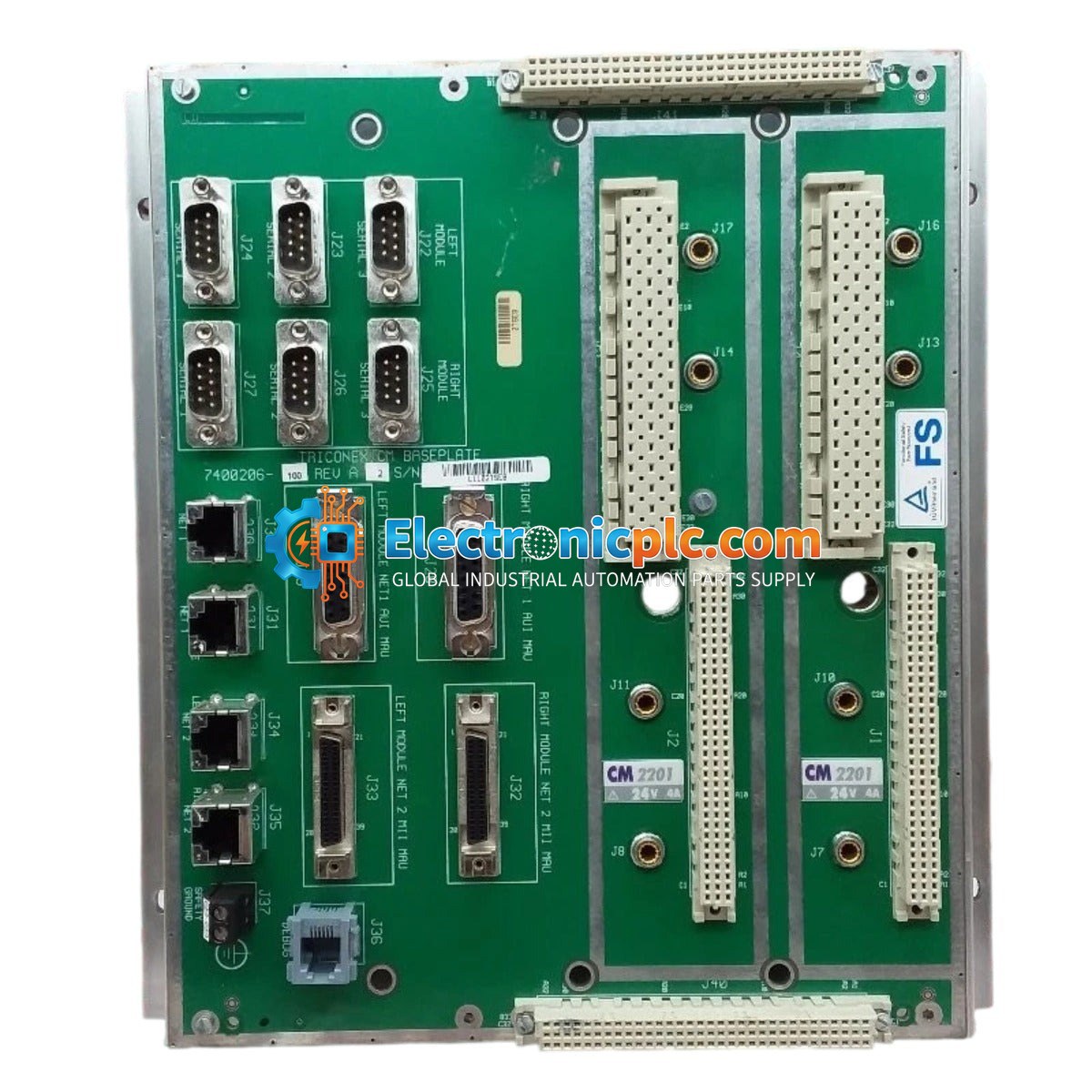

The Triconex 2201 is a high-integrity Communication Module Baseplate engineered to provide the mechanical and electrical foundation for critical communication modules within the Tricon platform. This baseplate facilitates high-speed data bus routing and power distribution, supporting fault-tolerant connectivity in demanding industrial environments such as oil and gas, petrochemical, and power generation facilities. It ensures secure, continuous module interconnection, effectively mitigating risks of connection instability and unscheduled production downtime.

Features

• Robust mechanical chassis designed to withstand continuous vibration and thermal stress.
• Multi-layered PCB backplane architecture for reliable signal integrity.
• Supports hot-swapping of communication interface modules for seamless maintenance.
• Integrated power line filtering and decoupled signal traces to minimize EMI/RFI cross-talk.
• Dual-redundant power routing corridors to maintain network integrity during power supply failures.

Applications

The 2201 baseplate is designed for use in Triconex safety-instrumented systems (SIS). Typical applications include emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops where high availability and fault tolerance are required.

Technical Specifications

Installation Guidelines

• Ensure the baseplate is mounted in a clean, dry, and vibration-dampened cabinet environment.
• Verify that all power is disconnected before installing or removing communication modules from the baseplate.
• Use appropriate ESD protection when handling the baseplate or modules to prevent damage to sensitive electronic components.
• Ensure proper grounding of the chassis to the cabinet backplane to maintain EMI immunity.
• Check that all module connections are fully seated and secured to ensure reliable backplane communication.

FAQ

Is the Triconex 2201 compatible with all communication modules?

The 2201 is specifically designed for the Tricon platform communication modules. Please verify your specific module part numbers against the Triconex system planning guide to ensure compatibility.

Can this baseplate be used in hazardous locations?

Yes, the 2201 is designed for use in industrial environments including hazardous areas, provided it is installed within an appropriately rated enclosure and in accordance with local safety regulations.
