Description

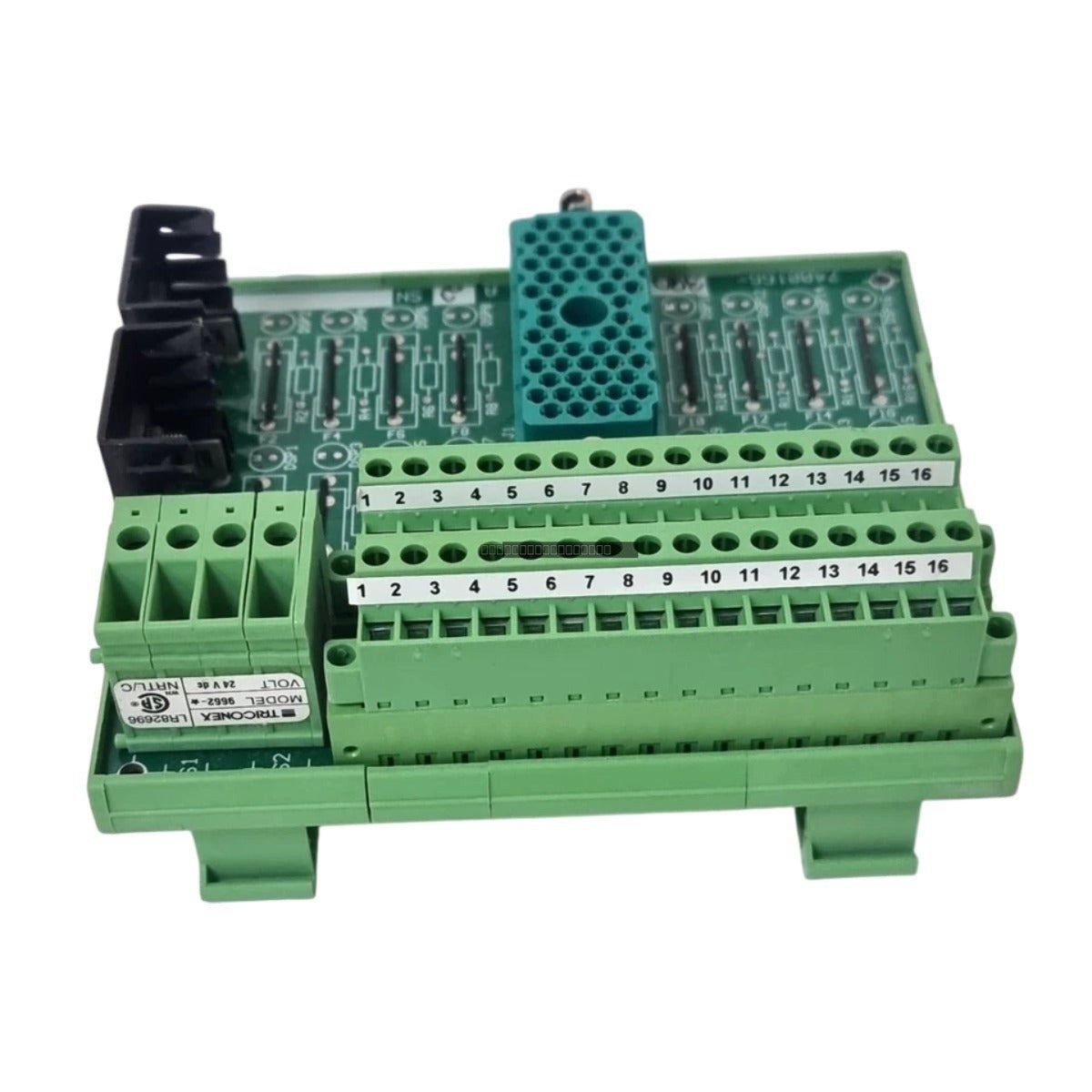

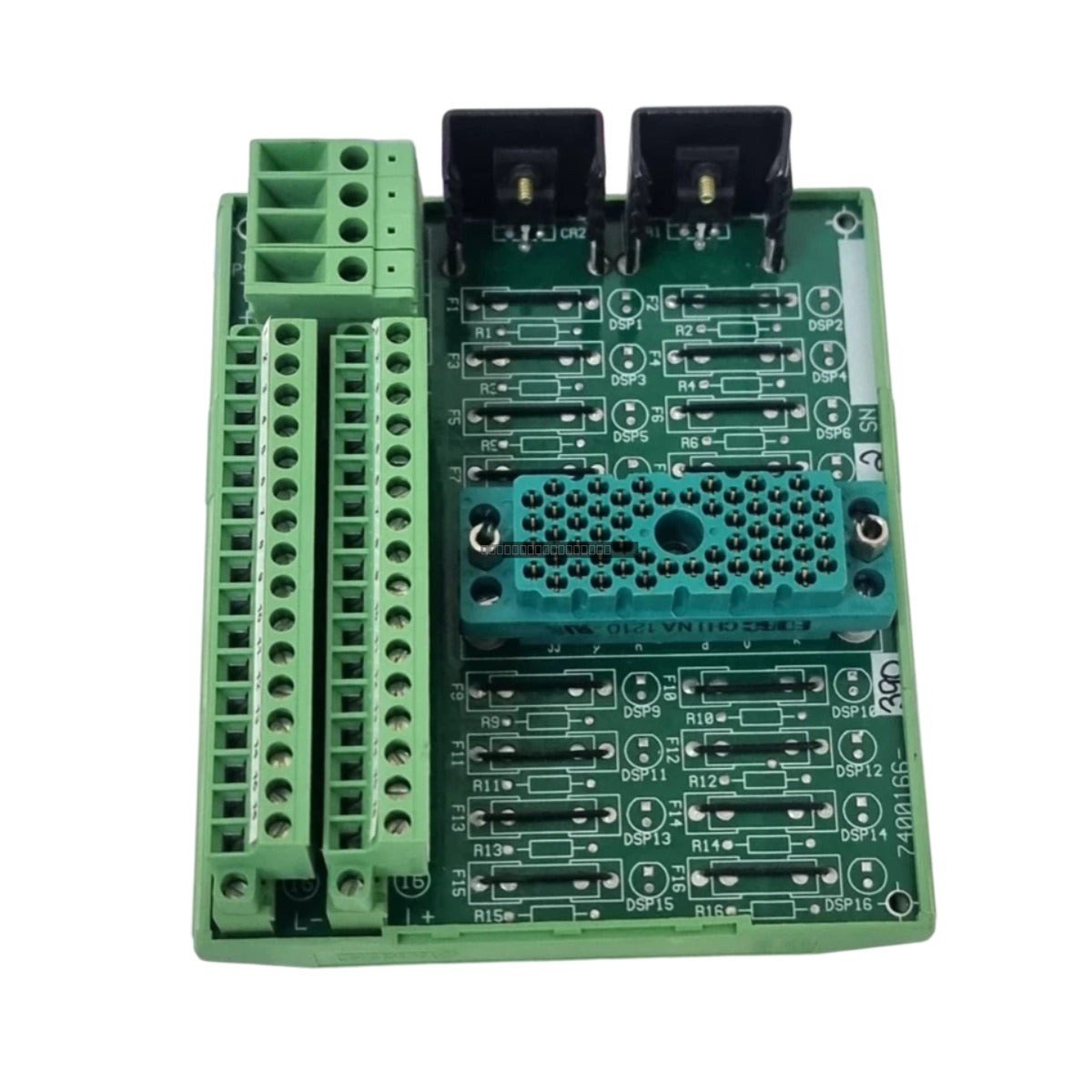

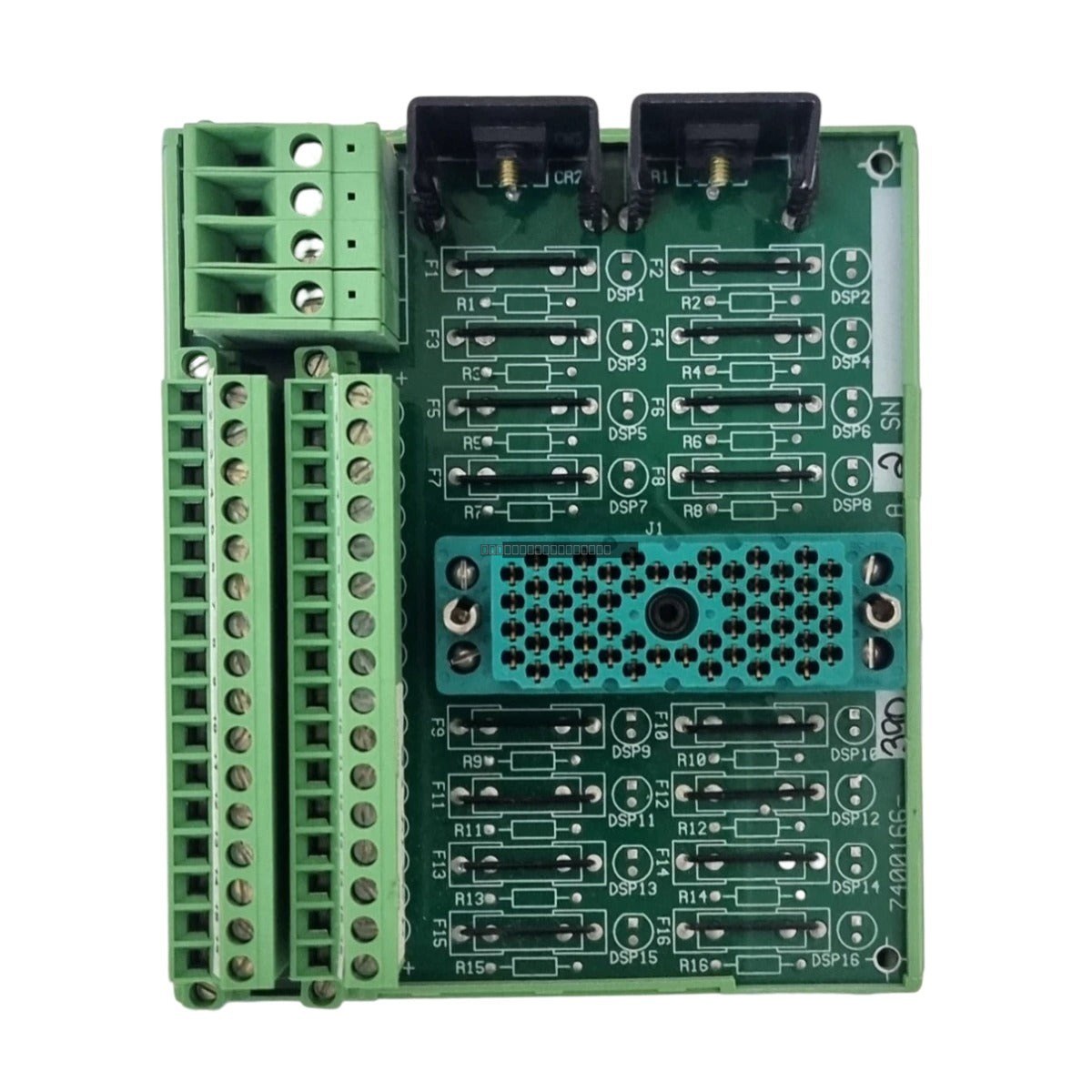

The Triconex 2652-5 (7400166-390) is a high-reliability Digital Output Module engineered for critical safety-instrumented systems. Designed to operate within Triple Modular Redundant (TMR) architectures, this module provides deterministic control for final elements in demanding industrial environments. It ensures process integrity by executing continuous internal diagnostics and cross-channel voting, which effectively prevents single-point failures from compromising output states or causing hazardous conditions.

Features

• Triple Modular Redundant (TMR) architecture for high-availability safety applications.
• Integrated diagnostic loop-back testing for real-time monitoring of output health.
• Galvanic optical isolation between the logic-side and field-side circuits.
• Support for live replacement via hot-swapping to maintain process uptime.
• Advanced power switching with built-in thermal and overcurrent protection.
• Designed for compatibility with standard 24 VDC field loads.

Applications

This module is typically deployed in safety-critical sectors including oil and gas refining, petrochemical manufacturing, and power generation. It is specifically suited for driving actuators, solenoid valves, and alarm indicators where system availability and the prevention of spurious trips are essential for operational safety.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the chassis, unless the specific system configuration supports safe hot-swapping procedures.
• Verify that the field wiring is properly shielded and routed away from high-power interference sources to maintain signal integrity.
• Adhere to standard ESD (Electrostatic Discharge) handling precautions when touching the module pins or internal components.
• Confirm that the module is fully seated in the rack to ensure proper backplane connectivity.
• Check that field-side voltage levels do not exceed the rated specifications to prevent damage to the internal output switches.

FAQ

Q: Is this module compatible with TMR systems?
A: Yes, the 2652-5 is designed specifically for integration into Triconex Triple Modular Redundant (TMR) safety systems.

Q: Does this module support hot-swapping?
A: Yes, this module is designed to be hot-swappable, allowing for replacement during active system operation without disrupting the overall process loop.

Q: What is the primary function of the diagnostic loop-back?
A: The loop-back testing continuously monitors the state of the output switches and field wiring, ensuring that any internal component failure or field-side short circuit is detected and isolated before it can affect the control process.
