Description

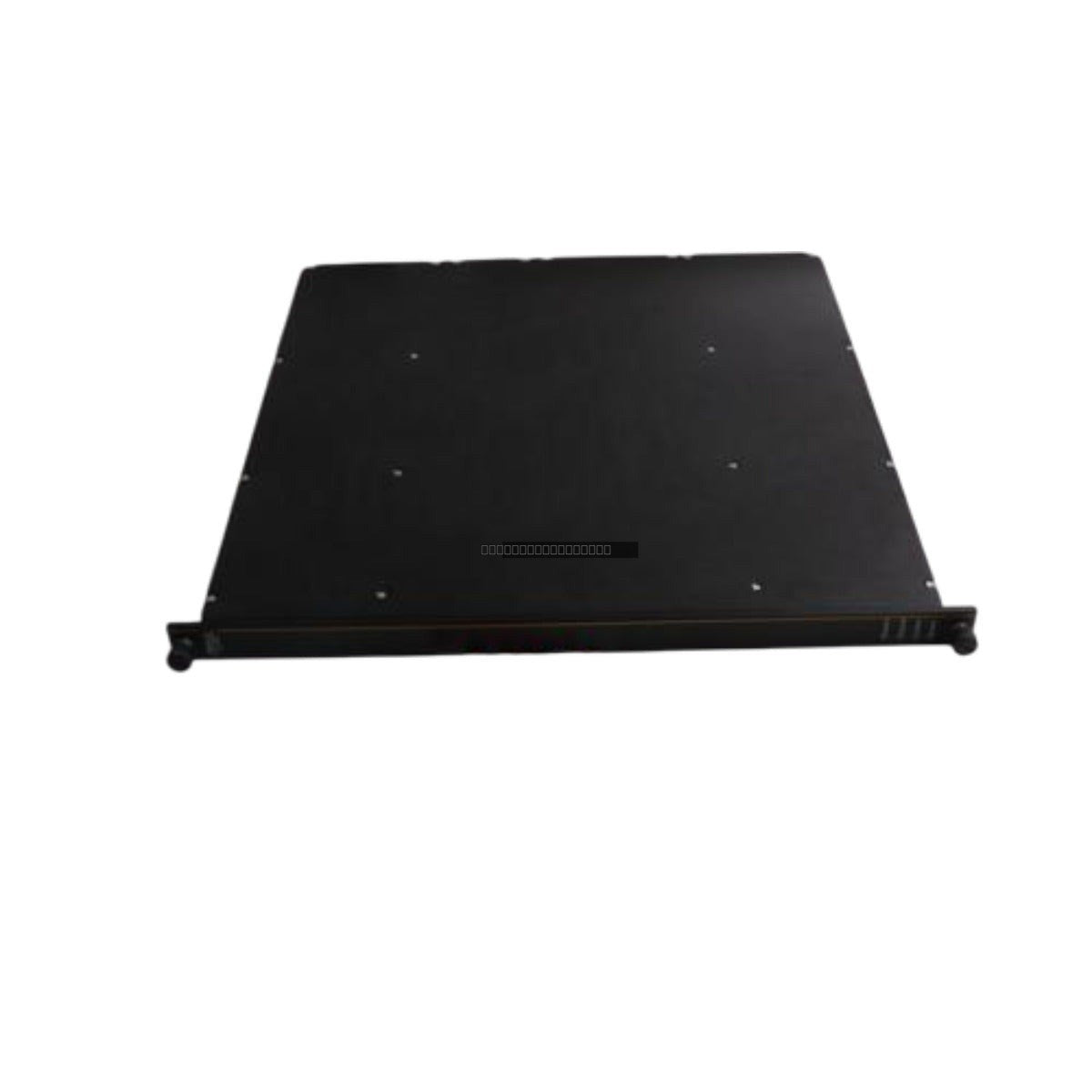

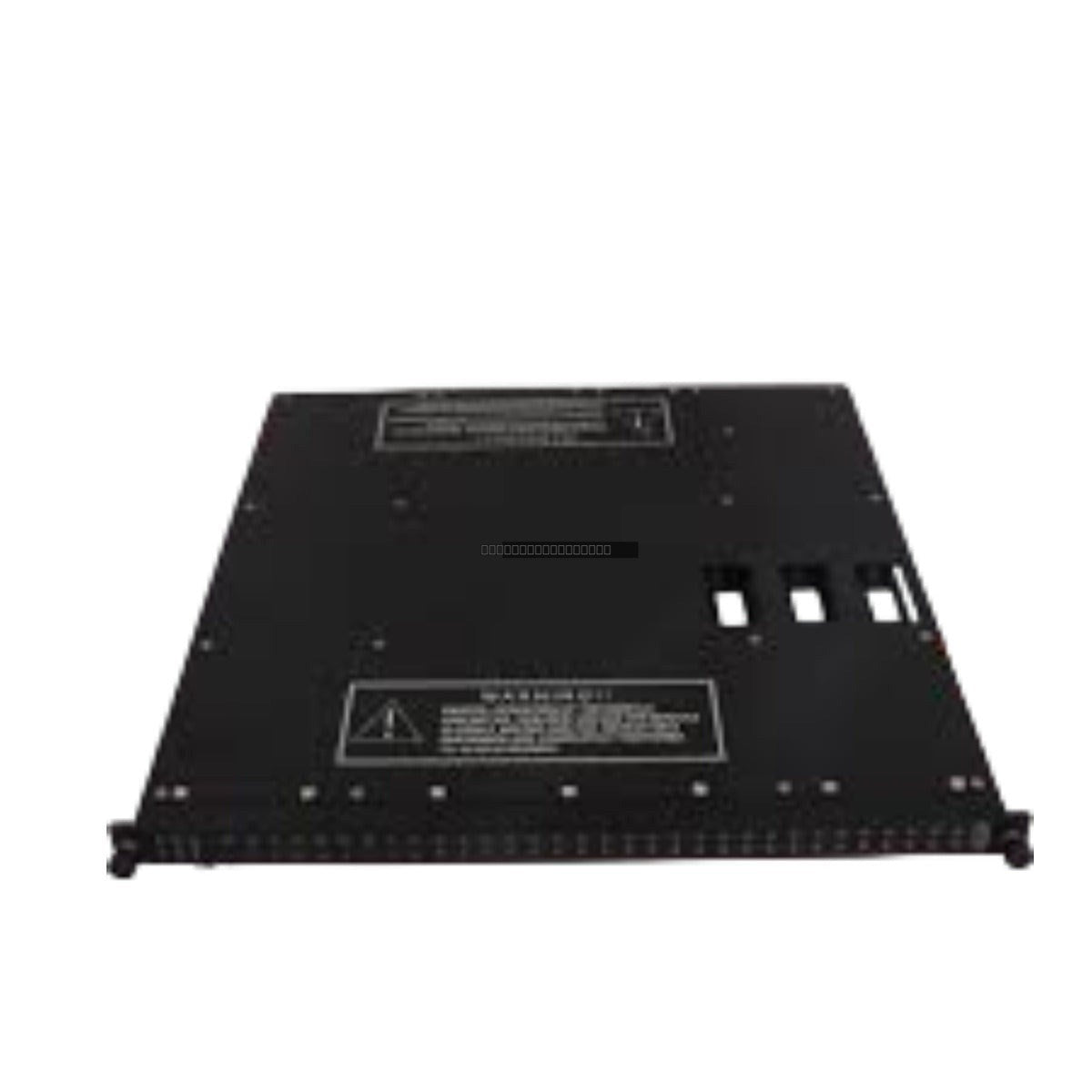

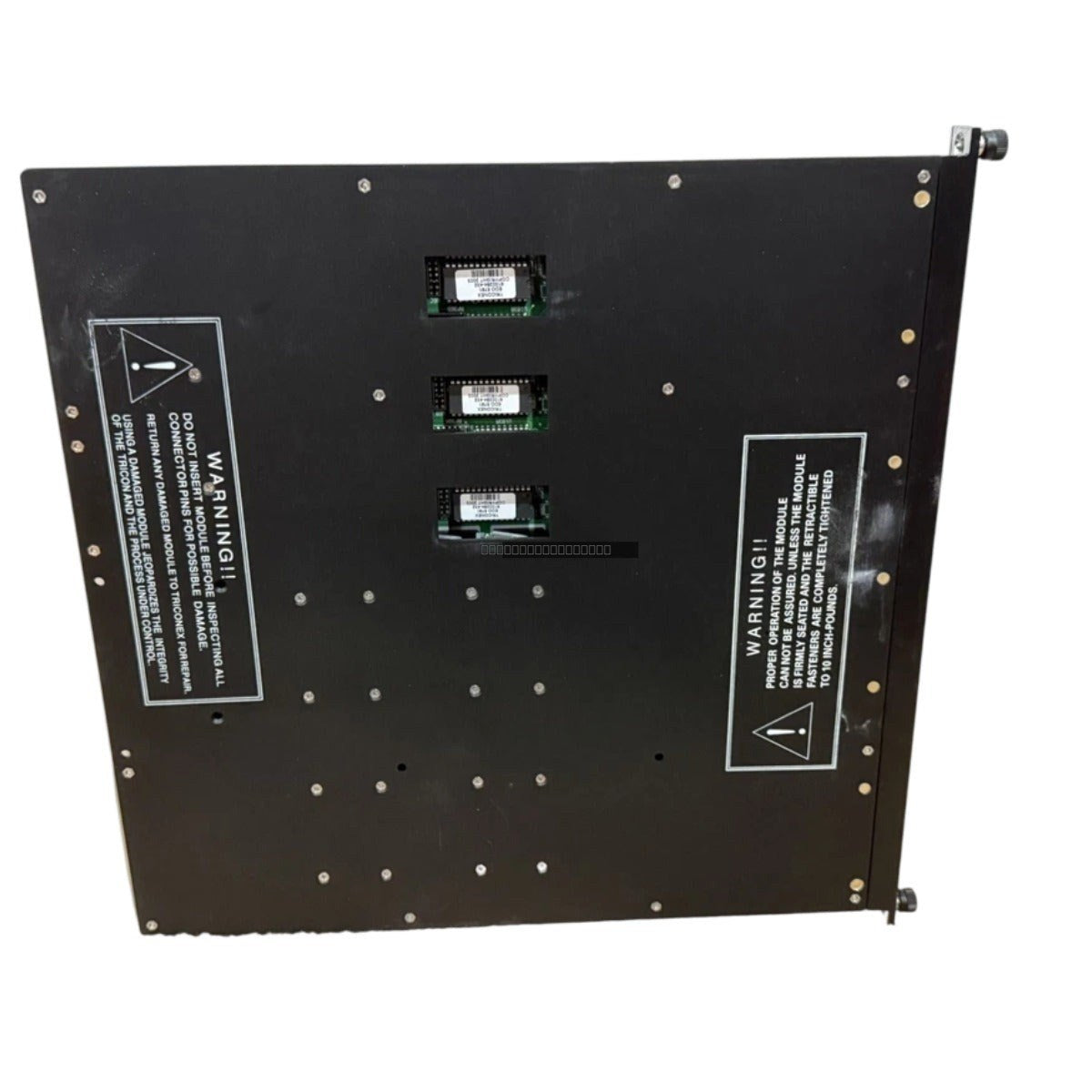

The Triconex 3501T is a high-density digital input module engineered for safety-critical applications requiring Triple Modular Redundancy (TMR). This module is designed to monitor discrete field signals reliably in hazardous and demanding industrial environments, such as petrochemical plants, oil and gas processing facilities, and power generation stations. By utilizing advanced voting logic and integrated diagnostic routines, the 3501T ensures accurate signal processing, minimizes the risk of nuisance trips, and maintains high system availability.

Features

• TMR Architecture: Utilizes three independent signal paths to ensure fault tolerance and continuous process safety.
• Fault Isolation: Hardware voting circuitry performs real-time signal verification, isolating potential faults before they impact the control system.
• Integrated Diagnostics: Continuous monitoring of board-level health and field line integrity.
• Hot-Swappable Design: Supports replacement during active operation, allowing for maintenance without requiring a system shutdown.
• High-Density I/O: Provides 32 isolated input channels within a single module footprint.

Applications

The 3501T is primarily utilized in safety instrumented systems (SIS) where high reliability is mandatory. It is suitable for emergency shutdown (ESD) systems, fire and gas detection, and critical process monitoring where signal integrity is essential for operational safety.

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is powered down if required by site safety protocols before module insertion or removal, although the module supports hot-swapping.
• Verify that the field wiring is properly terminated to the corresponding terminal block before seating the module.
• Maintain proper ventilation in the control cabinet to ensure ambient temperatures remain within the 0 to 60 deg C range.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Ensure the module is fully seated and the locking mechanisms are engaged to maintain electrical connectivity and environmental protection.

FAQ

Is the 3501T compatible with standard Triconex TMR chassis? Yes, the 3501T is designed for integration into standard Triconex TMR safety systems.

Does this module require external power for the inputs? The 3501T operates on a 24 VDC nominal input voltage range; please refer to your specific system wiring diagram for loop power requirements.

Can I replace this module while the system is running? Yes, the 3501T supports hot-swapping, allowing for field replacement without interrupting the active safety application.
