Description

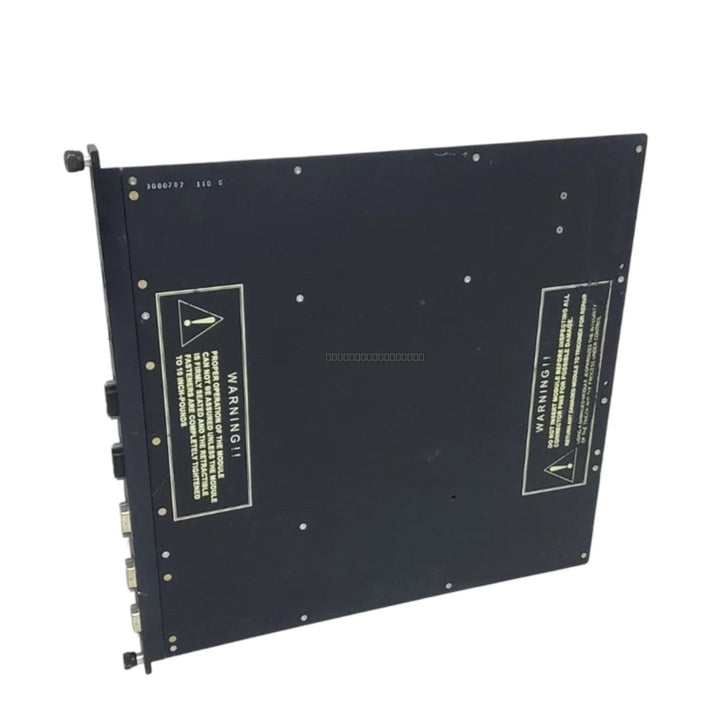

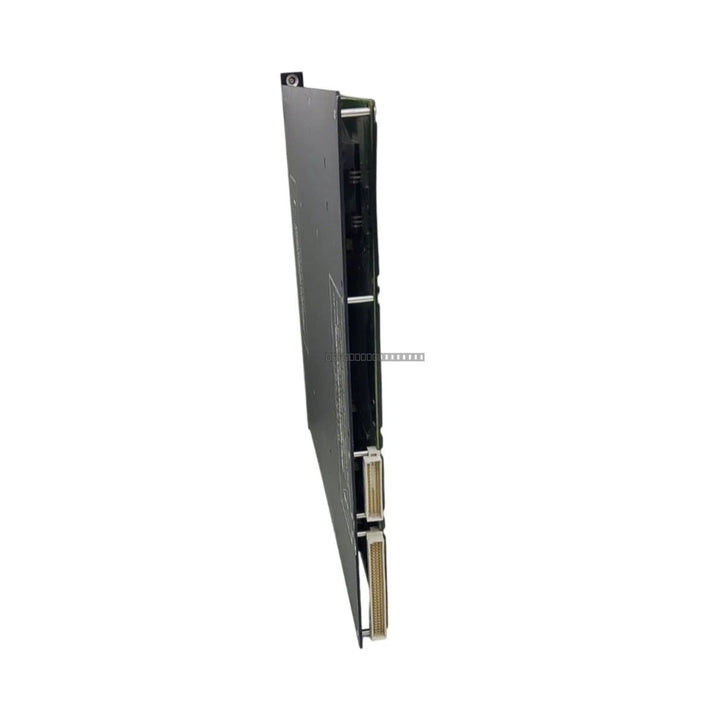

The Triconex 4351A is a high-availability communication module engineered for integration within Tricon Safety Instrumented Systems (SIS). It serves as a dedicated interface for secure, deterministic data exchange between the safety system and external plant networks or serial devices. By offloading communication tasks from the main processors, the 4351A ensures that critical safety logic execution remains unaffected by network traffic, thereby enhancing overall system reliability and performance in demanding industrial environments.

Features

• Supports multi-protocol communication including Modbus, TCP/IP, and TSAA.
• Features four serial channels and two network ports for flexible connectivity.
• Provides 500 VDC electrical isolation to protect internal logic from field transients.
• Supports IP Multicast and peer-to-peer time synchronization for deterministic data handling.
• Independent processing architecture prevents network congestion and maintains system telemetry.

Applications

The 4351A module is widely utilized in critical infrastructure and process industries requiring high-integrity safety systems, including oil and gas refining, petrochemical processing, thermal power generation, and mining operations.

Technical Specifications

Installation Guidelines

• Ensure the Tricon system is powered down before inserting or removing the communication module to prevent electrical damage.
• Verify that the module is correctly seated in the designated chassis slot and secured with the integrated locking mechanism.
• Use shielded communication cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range of 0 to 60 deg C.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.

FAQ

What protocols does the 4351A support?

The module supports several industrial protocols, including TriStation, Modbus, TCP/IP, and TSAA with IP Multicast support.

Is the 4351A suitable for hazardous area applications?

Yes, the module is designed for use in safety-critical applications within hazardous environments, provided it is installed within an appropriate, certified enclosure as per the system design requirements.
