Description

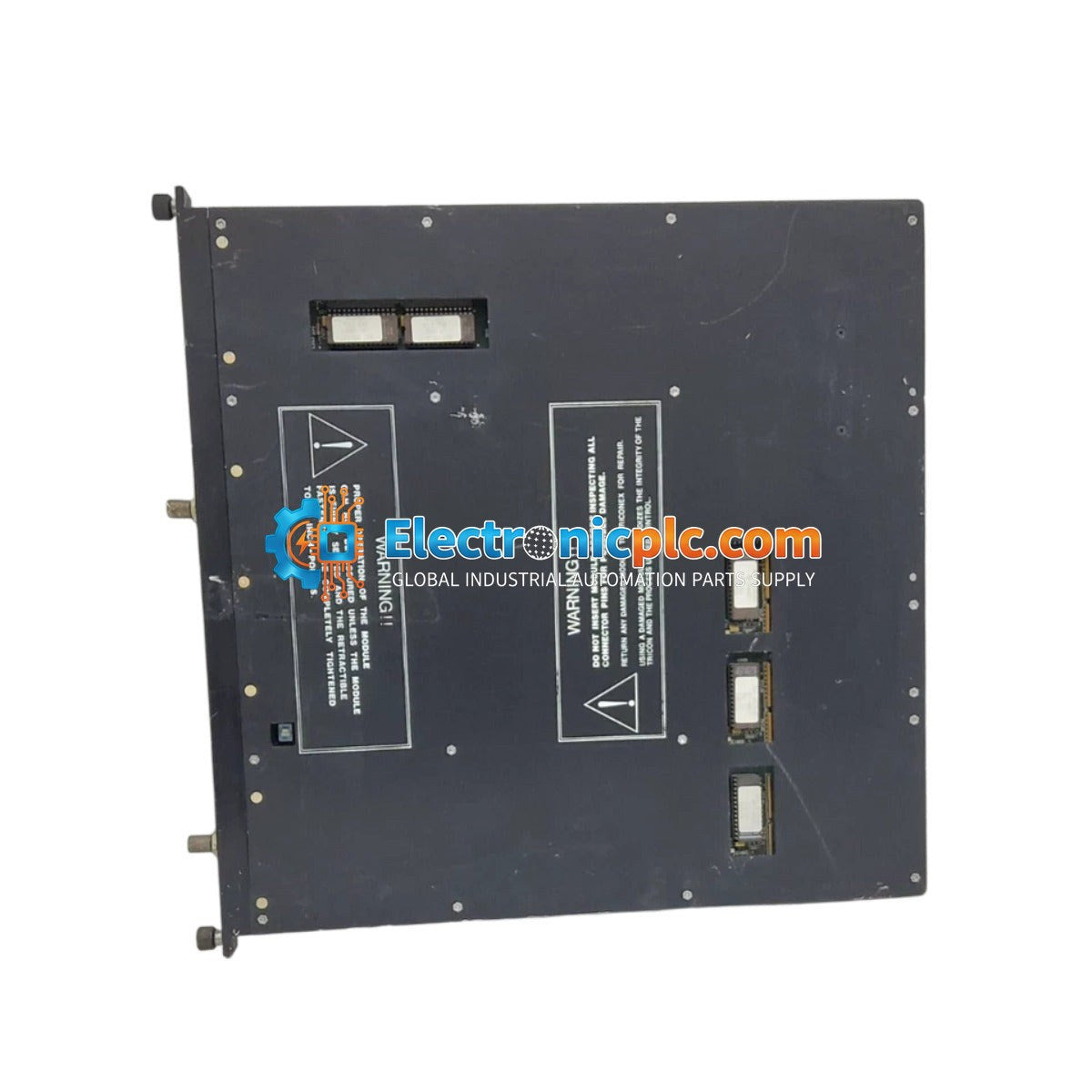

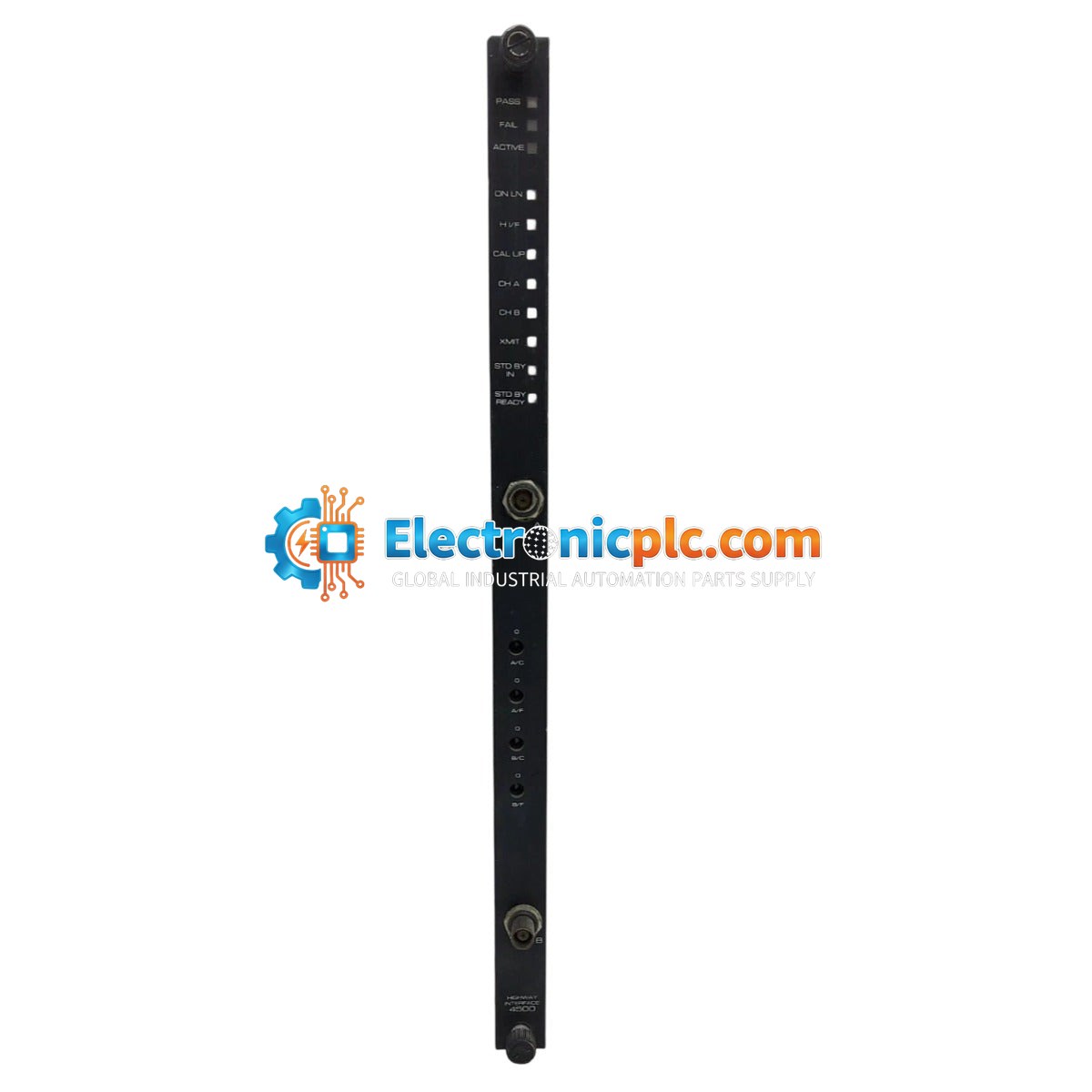

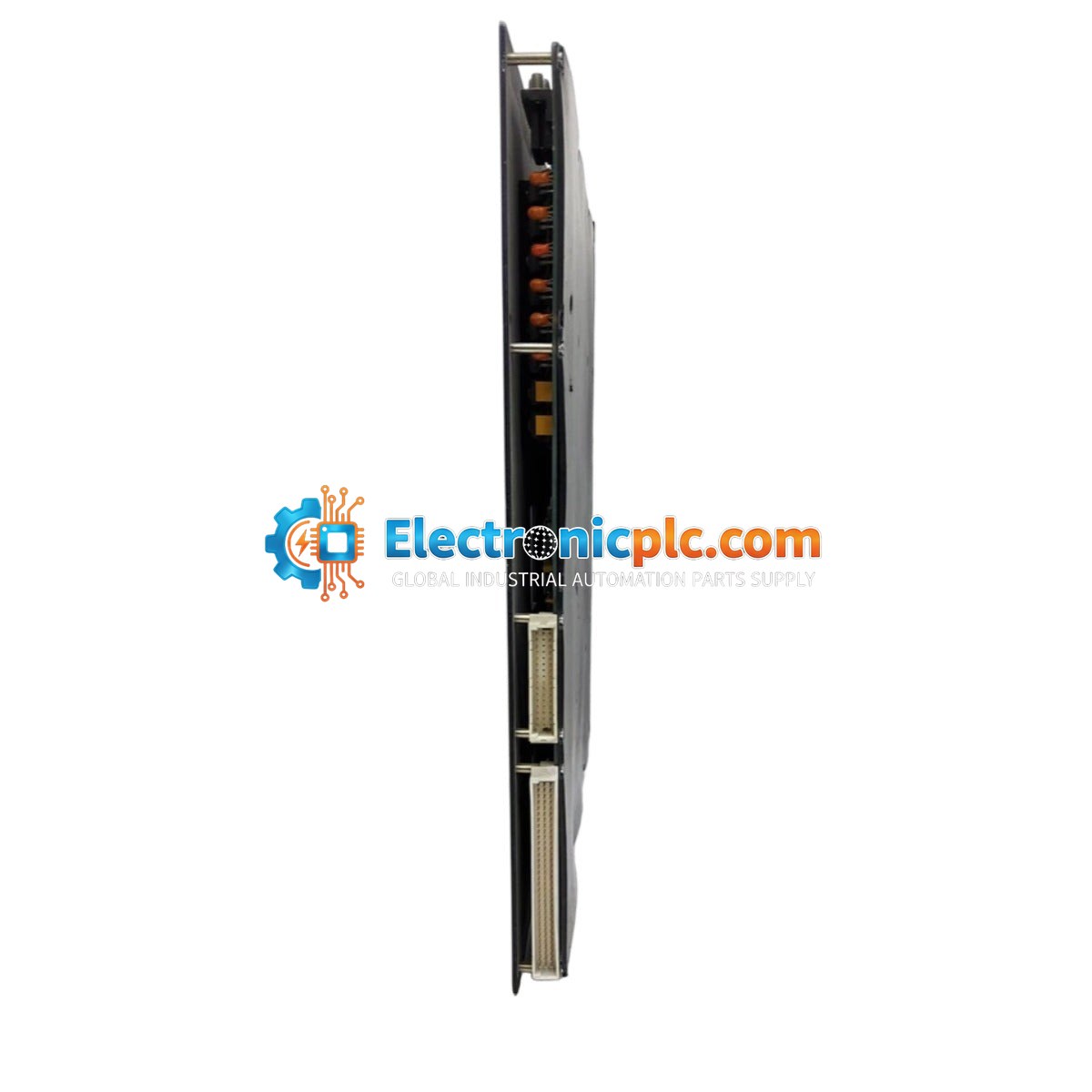

The TRICONEX 4500 Highway Interface Module is a specialized communication component designed for integration within the Tricon Triple Modular Redundancy (TMR) safety system. This module functions as a high-integrity gateway, facilitating reliable data exchange between the Tricon controller and external plant networks, such as Distributed Control Systems (DCS) or supervisory workstations. It is essential for maintaining real-time visibility and diagnostic reporting in safety-critical applications, including Emergency Shutdown (ESD) systems and Fire and Gas (F&G) monitoring.

Features

• Designed for high-integrity safety instrumented systems (SIS) requiring SIL 3 compliance.
• Provides a fault-tolerant communication gateway to prevent single points of failure.
• Supports deterministic data throughput, ensuring consistent performance during peak system loads.
• Integrates directly into the Tricon backplane for seamless system synchronization.
• Handles complex signal arbitration and error checking to maintain data integrity in hazardous environments.

Applications

The 4500 module is widely deployed in heavy industrial sectors where safety and uptime are critical, including:

• Petrochemical refining and processing facilities.
• Nuclear power generation plants.
• Offshore oil and gas platforms.
• Large-scale chemical manufacturing and distribution.

Technical Specifications

Installation Guidelines

• Ensure the Tricon controller is powered down before inserting or removing the module from the backplane.
• Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
• Verify that the module is fully seated in the designated chassis slot to ensure proper backplane connectivity.
• Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.
• Use shielded cabling for external network connections to minimize EMI interference in industrial environments.

FAQ

What is the primary function of the 4500 module?

The 4500 Highway Interface Module acts as a communication bridge that allows the Tricon TMR safety controller to exchange data with external plant networks and control systems while maintaining safety-critical integrity.

Is this module compatible with all Tricon systems?

The 4500 is designed specifically for the Tricon TMR architecture. Please verify your specific chassis and system firmware version to ensure compatibility before installation.
