Description

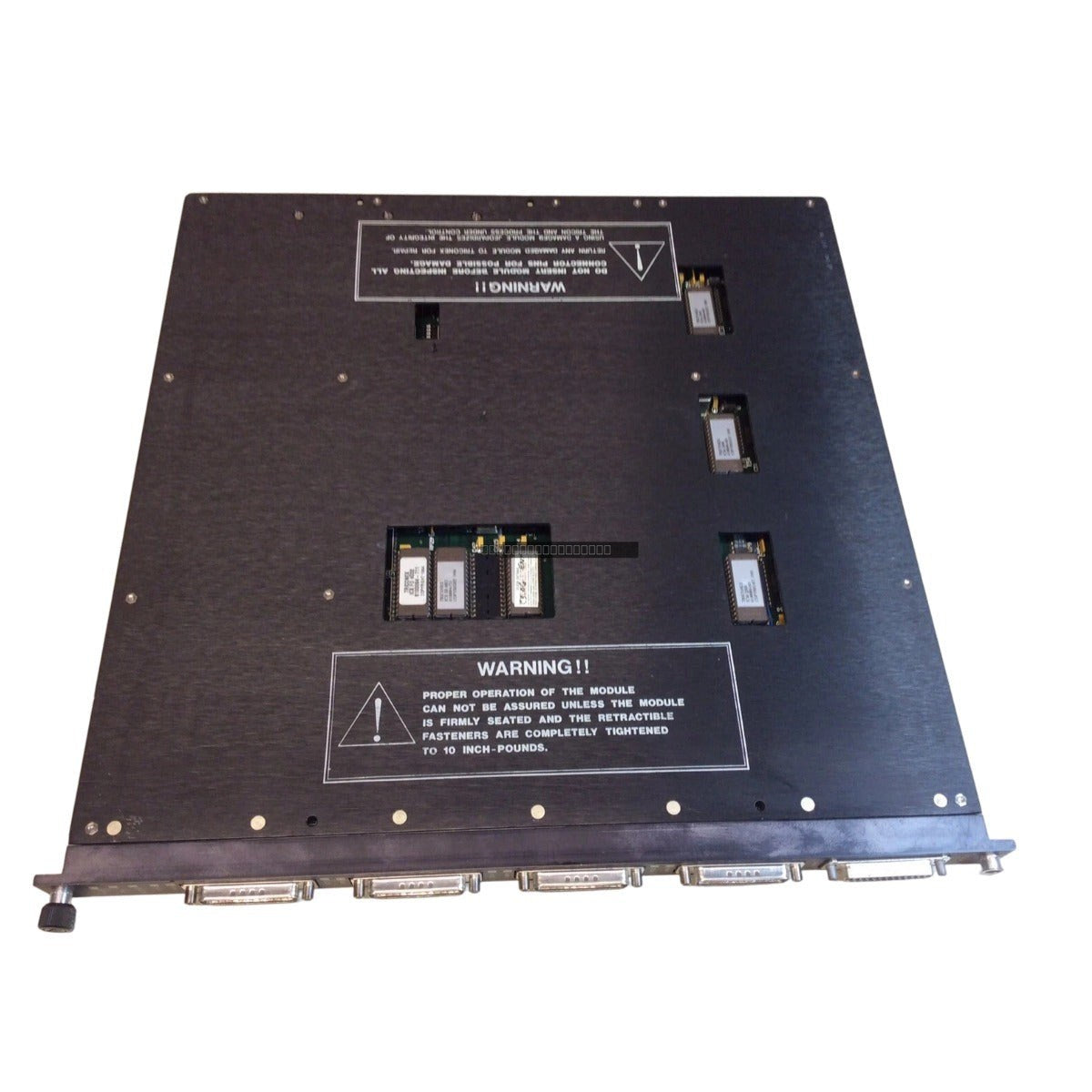

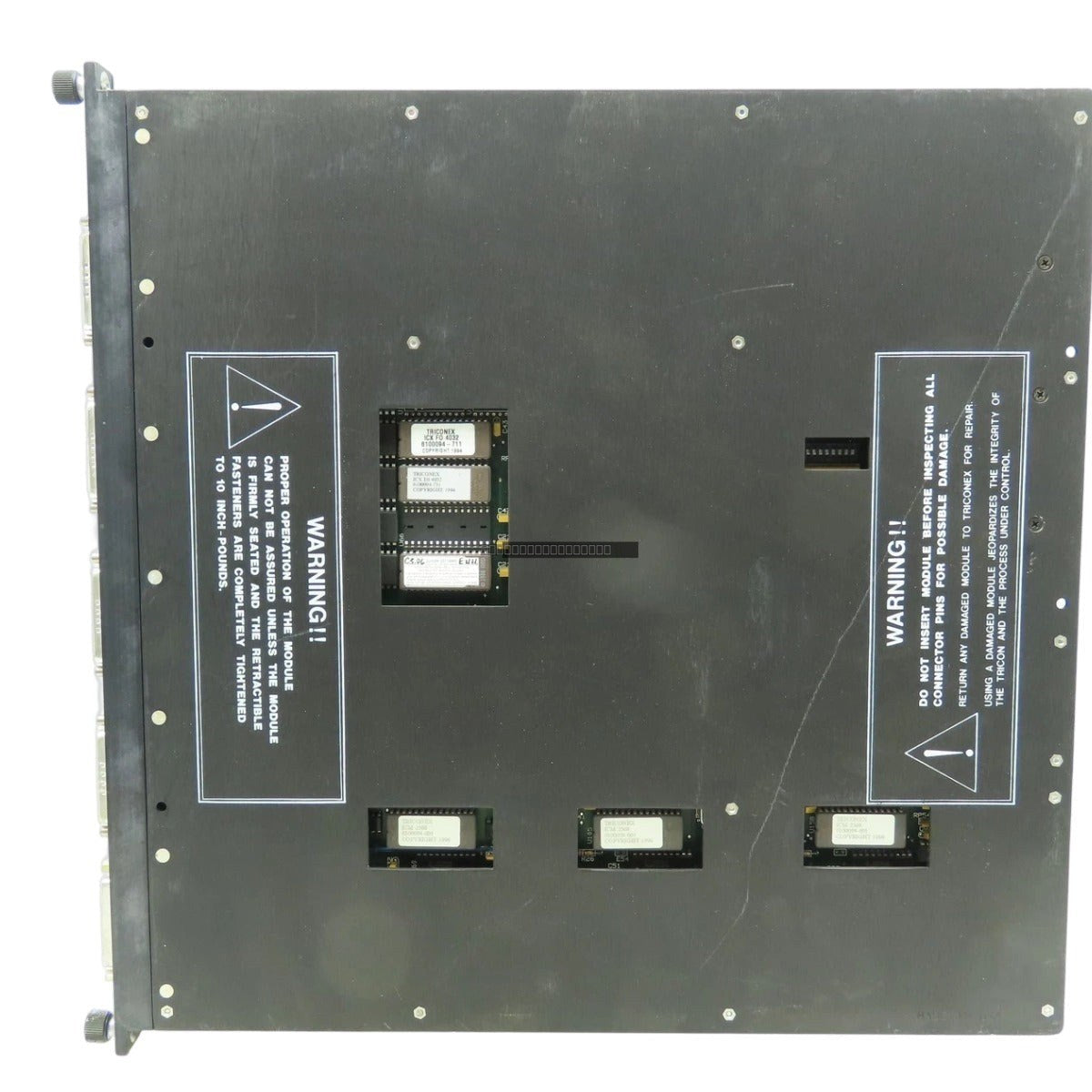

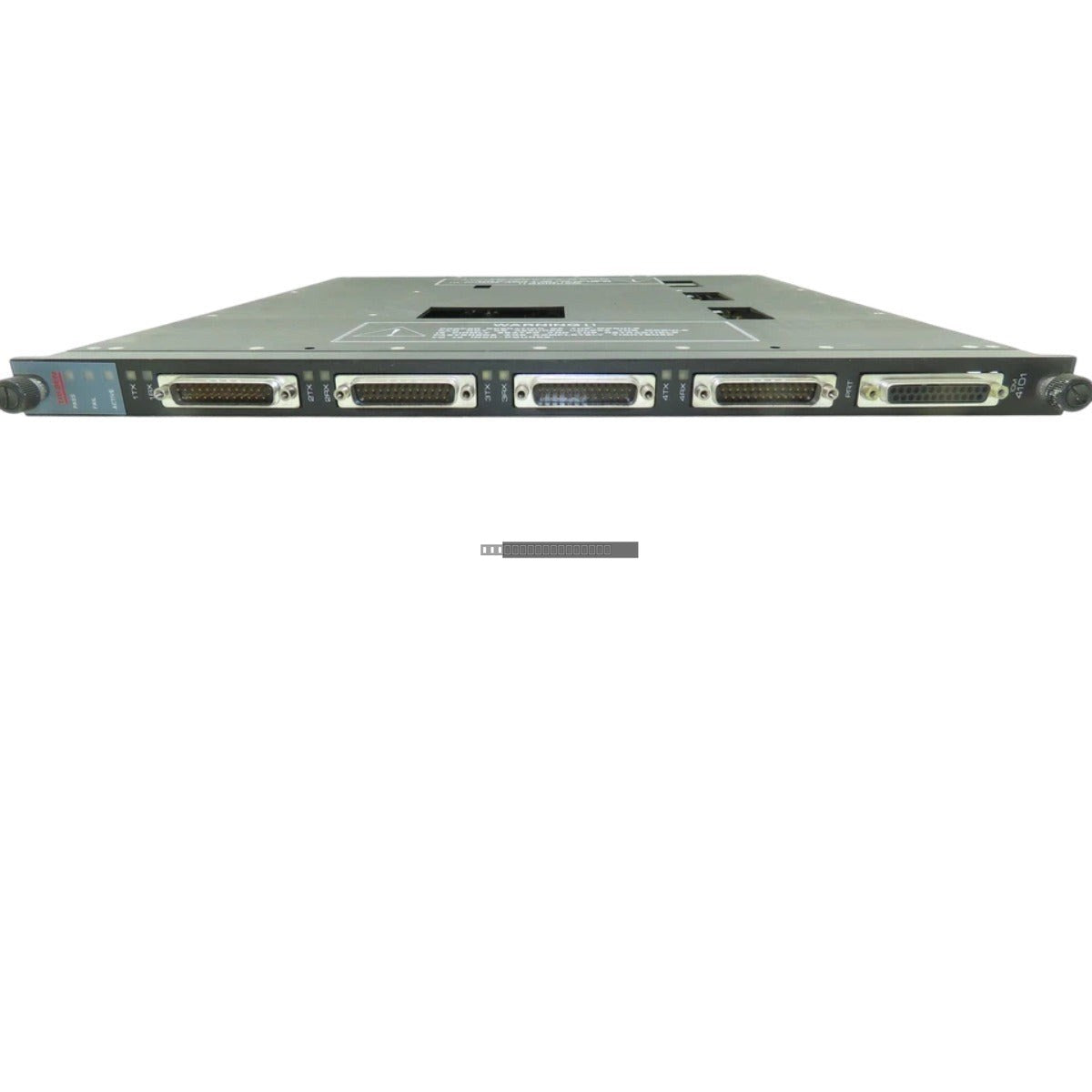

The Triconex ICM4101 is a high-reliability digital input module engineered for integration into critical safety-instrumented systems (SIS). It serves as a vital link between field-mounted discrete sensors and the safety controller, ensuring precise monitoring of process states in demanding environments such as power plants, refineries, and petrochemical facilities. By facilitating rapid and accurate signal acquisition, the module supports essential emergency shutdown (ESD) and safety logic functions, helping to maintain operational integrity and mitigate risks associated with equipment failure or process instability.

Features

• Robust solid-state digital input architecture for high-speed signal processing.
• Integrated galvanic isolation to protect backplane circuitry from field-side electrical transients.
• Deterministic sampling rates designed for safety-critical loop timing.
• Continuous monitoring of input voltage levels to detect field wiring faults or sensor malfunctions.
• Modular design optimized for integration into standard Triconex chassis environments.

Applications

This module is widely deployed in safety-critical automation architectures where reliable discrete input monitoring is mandatory. Typical applications include emergency shutdown systems, process interlocks, fire and gas detection monitoring, and high-availability logic solvers in heavy industrial sectors.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing the module from the chassis to prevent electrical damage.
• Verify that the module is correctly seated in the backplane to ensure proper communication and power distribution.
• Utilize shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain proper ventilation in the control cabinet to ensure ambient temperatures remain within the specified 0 to 60 degC range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal pins or connectors.

FAQ

What is the primary function of the ICM4101?
The ICM4101 is a digital input module used to interface discrete field devices with a Triconex safety controller, enabling the system to monitor process conditions for safety-critical logic.

Does this module provide electrical isolation?
Yes, the module features galvanic isolation, which separates the field-side signals from the internal control backplane to prevent damage from surges.
