Description

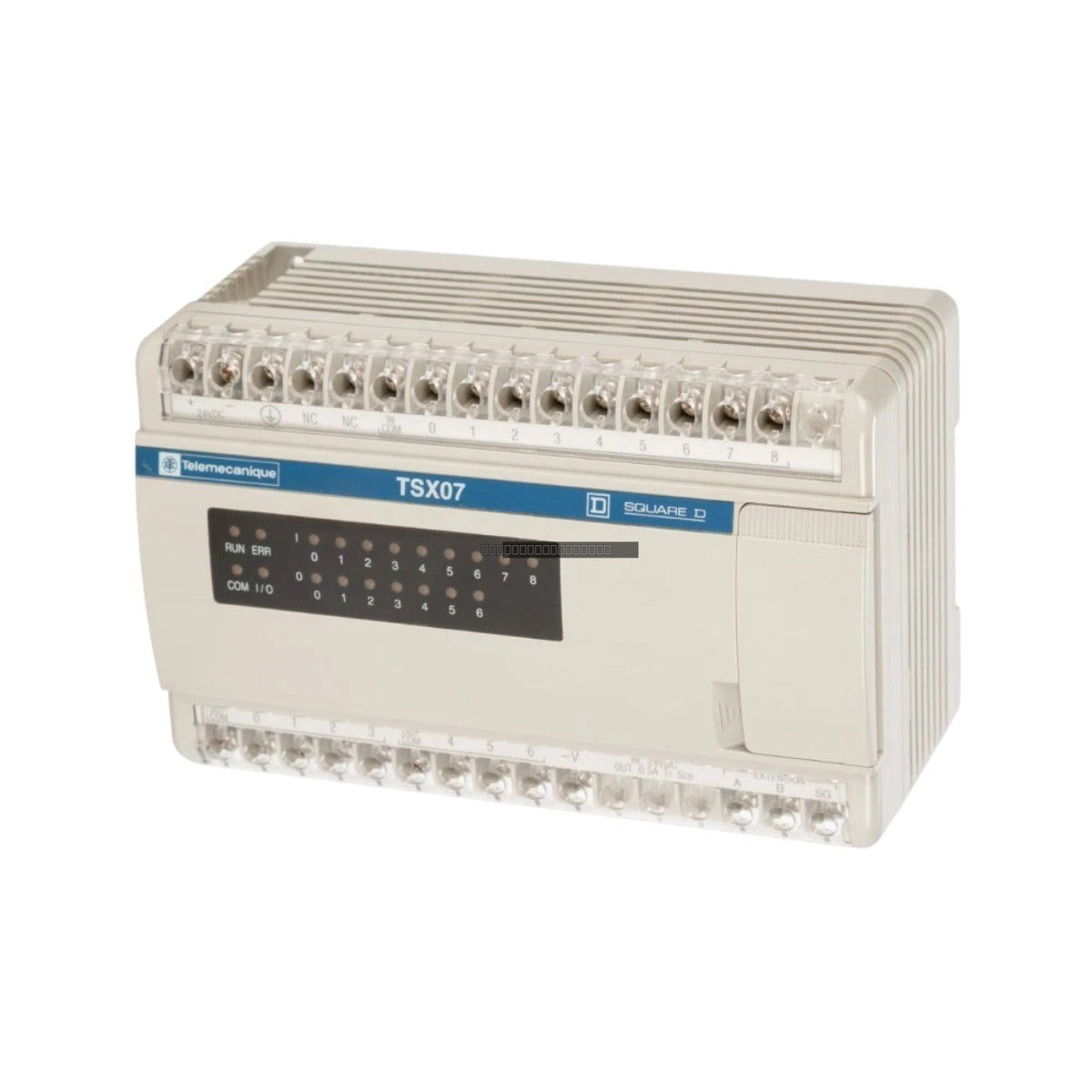

The Schneider TSX07211612 is a compact Nano PLC module designed for efficient discrete control within the TSX 07 series architecture. This brick-style controller is optimized for small-scale automation applications, including light assembly lines, material handling systems, and environmental monitoring. By consolidating CPU, memory, and I/O processing into a single, hardened unit, the module provides reliable, deterministic performance while minimizing potential points of failure associated with modular backplane systems.

Features

• Compact, brick-style form factor for space-constrained control panels.
• Deterministic scan times for high-speed, real-time signal processing.
• Hardened circuitry designed to withstand industrial electromagnetic interference (EMI).
• Integrated design reduces mechanical complexity and simplifies installation.
• Stable 24 VDC power operation suitable for standard industrial control environments.

Applications

This module is well-suited for decentralized control configurations, including:

• Small-scale machine automation and light assembly.
• Material handling and conveyor control.
• Environmental monitoring and facility management systems.
• Retrofitting legacy control panels where space is at a premium.

Technical Specifications

Installation Guidelines

• Ensure the module is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures below 60 deg C.
• Always disconnect power before installing or removing the module from the control panel.
• Use shielded cabling for I/O signals to minimize the impact of external electrical noise.
• Ensure a solid, low-impedance connection to the system ground to maintain electromagnetic compatibility.
• Verify that the supply voltage is stable and within the specified 24 VDC range before energizing the unit.

FAQ

Is this module compatible with existing TSX 07 series systems?

Yes, the TSX07211612 is designed as a direct component within the TSX 07 series architecture, allowing for straightforward integration into existing setups.

What type of power supply is required for this PLC?

The unit requires a 24 VDC power source for stable operation in industrial environments.

What is the primary advantage of the brick-style design?

The brick-style design consolidates the CPU and I/O into a single enclosure, which eliminates the need for backplane connectors and reduces the risk of connection-related failures.
