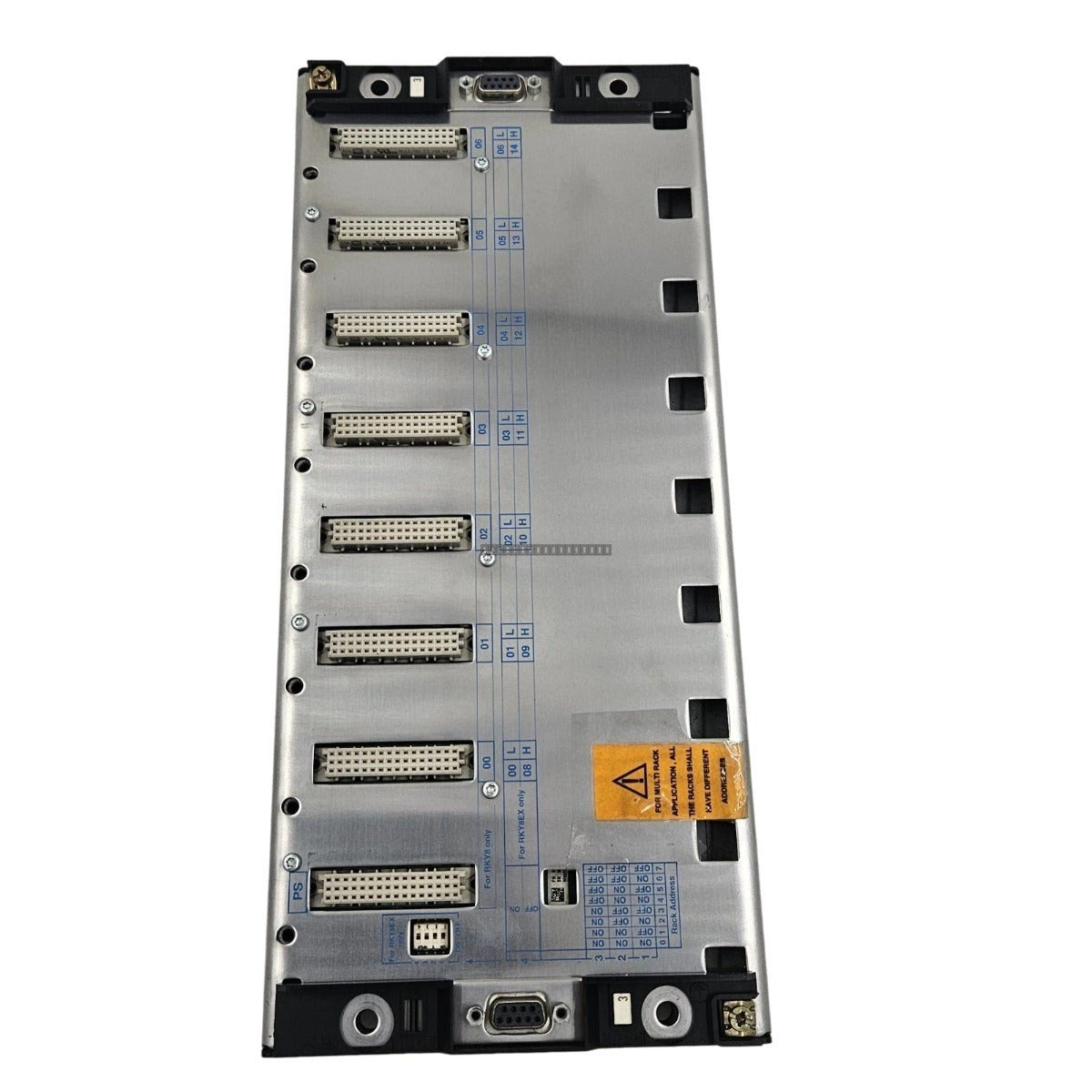

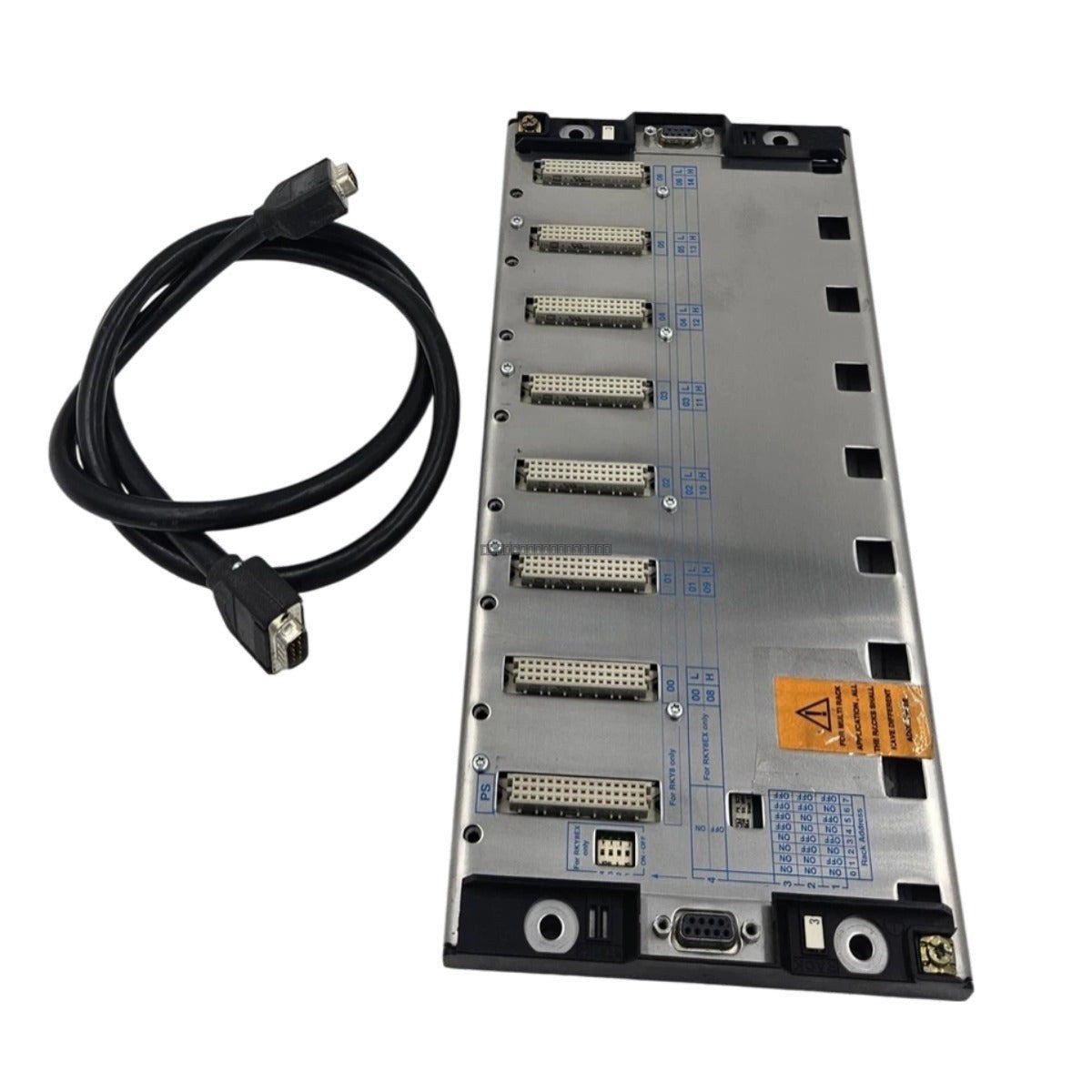

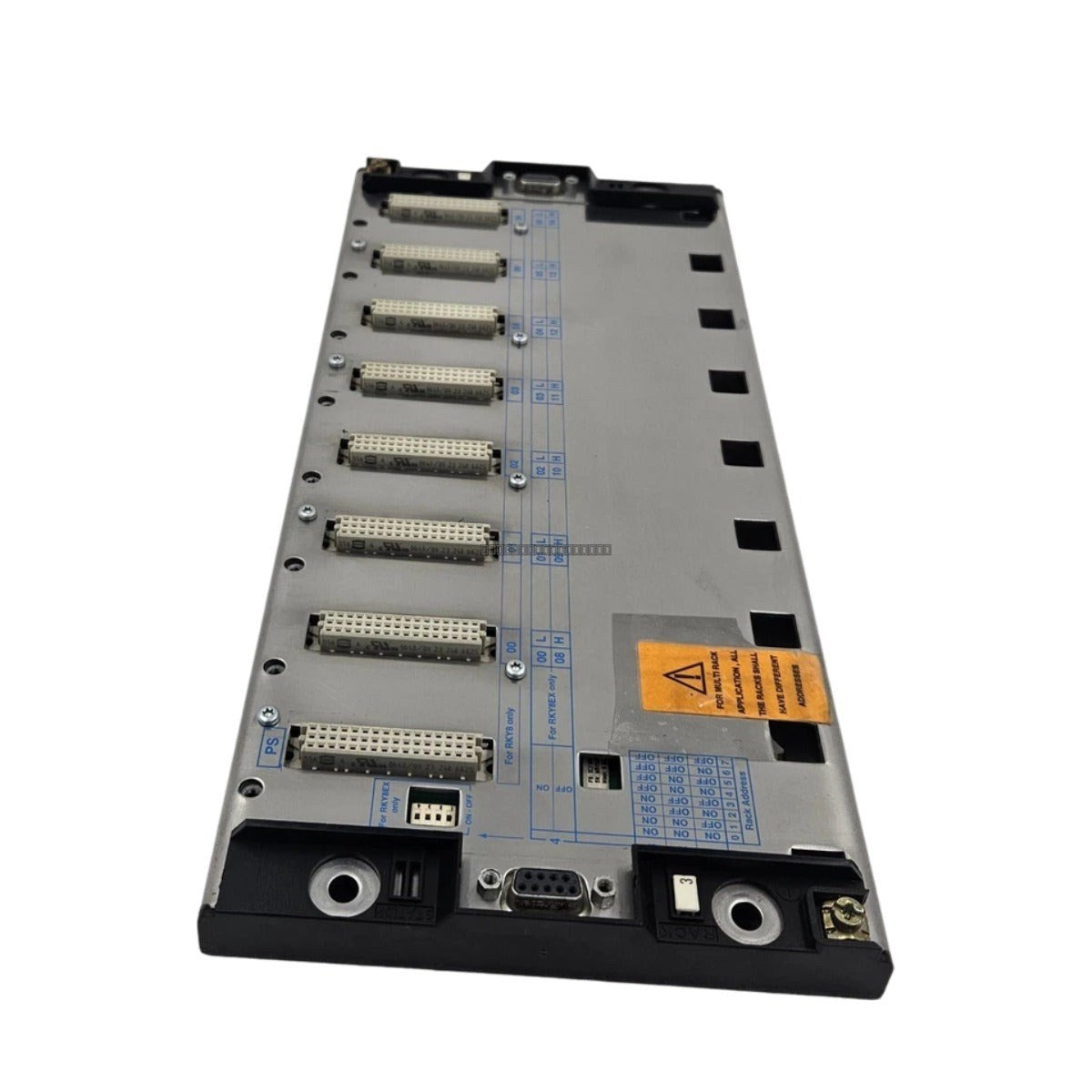

The Schneider Electric TSXRKY8 is a high-reliability, non-extendable backplane rack designed for the Modicon Premium automation platform. This 8-slot rack is engineered to support single-rack configurations, providing a robust mounting and communication foundation for processor, I/O, and specialty modules within the Modicon Premium ecosystem.

Features

• 8-slot capacity for flexible module arrangement
• Non-extendable design optimized for single-rack system architectures
• Integrated backplane for high-speed data exchange between modules
• Standardized mounting interface for Modicon Premium series components
• Rugged construction suitable for industrial control cabinet environments

Applications

This rack is primarily used in industrial automation systems where a compact, single-rack Modicon Premium configuration is required. It serves as the physical and electrical backbone for PLC processing units, digital and analog I/O modules, and communication interface modules in manufacturing and process control applications.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted on a flat, rigid surface within an enclosure that provides adequate protection against dust, moisture, and extreme temperatures.
• Verify that the rack is properly grounded to the cabinet chassis to minimize electromagnetic interference (EMI).
• Power down the system before installing or removing any modules from the rack slots to prevent electrical damage or data corruption.
• Maintain adequate clearance around the rack to facilitate proper airflow and cooling for the installed modules.
• Ensure all module locking mechanisms are fully engaged to guarantee secure electrical contact with the backplane.

FAQ

Is this rack compatible with extendable Modicon Premium configurations?

No, the TSXRKY8 is specifically designed as a non-extendable rack for single-rack configurations. It does not include the necessary bus extension ports required for multi-rack setups.

What is the primary function of the TSXRKY8 rack?

The rack provides the physical housing, power distribution, and communication backplane for Modicon Premium PLC modules, allowing them to function as a unified control system.
