The Honeywell MC-TAMR04 (51305907-175) is a Low Level Analog Input Multiplexer (LLMUX) for TDC 3000 / TPS systems. It processes microvolt-level signals from thermocouples (TC) and RTDs, consolidating...
التوافر: الكمية المتبقية: 50
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

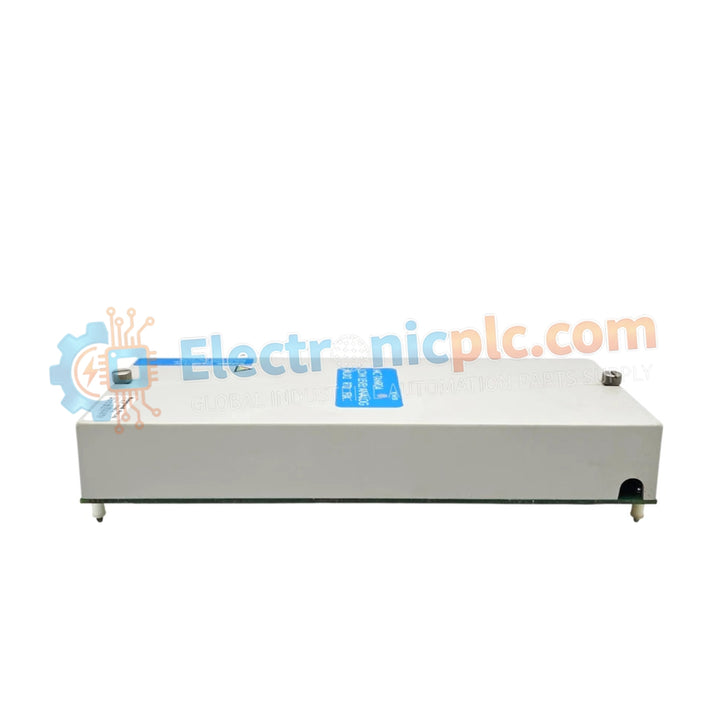

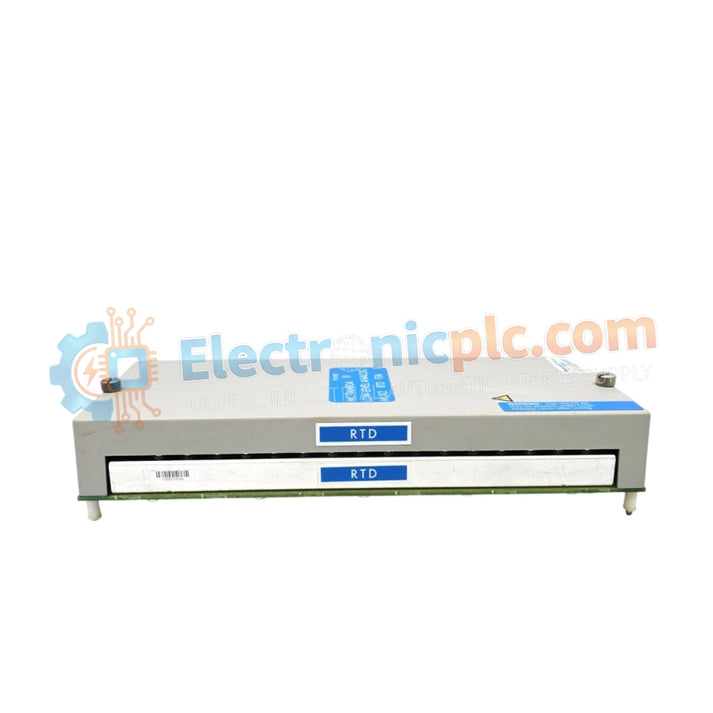

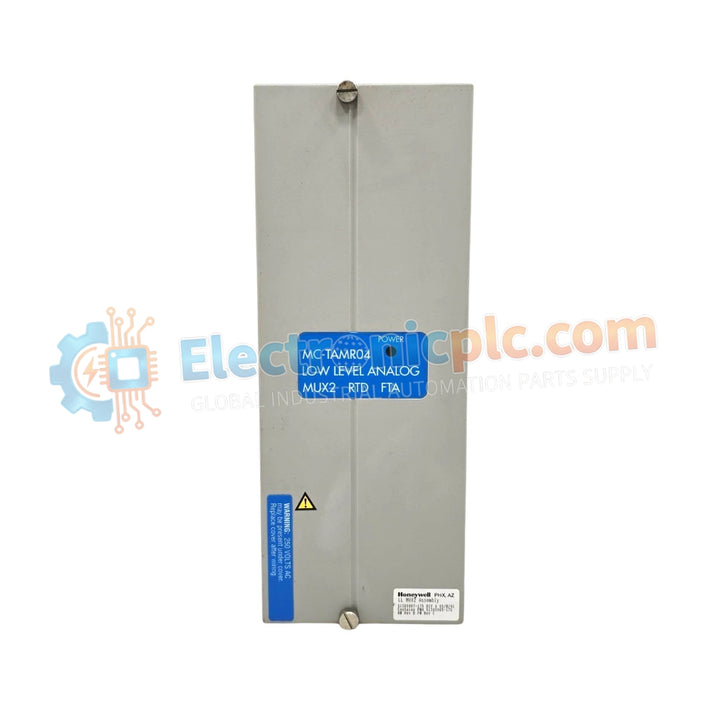

The Honeywell MC-TAMR04 (51305907-175) is a Low Level Analog Input Multiplexer (LLMUX) for TDC 3000 / TPS systems. It processes microvolt-level signals from thermocouples (TC) and RTDs, consolidating multiple temperature inputs into the control system via the Universal Control Network (UCN).
Supplied 100% Brand New and Original for high-accuracy industrial temperature measurement.
| Parameter | Details |
|---|---|
| Model | MC-TAMR04 |
| Part Number | 51305907-175 |
| Function | Low Level Analog Input Multiplexer |
| Signal Type | TC / RTD / mV |
| System | UCN / APM / HPM |
| Dimensions | 30.5 × 11.9 × 7 cm |
| Weight | 0.7 kg |
High-sensitivity measurement: Accurate microvolt-level signal detection for temperature monitoring
Cold Junction Compensation (CJC): Ensures stable thermocouple readings under varying ambient conditions
Efficient multiplexing: Reduces wiring complexity and I/O cost
Strong noise rejection: High common-mode interference resistance in industrial environments
Native UCN integration: Direct compatibility with APM/HPM systems
Difference vs HLAI modules?
LLMUX handles low-level TC/RTD signals; HLAI is for higher-level voltage/current inputs.
Backward compatible?
Yes, -175 revision replaces older 51305907 series versions.
Supports both TC and RTD?
Yes, with correct FTA configuration.
How to verify authenticity?
Factory-sealed packaging with serial number and 2026 traceable date code.
