Description

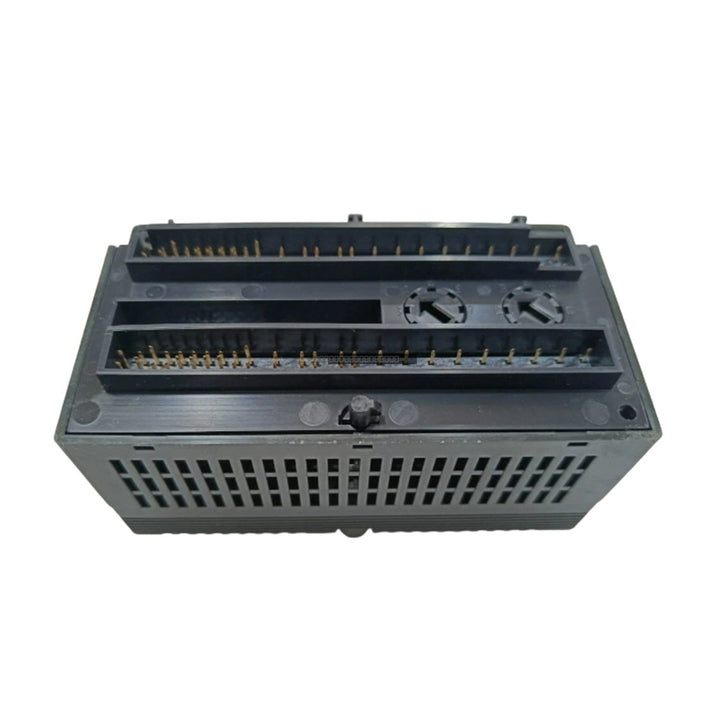

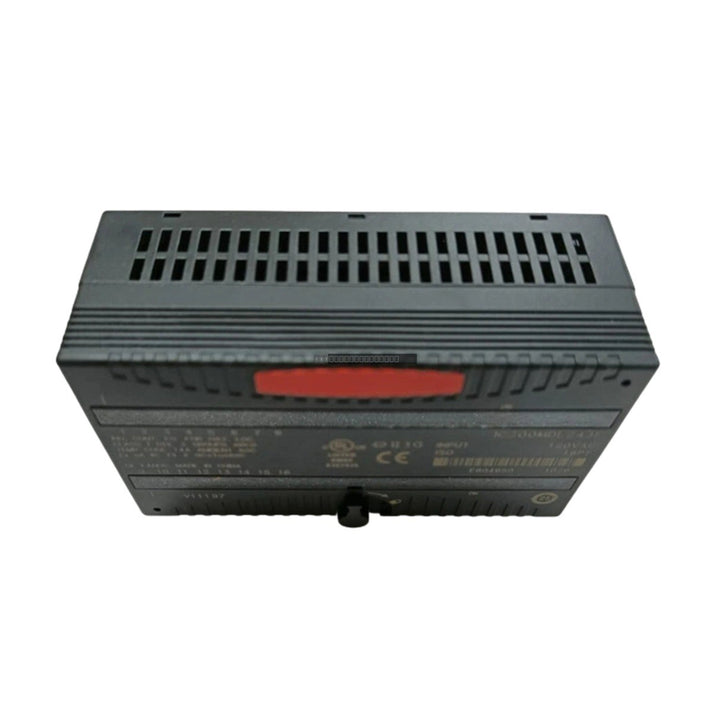

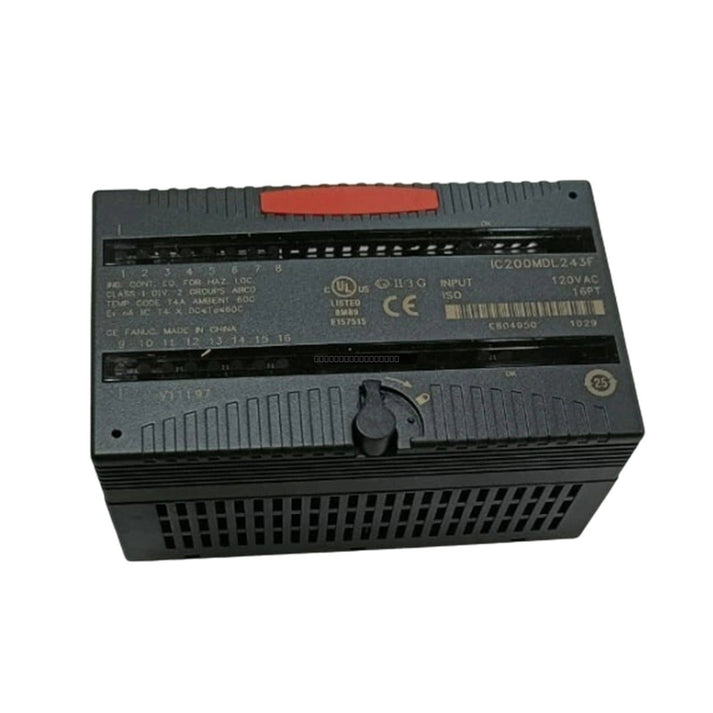

The GE Fanuc IC200MDL243 is a 16-channel discrete input module designed for the VersaMax I/O and control system. This module is engineered to interface with 120 VAC field devices, converting binary on/off signals into discrete data for processing by the VersaMax CPU or Network Interface Unit (NIU). It is suitable for demanding industrial applications, including power generation, mining, and oil and gas processing, where reliable signal acquisition is critical for maintaining system uptime.

Features

• 16 isolated discrete input channels for 120 VAC operation.
• Positive logic (sourcing) configuration.
• Channel-to-channel and channel-to-backplane isolation rated at 250 VAC continuous.
• Integrated status monitoring via 16 individual channel LEDs and one backplane status LED.
• Hot-swappable design allows for module replacement without interrupting the backplane power or system operation.
• Powered directly from the backplane; no external field power supply required.

Applications

This module is typically deployed in industrial automation systems requiring the monitoring of AC-powered field devices such as limit switches, pushbuttons, and auxiliary contacts. Its robust isolation makes it ideal for environments with potential electrical noise or varying ground potentials.

Technical Specifications

Installation Guidelines

• Ensure the VersaMax carrier base is securely mounted to a standard DIN rail before inserting the module.
• The IC200MDL243 supports hot-swapping; however, ensure proper ESD precautions are taken when handling the module to prevent damage to internal circuitry.
• Verify that the field wiring is correctly terminated to the carrier base before applying power.
• Maintain adequate clearance around the module to ensure proper ventilation and cooling within the control cabinet.
• Always verify the input voltage levels against the module specifications (70-132 VAC for ON-state) to ensure reliable operation.

FAQ

Does this module require an external power supply? No, the IC200MDL243 draws its operating power directly from the VersaMax backplane.

Is this module hot-swappable? Yes, the VersaMax design allows for the removal and insertion of this module while the system is under power, facilitating easier maintenance.

What is the isolation rating of the inputs? Each channel is isolated from the others and from the backplane at 250 VAC continuous.
