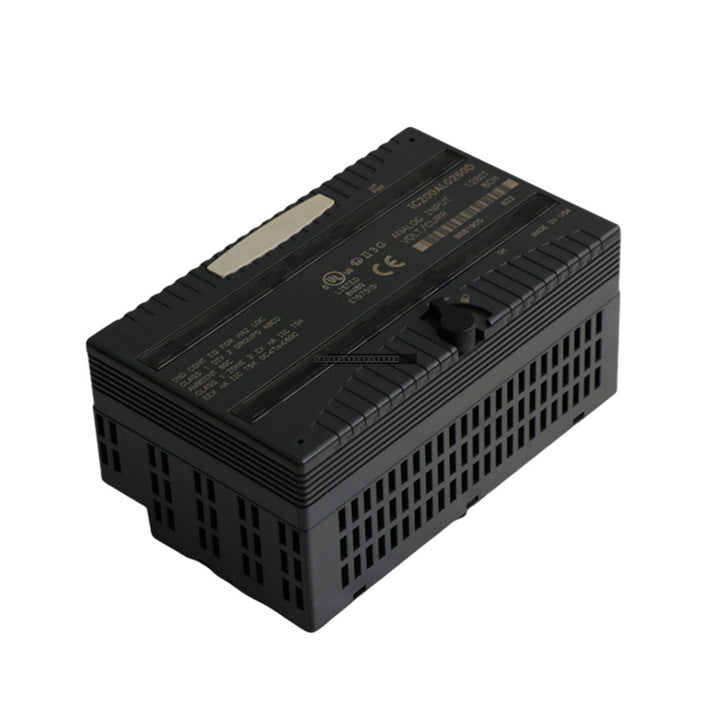

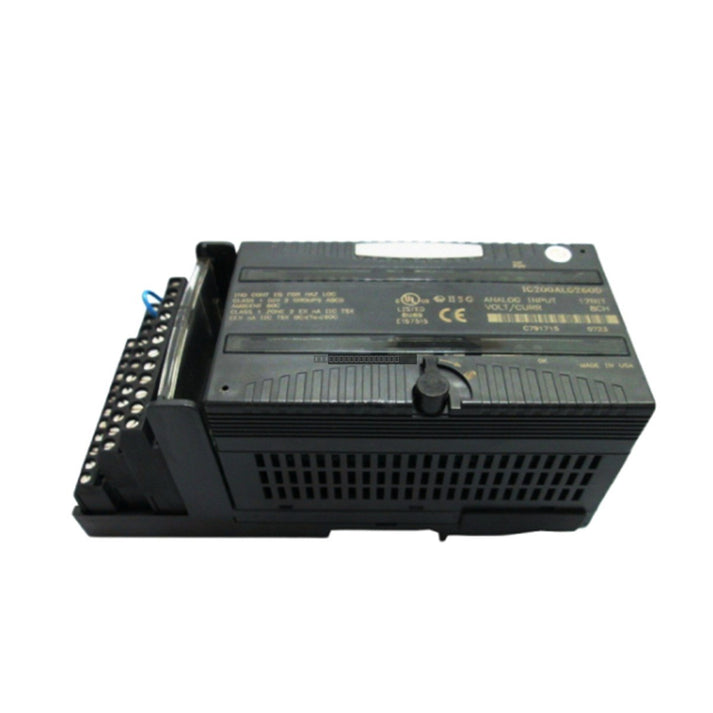

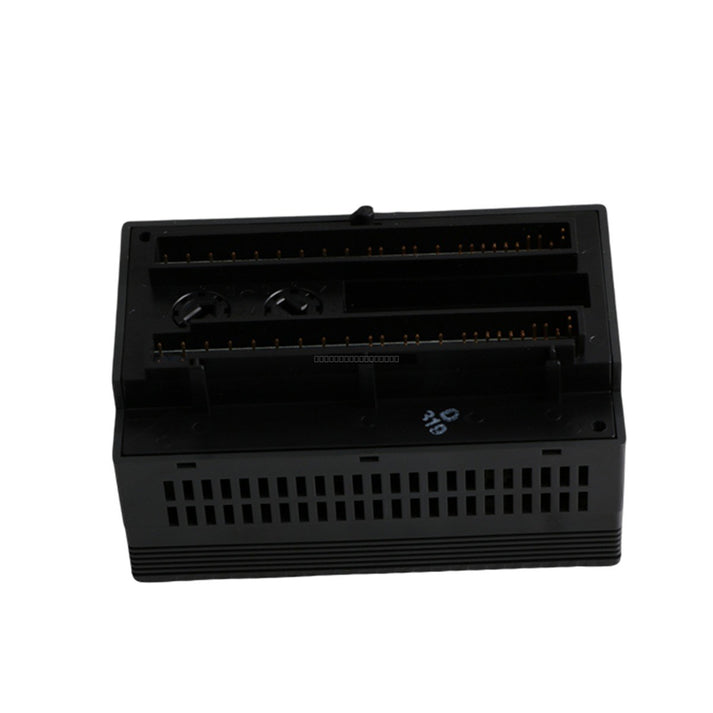

The General Electric IC200ALG260 is a high-performance analog input module designed for the VersaMax I/O system. This module provides 8 input channels with 12-bit resolution, supporting both voltage and current signal types to accommodate a wide variety of industrial sensors and instrumentation.

Features

• 8 configurable analog input channels
• 12-bit digital resolution for precise signal processing
• Supports multiple input ranges including 0-10 VDC, +/-10 VDC, and 4-20 mA
• Efficient backplane power consumption of 125 mA at 5 VDC
• Fast update rate of 0.4 ms and a 5 ms filter response time
• Flexible configuration for range and mode selection to suit specific application needs

Applications

This module is ideal for process automation and industrial control environments where monitoring of analog variables such as pressure, temperature, flow, or position is required. It integrates seamlessly into VersaMax PLC architectures, providing reliable data acquisition for complex control loops.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before installing or removing the module from the backplane.
• Mount the module onto the VersaMax I/O carrier, ensuring a secure mechanical connection.
• Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
• Maintain proper grounding practices to protect against noise and potential surges.
• Avoid routing analog signal cables alongside high-voltage power lines or heavy inductive loads.
• Handle the module using standard ESD (Electrostatic Discharge) safety precautions.

FAQ

What signal ranges can the IC200ALG260 handle?
The module supports 0-10 VDC, +/-10 VDC, and 4-20 mA current loops, which can be selected via software configuration.

How many channels does this module provide?
The IC200ALG260 features 8 independent analog input channels.

What is the resolution of this input module?
This module offers 12-bit resolution for accurate analog-to-digital conversion.
