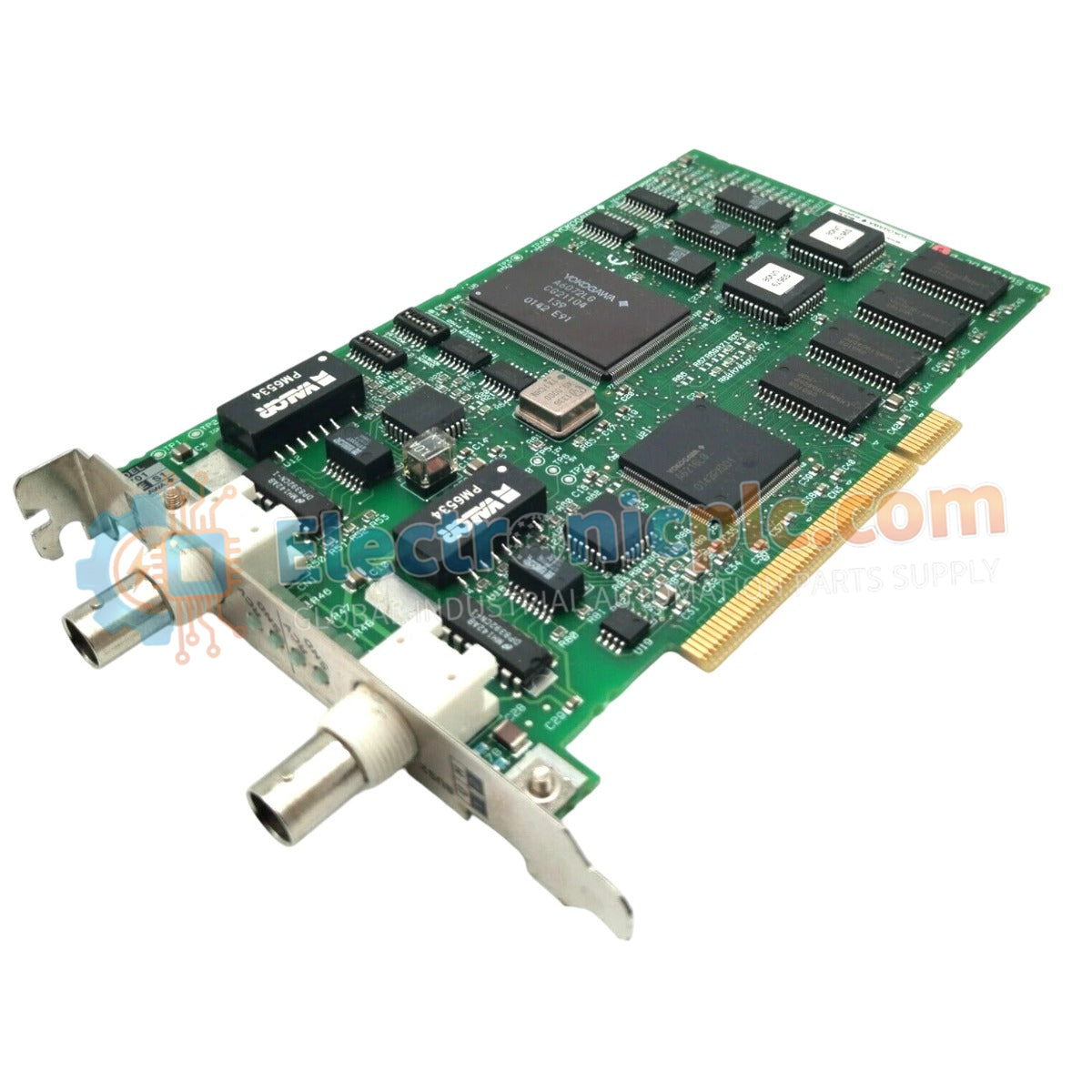

The Yokogawa VF701 (VF701 Vnet/IP Interface Card) is a fundamental communication module designed for the CENTUM VP distributed control system (DCS). It serves as the primary hardware gateway that allows the Field Control Unit (FCU) to connect to the Vnet/IP control network, ensuring reliable, high-speed, and deterministic data exchange across the plant's automation infrastructure.

Hardware Specifications

DCS Process Control Features

The VF701 facilitates the core communication requirements of the CENTUM VP platform by providing:

• Deterministic Communication: Ensures that critical control data, such as process values and alarm packets, are delivered within strict timing constraints, preventing communication jitter.
• Galvanic Isolation: Protects the sensitive internal station bus from electrical noise, surges, and common-mode interference originating from the external control network.
• Redundancy Support: Fully compatible with dual-redundant network configurations to ensure seamless operation and high availability during link failures.
• High Bandwidth: Supports the robust throughput required for multi-node data synchronization in large-scale industrial control environments.

Frequently Asked Questions

Q: Is the VF701 compatible with all CENTUM VP stations?

A: The VF701 is designed for standard CENTUM VP field control units. Compatibility depends on the station's hardware revision; always check the module’s firmware compatibility with your system's engineering software.

Q: Does the card require specific network cabling?

A: Yes, use high-quality, shielded Category 6A (or better) Ethernet cables to maintain signal integrity and adhere to electromagnetic compatibility (EMC) standards.

Field Installation Guidelines

1. Safety First: Ensure the control cabinet is powered down or the specific slot is set to "Maintenance Mode" via the engineering workstation to prevent accidental bus faults.
2. Handle with Care: Align the card precisely with the backplane guides. Insert it slowly to avoid bending or damaging the high-density backplane pins.
3. Secure Mounting: Tighten the front-panel captive screws firmly. This creates a necessary electrical bond between the card’s chassis and the cabinet ground, crucial for EMI protection.
4. Cabling: Route network cables through dedicated, shielded conduits away from high-voltage AC or inductive load power cables to avoid interference.
5. Verification: Power on the station and verify the status LEDs on the front panel; a successful link is indicated by a steady or blinking status light depending on the active data traffic.
