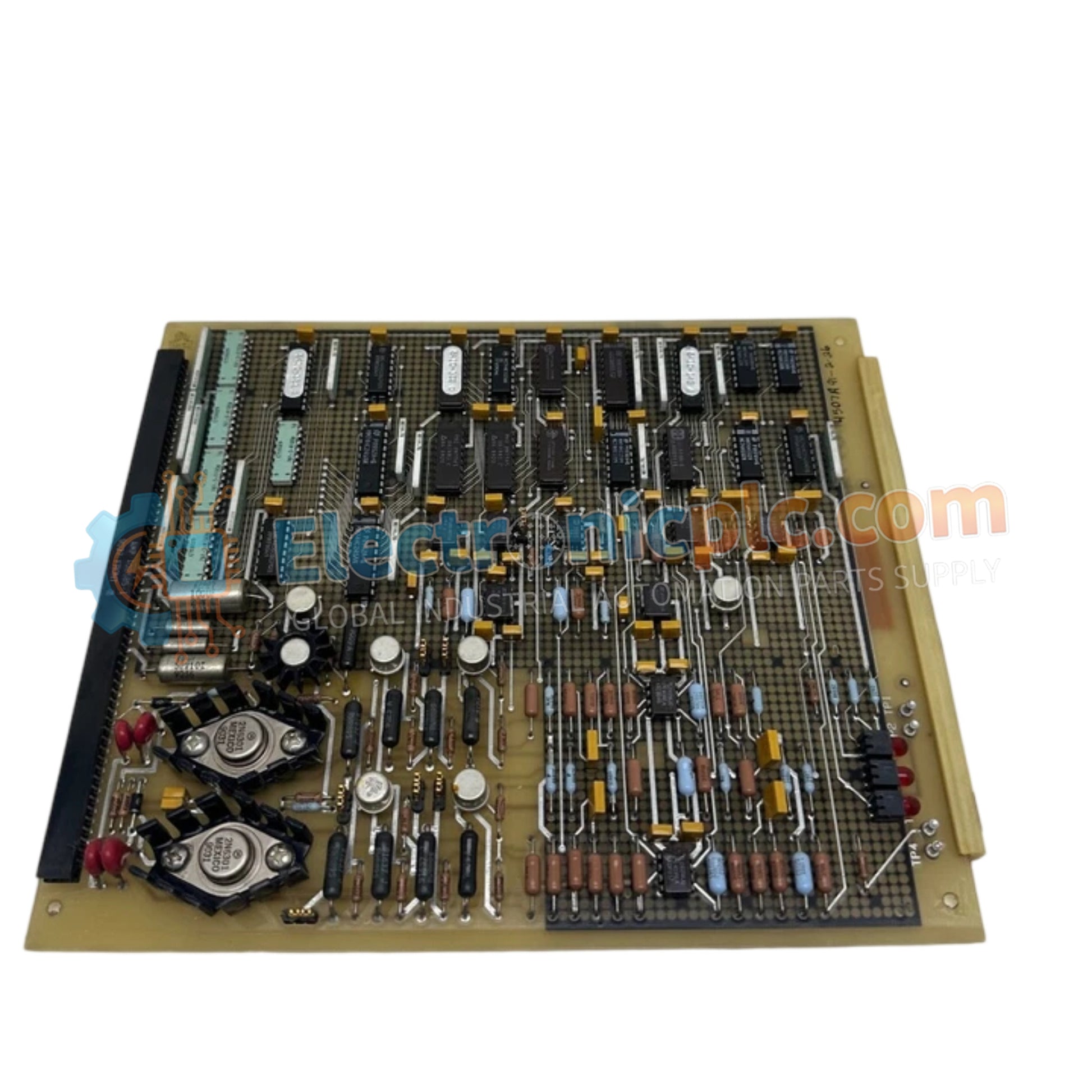

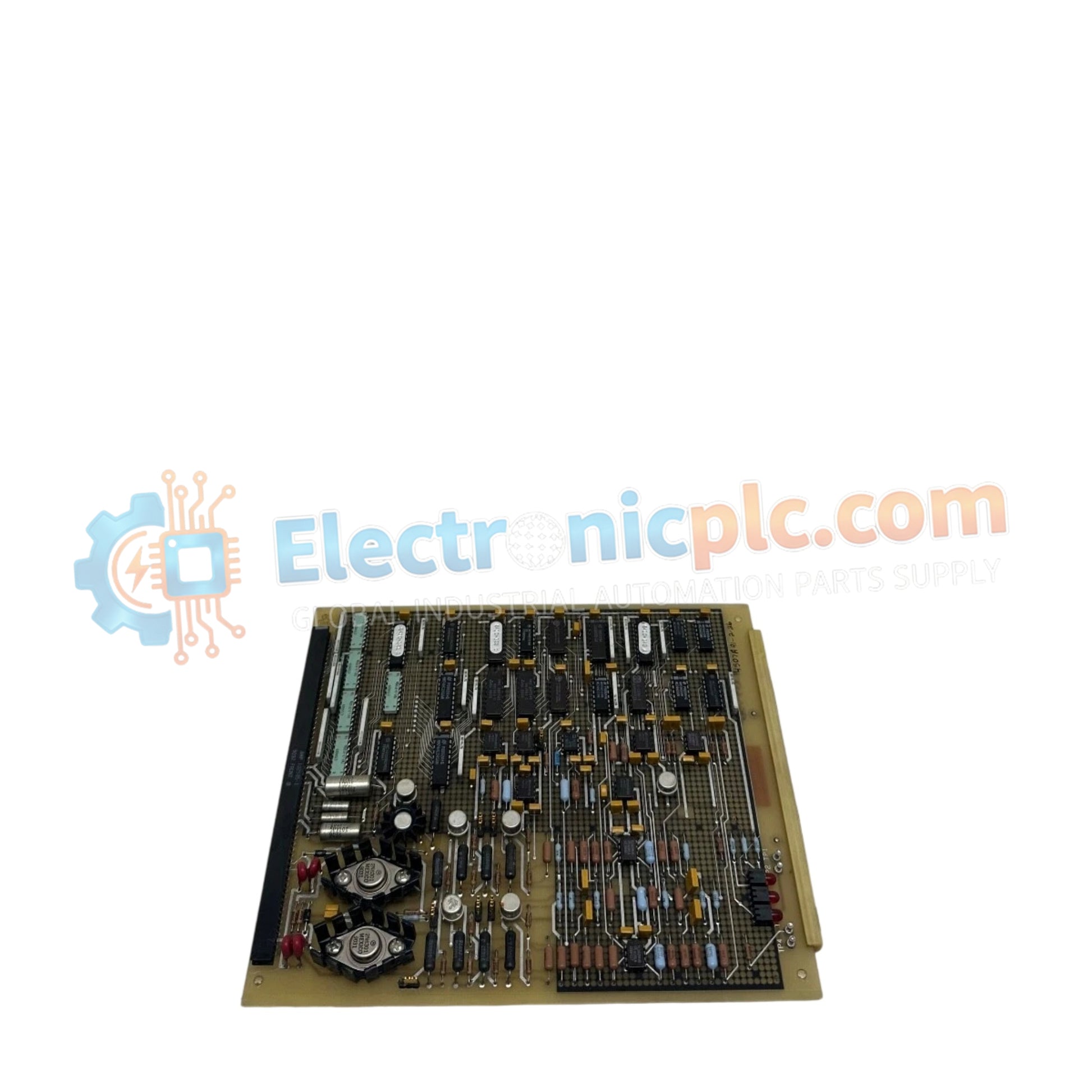

The Woodward 5461-650, also cataloged as the 5461-650 Transceiver Module, operates as a dedicated hardware component for high-speed serial data transmission and network communication within industrial turbine control platforms. It processes differential signals to maintain reliable telemetry exchange across distributed governor node networks.

Suffix Breakdown & Model Matrix

• 5461-650: Standard transceiver module configuration featuring integrated physical-layer isolation circuits for industrial automation communication links.

Hardware Specifications

Actuator Loop Feedback Response and Thermal Profiles

The hardware utilizes optimized transceiver circuitry designed to minimize propagation delay, supporting high-speed actuator loop feedback response tracking across system nodes. Internal thermal dissipation profiles are engineered for standard rack-mounted enclosures, maintaining safe junction temperatures without forced-air cooling requirements. Advanced harmonic distortion suppression filters mitigate high-frequency electrical noise originating from adjacent power electronics and switching circuits.

Frequently Asked Questions

Q: What is the primary role of this transceiver module within the control hierarchy?

A: The module acts as the physical layer interface for data transmission, converting internal logic signals into robust differential line states for safe inter-node communication.

Q: Can this module be extracted from the rack while the system is powered on?

A: Live extraction is strictly prohibited unless specifically permitted by the system architecture manual; power must be isolated to prevent backplane bus disruption or transient voltage damage.

Field Installation Guidelines

• Insert the module smoothly along the designated card guides of the system rack to ensure proper alignment with the backplane connector pins.
• Secure the top and bottom captive mounting screws to maintain mechanical stability and ensure continuous chassis ground bonding.
• Verify that communication cable shields are properly terminated to the cabinet ground bar to prevent electromagnetic interference across the data link.
