Description

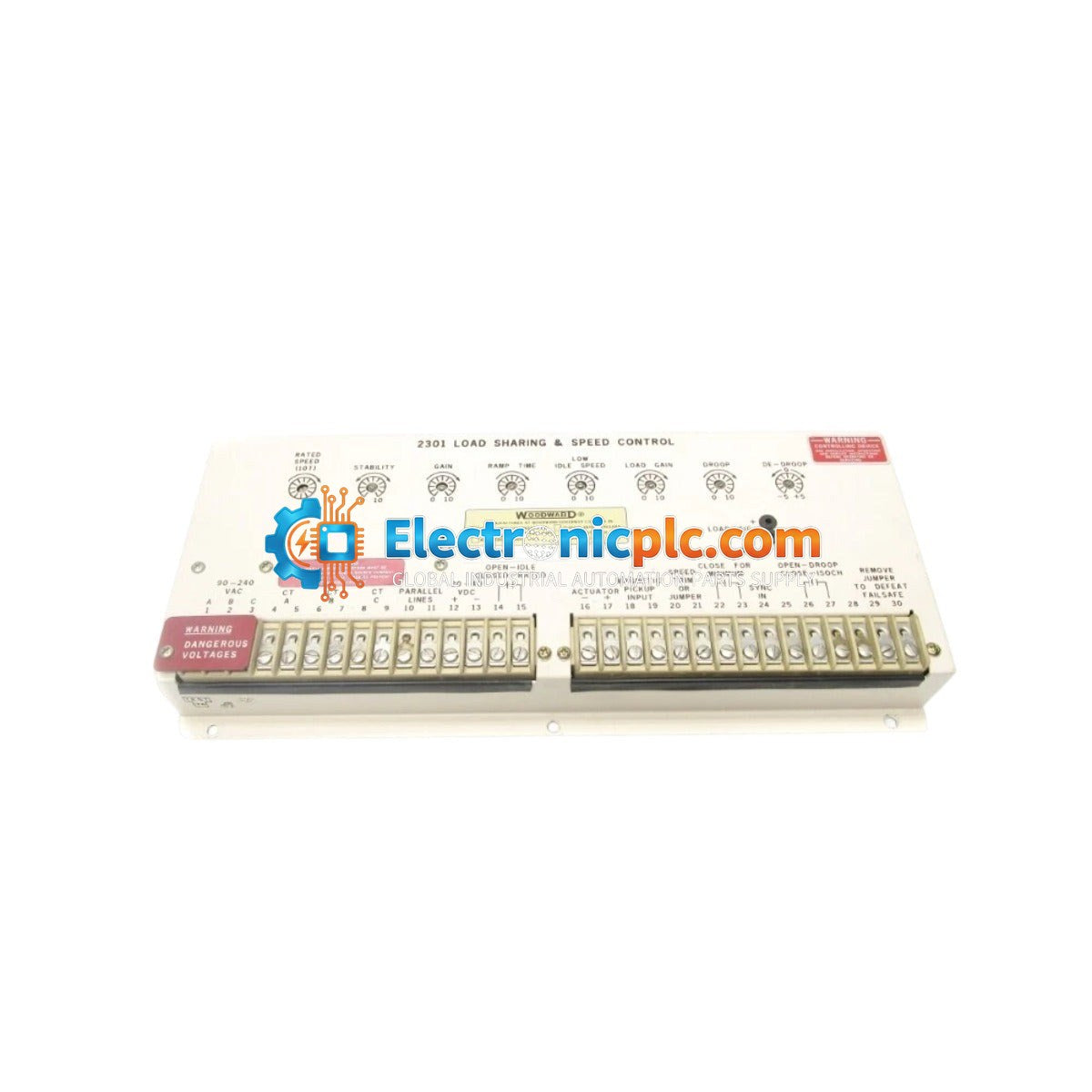

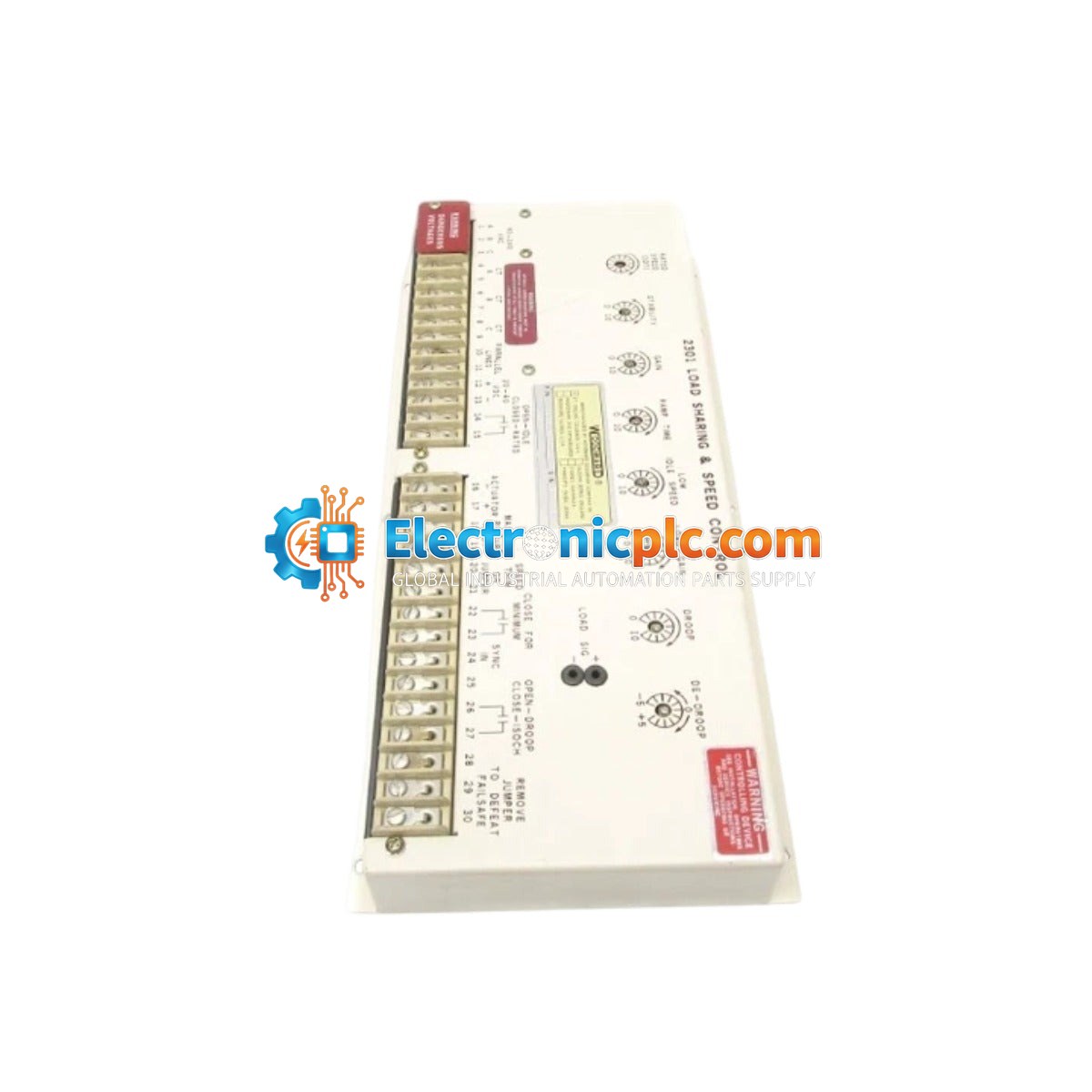

The Woodward 8271-467 is a precision-engineered load sharing and speed control module designed for industrial power generation applications. This unit provides critical control functions for prime movers, ensuring stable operation and efficient load distribution in parallel generator systems. It is designed to manage engine speed and load sharing parameters, maintaining system stability across varying power demands.

Features

• Integrated load sharing and speed control functionality
• Designed for high-reliability industrial power management
• Wide operating temperature range for harsh environments
• Low power consumption profile
• Robust design for long-term operational stability

Technical Specifications

Installation Guidelines

• Ensure the control module is mounted in a clean, dry, and vibration-dampened enclosure.
• Verify that the power supply voltage is within the specified 18-32 V DC range before connection.
• Use shielded cabling for all control and signal connections to minimize EMI interference.
• Maintain proper grounding practices to protect the internal circuitry from electrical surges.
• Power down the system completely before inserting or removing the module from the control rack.
• Ensure adequate ventilation around the unit to maintain operating temperatures within the specified limits.

FAQ

What is the primary function of the Woodward 8271-467?

The 8271-467 acts as a controller for speed and load sharing in generator sets, ensuring that multiple units operating in parallel maintain synchronized speed and distribute electrical load according to system requirements.

What is the operating temperature range for this module?

The module is rated for operation between -40 degC and +70 degC, making it suitable for a wide variety of industrial and outdoor power generation environments.
