Description

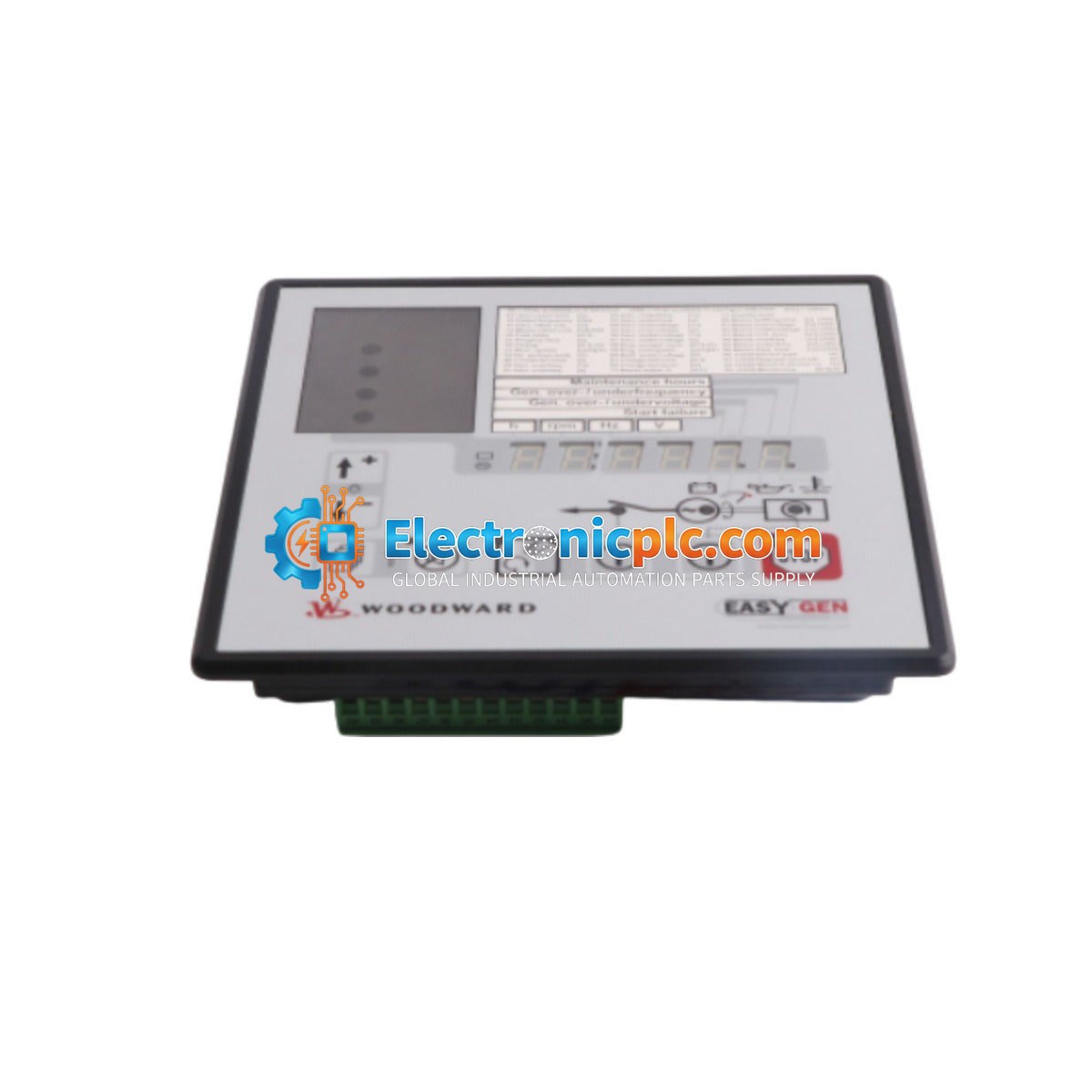

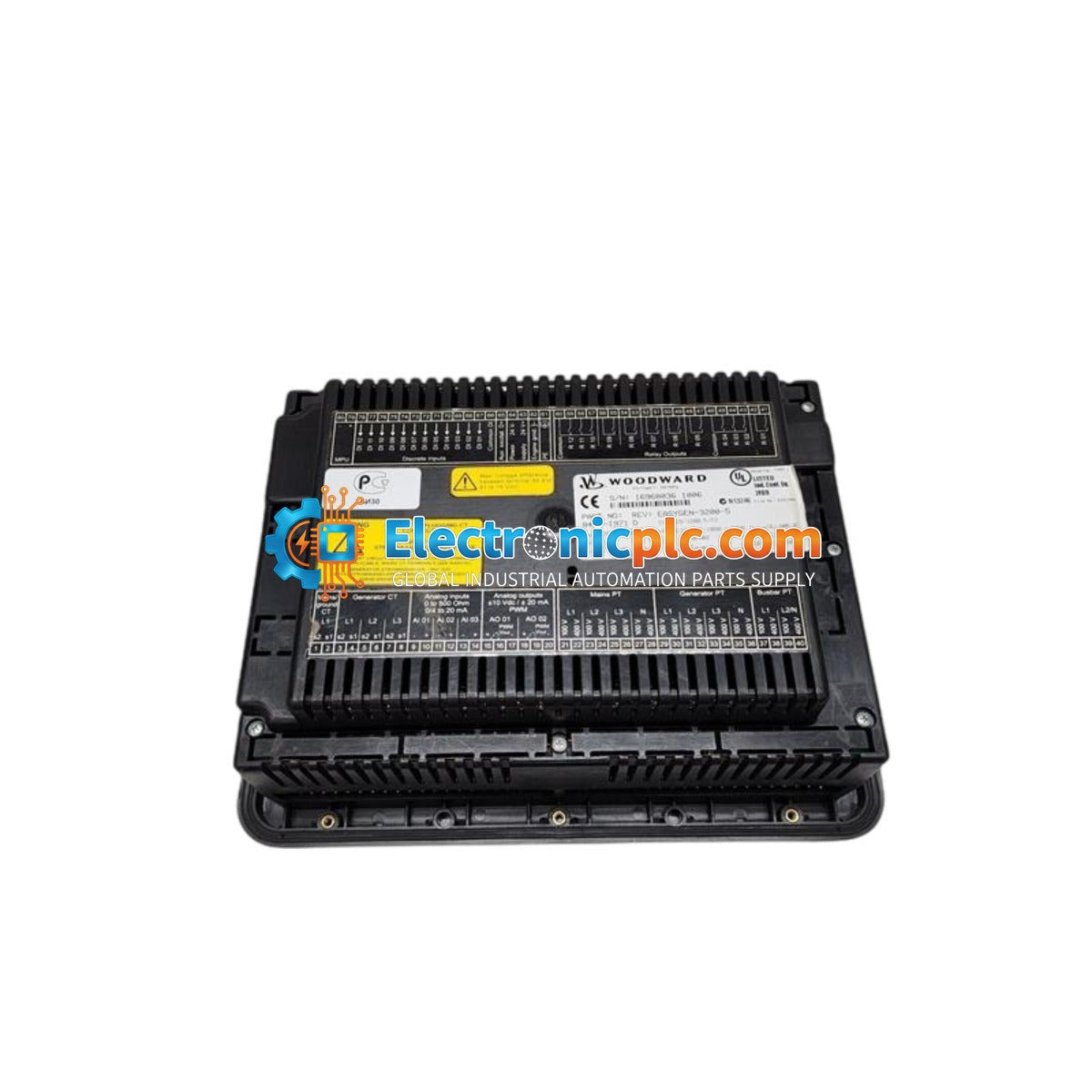

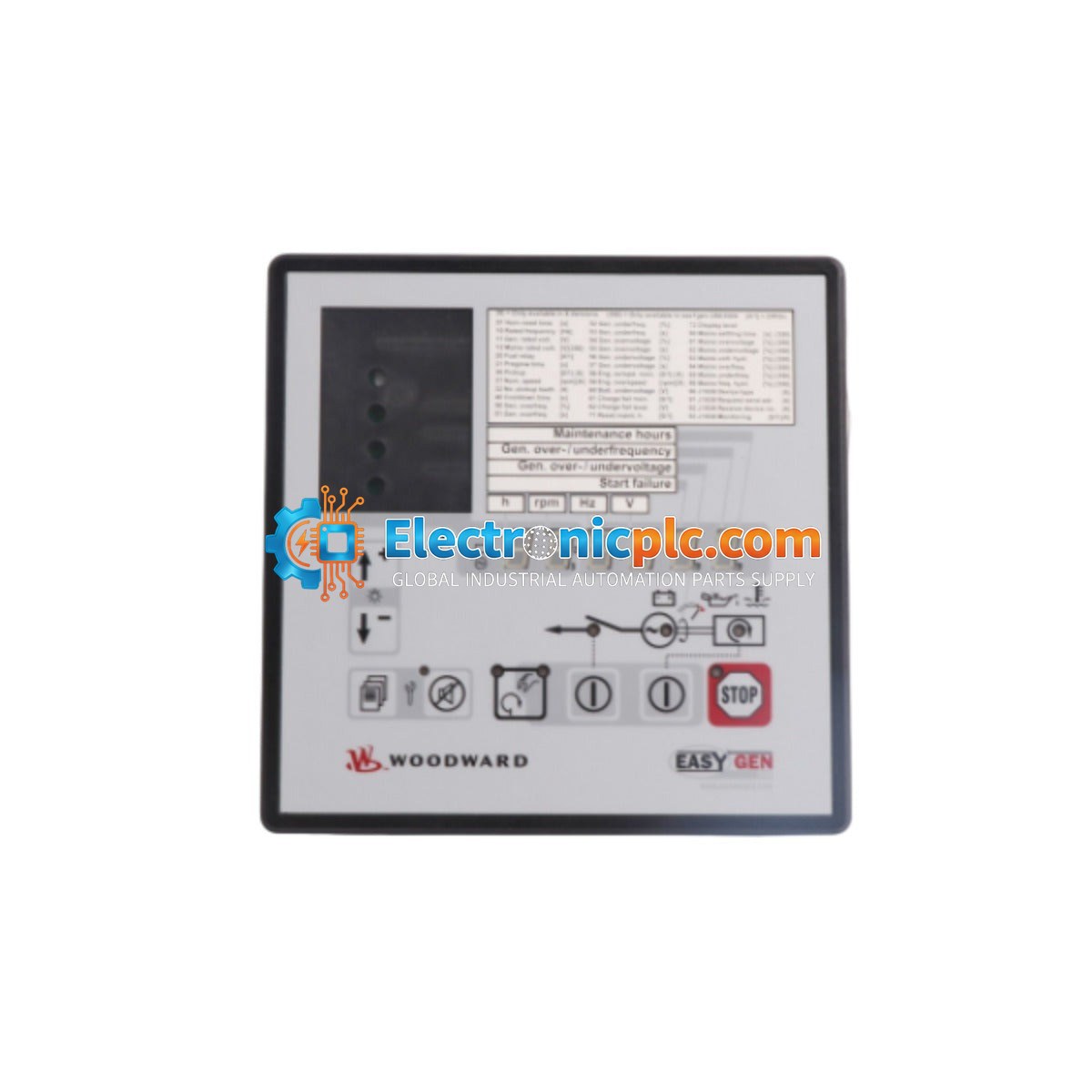

The Woodward 8440-1800 is a high-precision genset controller engineered for synchronized power management and comprehensive engine-generator control. Designed for mission-critical applications, this controller provides advanced monitoring and protection, ensuring grid stability through precise frequency and voltage regulation. It is widely utilized in demanding environments including marine power plants, oil and gas facilities, and mining operations to enhance system reliability and minimize downtime.

Features

• Integrated PID control loops for precise engine speed and generator voltage regulation.
• Advanced fault detection and diagnostic capabilities for proactive maintenance.
• Automated load sharing and synchronization logic for multi-generator setups.
• Robust hardware architecture designed for high electromagnetic compatibility (EMC) and vibration resistance.
• Integrated LCD interface for local monitoring and parameter configuration.
• Modular design to support rapid installation and simplified maintenance.

Applications

• Decentralized power generation systems.
• Marine and offshore power management.
• Industrial backup and emergency power systems.
• Oil refinery and mining power distribution.

Technical Specifications

Installation Guidelines

• Ensure the controller is mounted in a panel with adequate ventilation to maintain operating temperatures within the specified range.
• Use shielded cabling for communication interfaces to minimize interference in high-EMI environments.
• Verify that the 24 VDC power supply is stable and properly fused according to local electrical codes.
• Ensure the front panel gasket is correctly seated during installation to maintain the IP54 ingress protection rating.
• Always power down the system before connecting or disconnecting wiring terminals to prevent electrical damage.
• Follow standard ESD (Electrostatic Discharge) handling procedures when accessing internal components or terminals.

FAQ

What is the primary function of the Woodward 8440-1800?

The 8440-1800 is a generator set controller designed to manage, monitor, and protect engine-generator systems, specifically focusing on synchronization, load sharing, and voltage/frequency regulation.

Can this controller be used in harsh environments?

Yes, the unit is engineered for industrial use with high vibration resistance and EMC compliance, making it suitable for marine, mining, and oil refinery applications.

What is the required power supply for this unit?

The controller operates on a standard 24 VDC power input.
