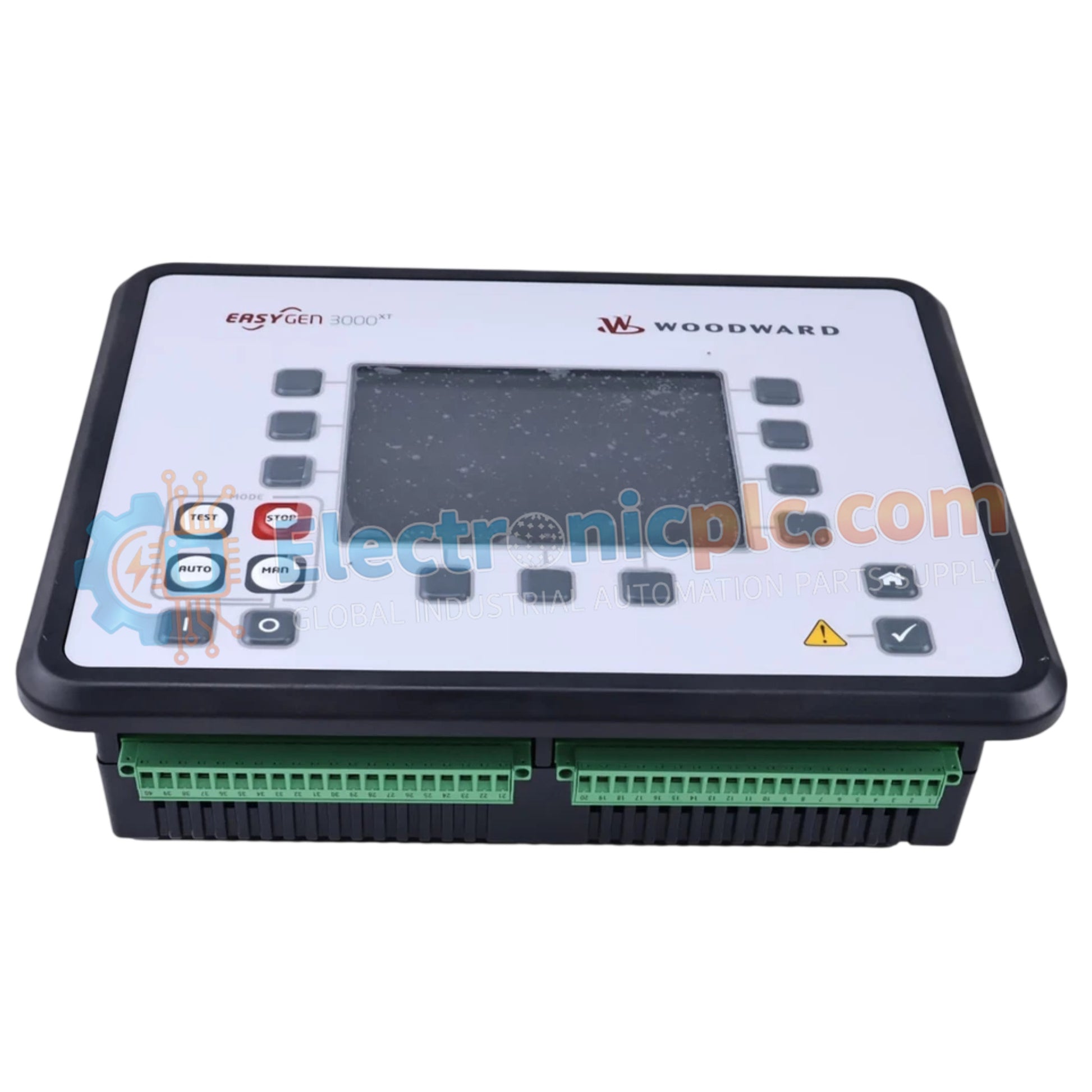

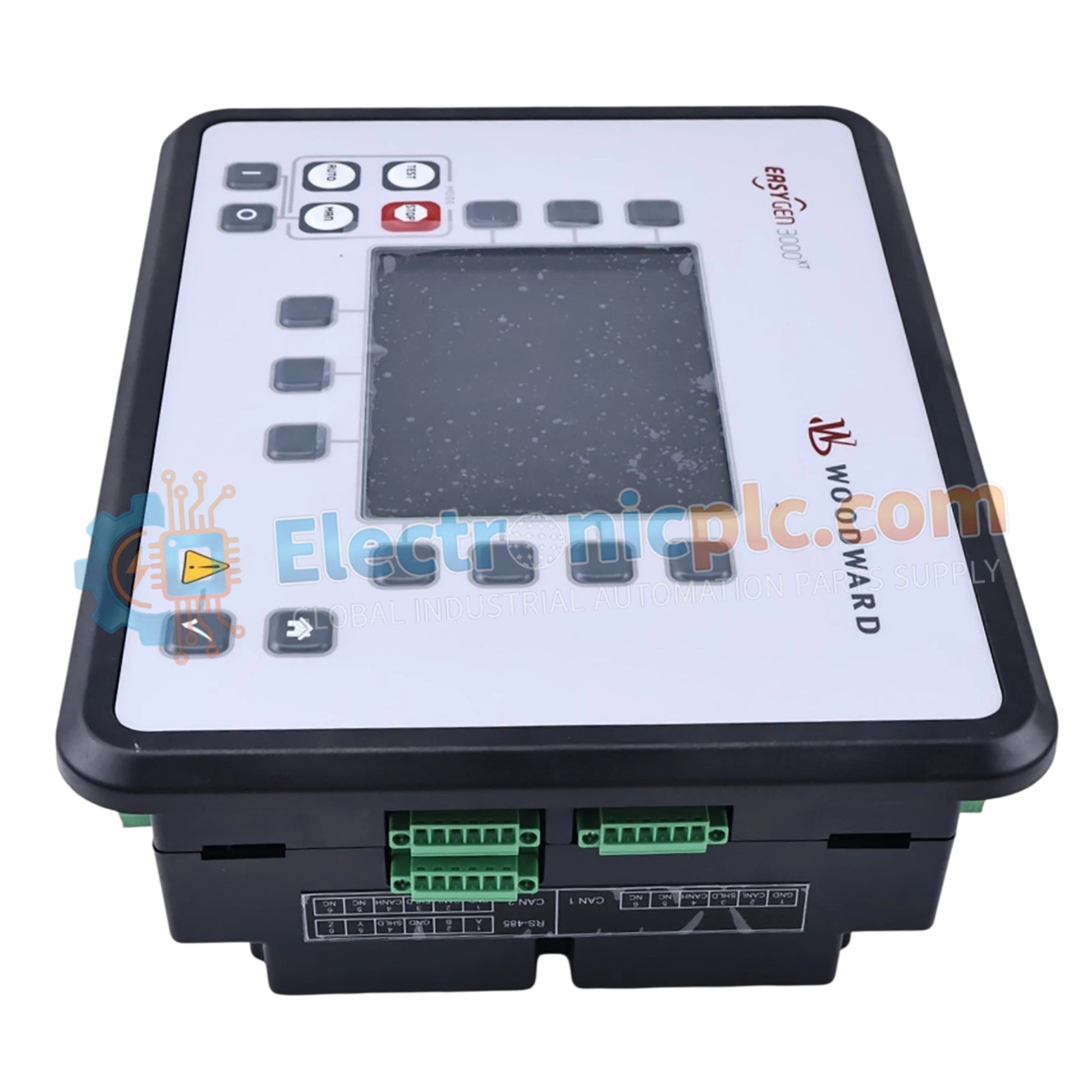

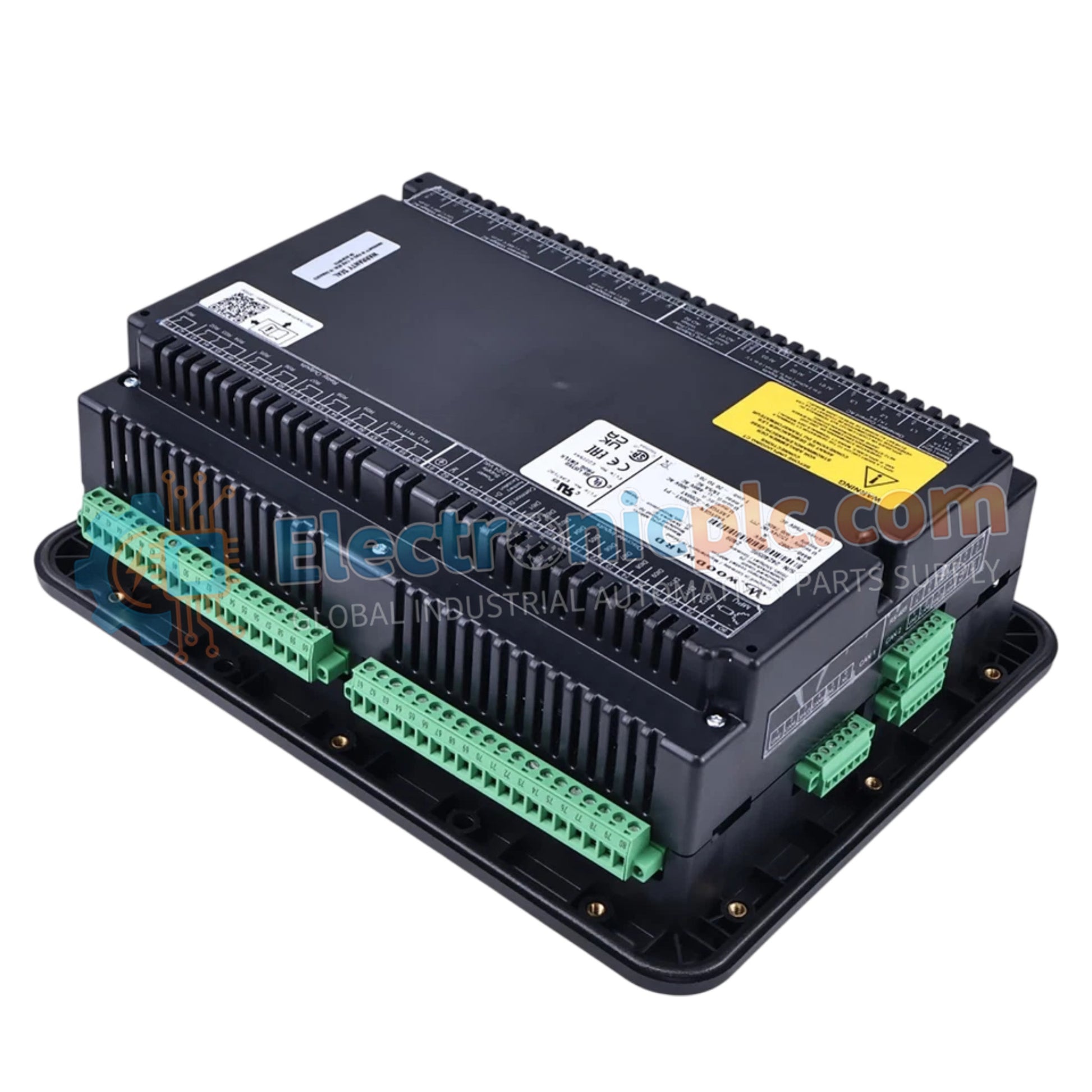

The Woodward 8440-2088, also cataloged as the easYgen-3500XT-P2 Generator Controller Module, operates as a dedicated hardware component for engine generator control and protection within power generation automation networks. The module executes direct physical/electrical control over generator starting, stopping, loading, and unloading sequences through point-to-point parallel logic, evaluating alternator winding parameters up to 690 Vac direct sense across multiple phase configurations.

Hardware Specifications

Actuator Loop Feedback Response & Network Speed Regulation

The Woodward 8440-2088 processes True RMS voltage and current sensing to minimize harmonic interference while executing real-time generator power management. Internal control loops calculate load distribution parameters, issuing dynamic command updates across CAN (SAE J1939) and Modbus RTU interfaces to optimize actuator loop feedback response during parallel generator operations and sudden load transitions.

Frequently Asked Questions

Q: What alternator AC voltage sensing configurations are supported directly by the module terminals?

A: The sensing stage handles direct AC voltage inputs up to 690 Vac across 3-phase 3-wire, 3-phase 4-wire, 1-phase 2-wire, and 1-phase 3-wire generator winding topologies.

Q: How is external communication and configuration established on the easYgen-3500XT-P2 controller?

A: The unit features serial Modbus RTU for SCADA integration, CAN bus for engine ECU J1939 protocols, and a dedicated interface for parameter setup using the Woodward ToolKit software or an RP-3500XT remote panel.

Q: What are the discrete I/O capacities available for fault monitoring and output control?

A: The hardware architecture accommodates up to 23 discrete configurable alarm inputs for protection monitoring and up to 22 discrete configurable outputs for sequence control logic.

Field Installation Guidelines

• Ensure primary power and engine cranking circuits are locked out prior to wiring input sensing terminal blocks.
• Connect voltage sensing lines through twisted-pair conductors, verifying direct sense voltage does not exceed 690 Vac continuous.
• Route CAN network and Modbus RTU serial bus wiring in separate shielded twisted-pair cables isolated from high-current AC output leads.
• Ground cable shielding at the controller cabinet earth terminal only to maintain noise immunity on analog and communication channels.
• Torque panel mounting fasteners to establish rigid mechanical ground and heat dissipation stability.
