Description

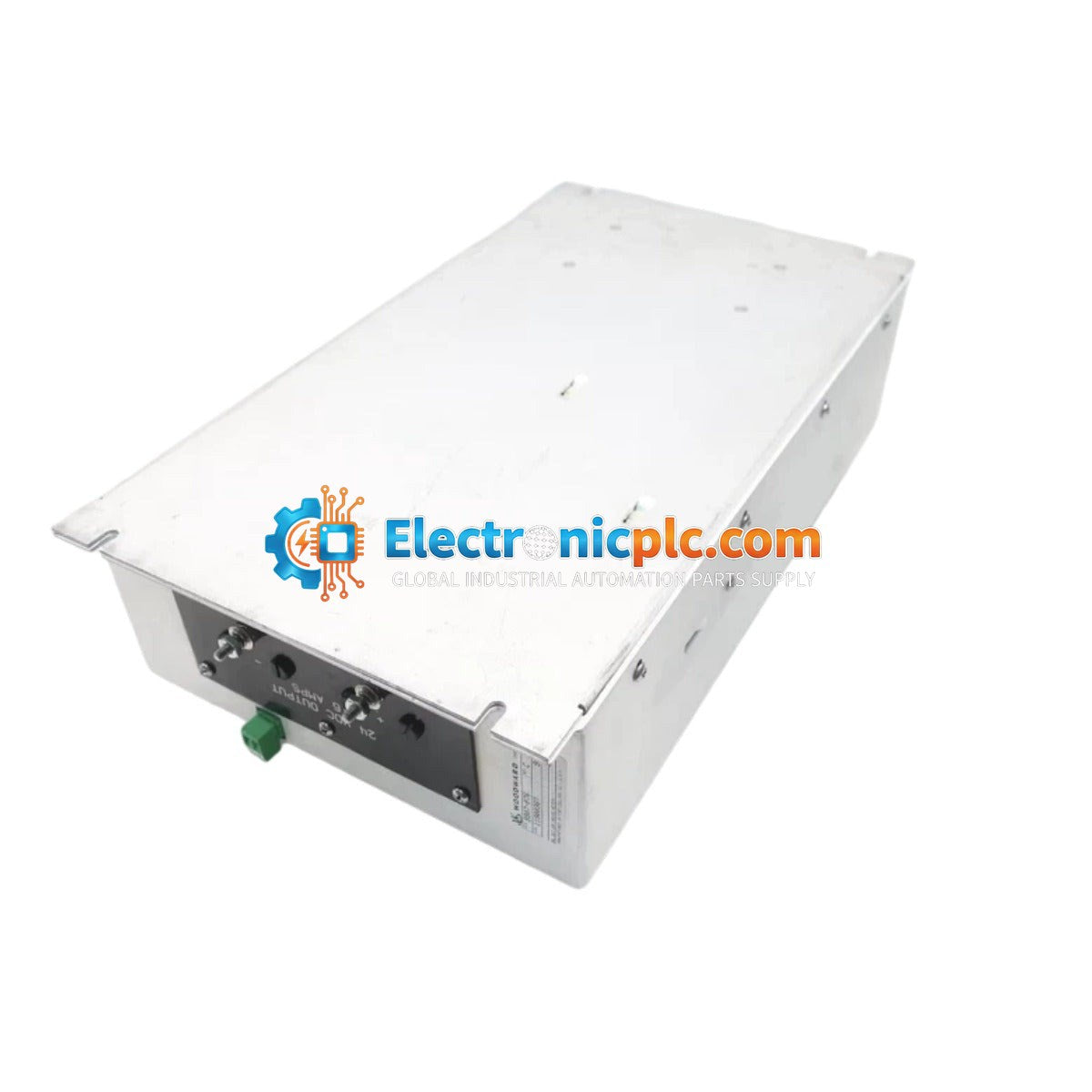

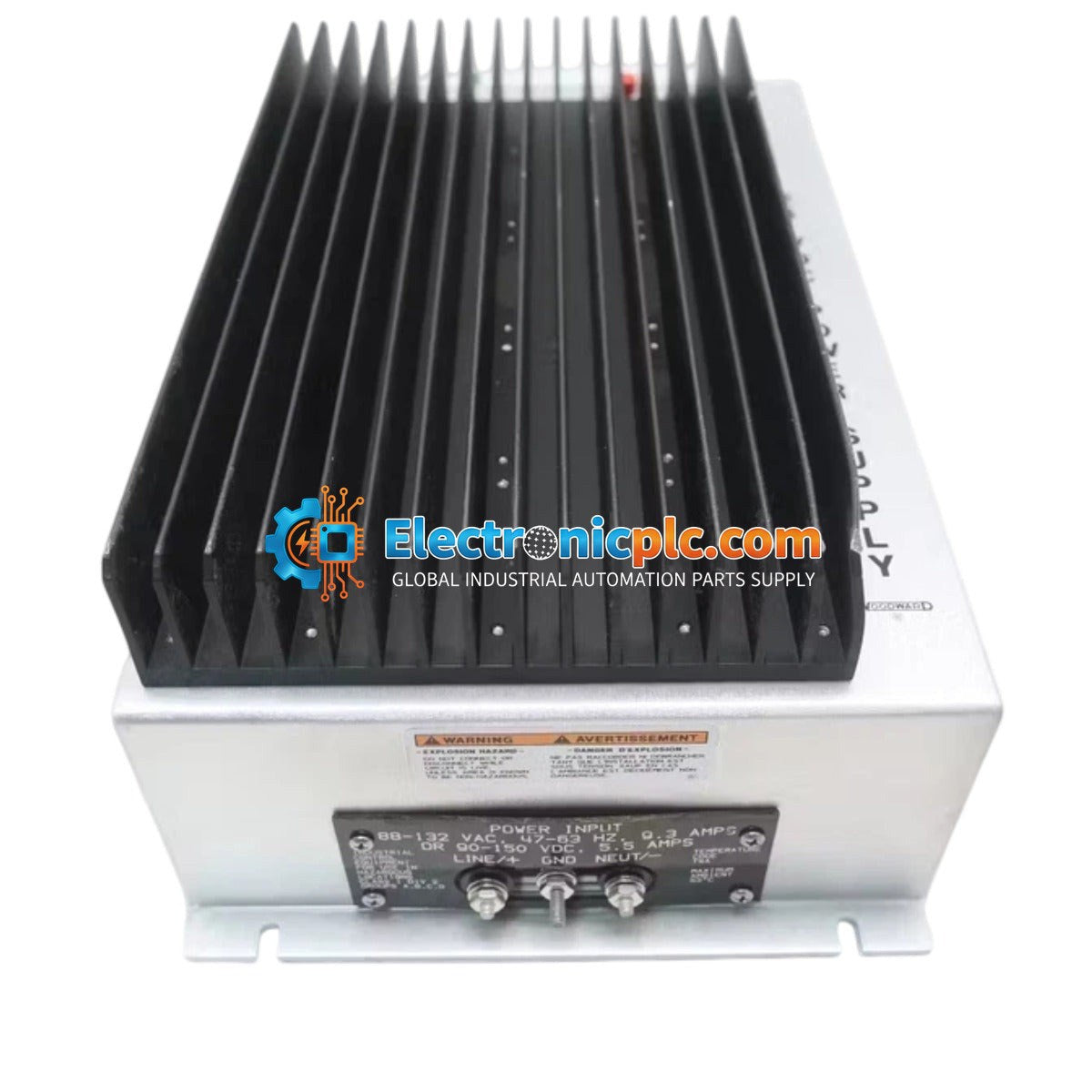

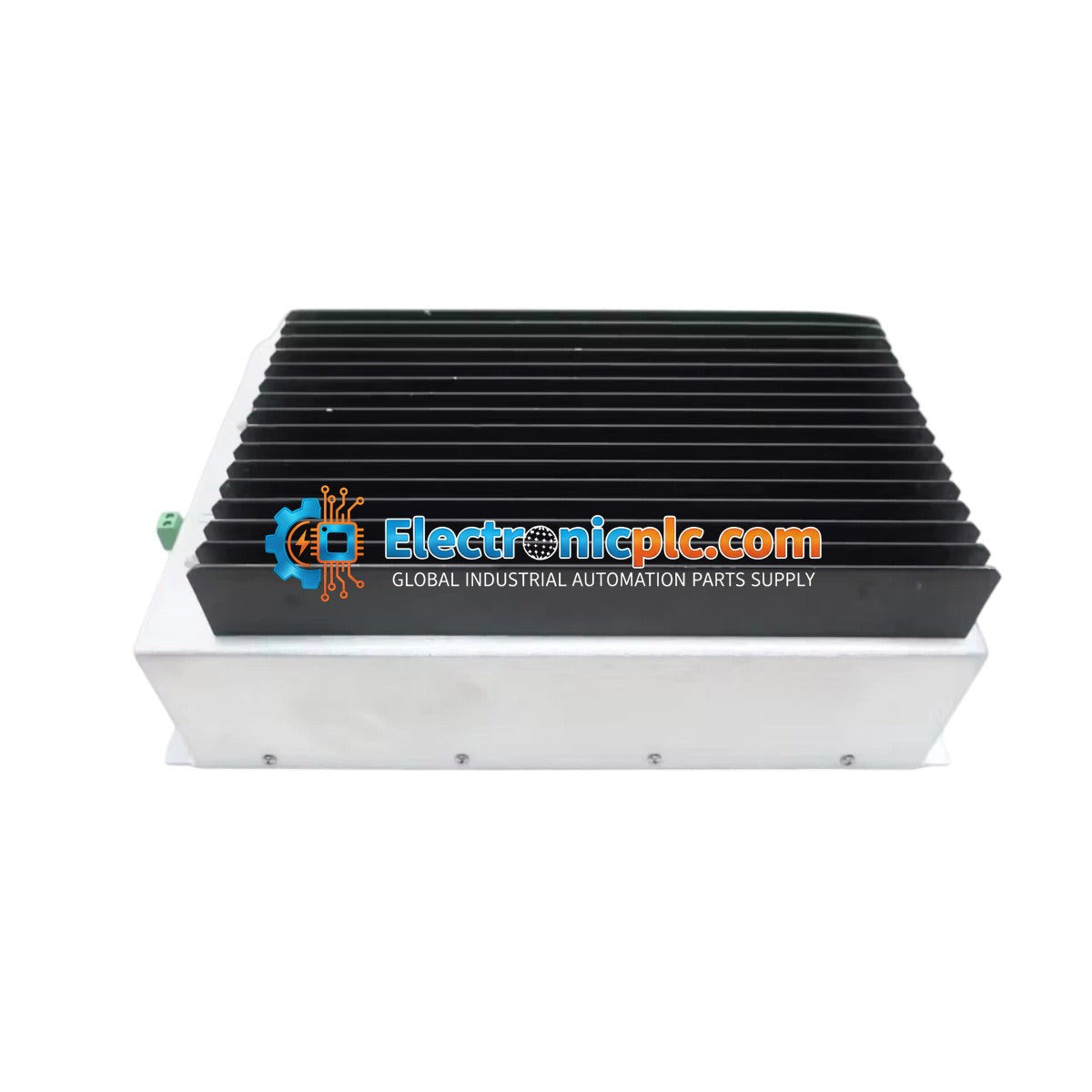

The Woodward 9907-076 is a high-reliability single-output power supply module designed for demanding industrial control environments. This module is engineered to provide stable, consistent power conversion for critical control systems, including power generation, maritime engine management, and petrochemical processing infrastructure. By delivering a reliable 120 V AC/DC output, the 9907-076 ensures the operational continuity of connected actuators, controllers, and instrumentation, effectively minimizing the risk of unscheduled downtime in mission-critical applications.

Features

• High-Availability Design: Built for continuous operation in harsh industrial environments with high electrical noise and thermal stress.
• Integrated Diagnostics: Features front-panel LED status indicators for real-time monitoring of output health, enabling rapid fault identification.
• Robust Construction: Heavy-duty chassis design with advanced thermal dissipation paths to maintain voltage stability without requiring active cooling.
• EMI Shielding: Internal circuitry is protected against electromagnetic interference to ensure signal integrity within control racks.

Applications

The 9907-076 is widely utilized in Woodward control systems for:

• Power generation and distribution control systems.
• Maritime engine and turbine control rooms.
• Petrochemical and refinery process automation.
• Critical infrastructure where high-availability power conversion is required.

Technical Specifications

Installation Guidelines

• Power Down: Always ensure the system rack is de-energized before installing or removing the power supply module.
• ESD Handling: Use standard electrostatic discharge (ESD) precautions, including a grounded wrist strap, when handling the module to prevent damage to internal components.
• Mounting: Ensure the module is fully seated within the Woodward control rack and that all retaining screws are tightened to provide a secure ground connection.
• Ventilation: Maintain adequate clearance around the module to allow for passive thermal dissipation; do not obstruct airflow paths.
• Wiring: Ensure input and output connections are made according to the specific system wiring diagram, utilizing shielded cables where required to maintain EMI immunity.

FAQ

Is the Woodward 9907-076 compatible with all Woodward control racks?

The 9907-076 is designed for integration into standard Woodward control racks. Please verify your specific system manual or rack configuration to ensure compatibility with this power supply module.

Does this module require external cooling?

No, the 9907-076 is designed with advanced thermal dissipation paths and does not require active external cooling under standard operating conditions within the specified temperature range of -40 to 70 deg C.

What do the LED indicators on the front panel signify?

The integrated LEDs provide real-time visual diagnostics for the output status, allowing maintenance personnel to quickly verify that the unit is providing the correct output voltage and to identify potential power fluctuations or failures.
