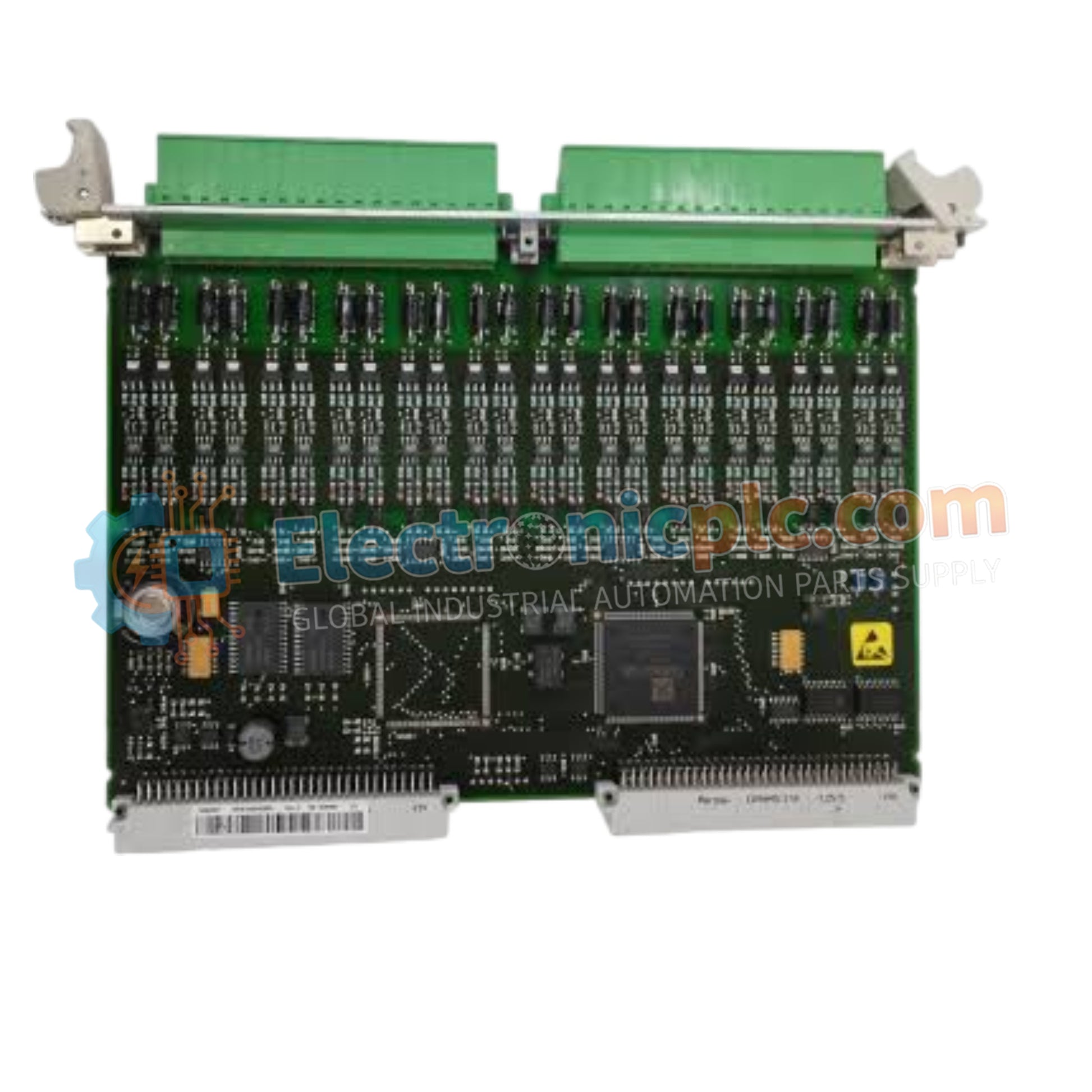

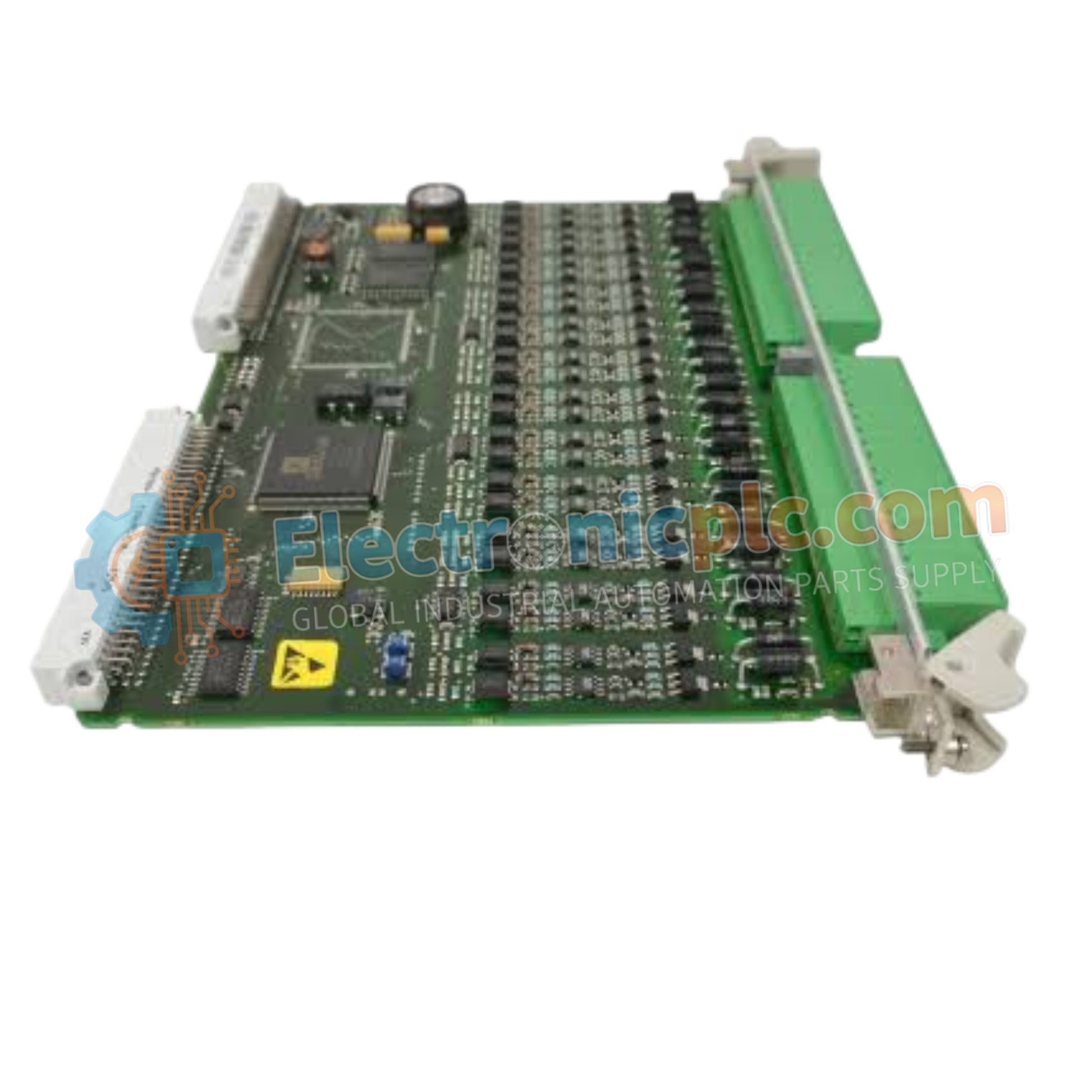

The Woodward AIO31 (ART-21819), also cataloged as the AIO31 (ART-21819) Analog Input/Output Module, operates as a dedicated hardware component for multi-channel analog signal acquisition and control execution within industrial automation systems. It processes continuous voltage and current loops to maintain real-time telemetry tracking and regulation.

Suffix Breakdown & Model Matrix

• AIO31 (ART-21819): Standard analog input/output module variant configured with integrated multi-channel conversion circuits for industrial governor and control architectures.

Hardware Specifications

Actuator Loop Feedback Response and Thermal Profiles

The hardware utilizes high-speed analog-to-digital and digital-to-analog converter stages designed to minimize latency during actuator loop feedback response tasks. Internal thermal heat sink dissipation profiles are structured to sustain operational stability across extreme junction temperatures without active cooling systems. Harmonic distortion suppression filters are implemented on all measurement channels to isolate signal integrity from high-frequency electromagnetic interference present in heavy industrial environments.

Frequently Asked Questions

Q: What is the maximum permitted operating temperature limit for this module?

A: The hardware is rated for continuous operation within an ambient temperature range of -40 deg C to +85 deg C when installed in a properly ventilated cabinet.

Q: Does the module support live insertion or hot-swap procedures under power?

A: Hot-swap operations are restricted; system power must be isolated and control loops placed into manual mode prior to extracting or inserting the module from the rack backplane to prevent transient voltage spikes.

Field Installation Guidelines

• Mount the module vertically on a standard DIN-rail or dedicated backplane to ensure proper convective airflow across the housing boundaries.
• Terminate all analog signal shields to the designated chassis ground bus bar using low-impedance grounding clips to suppress high-frequency noise coupling.
• Verify that the 24 VDC input supply voltage is stabilized and free from transient surges before energizing the system bus.
