Description

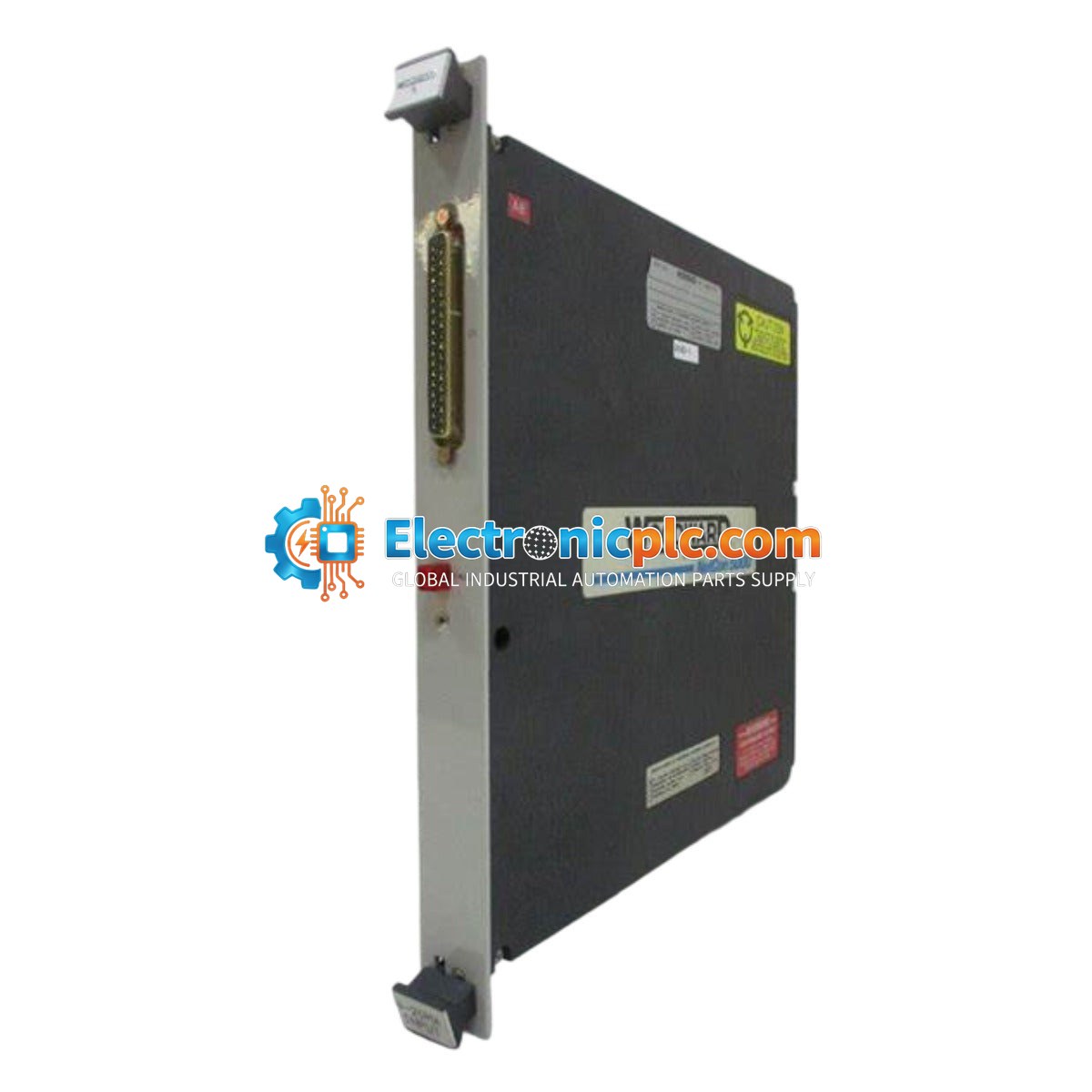

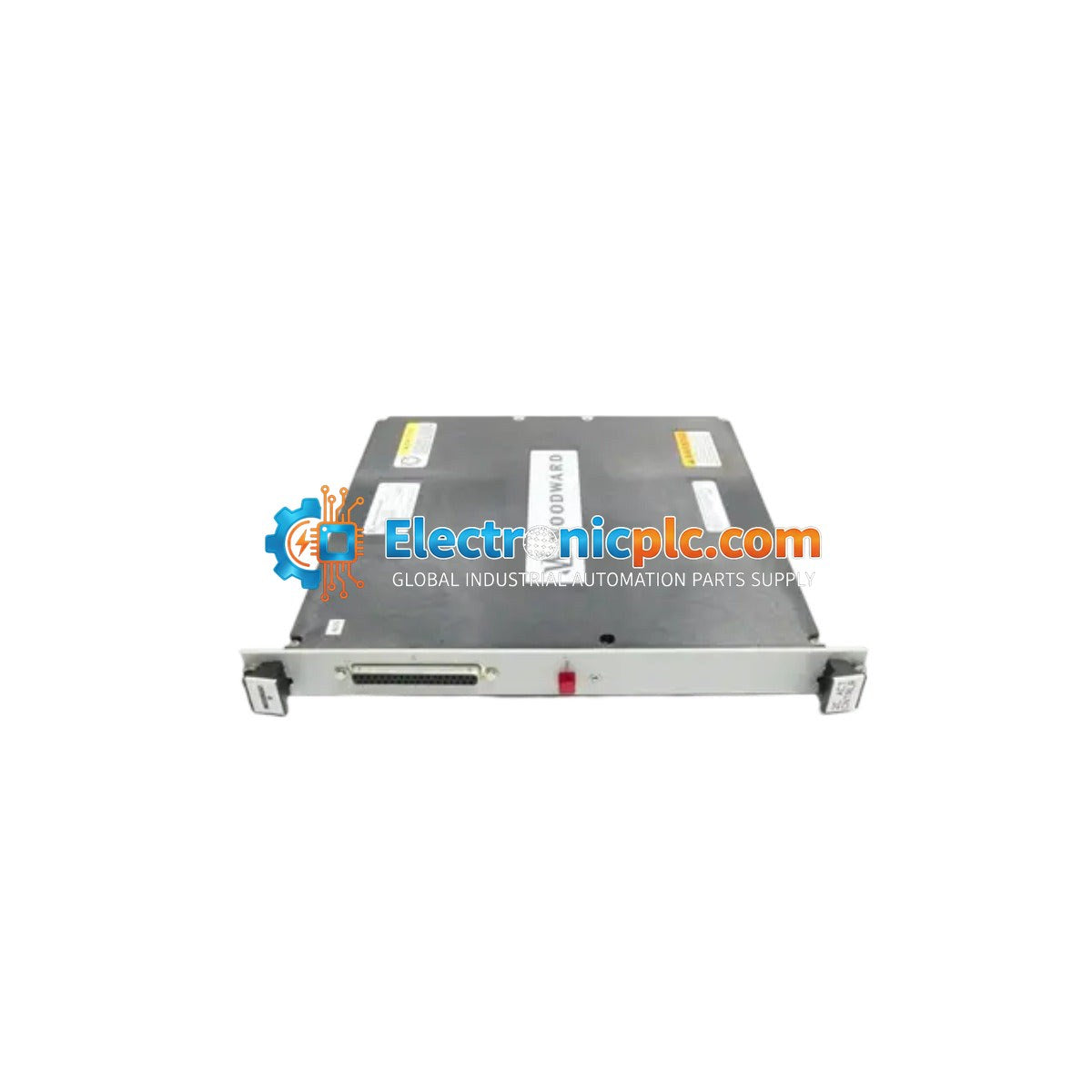

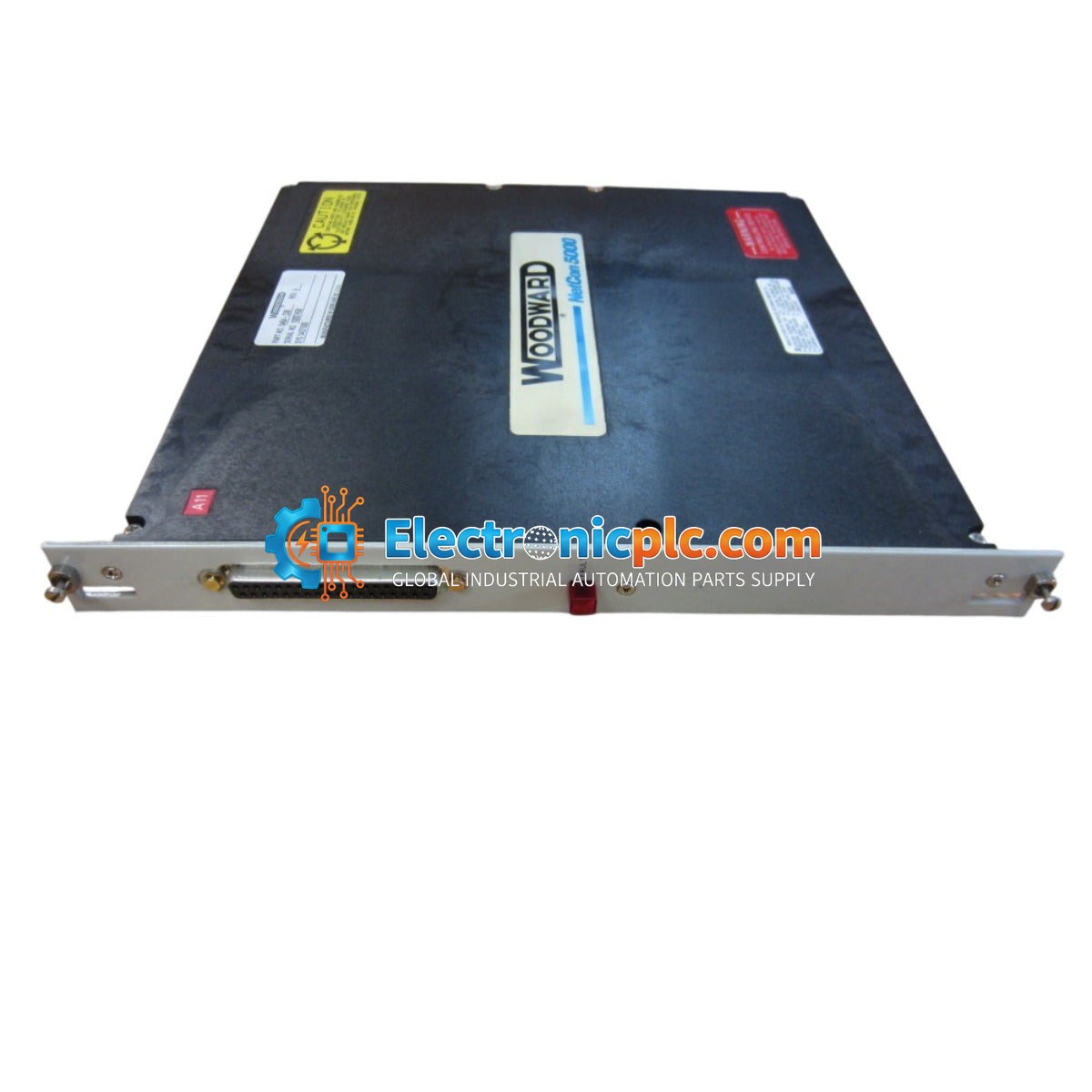

The Woodward 5501-430 is a specialized 2-Channel Actuator Controller designed for the Netcon PLC architecture. This module provides high-precision motion control, executing critical positioning commands for industrial valve and actuator systems. It is engineered for demanding applications such as steam turbine regulation, gas processing, and power generation where synchronized control is essential. The module features real-time diagnostic capabilities and a dedicated Red Fault LED to facilitate rapid troubleshooting and minimize system downtime.

Features

• Dual-channel independent processing for synchronized or redundant actuator control.
• Optimized 50 mA output signal per channel for high-sensitivity governor loops.
• Integrated diagnostic LED for immediate visual status and fault identification.
• Direct backplane connectivity for seamless integration into the Netcon system.
• Rugged construction suitable for industrial control cabinet environments.

Applications

This module is primarily utilized in power generation and heavy industrial sectors, including steam turbine control systems, gas turbine fuel regulation, and precision valve positioning in processing plants.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the Netcon backplane.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to internal components.
• Ensure the module is securely seated in the rack to maintain proper backplane connection.
• Verify that all field wiring is properly shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.
• Maintain adequate ventilation within the control cabinet to keep ambient temperatures within the 0 to 60 deg C operating range.

FAQ

Does the 5501-430 require external power?

No, the module receives its required operating power directly through the Netcon backplane connection.

What does the Red Fault LED indicate?

The Red Fault LED provides visual notification of internal logic errors or signal continuity issues, allowing for faster diagnostic response and reduced MTTR.
