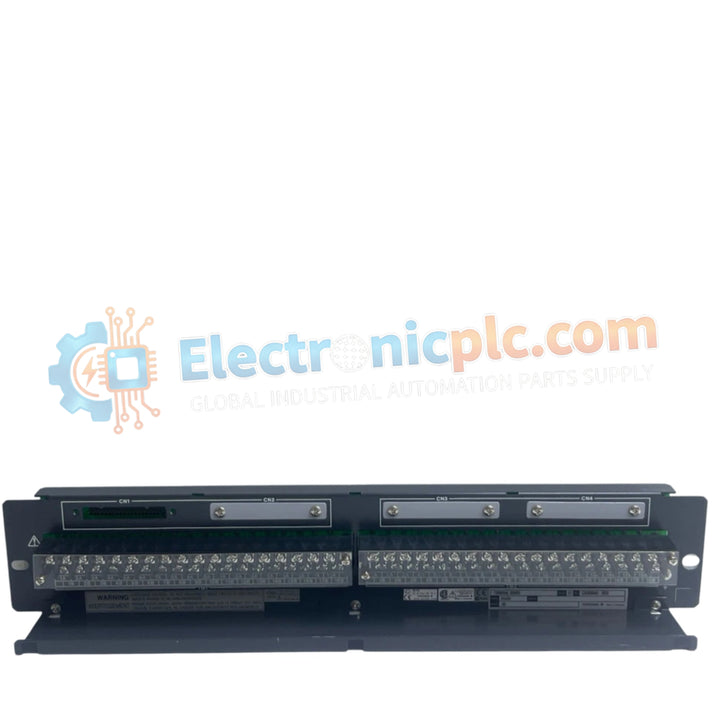

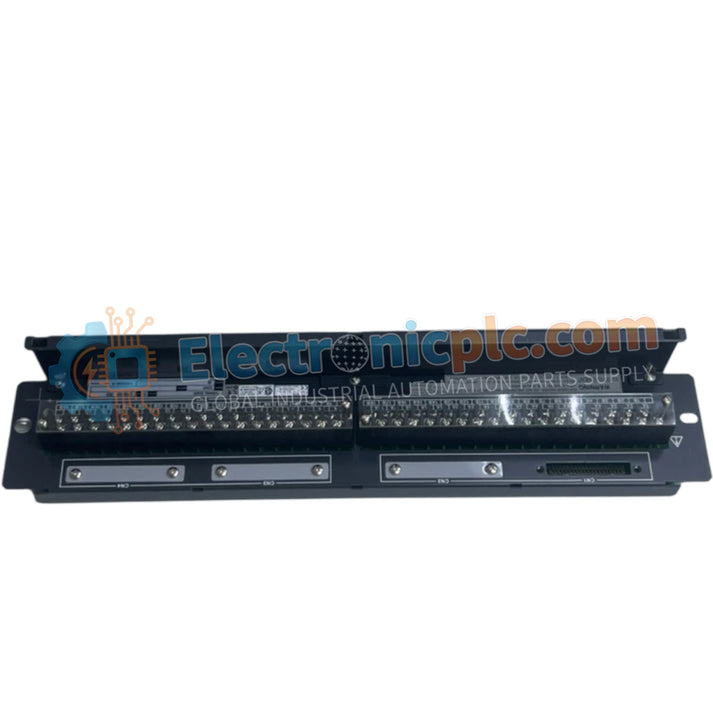

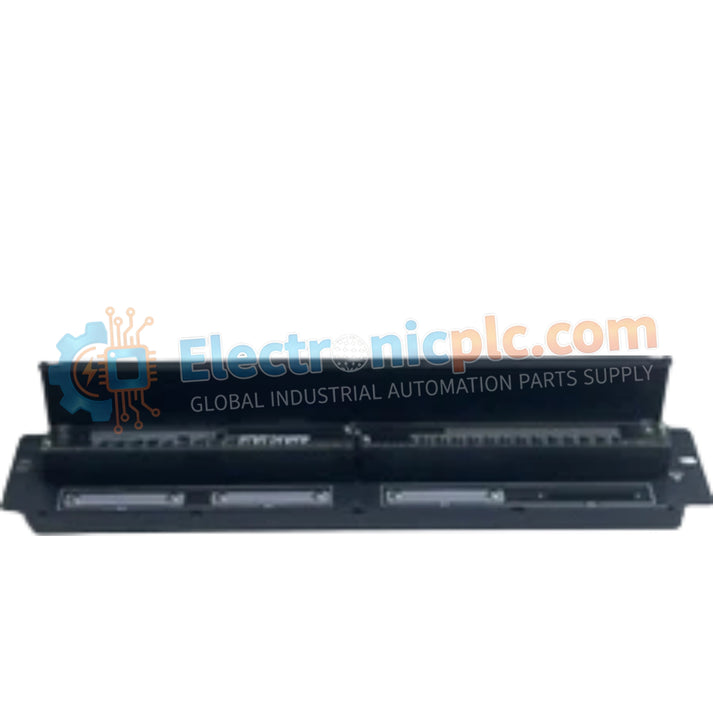

Configured for high-density signal termination within Yokogawa Field Instrument Input/Output (FIO) systems, the Yokogawa AEA4D-00 (AEA4D Terminal Board) provides the physical interface necessary for integrating field analog signals into CENTUM VP and CENTUM CS 3000 DCS platforms.

Suffix Breakdown & Model Matrix

• AEA4D: Base series designation for analog terminal boards used in FIO-based control architectures.
• 00: Specifies the standard base version, providing direct signal pass-through without integrated surge protection modules. (Note: Other variants, such as the AEA4D-05, provide additional surge-suppression capabilities).

Hardware Specifications

System Connectivity and FIO Integration

The AEA4D-00 serves as the critical junction point between raw field instrumentation (transmitters/actuators) and the digital I/O modules of the DCS. By supporting 16 channels that are configurable for either single or dual-redundant operation, this board allows for flexible redundancy planning in critical control loops.

The board is designed to maintain signal path consistency required for 4-20 mA HART protocol loops. By ensuring minimal impedance and robust terminal connection, it prevents signal drift or data loss during the analog-to-digital conversion process within the DCS controller.

Frequently Asked Questions

Q: Can the AEA4D-00 be upgraded to provide surge protection if the environment changes?

A: The AEA4D-00 is a dedicated version without surge protection. If your site conditions require protection against induced voltage transients (e.g., in outdoor or lightning-prone areas), you must replace the board with a model explicitly featuring surge suppression, such as the AEA4D-05, rather than attempting to retrofit the base version.

Q: Is the terminal board compatible with both current and voltage inputs?

A: Yes. As a passive termination board, it facilitates the routing of both current (4-20 mA) and voltage (1-5 V) signals. The specific signal type is handled by the configuration of the associated I/O module connected to this board.

Field Installation Guidelines

• Terminal Torque: Tighten all M4 screw terminals to the manufacturer-specified torque (1.2 Nm) to ensure a stable, low-resistance connection. Periodic checks are recommended in high-vibration environments to prevent connection loosening.
• Grounding and Shielding: Terminate all signal cable shields at the designated instrument earth bus provided within the cabinet. Proper grounding is essential to protect the integrity of the 16 analog channels from common-mode electrical noise.
• Wiring Segregation: Maintain at least 300 mm of separation between the AEA4D-00 signal wiring and any high-power cabling (AC supplies, VFD outputs) to minimize electromagnetic interference (EMI).
• Thermal Environment: Ensure the cabinet climate control systems are operational. Although the board is rated for up to 70 deg C, keeping the ambient temperature below 50 deg C significantly extends the lifespan of the terminal housing and contact integrity.
