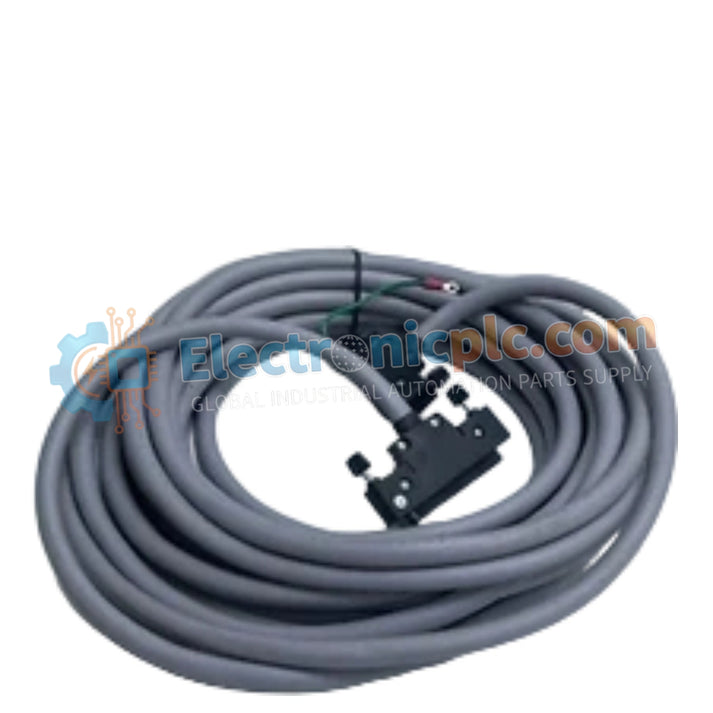

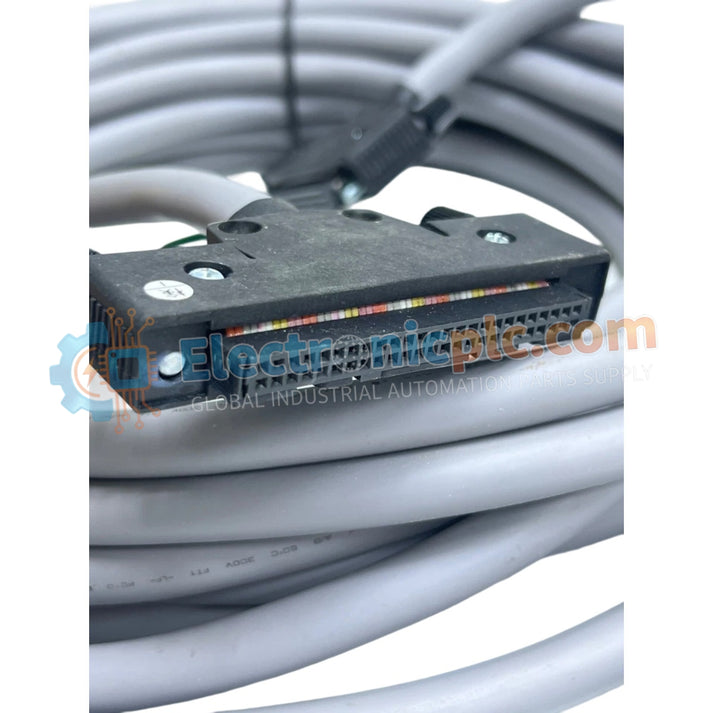

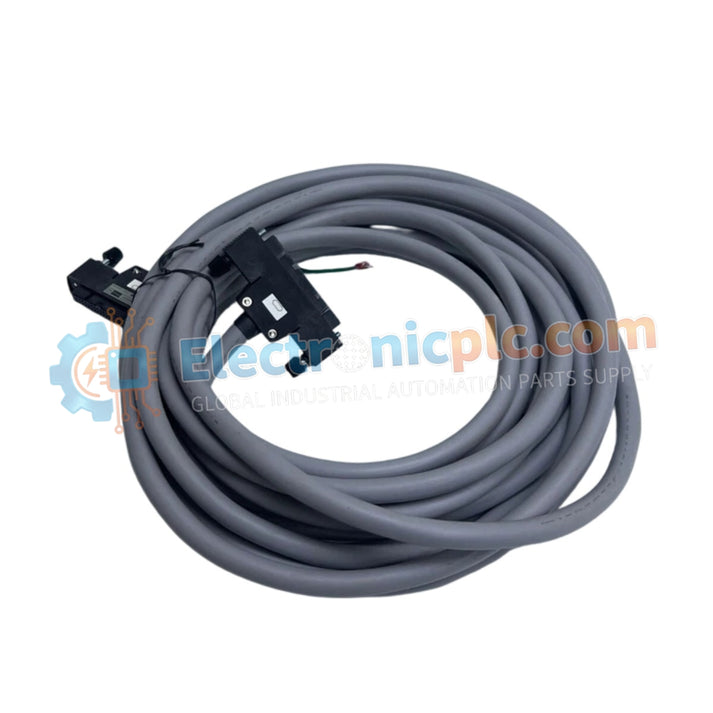

The Yokogawa AKB331-M002 (AKB331-M002) is a specialized interface cable engineered for reliable signal transmission within Yokogawa DCS and PLC system architectures. Designed for high-integrity connectivity, this cable facilitates stable data exchange between system modules and field-side interface terminals.

Hardware Specifications

System Connectivity & Signal Integrity

The AKB331-M002 is utilized as a critical link in industrial control systems, connecting I/O modules to terminal boards or field interface units. Its design minimizes signal crosstalk and electromagnetic interference (EMI), which is essential for maintaining the accuracy of analog and digital signals in complex automation environments. By utilizing robust shielding and high-quality termination, the cable ensures that process variables reach the controller with minimal latency or data corruption, supporting the overall availability and reliability of the process control architecture.

Frequently Asked Questions

Q: Is this cable suitable for hazardous area installations?

A: The cable itself acts as a conduit for signals. When used in hazardous areas, ensure that the entire loop, including the cable, complies with the required intrinsically safe barriers and installation standards defined by the system's safety certification.

Q: Can the AKB331-M002 be used for high-speed communication signals?

A: Yes. The AKB331 series is engineered to support the signal requirements of Yokogawa I/O modules, providing a stable path for both standard I/O data and high-speed communication packets required by modern PLC backplanes.

Field Installation Guidelines

1. Inspect the cable for any signs of mechanical damage or insulation wear before installation.
2. Ensure connectors are fully seated and locked; verify that the connection is tight to prevent intermittent contact errors.
3. Route the cable through dedicated signal wire trays, maintaining physical separation from high-voltage power cabling to prevent induced noise.
4. If excessive length is present, bundle the excess cable neatly; avoid sharp bends or tight radii that could compromise the internal wiring.
5. Confirm that the specific AKB331 variant matches the pinout requirements of the I/O module and the termination board before final connection.
