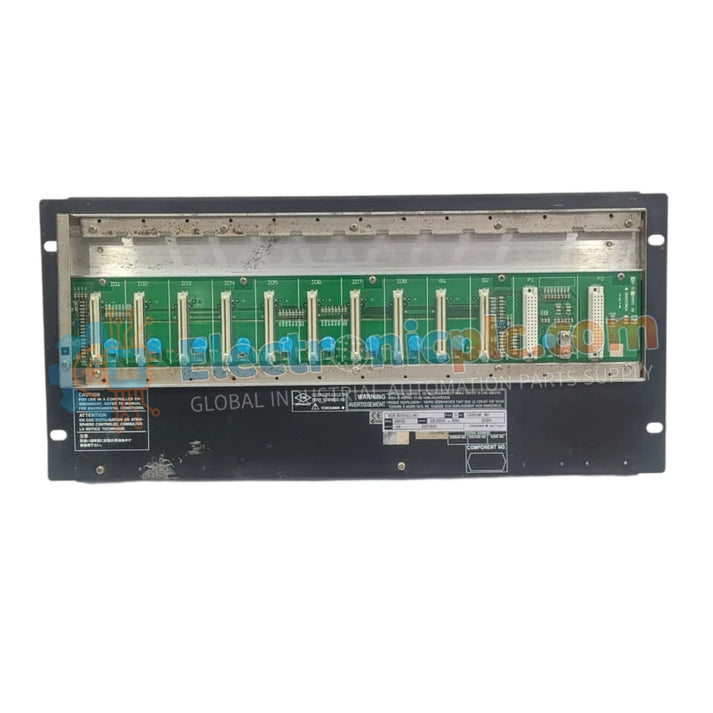

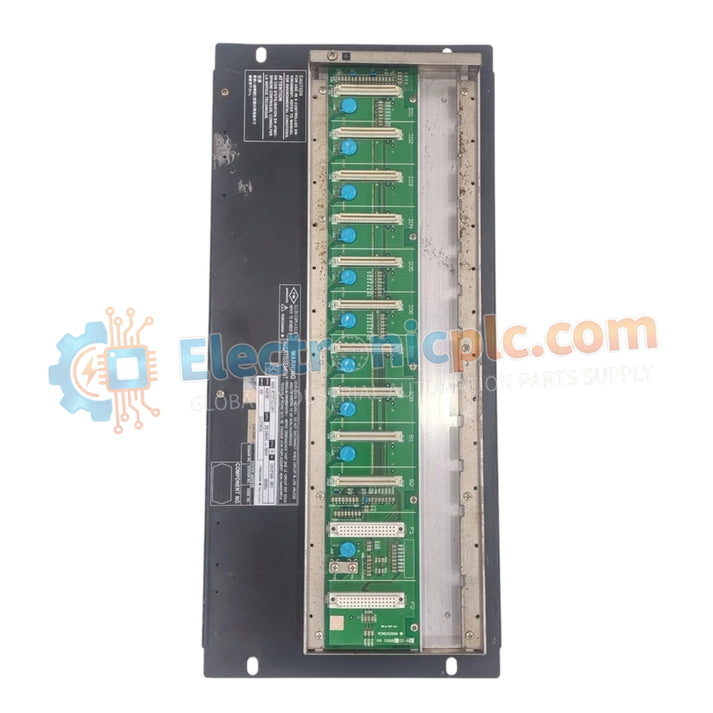

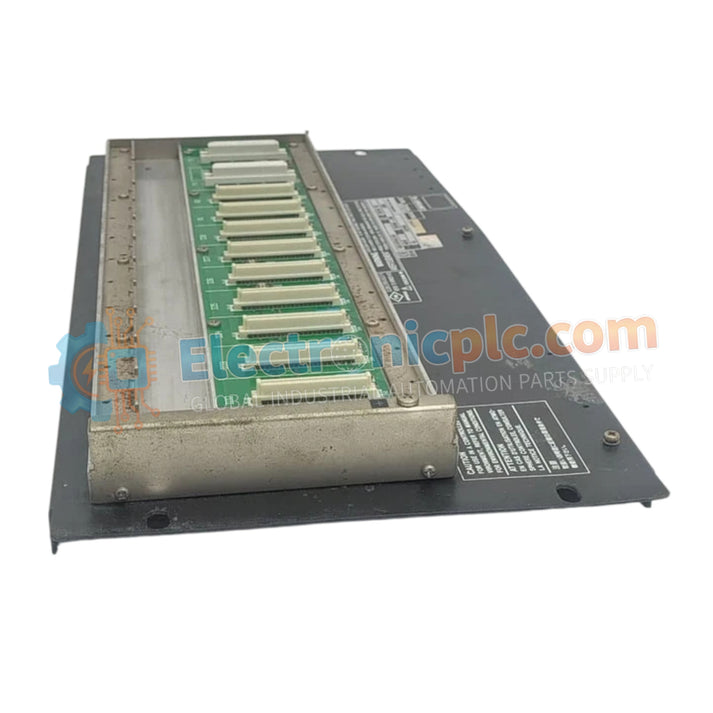

Configured for communication bridge management in Centum VP control networks, the Yokogawa ANR10D-415/NDEL (ANR10D-415 Node Interface Chassis) provides direct physical/electrical execution of bus signal distribution across system nodes.

Hardware Specifications

Process Control and Signal Connectivity

The ANR10D-415/NDEL chassis facilitates the interconnection of control processors and I/O units within the Centum architectural framework. The module architecture ensures channel-to-channel isolation by maintaining strict separation between power distribution and signal routing paths, which mitigates common-mode interference. The chassis supports standard DCS communication protocols, ensuring deterministic data exchange between controllers and distributed I/O. Its internal bus backplane is designed to maintain signal integrity for real-time process control operations, minimizing latency during high-density I/O traffic.

Frequently Asked Questions

Q: Can the ANR10D-415/NDEL chassis be daisy-chained for node expansion?

A: Node expansion is restricted by the specific architectural constraints of the Centum VP node bus; please refer to the system architecture diagram to ensure the total number of nodes does not exceed the controller bus capacity.

Q: Is this interface chassis compatible with both Centum CS and Centum VP systems?

A: Yes, the ANR10D-415/NDEL is designed to function as an interface component within the legacy Centum CS and current Centum VP hardware environments.

Field Installation Guidelines

1. Mount the chassis on a standard system cabinet rail using the provided mounting points, ensuring the unit is level and secure to prevent mechanical strain on the backplane connectors.
2. Verify that the ambient environment is free from corrosive gases and excessive dust, as the chassis chassis cooling relies on natural convection.
3. Ensure all signal cables are properly shielded and grounded to the common cabinet ground bus to maintain signal integrity.
4. Route communication cables through designated cable trays, maintaining a minimum separation distance from AC power cables to prevent electromagnetic noise induction.
5. Inspect all interface pins for debris before seating modular components into the chassis to ensure optimal electrical contact.
